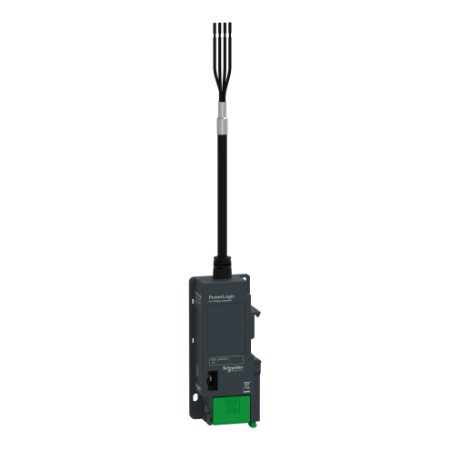

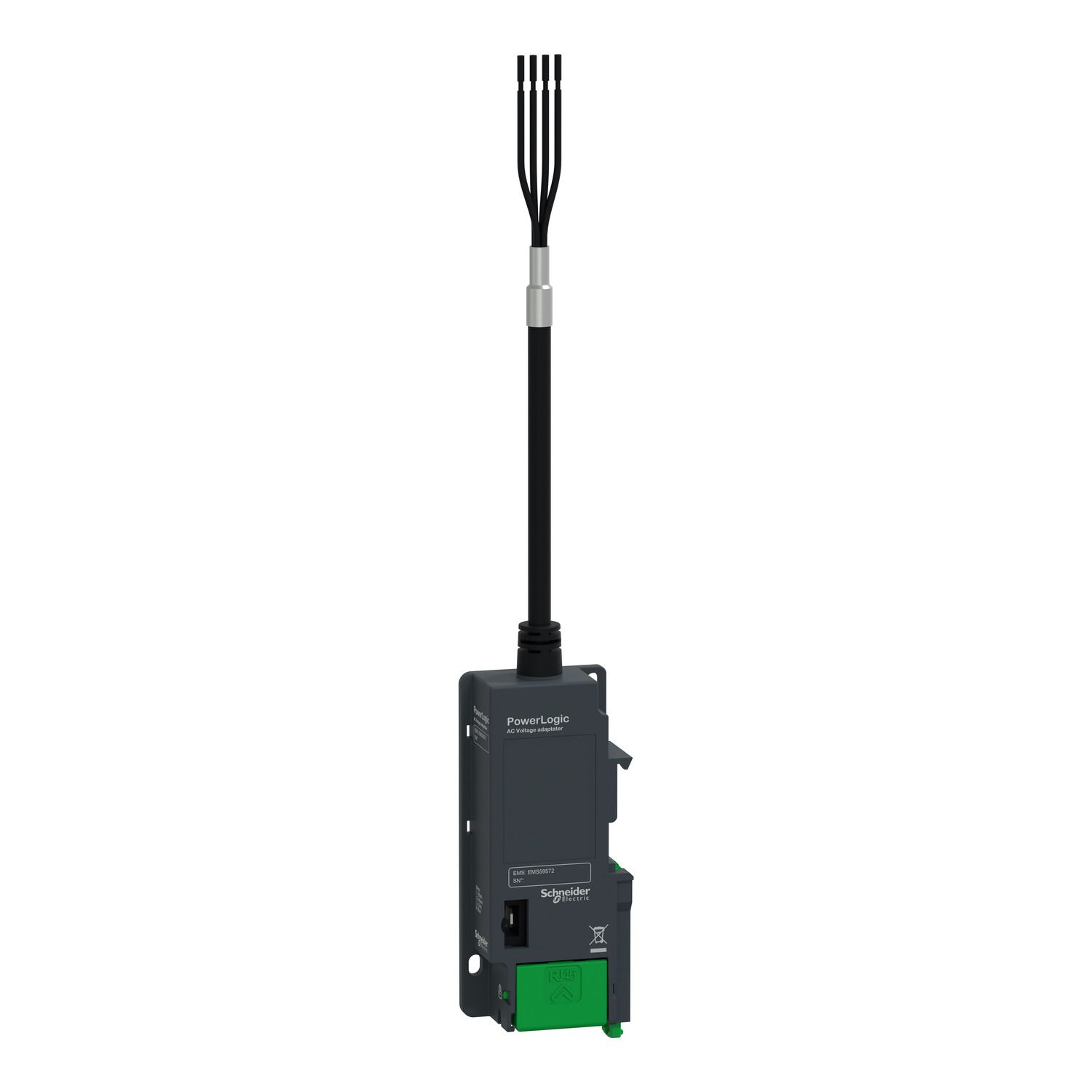

Picture of PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II
SKU:

EMS59572

PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II

Old price: $550.00 INC GST
$495.00 INC GST
Available for Shipping : 01-Mar-2026
PowerLogic VTs voltage adapter, from 47 to 240 V, overvoltage cat II
  • Flexible voltage adapter
  • Un rated voltage is 11 to 36 Kv
  • The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral.
  • It include 4 wires inputs, and RJ45 communication port for output
  • Voltage sensor used with SC150 module
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Mar-2026
Environmental Disclosure
Declaration of conformity
User guide
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. The input voltage Phase-to-phase 38VAC to 400VAC and 22 VAC to 240 VAC for Phase-to-neutral. It include 4 wires inputs, and RJ45 communication port for output. Complient to standards IEC 60044-2, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 50 mm in height, 50 mm in width and 100 mm in length.

Products specifications

Attribute name Attribute value
Main
Product or component type voltage adaptor
Range of product PowerLogic T300
Complementary
Rated voltage 11-36 kV
Input voltage 22...240 V AC (L-N), 38...400 V AC (L-L)
Overvoltage category III
Input voltage limits 630 V (L-L)
Electrical connection input: 4 wires 1-1 mm², output: connector RJ45
Network frequency 50/60 Hz
Environment
Operating altitude <= 2000 m
Width 100 mm
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-85 °C
IP degree of protection IP30 conforming to IEC 60529
Net weight 0.043 kg
Length 100 mm
Environmental characteristic salt mist: 200 h conforming to IEC 60068-2-11
Mounting support DIN rail
Standards IEC 60044-2
Ambient air temperature for operation -40-85 °C
Height 50 mm
IK degree of protection IK07 conforming to IEC 62262
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 6.0 cm
Package 1 Length 17.5 cm
Package 1 Weight 173.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.5 kg
