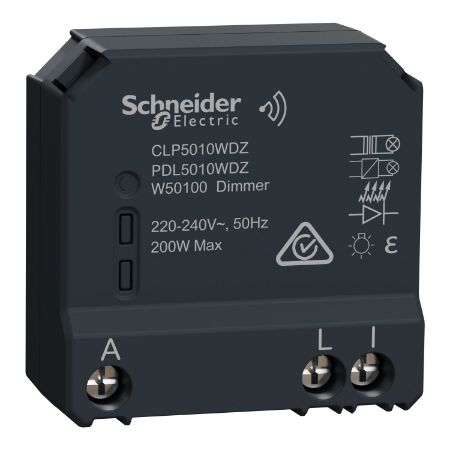

Picture of Clipsal Wiser, Micro Module Smart Dimmer 200 W Max, 240 V, Grey
SKU:

CLP5010WDZ

Clipsal Wiser, Micro Module Smart Dimmer 200 W Max, 240 V, Grey

Old price: $177.10 INC GST
$212.52 INC GST
Available for Shipping : 17-Jun-2025
Clipsal Wiser, Micro Module Smart Dimmer 200 W Max, 240 V, Grey
  • Simple app configuration and control from smart devices
  • Via Zigbee 3 0 and the Wiser by SE app
  • Mounts behind switch plate with momentary push button switch
  • Dimmer uses a 2 wire design for easy retrofit
  • 1s - 24hr Timer, 24/7 scheduling
  • Voice integration and remote control
  • Up to 10 momentary push button switches can be connected
  • Device can switch ohmic inductive or capacitive loads
  • Switch has voltage free relay contracts
Be the first to review this product
Manufacturer: Clipsal
User guide
System user guide
Instruction sheet
Catalog
China RoHS declaration
EU RoHS Declaration
REACh Declaration
End of life manual
Product Environmental
The Wiser Micro Module Smart Dimmer combines smart dimmer functionality with bell press push-button switches. It transforms a conventional push-button switch into a connected device you can control from the switch or through the Wiser by SE app.

Products specifications

Attribute name Attribute value
Main
Range Iconic
Product or component type connected dimmer
Product brand Clipsal
Complementary
Technology type Zigbee
Main colour tint grey
Load type LV halogen lamps: 0...200 W (electronic transformer), halogen lamp: 0...200 W at 240 V, incandescent lamp: 0...200 W at 240 V, compact fluorescent lamp: 0...200 W, dimmable LED: 0...150 W
Device application light control
Software name Wiser by SE App
Wiring configuration 2-wire
Communication network type wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m
Concentrator compatibility Wiser hub generation 1
Protection type overcurrent protection, short-circuit protection, overheating protection
Control type by mobile application, push-button
Material plastic
Number of ways 5 ways
Device presentation module
Type of installation indoor installation
Colour tint grey
Dimmer type universal
Surface finish matt
Mounting support installation box, wall
Embedding depth 40 mm
[Ue] rated operational voltage 220...240 V AC 50 Hz
Mobile App name Wiser by SE
Environment
IP degree of protection IP20
Relative humidity 5-90 % non-condensing
Standards AS/NZS 4268 radio, AS/NZS 60669.2.1 EMC, AS/NZS 60669.2.1 safety
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.2 cm
Package 1 Width 7.5 cm
Package 1 Length 7.5 cm
Package 1 Weight 80.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.68 kg
