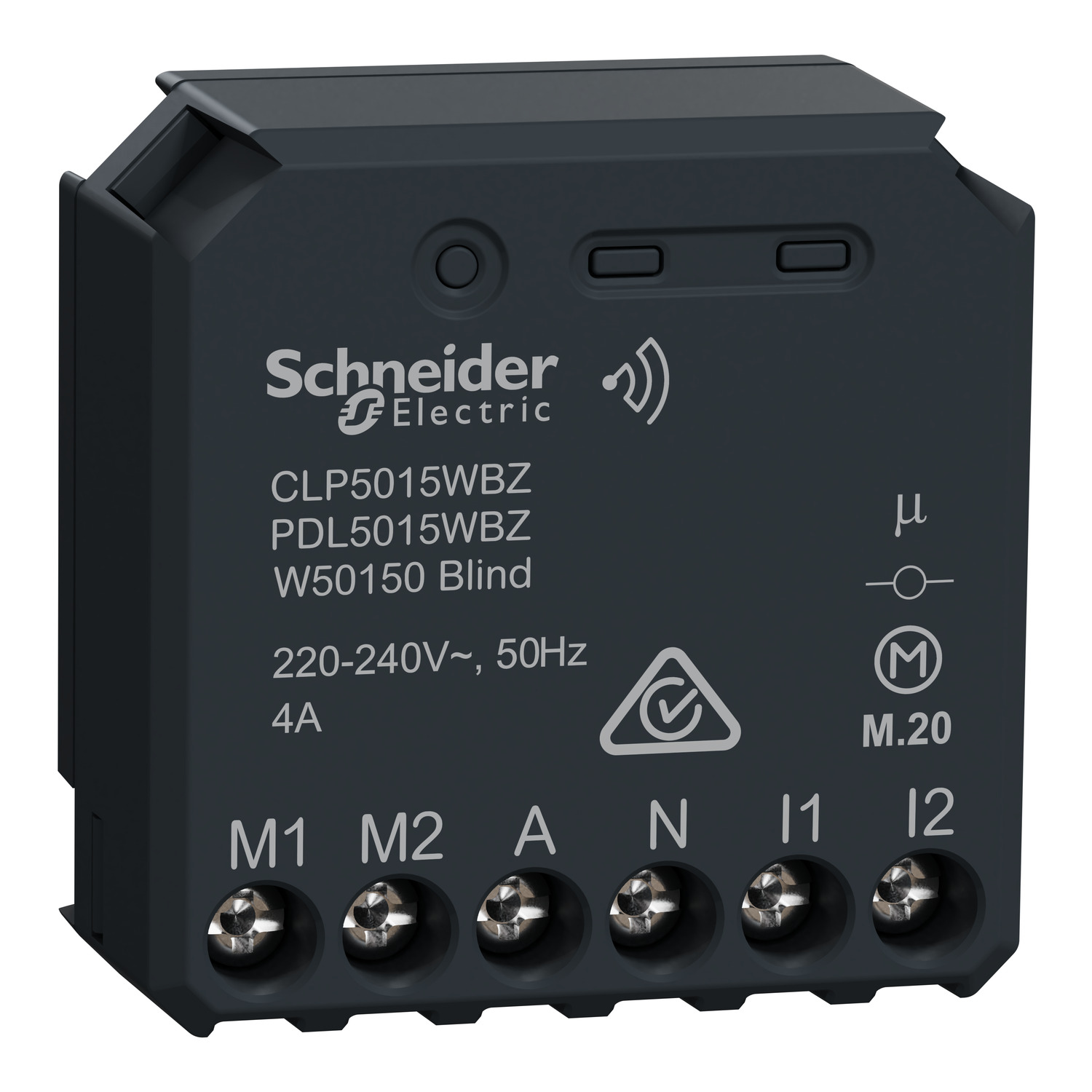

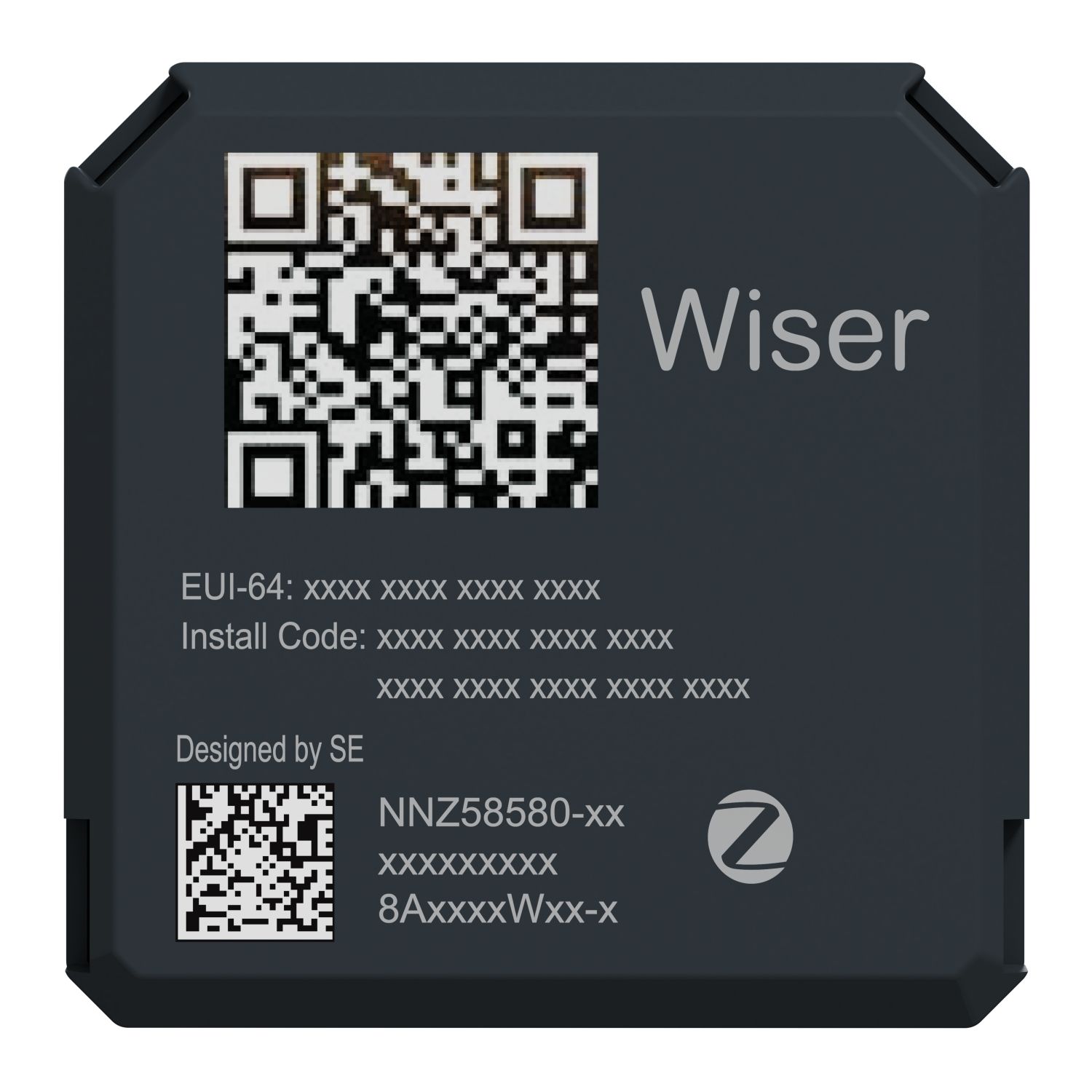

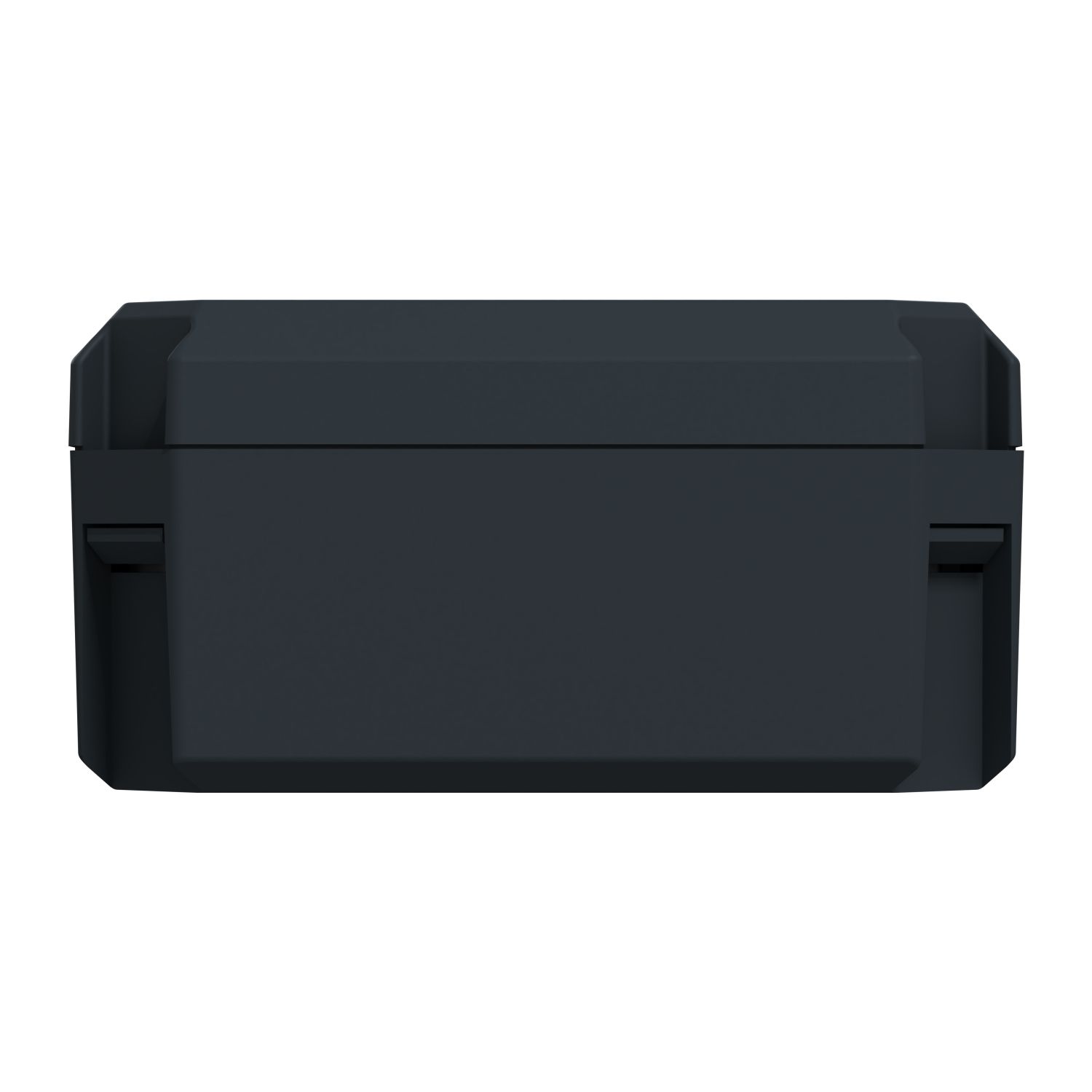

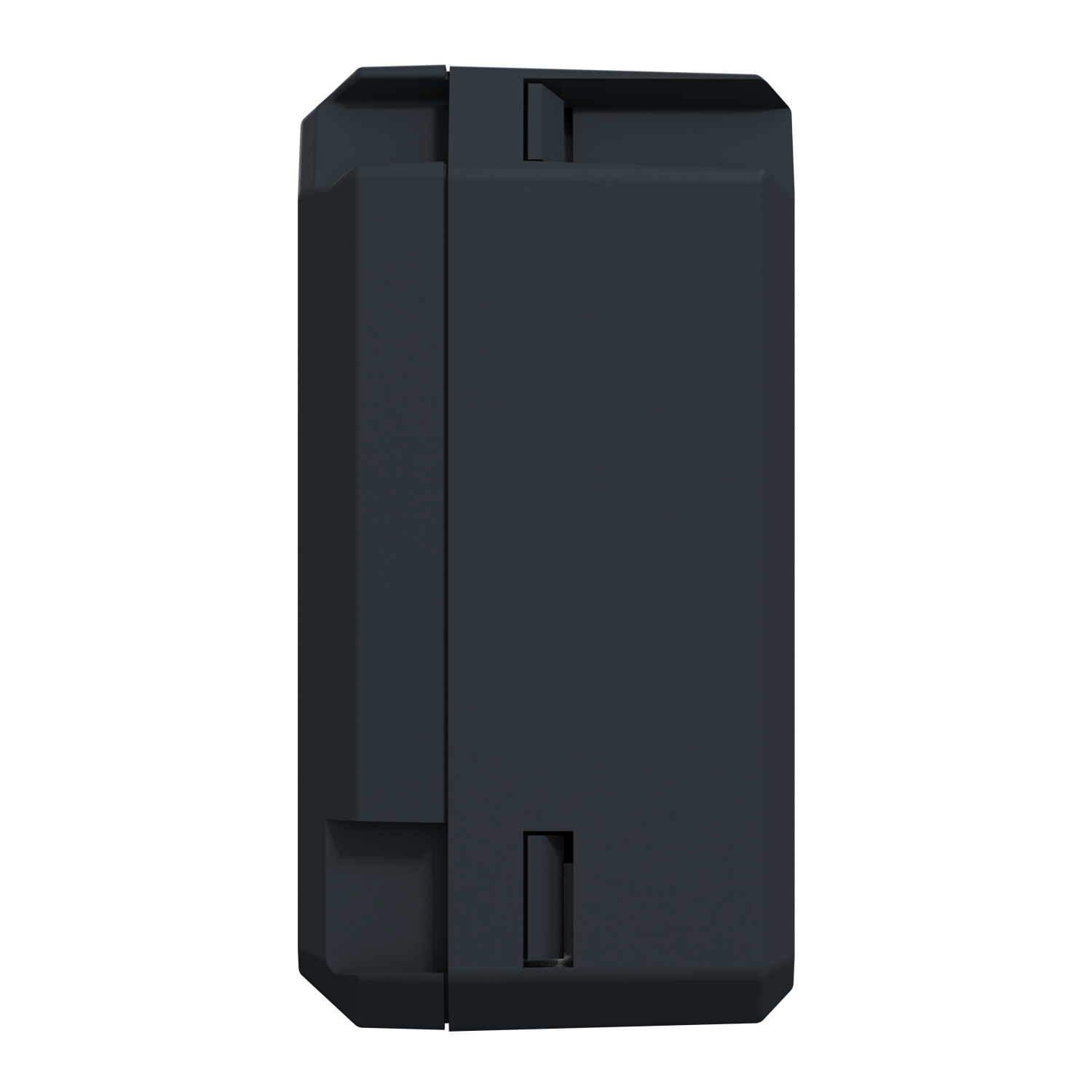

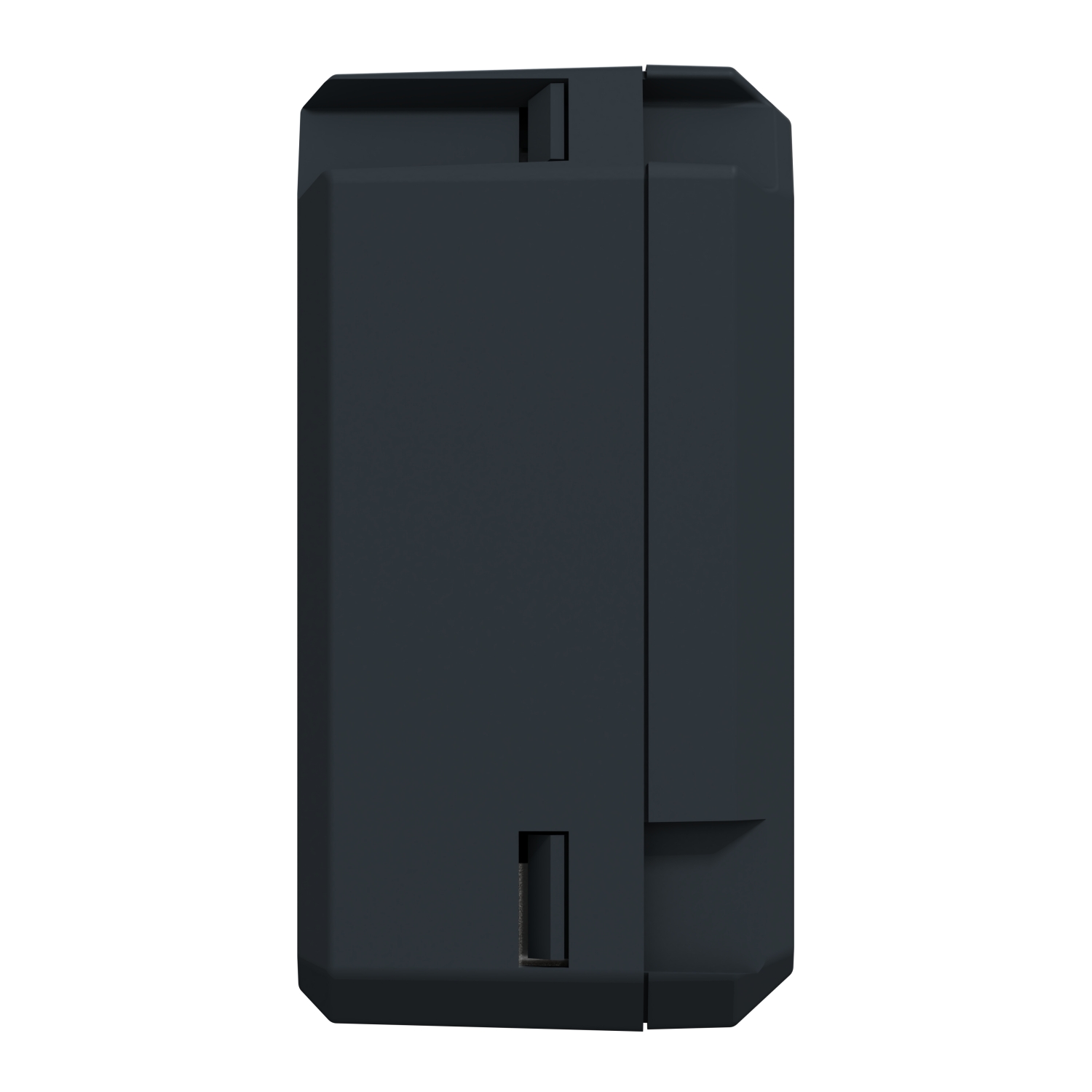

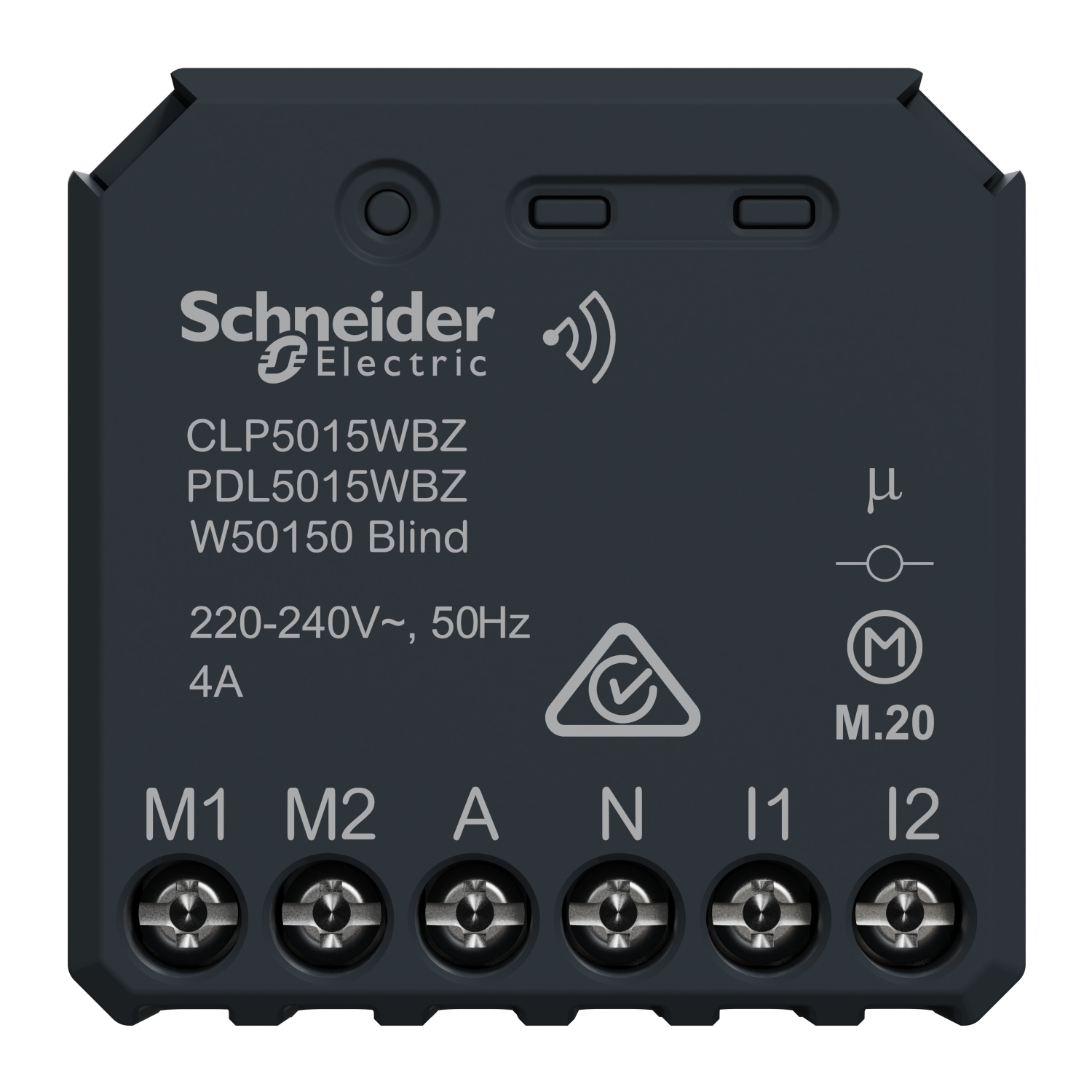

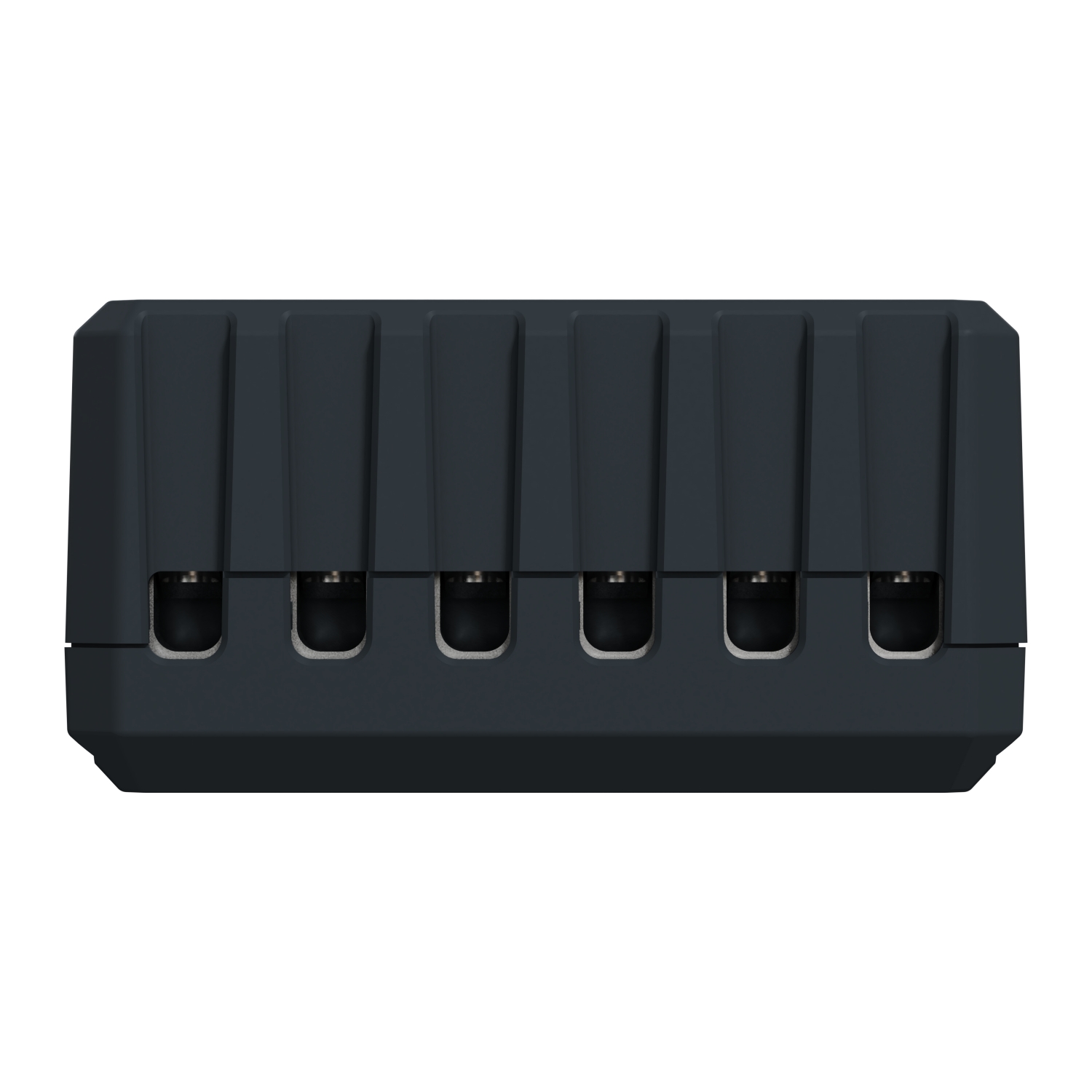

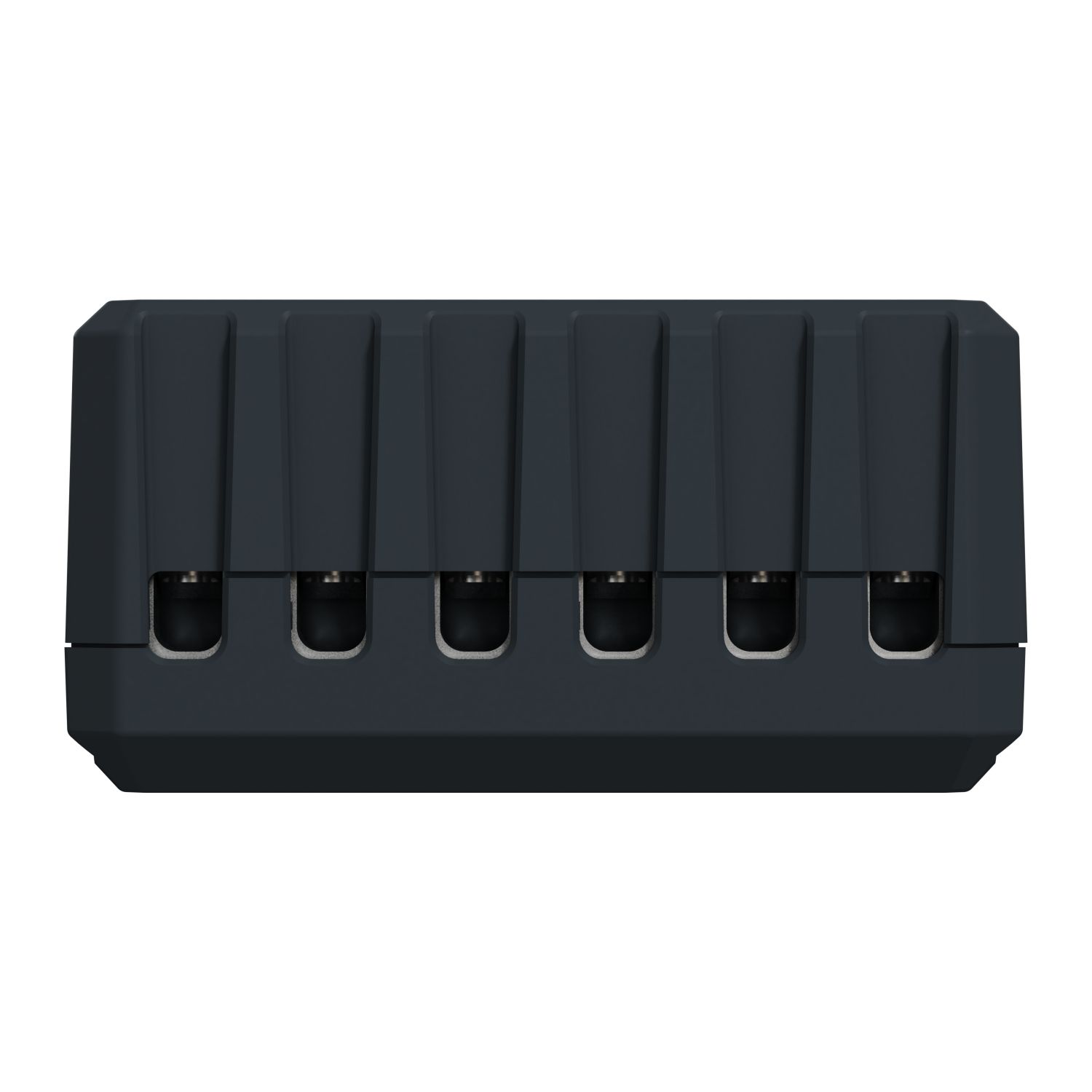

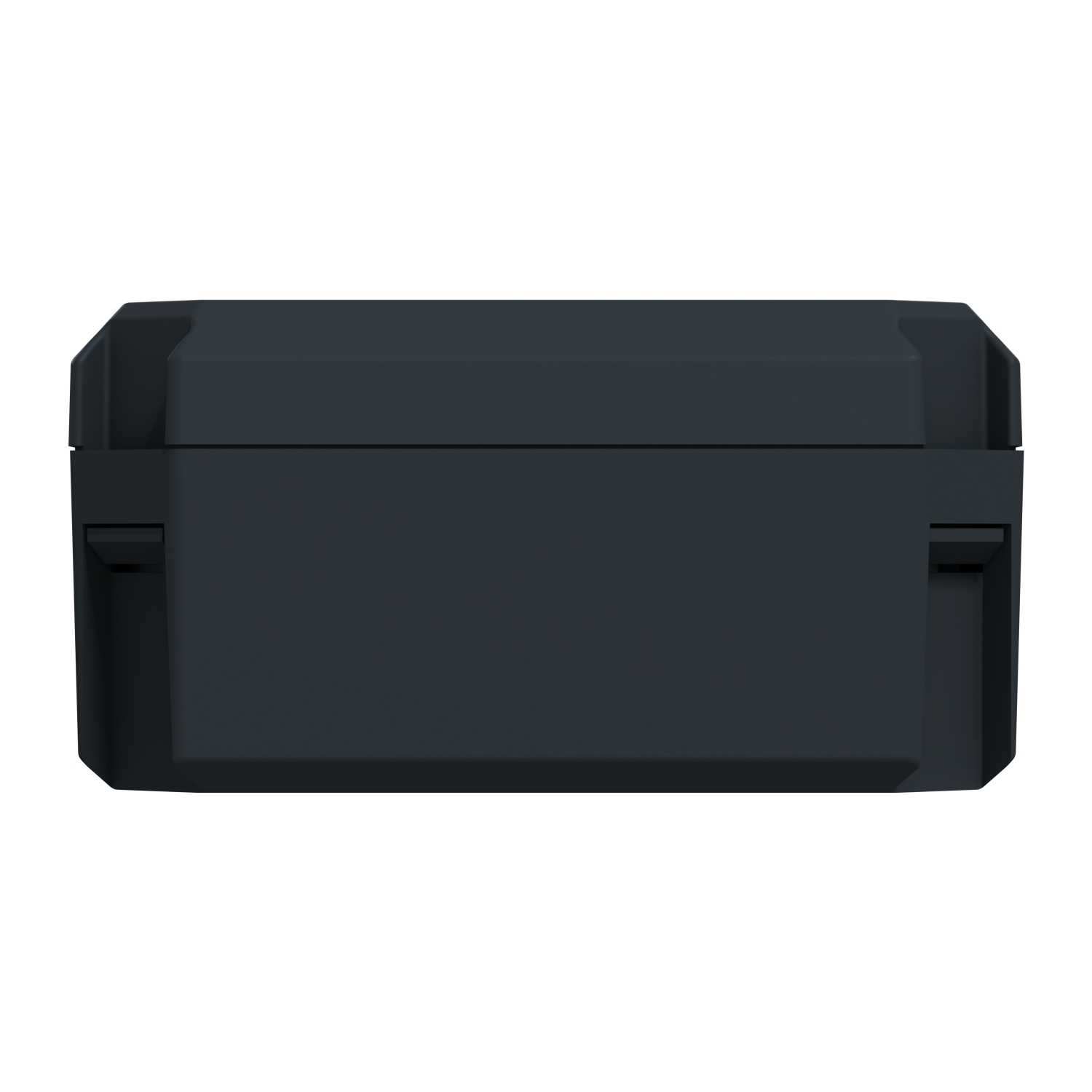

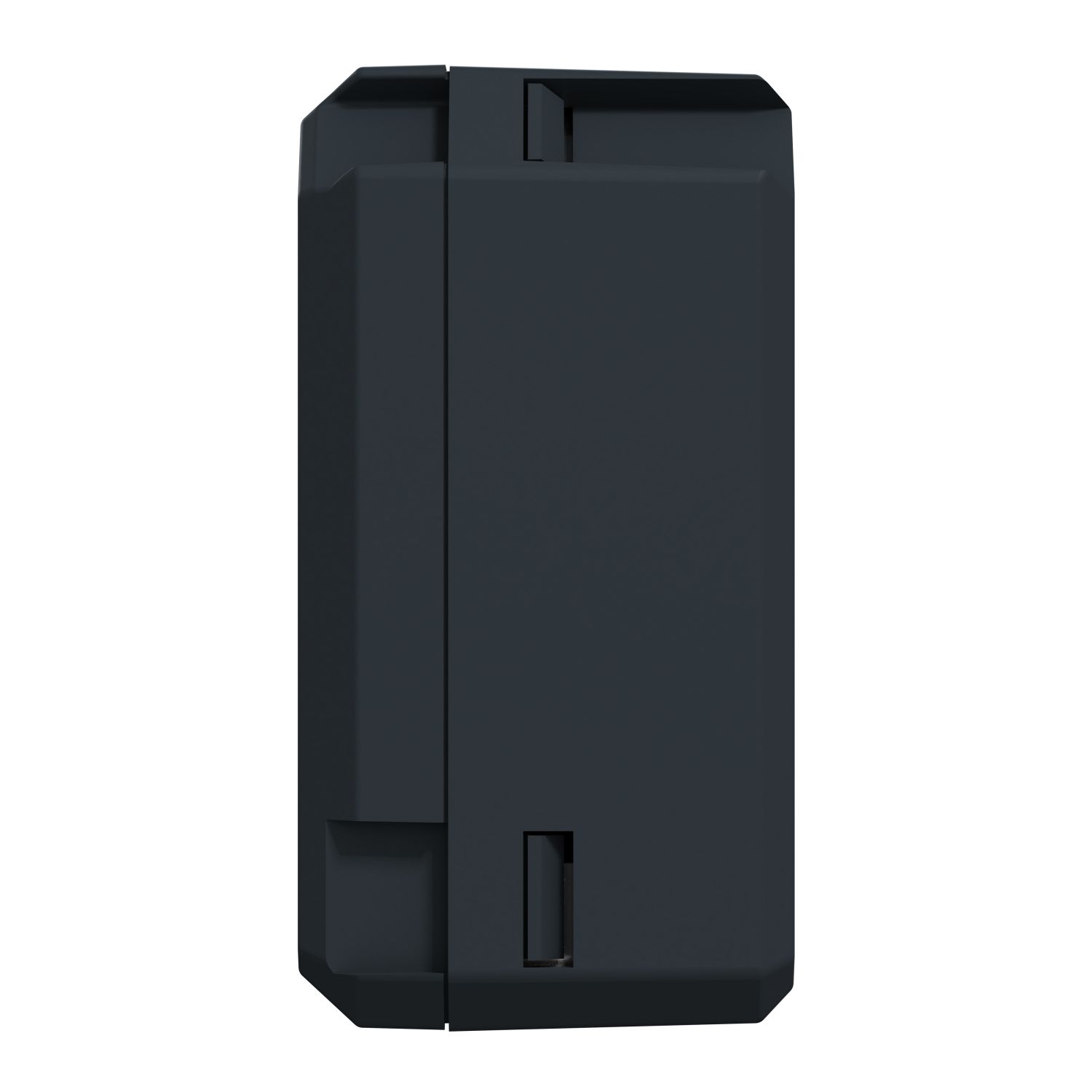

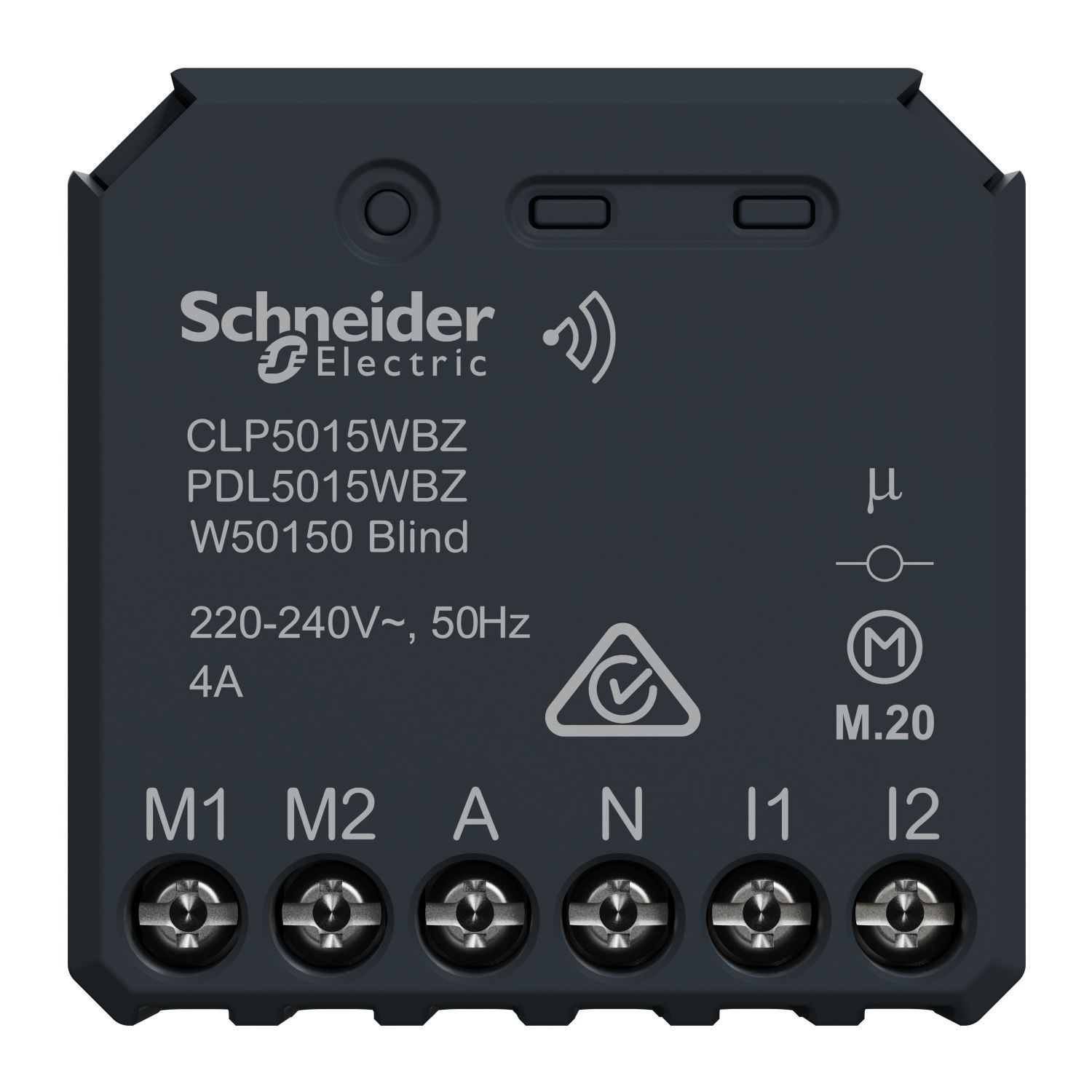

Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
Picture of Clipsal Wiser, Micro Module Smart Blind Controller
SKU:

CLP5015WBZ

Clipsal Wiser, Micro Module Smart Blind Controller

$212.52 INC GST
Available for Shipping : 16-Dec-2025
Clipsal Wiser, Micro Module Smart Blind Controller
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 16-Dec-2025
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
The Wiser Micro Module Smart Blind Controller provides smart control of 240V twin active blinds and shutter motors. It transforms a conventional double push-button switch into a connected device you can control from the switch or through the Wiser by SE app.

Products specifications

Attribute name Attribute value
Main
Concentrator compatibility Wiser hub generation 1
Range Iconic
Product or component type connected shutter control
Range compatibility Impress Series 30 push-button, Saturn Series 4000 push-button, Pro Series push-button, Clipsal Iconic push-button
Product brand Clipsal
Mobile App name Wiser by SE
Complementary
Main colour tint grey
Load type motor: 500 W at 230 V AC
Device application blind actuator
Depth 22 mm
Software name Wiser by SE App
Cos phi 0.6-1
Width 43 mm
Wiring configuration 3 wires with neutral
Communication network type wireless Zigbee (2.4-2.4 GHz), 10 mW at < 50 m
Control type by mobile application, push-button
IP degree of protection IP20
Relative humidity 5-90 % non-condensing
Tightening torque 0.5 N.m
Technology type electronic
System requirements Wiser Home Touch Wiser Home control, Bluetooth 4.1 or higher Bluetooth, Apple iOS 10.3 or higher Wiser App, Android 5.1 or higher Wiser App
Device presentation module
Connected auxiliaries maximum 10 auxiliary push-buttons
Type of installation indoor installation
Clamping connection capacity 1 x 1.5...2 x 2.5 mm² for stranded cable(s), 1 x 1.5...2 x 2.5 mm² for solid cable(s)
Colour tint grey
Protection type circuit breaker 16 A
Switch additional information mechanical and electrical interlock between up/down
Mounting support wall, installation box
Rated current 4 A
Embedding depth 70 mm
Ambient air temperature for operation 0-35 °C
Height 43 mm
[Ue] rated operational voltage 220...240 V AC 50 Hz
Connections - terminals screw terminal
Standby consumption max. 0.4 W
Cable length NYM cable: 50 m
Product certifications Zigbee 3.0
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.2 cm
Package 1 Width 7.5 cm
Package 1 Length 7.5 cm
Package 1 Weight 76.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.52 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 71.32 kg

Related products

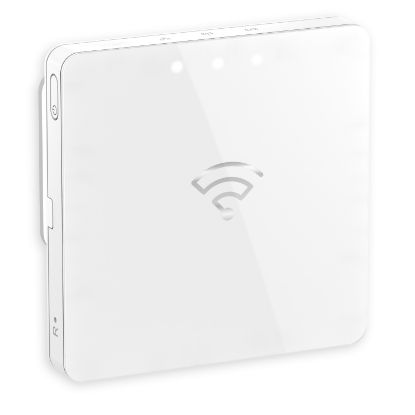

Picture of Clipsal Wiser, Hub Zigbee to IP Network, White
