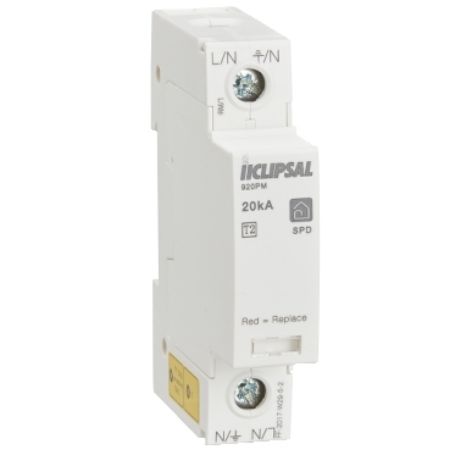

Picture of Clipsal Resi MAX, Surge Protection Device (SPD) 1P Imax 20 kA
SKU:

920RM/1

Clipsal Resi MAX, Surge Protection Device (SPD) 1P Imax 20 kA

Old price: $144.32 INC GST
$173.18 INC GST
Availability: Please contact our sales team on 1300 724 622.
Clipsal Resi MAX, Surge Protection Device (SPD) 1P Imax 20 kA
  • Protect valued electrical appliances
  • Diverts extra voltage and energy surges
  • Uniform terminal heights and modular size
  • Cartridge replacement is quick and easy
  • Single pole
Be the first to review this product
Manufacturer: Clipsal
Brochure
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This Resi MAX product is a modular and reliable Surge arrester. it is a 1P, rated current is 20kA, and operating voltage is 240VAC. The operating temperature is -25°C to +60°C. The storage temperature is . The degree of protection is IP20 and IP40 in an enclosure. It is 35mm DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 64mm. This Surge arrester is used for control. This product is compliant with IEC 61643-11.

Products specifications

Attribute name Attribute value
Main
Poles description 1P
Surge arrester type electrical distribution network
Range Resi MAX
Product or component type surge arrester
Earthing system TN-S, TN-C, TT
Remote signalling without
Complementary
Depth 64 mm
Width 18 mm
[Ue] rated operational voltage 240 V +/- 10 % AC 50/60 Hz
Maximum [Up] voltage protection level <1.2 kV
Local signalling white/red flag
Mounting mode clip-on
Disconnector device type fusible disconnect gG 125 A
Maximum residual current 0.6 mA
Connections - terminals tunnel type terminal4-16 mm² flexible with ferrule, tunnel type terminal2.5-25 mm² rigid
Wire stripping length 14 mm
[Uc] maximum continuous operating voltage 350 V
Maximum discharge current 20 kA
9 mm pitches 2
Nominal discharge current 5 kA
Mounting support 35 mm DIN rail
Surge arrester class type type 2
Height 85 mm
Environment
Relative humidity 5-95 %
IP degree of protection IP20, enclosure: IP40
Standards IEC 61643-11:2011
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.4 cm
Package 1 Width 9.2 cm
Package 1 Length 2.2 cm
Package 1 Weight 128.3 g
