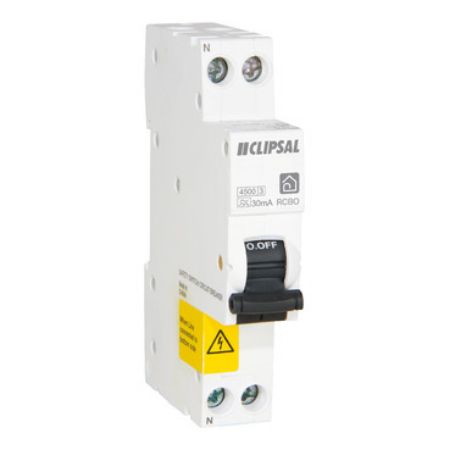

Picture of Clipsal Resi MAX, RCBO SLIM 1PN 20A C curve 30mA Type A 4500A
SKU:

RCBE220/30S

Clipsal Resi MAX, RCBO SLIM 1PN 20A C curve 30mA Type A 4500A

Old price: $57.09 INC GST
$68.51 INC GST
Available for Shipping : 17-Jun-2025
Clipsal Resi MAX, RCBO SLIM 1PN 20A C curve 30mA Type A 4500A
  • Residual current breaker with overcurrent protection (RCBO)
  • Up to 10x faster installation with Resi MAX SLIM Comb busbar
  • Additional safety with Type A RCD
  • Installation flexibility with choice of line connection
  • ON/OFF locking with trip free mechanism
  • Solution for Simple Residential applications
  • Caters for current ratings from 6A to 32A
  • Compact SLIM design allow for more RCDs/MCBs to be installed
  • Additional safety with active and neutral contacts
  • Provides top and bottom line load compatibility
Be the first to review this product
Manufacturer: Clipsal
Product environmental
Brochure
Product Page Link
Product Data Sheet
This Resi MAX is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 20A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The Icu rated short circuit breaking capacity is up to 4.5kA according EN/IEC 60947-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed. This product is compliant with AS/NZS 61009 standard. The Ue operational voltage is 240VAC. It can be mounted on DIN rail for modular installation. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure.

Products specifications

Attribute name Attribute value
Main
Trip unit technology thermal-magnetic
Device application distribution
Neutral position left
Poles description 1P + N
Breaking capacity 4.5 kA
Range Resi MAX
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
Earth-leakage protection class type A
Network type AC
Number of protected poles 1
Number of modules 1
Curve code C
[In] rated current 20 A
Product brand Clipsal
Complementary
[Ue] rated operational voltage 240 V AC
Market segment residential
Local signalling ON/OFF indication
Mounting mode clip-on
Control type ON/OFF locking with trip free mechanism
Size 92.5 x 18 x 71.5 mm conforming to DIN 43880
Mounting support DIN rail
Environment
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Standards AS/NZS 61009
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 10.2 cm
Package 1 Length 2.3 cm
Package 1 Weight 141 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 10.584 kg
Unit Type of Package 3 3
Number of Units in Package 3 864
Package 3 Height 125 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 127.008 kg
