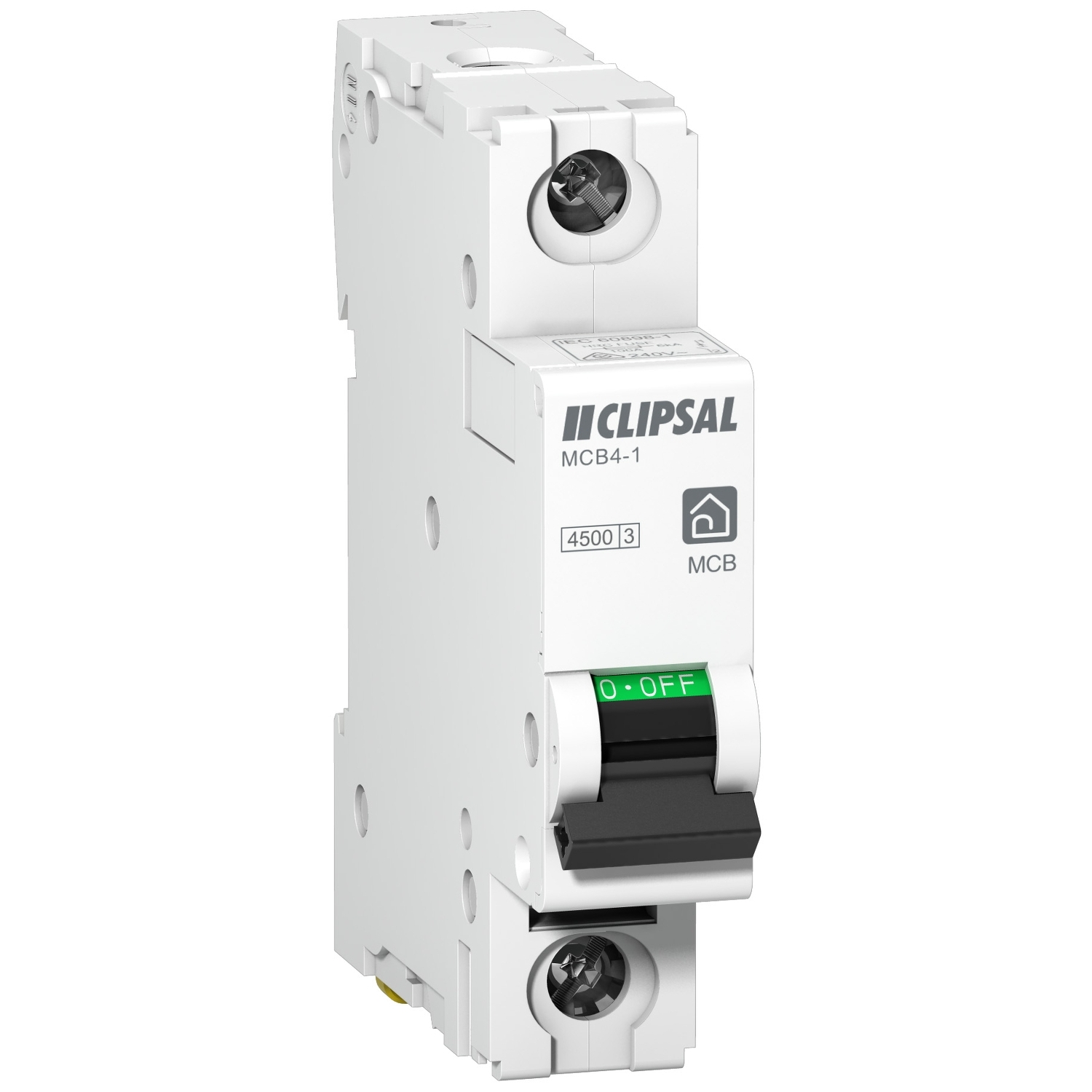

Picture of Clipsal Resi MAX, Miniature circuit breaker 1P 6 A C curve 4500 A 240 V
SKU:

MCB4-106

Clipsal Resi MAX, Miniature circuit breaker 1P 6 A C curve 4500 A 240 V

$8.18 INC GST
Available for Shipping : 15-Dec-2025
Clipsal Resi MAX, Miniature circuit breaker 1P 6 A C curve 4500 A 240 V
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 15-Dec-2025
Brochure
Product Page Link
Product Data Sheet
This Clipsal product is a low voltage miniature circuit breaker (MCB). It is a 1 circuit breaker with 6A rated current and C tripping curve. The rated short circuit breaking capacity is up to 4.5kA at 240VAC conforming to AS/NZS 60898-1 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is 415VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The dimensions are (W) 18mm x (H) 81mm x (D) 78.5mm. The weight is 115g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.

Products specifications

Attribute name Attribute value
Main
Range Resi MAX
Product brand Clipsal
Complementary
Number of poles 1
[In] rated current 6 A
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Tightening torque 2 N.m
Breaking capacity Icn 4500 A at 240 V conforming to AS/NZS 60898-1
Number of modules 1
Wire stripping length 13 mm
[Uimp] rated impulse withstand voltage 4 kV
[Ui] rated insulation voltage 440 V
Network type AC
Connections - terminals screw terminal for 1 cable(s) 0.33-10 mm² flexible with ferrule, screw terminal for 1 cable(s) 0.33-10 mm² flexible, screw terminal for 1 cable(s) 0.75-16 mm² rigid
Curve code C
[Ue] rated operational voltage 240 V
Network frequency 50/60 Hz
Environment
Depth 78.5 mm
Width 18 mm
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Pollution degree 3
Net weight 115 g
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2 conforming to IEC 60068-1
Standards AS/NZS 60898
Ambient air temperature for operation -25-70 °C
Height 81 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.2 cm
Package 1 Width 1.8 cm
Package 1 Length 8.5 cm
Package 1 Weight 103.0 g
