SKU:

RMXE212F

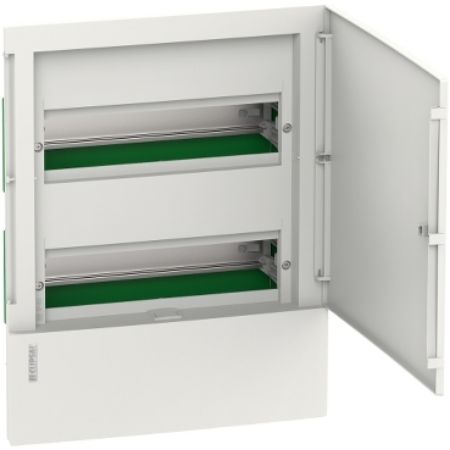

Clipsal Resi MAX, Consumer switchboard 2 row 24 modules Flush Mounted

$192.72 INC GST

Qty:

Available for Shipping : 22-Jan-2026

Clipsal Resi MAX, Consumer switchboard 2 row 24 modules Flush Mounted

Manufacturer: Clipsal

Delivery date: 22-Jan-2026

Brochure

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device application	distribution
Colour	white (RAL 9003)
Number of 18 mm modules per row	12
Range	Resi MAX
Type of front cover	plain
Enclosure type	mini enclosure for modular device
Product or component type	enclosure
Door type	plain door
Provided equipment	neutral terminal block, earth terminal block, DIN rail
Product brand	Clipsal
Complementary
Width	294 mm external
Enclosure material	technoplastic
Number of ways	24 ways
Enclosure mounting	flush
Type of rail	35 mm asymmetrical rail
Height	377 mm external
Depth	98 mm external
Cable entry	knock-out rear, knock-out top and bottom
Total number of 18 mm modules	24
Number of horizontal rows	2
[In] rated current	63 A
Number of terminal blocks	27 neutral (screw connection), 30 earth (screw connection)
Environment
Fire resistance	back box: 850 °C, door: 650 °C
IK degree of protection	IK07
IP degree of protection	IP40
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.4 cm
Package 1 Width	30.6 cm
Package 1 Length	38.8 cm
Package 1 Weight	2.05 kg
Unit Type of Package 2	2
Number of Units in Package 2	63
Package 2 Height	115.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	129.15 kg
