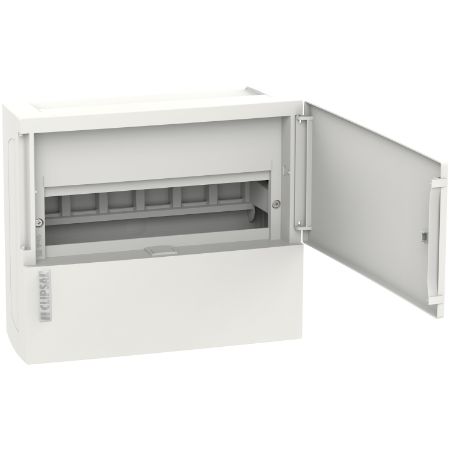

Picture of Clipsal Resi MAX, Consumer switchboard 1 row 12 modules Surface Mounted
SKU:

RMXE112S

Clipsal Resi MAX, Consumer switchboard 1 row 12 modules Surface Mounted

$93.85 INC GST
Available for Shipping : 17-Dec-2025
Clipsal Resi MAX, Consumer switchboard 1 row 12 modules Surface Mounted
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 17-Dec-2025
Brochure
Instruction sheet
Product Page Link
Product Data Sheet
This Resi MAX product is a mini enclosure for modular device. It is surface mounted. It is composed of 1 row of 12 modules of 18m. The In rated current is 63A.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Colour white (RAL 9003)
Number of 18 mm modules per row 12
Range Resi MAX
Type of front cover plain
Enclosure type mini enclosure for modular device
Product or component type enclosure
Door type plain door
Provided equipment neutral terminal block, earth terminal block,  DIN rail
Product brand Clipsal
Complementary
Width 268 mm external
Enclosure material technoplastic
Number of ways 12 ways
Enclosure mounting surface
Type of rail 35 mm asymmetrical rail
Height 228 mm external
Depth 101.5 mm external
Cable entry knock-out rear,  knock-out top and bottom
Total number of 18 mm modules 12
Number of horizontal rows 1
[In] rated current 63 A
Number of terminal blocks 14 neutral (screw connection), 12 earth (screw connection)
Environment
Fire resistance 650 °C
IK degree of protection IK07
IP degree of protection IP40
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.2 cm
Package 1 Width 29.0 cm
Package 1 Length 27.0 cm
Package 1 Weight 0.9 kg
Unit Type of Package 2 2
Number of Units in Package 2 90
Package 2 Height 80.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 93.0 kg
