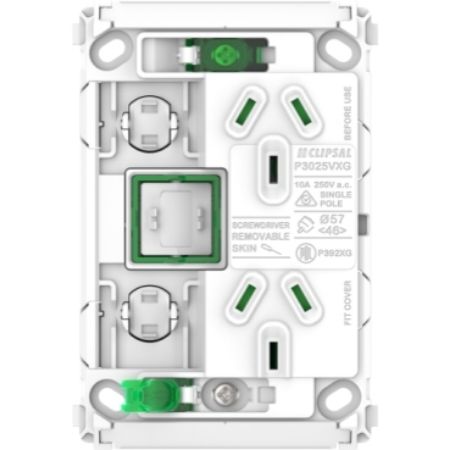

Picture of Clipsal Pro Series, Twin Power Point Grid, Vertical Mount, 1Ex20A, 10A, 250V
SKU:

P3025VXAG

Clipsal Pro Series, Twin Power Point Grid, Vertical Mount, 1Ex20A, 10A, 250V

$61.38 INC GST
Available for Shipping : 04-Jan-2026
Clipsal Pro Series, Twin Power Point Grid, Vertical Mount, 1Ex20A, 10A, 250V
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 04-Jan-2026
Environmental Disclosure
Product Page Link
Product Data Sheet
The Pro Series Vertical Twin Switched Power Point Grid includes an extra 20A switch. The extra switch gives you flexible switching options for lighting, exhaust fan control, heating, or a cooker switch. The grid has pre-mounted screws and screw covers to help prevent unauthorised access.

Products specifications

Attribute name Attribute value
Main
Outlet standard Australian
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Range Pro Series
Product or component type switched socket
Complementary
Ground lug position straight 180° position
Number of power socket outlets 2
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Surface treatment untreated
Height 112 mm
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Connections - terminals 3 screw terminals
[Ue] rated operational voltage 230/240 V
Depth 30 mm
Number of rocker 3
Width 72 mm
Material POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame
Installation direction vertical
Net weight 0.078 kg
Type of packing polybag
Clamping connection capacity 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 230/240 V AC 50 Hz
Fixing mode by screws
Range compatibility Pro Series
Device mounting flush
Colour tint white
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZ 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 7.2 cm
Package 1 Length 11.2 cm
Package 1 Weight 94.56 g
