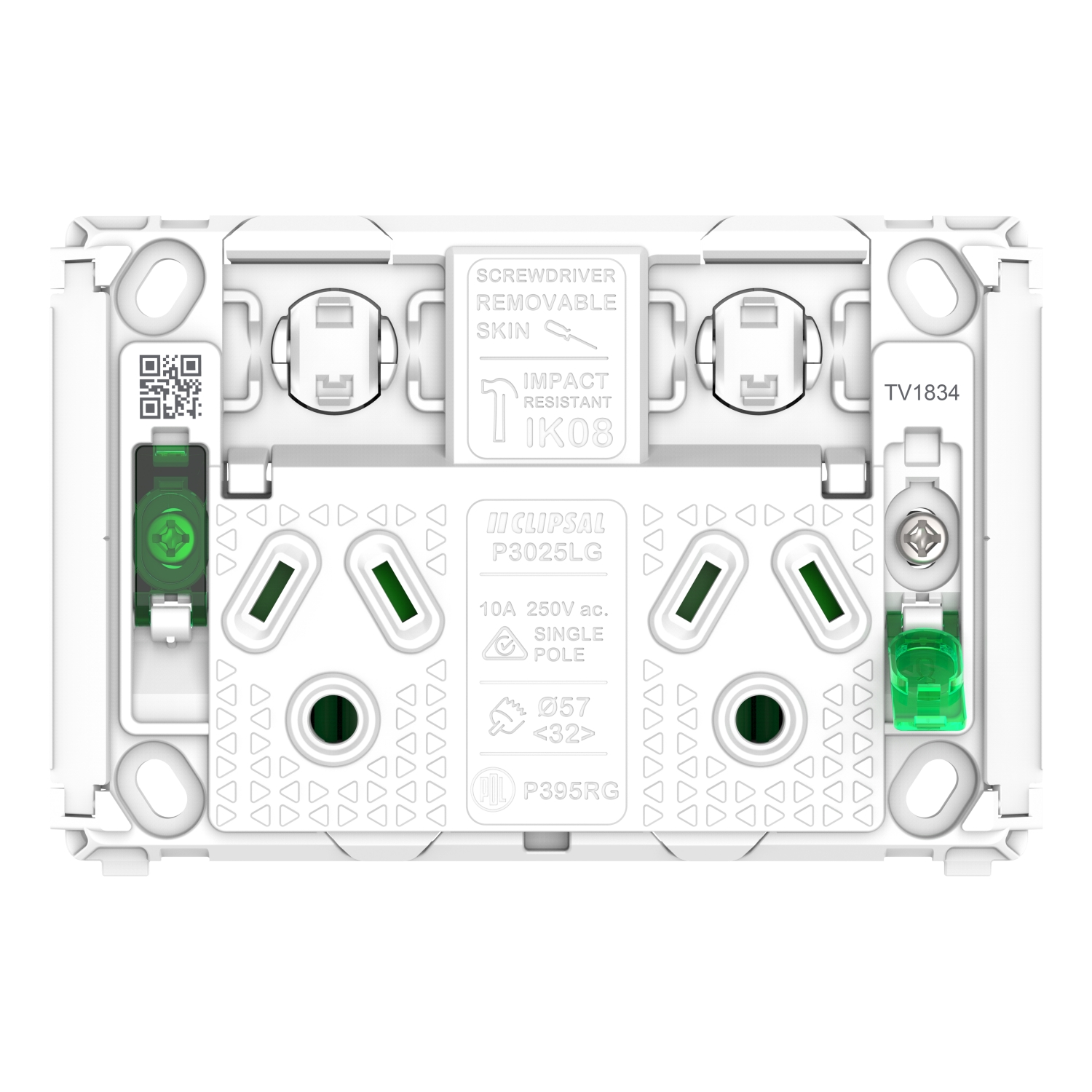

Picture of Clipsal Pro Series, Twin Power Point Grid, Horizontal Mount, Round Earth, 250V, 10A
SKU:

P3025LG

Clipsal Pro Series, Twin Power Point Grid, Horizontal Mount, Round Earth, 250V, 10A

$39.07 INC GST
Available for Shipping : 06-Jan-2026
Clipsal Pro Series, Twin Power Point Grid, Horizontal Mount, Round Earth, 250V, 10A
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 06-Jan-2026
Environmental Disclosure
Product Page Link
Product Data Sheet
The Clipsal Pro Series Horizontal Twin Switched Power Point Grid with a round earth is design for lighting appliances which have a round earth pin. Rated 10A, 250V, the outlet grid features pre-mounted screws for fast fit off.

Products specifications

Attribute name Attribute value
Main
Outlet standard Australian
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Range Pro Series
Product or component type switched socket
Complementary
Ground lug position straight 180° position
Number of power socket outlets 2
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Surface treatment untreated
Height 72 mm
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Connections - terminals 3 screw terminals
Depth 36 mm
Number of rocker 2
Width 112 mm
Material POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame
Installation direction horizontal
Net weight 0.078 kg
Type of packing polybag
Clamping connection capacity 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 250 V AC 50 Hz
Fixing mode by screws
Range compatibility Pro Series
Device mounting flush
Colour tint white
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZ 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 7.2 cm
Package 1 Length 11.2 cm
Package 1 Weight 80.56 g
