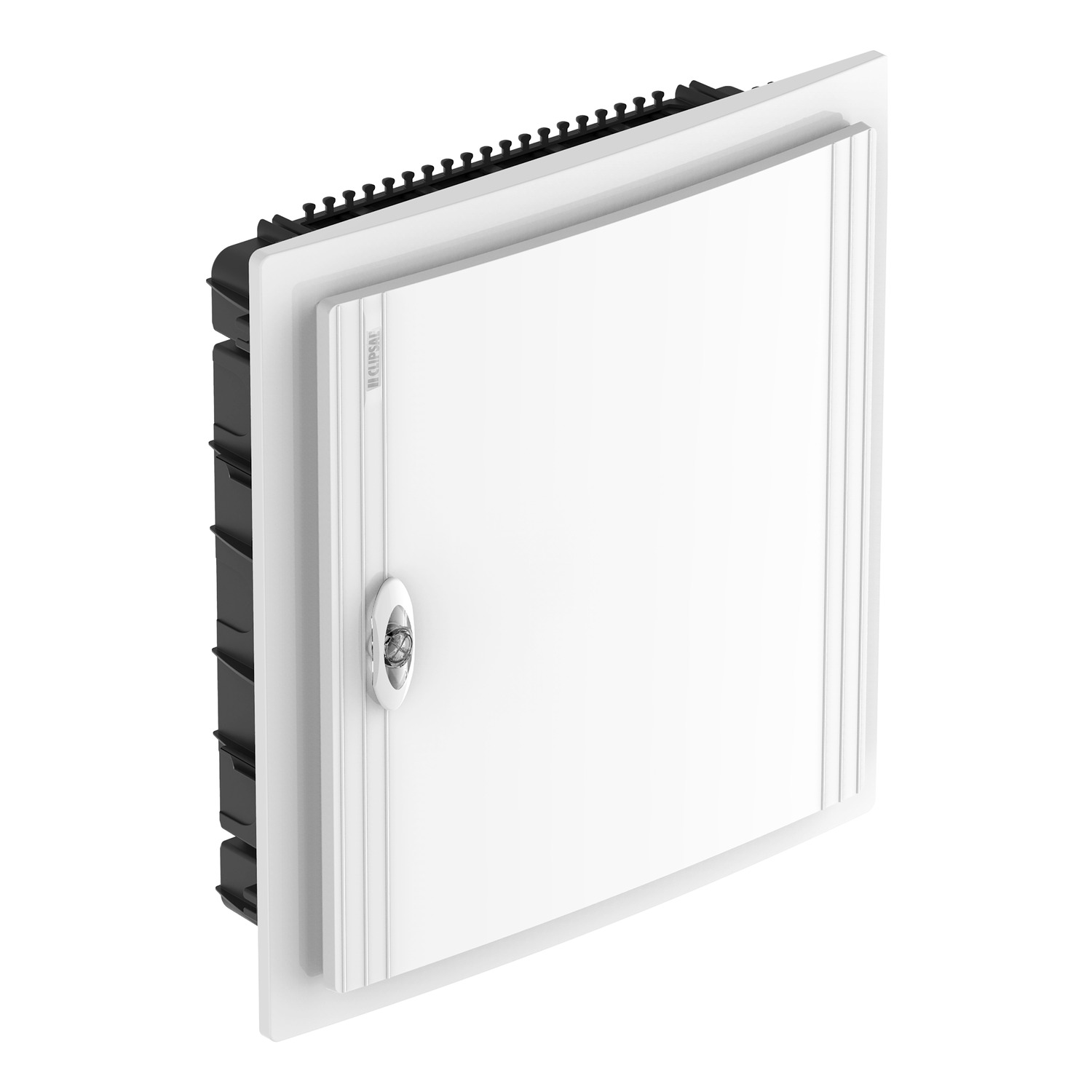

Picture of Clipsal MAX9, Switchboard Enclosure, Type 3, 2 Row, 36 Ways, Flush Mounted
SKU:

MX9E3218F

Clipsal MAX9, Switchboard Enclosure, Type 3, 2 Row, 36 Ways, Flush Mounted

$537.90 INC GST
Available for Shipping : 18-Dec-2025
Clipsal MAX9, Switchboard Enclosure, Type 3, 2 Row, 36 Ways, Flush Mounted
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 18-Dec-2025
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
MAX9 switchboard enclosure is flush mounted. The rated current is 100A. This switchboard is composed of 2 rows of 18 modules of 18mm (36 modules total). It can accomodate all types of modular Clipsal devices. It has plain door with door opening on left side The provided equipements are earthing bar, neutral bar, circuit identification label and blanking plate. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. It can be mounted on DIN rail for modular installation. The degree of protection is IP40 in an enclosure. This switchboard comply with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards. The switchboard colour is white electric (RAL9003) This switchboard is complies with AS/NZS 61439-3 and AS/NZS 3000 standards.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Colour white electric (RAL 9003)
Number of 18 mm modules per row 18
Range MAX9
Product or component type enclosure
Door type plain door - reversible
Provided equipment blanking plate, circuit identification label, neutral bar, earthing bar
Product brand Clipsal
Complementary
Market segment residential, small commercial
Width 486 mm
Enclosure material front face: plastic, housing: plastic
Number of ways 36 ways
Enclosure mounting flush
[Ui] rated insulation voltage 500 V
Type of rail DIN
Height 510 mm
Depth 128 mm
Cable entry knock-out cable entries
Total number of 18 mm modules 36
Number of horizontal rows 2
[Ue] rated operational voltage 240/415 V AC
[In] rated current 100 A
Environment
Fire resistance 650 °C
IK degree of protection IK09
IP degree of protection IP40
Standards AS/NZS 3000, AS/NZS 61439-3
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 51.0 cm
Package 1 Width 13.5 cm
Package 1 Length 53.0 cm
Package 1 Weight 4.3 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 120.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 115.2 kg
