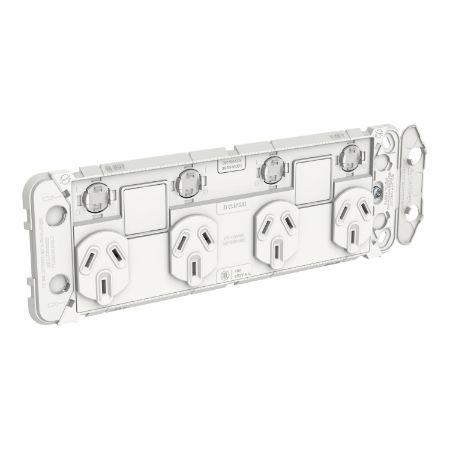

Picture of Clipsal Iconic, Quad Switch Power Point Grid with 2 extra switches, Horizontal Mount, 250V, 10A, Less Mechanisms
SKU:

3015/4XXUAG

Clipsal Iconic, Quad Switch Power Point Grid with 2 extra switches, Horizontal Mount, 250V, 10A, Less Mechanisms

Old price: $58.85 INC GST
$70.62 INC GST
Available for Shipping : 17-Jun-2025
Clipsal Iconic, Quad Switch Power Point Grid with 2 extra switches, Horizontal Mount, 250V, 10A, Less Mechanisms
  • Protective flaps prevent access to screws after installation
  • Sockets have internal shutters providing more protection
  • Tapping pad for spirit level
  • Green indicator so you know when it is switched on
  • Hole centre indicators
  • Captive terminal screws to prevent them from coming out
  • 84mm mounting centres fit standard mounting accessories
  • Pre mounted screws for faster fit off
  • Metal plate for additional robustness
  • Large terminals accommodating up to 4 x 2.5mm cables
Be the first to review this product
Manufacturer: Clipsal
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Need four power points with two extra switch provisions? No problem. The Clipsal 10amp Iconic Quad power point grid features four switched outlets, as well as two additional switch provisions for lighting or exhaust fan controller. This grid only component is horizontally mounted and includes the mechanism with fixing frame.

Products specifications

Attribute name Attribute value
Main
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Outlet standard Australian
Range Clipsal Iconic
Product or component type switched socket
Complementary
Number of power socket outlets 4
Quantity per set set of 1
Sale per indivisible quantity 1
Wire stripping length 16 mm
Height 71 mm
Connections - terminals 3 screw terminals
Electrical durability 12000 cycles
Number of rocker 4
Material POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame
Net weight 0.178 kg
Type of packing polybag
Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
Range compatibility Clipsal Iconic cover frame
Number of gangs 2 gangs
Device mounting flush
Embedding depth 18 mm
Ground lug position straight 180° position
Surface finish matt
Screwdriver shape square drive no 1 (SQ1), Philips No 2
Depth 26 mm
Width 211 mm
Installation direction horizontal
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 250 V AC 50 Hz
Fixing mode by screw
Colour tint ash grey
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.3 cm
Package 1 Width 7.5 cm
Package 1 Length 23 cm
Package 1 Weight 171 g
