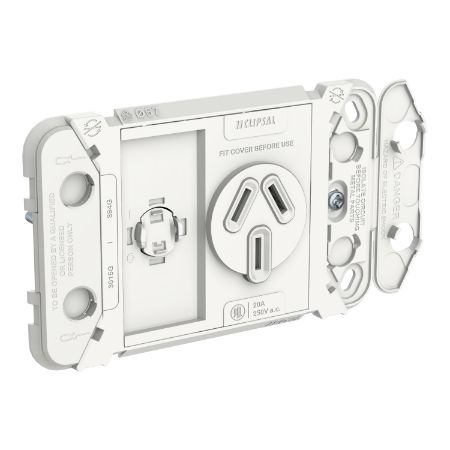

Picture of Clipsal Iconic, Grid Socket, Horizontal Single, 20A, 250V
SKU:

3015/20G

Clipsal Iconic, Grid Socket, Horizontal Single, 20A, 250V

Old price: $38.28 INC GST
$45.94 INC GST
Available for Shipping : 18-Jun-2025
Clipsal Iconic, Grid Socket, Horizontal Single, 20A, 250V
  • Protective flaps prevent access to screws after installation
  • Sockets have internal shutters providing more protection
  • Tapping pad for spirit level
  • Green indicator so you know when it is switched on
  • Hole centre indicators
  • Captive terminal screws to prevent them from coming out
  • 84mm mounting centres fit standard mounting accessories
  • Pre mounted screws for faster fit off
  • Metal plate for additional robustness
  • Large terminals accommodating up to 4 x 2.5mm cables
Be the first to review this product
Manufacturer: Clipsal
Product environmental
Product Page Link
Product Data Sheet
This Iconic Single 20A Power Point Grid offers unrivalled customisation with its clever clip-on system. Once the initial Grid Plate has been installed by a qualified electrician you can simply change the Iconic skins, from Iconic's Styl, Essence and standard range.

Products specifications

Attribute name Attribute value
Main
Outlet poles configuration 2P + E
Device presentation mechanism with fixing frame
Outlet standard Australian
Range Clipsal Iconic
Product or component type switched socket
Complementary
Number of power socket outlets 1
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Height 71 mm
Connections - terminals 3 screw terminals
Electrical durability 9000 cycles
Number of rocker 1
Material PP (polypropylene): rocker, PC (polycarbonate): fixing frame
Net weight 0.82 kg
Type of packing polybag
Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
Range compatibility Clipsal Iconic cover frame
Device mounting flush
Embedding depth 23 mm
Ground lug position straight 180° position
Surface finish matt
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Depth 26 mm
Width 115 mm
Installation direction horizontal
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 20 A at 250 V AC 50 Hz
Fixing mode by screw
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 6.6 cm
Package 1 Length 11.6 cm
Package 1 Weight 62.45 g
