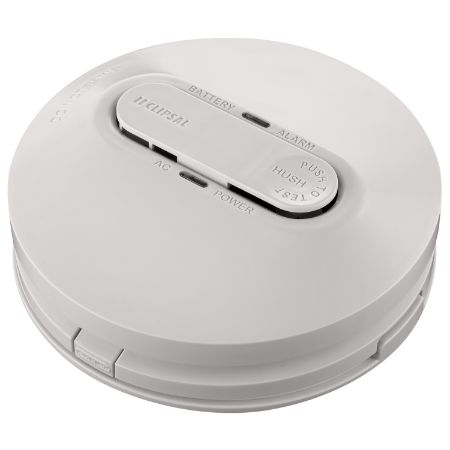

Picture of Clipsal Fire Tek, Photoelectric Smoke Alarm, Surface Mount, 220-240 V a.c. Mains Power, rechargeable lithium battery backup
SKU:

755RLPSMA4

Clipsal Fire Tek, Photoelectric Smoke Alarm, Surface Mount, 220-240 V a.c. Mains Power, rechargeable lithium battery backup

$168.43 INC GST
Available for Shipping : 09-Dec-2025
Clipsal Fire Tek, Photoelectric Smoke Alarm, Surface Mount, 220-240 V a.c. Mains Power, rechargeable lithium battery backup
Be the first to review this product
Manufacturer: Clipsal
Delivery date: 09-Dec-2025
Brochure
Product environmental
Instruction sheet
User guide
End of life manual
Product Page Link
Product Data Sheet
755RLPSMA4 photoelectric smoke alarm helps to detect smouldering fire types. It can be used as a single mains powered battery backed alarm or can be interconnected with other 755 series smoke alarms to give complete home protection. It’s sealed-in rechargeable battery means no more replacing backup batteries annually.

Products specifications

Attribute name Attribute value
Main
Device application early detection of smouldering fires and open fires
Colour white (RAL 9003)
Electronic sensor type photo-electric sensor
Range Fire Tek
Type of packing carton
Product or component type smoke detector
Product brand Clipsal
Complementary
Material thermoplastic
Response time < 30 s
Operating distance 140 m in free field, 50 m line of sight
[Us] rated supply voltage 220...240 V AC 50 Hz
Noise level 85 dB at 3 m, minimum
Function available self-test of smoke detection,  hush function, local alarm
Number of devices 40 for wired alarm
Output voltage limits interconnection: 6.5...20 V
Type of installation indoor
Connections - terminals screw terminal (interconnect) - 2 x 1.5 mm², screw terminal (earth loop) - 2 x 1.5 mm², screw terminal (neutral) - 2 x 1.5 mm², screw terminal (line) - 2 x 1.5 mm²
Supply mains
Local signalling sound: alarm, sound: signal, visual: 1 LED (green) for ON status, visual: 1 LED (red) for warning and low battery
Time delay range 10 h (do not disturb), 10 min (hush)
Fixing mode by screws
Detection type heat
Mounting support wall-mount, ceiling
Device mounting surface
Type of alarms low battery at 6.9...7.5 V
Diameter 140 mm
Control type button (test/hush function)
Height 47 mm
Environment
Ambient air temperature for storage -20-60 °C
Relative humidity 5-95 %
IP degree of protection IP20
Product certifications Activfire, SAI, RCM
Standards AS/NZS 60065, AS/NZS 60950.1, AS 3786:2014, ISO 8201
Ambient air temperature for operation 0-45 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 14.7 cm
Package 1 Length 14.7 cm
Package 1 Weight 296.0 g
