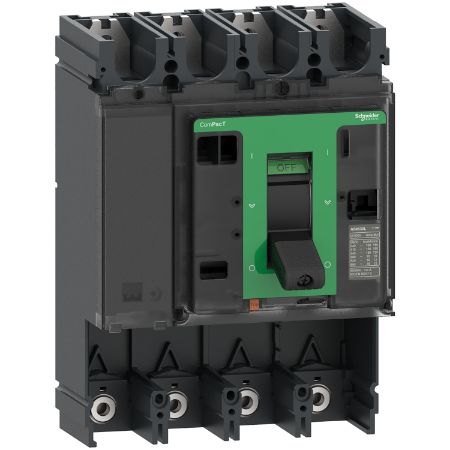

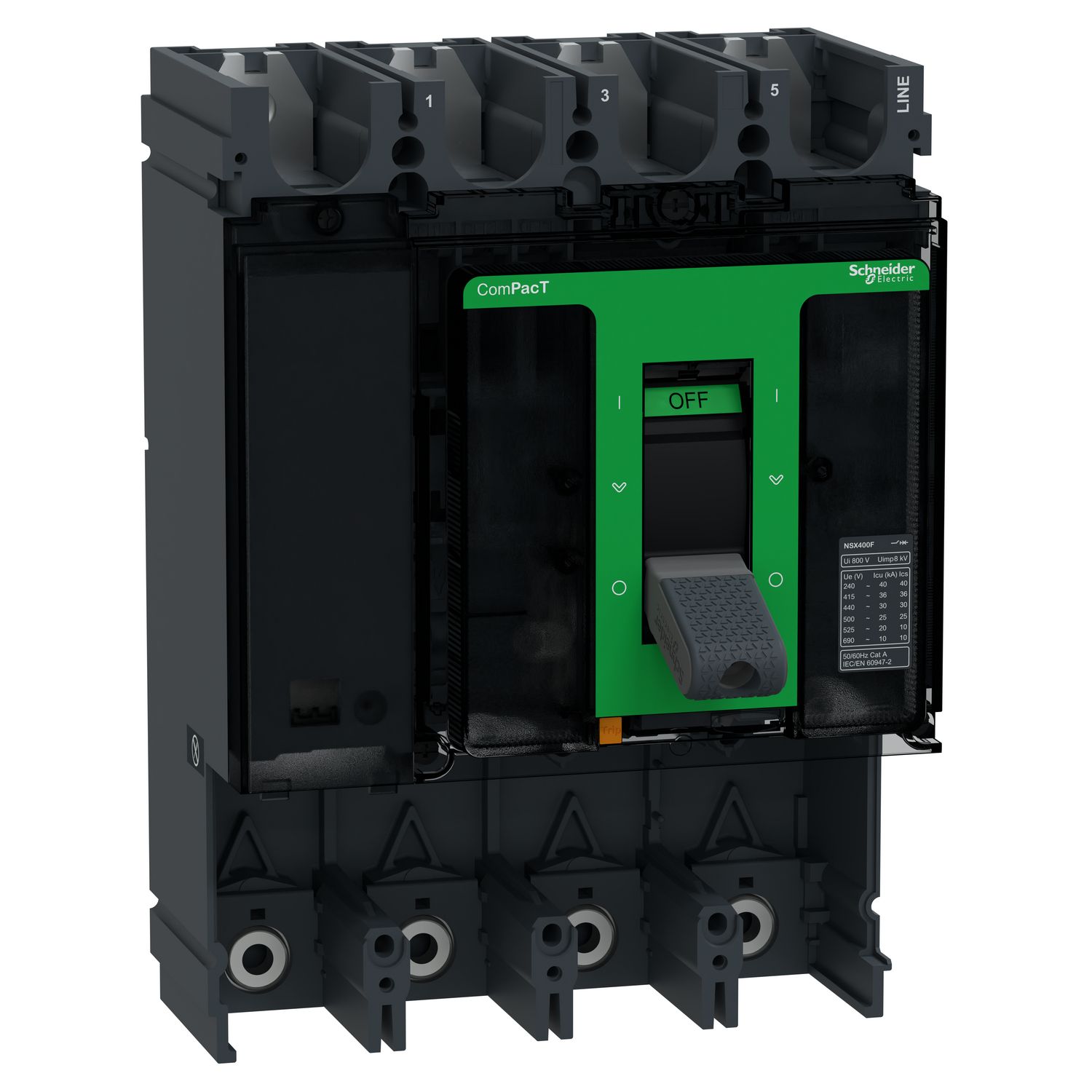

Picture of Circuit breaker basic frame, ComPacT NSX400F, 36kA/415VAC, 4 poles, 400A frame rating, without trip unit
SKU:

C40F4

Circuit breaker basic frame, ComPacT NSX400F, 36kA/415VAC, 4 poles, 400A frame rating, without trip unit

Old price: $1,485.00 INC GST
$1,214.73 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Circuit breaker basic frame, ComPacT NSX400F, 36kA/415VAC, 4 poles, 400A frame rating, without trip unit
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This is a 4 poles basic frame for ComPacT NSX400F. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 36kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 185mm x 255mm x 110mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400F is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Suitability for isolation yes conforming to EN/IEC 60947-2
Neutral position left
Utilisation category category A
Network type AC
Device short name NSX400F
Breaking capacity code F 36 kA 415 V AC
Breaking capacity 30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA at 600 V AC 50/60 Hz conforming to UL 508, 35 kA at 480 V AC 50/60 Hz conforming to UL 508, 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 85 kA at 240 V AC 50/60 Hz conforming to UL 508
Mounting mode fixed
Control type toggle
Range ComPacT new generation
Range of product ComPacT NSX400...630 new generation
Poles description 4P
Product name ComPacT NSX new generation
Product or component type basic frame
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current 400 A at 40 °C
Network frequency 50/60 Hz
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Compatibility code NSX400
Electrical durability 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2, 6000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2, 3000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2, 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Downside connection front
Height 255 mm
[Ics] rated service breaking capacity 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability 15000 cycles conforming to IEC 60947-2
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
Protection type without protection
Upside connection front
Connection pitch 45 mm
Depth 110 mm
Width 185 mm
Mounting support backplate
Environment
Ambient air temperature for storage -50-85 °C
Product certifications UL, CSA
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to IEC 62262
Standards UL 508, EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.100 cm
Package 1 Width 20.100 cm
Package 1 Length 29.200 cm
Package 1 Weight 5.776 kg
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 43.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 176.000 kg

Related products

Picture of Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

Standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals

29450
$130.43 INC GST $159.06 INC GST
View Detail
Picture of Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

LV432592
$91.06 INC GST $111.32 INC GST
View Detail
Picture of Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

Long terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

LV432594
$133.53 INC GST $163.24 INC GST
View Detail
Picture of Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

Interphase barriers, ComPacT NSX 100/160/250, set of 6 parts

LV429329
$46.52 INC GST $56.87 INC GST
View Detail

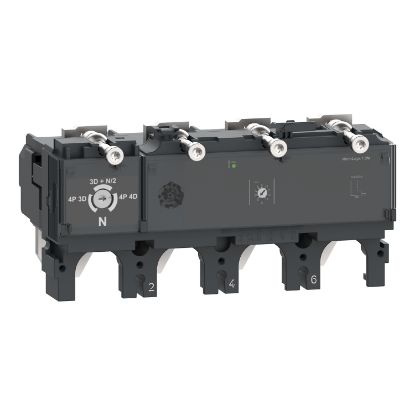

Picture of Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 4 poles 3D, electronic magnetic protection, motor protection, 320A

Trip unit MicroLogic 1.3M, ComPacT NSX400/630, 4 poles 3D, electronic magnetic protection, motor protection, 320A

C4041M320
$1,160.74 INC GST $1,419.00 INC GST
View Detail

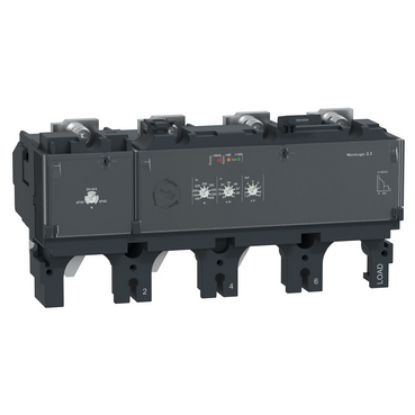

Picture of Trip unit MicroLogic 2.3, ComPacT NSX400/630, 4 poles, electronic basic protections, 400A rating
