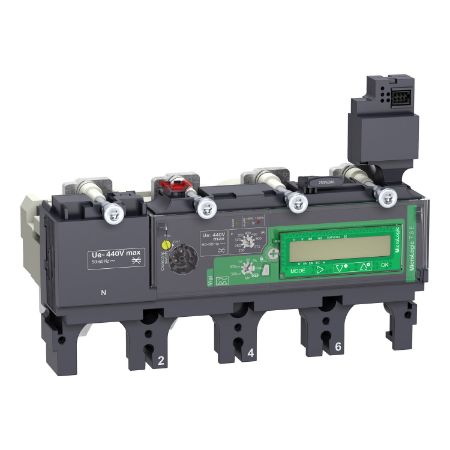

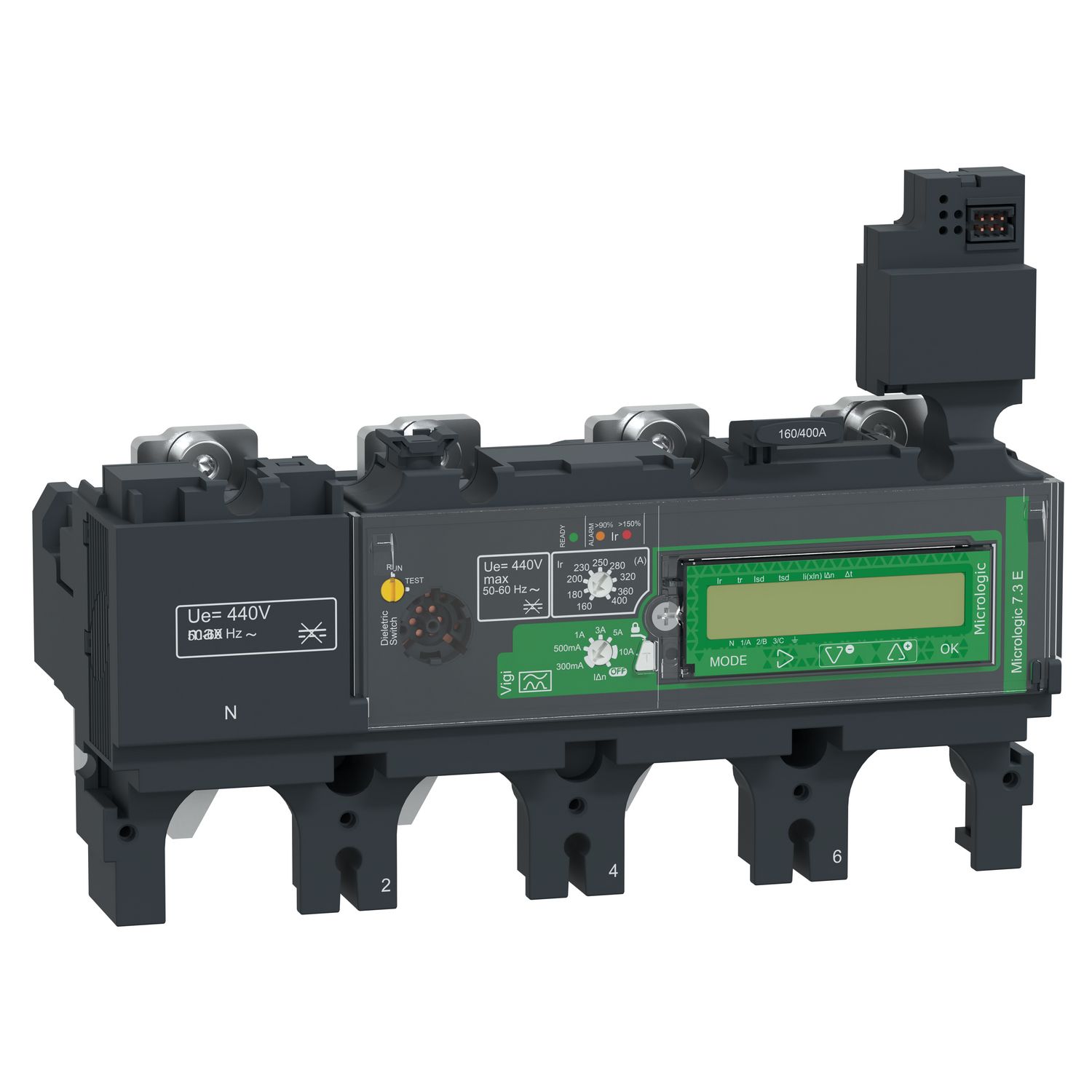

Trip unit MicroLogic Vigi 7.3E, ComPacT NSX400/630, 4 poles, basic and earth leakage protections, energy meter, 400A

Old price: $8,579.45 INC GST
$7,017.99 INC GST
Available for Shipping : 12-Jan-2026
Trip unit MicroLogic Vigi 7.3E, ComPacT NSX400/630, 4 poles, basic and earth leakage protections, energy meter, 400A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This MicroLogic 7.3 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 400A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.3 E Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 7.3 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.3 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPacT new generation NSX400, ComPacT new generation NSX630
Mounting mode fixed
Range ComPacT new generation
Protection type R : for earth-leakage protection, I : for instantaneous short-circuit protection, S : for short time short-circuit protection, L : for overload protection (long time)
Protected poles description 3D, 3D + OSN, 4D, 3D + N/2
Range of product ComPacT NSX400...630 new generation
Trip unit name MicroLogic 7.3 E
Trip unit technology electronic
Neutral position left
Poles description 4P
Product or component type trip unit
Network type AC
Trip unit protection functions LSIR
[Ue] rated operational voltage 440 V AC 50/60 Hz
[In] rated current 400 A at 40 °C
Network frequency 50/60 Hz
Complementary
Short-time pick-up adjustment type Isd adjustable
Display type LCD display
Long time pick-up adjustment type Ir adjustable 9 settings
Long time pick-up adjustment range 160...400 A
Neutral protection setting no protection (3D), 1.6 x Ir (3D + OSN), 1 x Ir (4D), 0.5 x Ir (3D + N/2)
Instantaneous pick-up adjustment range 1.5...12 x In
Short-time delay adjustment type adjustable
Zone selective interlocking ZSI without
Communication of data power quality, demand current and power, instantaneous and demand values, test reports, protection and alarm settings, energy metering, earth leakage current, time-stamped histories and event tables, maintenance indicators, maximeters/minimeters
Earth-leakage protection class class A
Earth-leakage protection integrated
Thermal memory 20 minutes before and after tripping
Residual earth-leakage time delay adjustment type adjustable
[IΔn] residual earth-leakage sensitive adjustment 10-10 A, 5-5 A, 3-3 A, 1-1 A, 0.5-0.5 A, 0.3-0.3 A
[Isd] short-time pick-up adjustment range 1.5...10 x Ir
Local signalling LED 90 % Ir (orange) for overload, LED 105 % Ir (red) for overload, flashing LED (green) for ready to operate
[tsd] short-time delay adjustment range 0.1-0.4 s I²t=on, 0-0.4 s I²t=off
Residual earth-leakage sensitity adjustment type adjustable
[tr] long-time delay adjustment range 0.5-16 s at 6 x Ir, 0.35-11 s at 7.2 x Ir, 15-400 s at 1.5 x Ir
Instantaneous pick-up adjustment type Ii adjustable
Long time delay adjustment type adjustable
[Δt] residual earth-leakage time delay adjustment 1-1 s, 500-500 ms, 150-150 ms, 60-60 ms, 0-0 ms
Operating mode OFF using the IΔn rotary switch
Type of measurement energy meter
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 11.300 cm
Package 1 Length 18.500 cm
Package 1 Weight 2.406 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.211 kg
