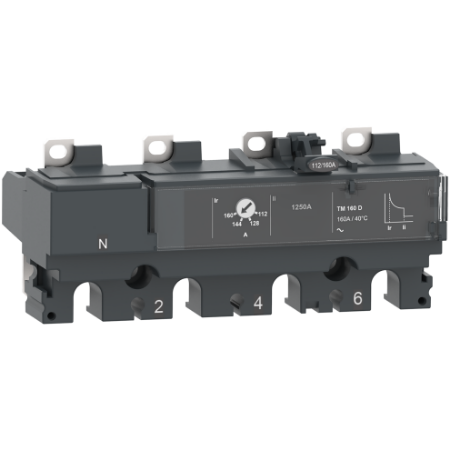

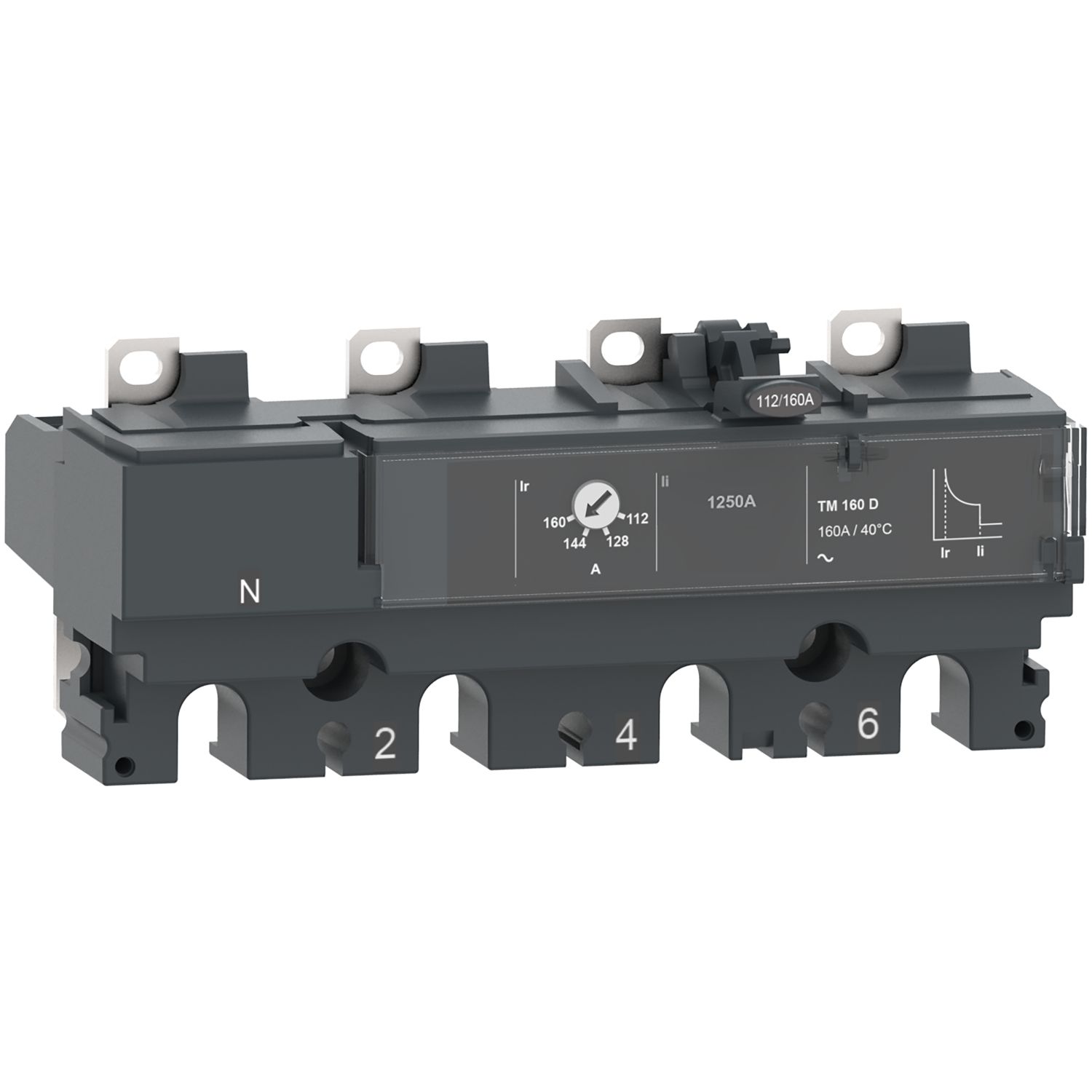

Picture of Trip unit TM160D, ComPacT NSX160, 4 poles 3D (neutral not protected), thermal magnetic protections, 160A rating
SKU:

C166TM160

Trip unit TM160D, ComPacT NSX160, 4 poles 3D (neutral not protected), thermal magnetic protections, 160A rating

Old price: $887.70 INC GST
$726.14 INC GST
Available for Shipping : 16-Dec-2025
Trip unit TM160D, ComPacT NSX160, 4 poles 3D (neutral not protected), thermal magnetic protections, 160A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This TM160D is 4 poles 3d thermal-magnetic trip unit used on ComPacT NSX 160 circuit breakers. This 160A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPacT new generation NSX160
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Protected poles description 3D
Range of product ComPacT NSX100...250 new generation
Trip unit name TM-D
Trip unit technology thermal-magnetic
Neutral position left
Poles description 4P
Product or component type trip unit
Network type AC
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 160 A at 40 °C
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Neutral protection setting no protection (3D)
Instantaneous pick-up adjustment range 1250 A
Earth-leakage protection without
[tr] long-time delay adjustment range 15-15 s at 6 x Ir, 120-400 s at 1.5 x In
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 9.5 cm
Package 1 Length 15.0 cm
Package 1 Weight 494.0 g
Unit Type of Package 2 2
Number of Units in Package 2 23
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.664 kg
