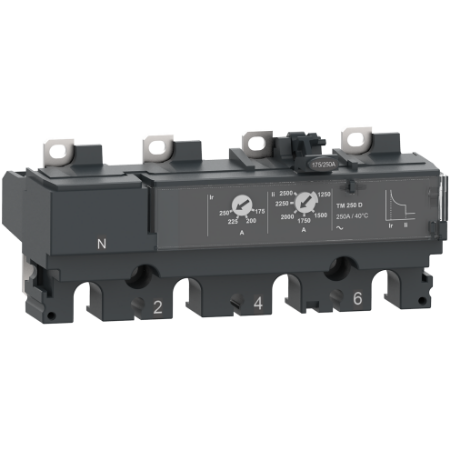

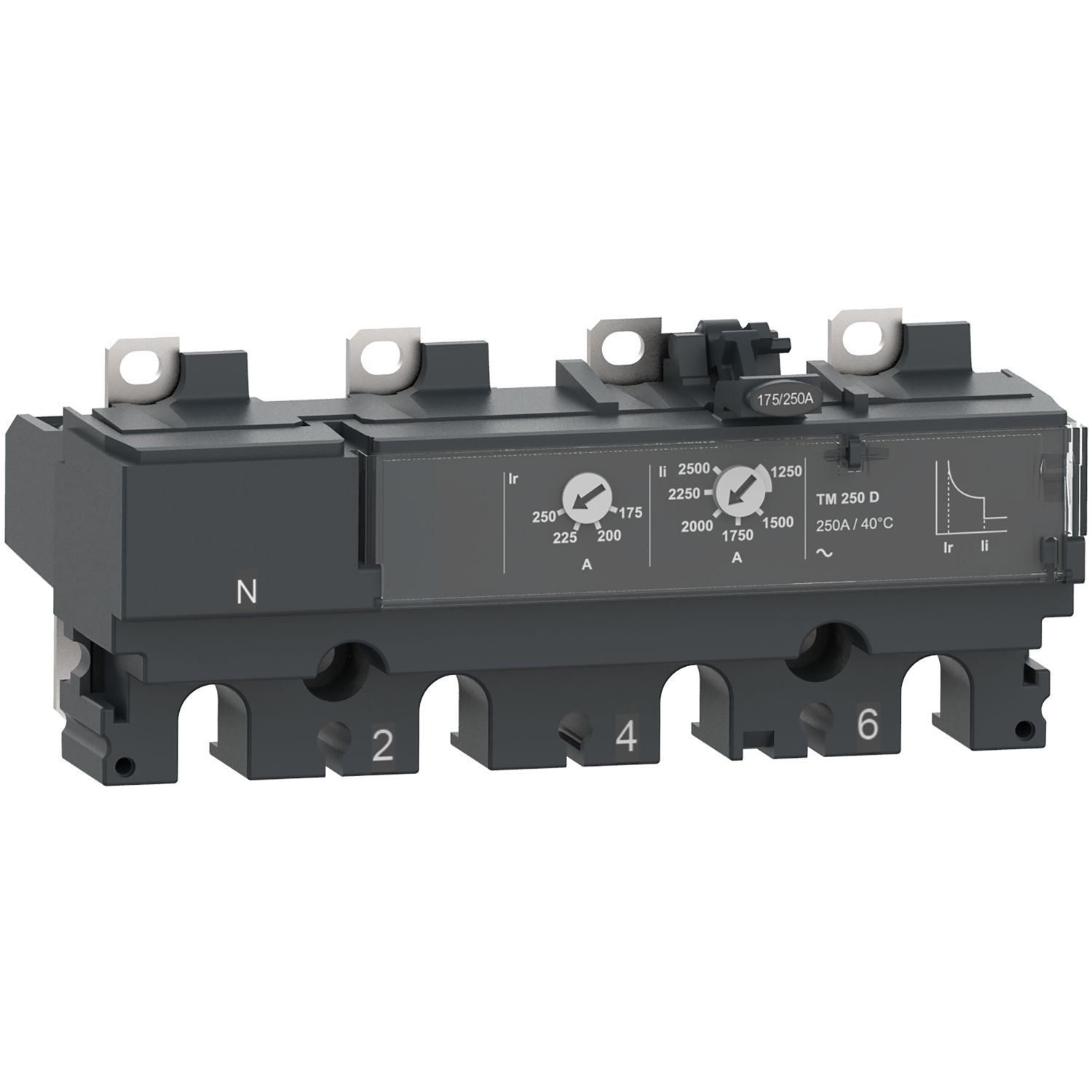

Picture of Trip unit TM160D, ComPacT NSX160, 4 poles 4D (neutral fully protected), thermal magnetic protections, 160A rating
SKU:

C164TM160

Trip unit TM160D, ComPacT NSX160, 4 poles 4D (neutral fully protected), thermal magnetic protections, 160A rating

Old price: $947.10 INC GST
$774.73 INC GST
Available for Shipping : 16-Dec-2025
Trip unit TM160D, ComPacT NSX160, 4 poles 4D (neutral fully protected), thermal magnetic protections, 160A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This TM160D is 4 poles 4d thermal-magnetic trip unit used on ComPacT NSX 160 circuit breakers. This 160A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPacT new generation NSX160
Trip unit technology thermal-magnetic
Neutral position left
Network type AC
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Protected poles description 4D
Range of product ComPacT NSX100...250 new generation
Trip unit name TM-D
Poles description 4P
Product or component type trip unit
Trip unit protection functions LI
[Ue] rated operational voltage 690 V AC 50/60 Hz
[In] rated current 160 A at 40 °C
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable
Earth-leakage protection without
[tr] long-time delay adjustment range 15-15 s at 6 x Ir, 120-400 s at 1.5 x In
Long time delay adjustment type fixed
Long time pick-up adjustment range 0.7...1 x In
Neutral protection setting 1 x Ir (4D)
Instantaneous pick-up adjustment range 1250 A
Instantaneous pick-up adjustment type Ii fixed
Environment
Ambient air temperature for storage -50-85 °C
Electrical shock protection class class II
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.700 cm
Package 1 Width 9.800 cm
Package 1 Length 14.800 cm
Package 1 Weight 503.800 g
Unit Type of Package 2 2
Number of Units in Package 2 23
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.987 kg
