Picture of Trip unit TM160G, ComPacT NSX160/250, 4 poles 4D (neutral protected), thermal magnetic protections, generator, 160A
SKU:

C164MG160

Trip unit TM160G, ComPacT NSX160/250, 4 poles 4D (neutral protected), thermal magnetic protections, generator, 160A

Old price: $1,326.60 INC GST
$1,085.16 INC GST
Available for Shipping : 15-Jan-2026
Trip unit TM160G, ComPacT NSX160/250, 4 poles 4D (neutral protected), thermal magnetic protections, generator, 160A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This TM60G is a 4 poles 4d thermal-magnetic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating thermal-magnetic trip unit is an optimum choice for generator protection applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application generator
Range compatibility ComPacT new generation NSX160 DC, ComPacT new generation NSX250, ComPacT new generation NSX160
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Protected poles description 4D
Range of product ComPacT NSX100...250 new generation
Trip unit name TM-G
Trip unit technology thermal-magnetic
Neutral position left
Poles description 4P
Product or component type trip unit
Network type DC, AC
Trip unit protection functions LI
[Ue] rated operational voltage 750 V DC, 690 V AC 50/60 Hz
[In] rated current 160 A at 40 °C
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Neutral protection setting 1 x Ir (4D)
Instantaneous pick-up adjustment range 440 A
Earth-leakage protection without
[tr] long-time delay adjustment range 120-400 s at 1.5 x In
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 9.500 cm
Package 1 Length 15.000 cm
Package 1 Weight 502.000 g

Related products

Picture of Circuit breaker basic frame, ComPacT NSX160B, 25kA/415VAC, 4 poles, 160A frame rating, without trip unit

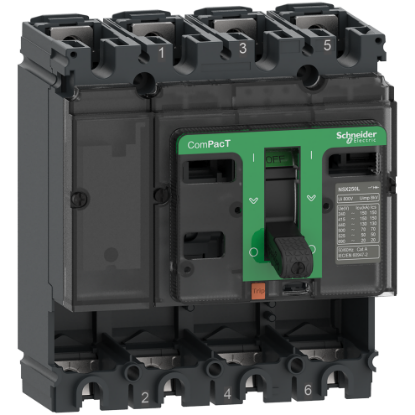

Circuit breaker basic frame, ComPacT NSX160B, 25kA/415VAC, 4 poles, 160A frame rating, without trip unit
