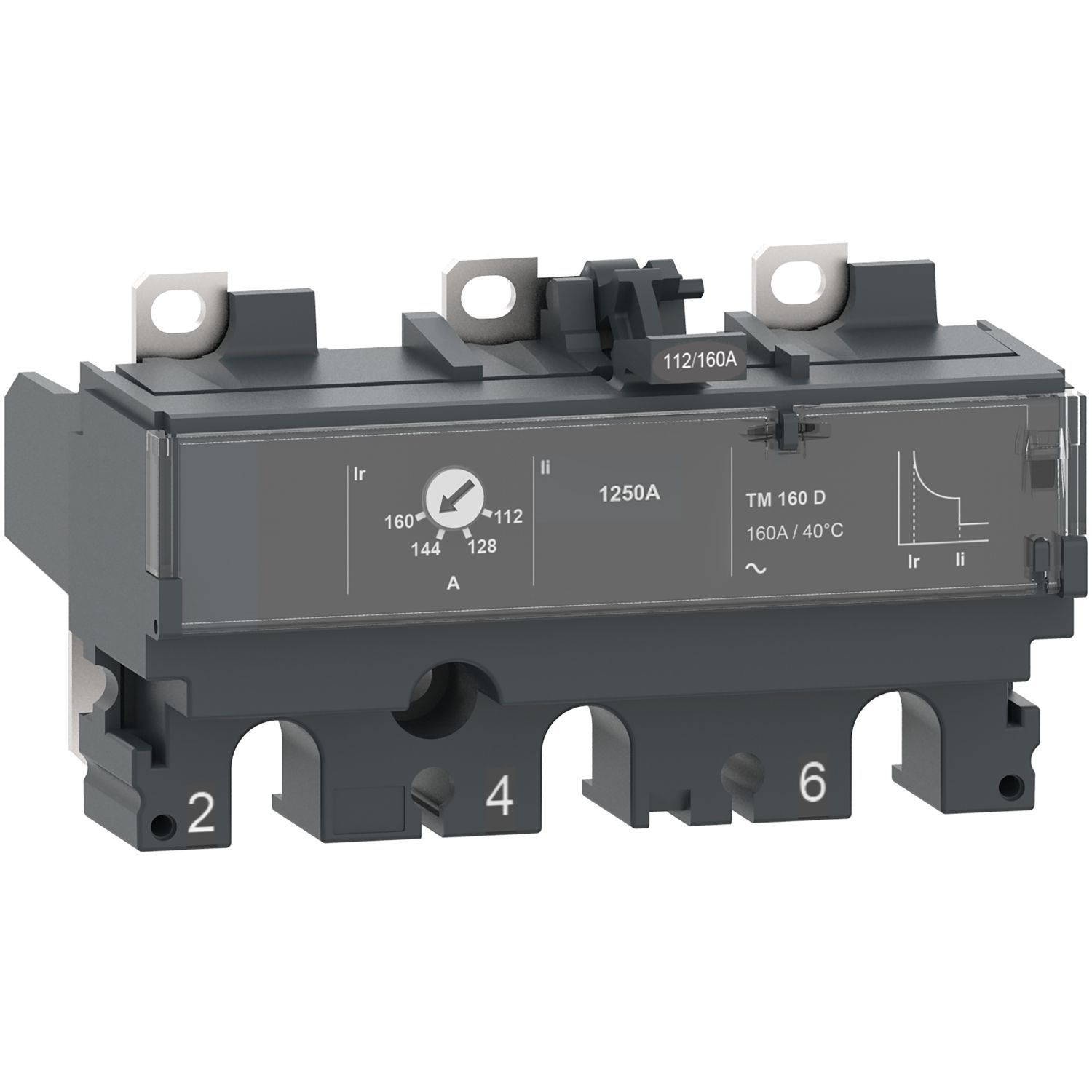

Picture of Trip unit TM16D, ComPacT NSX100, 3 poles, thermal magnetic protections, 16A rating
SKU:

C103TM016

Trip unit TM16D, ComPacT NSX100, 3 poles, thermal magnetic protections, 16A rating

Old price: $141.68 INC GST
$115.89 INC GST
Available for Shipping : 16-Dec-2025
Trip unit TM16D, ComPacT NSX100, 3 poles, thermal magnetic protections, 16A rating
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Catalog
Environmental Disclosure
Circularity Profile
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This TM16D is a 3 poles 3d thermal-magnetic trip unit used on ComPacT NSX 100 circuit breakers. This 16A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range compatibility ComPacT new generation NSX100 DC, ComPacT new generation NSX100
Mounting mode fixed
Range ComPacT new generation
Protection type I : for short-circuit protection (magnetic), L : for overload protection (thermal)
Protected poles description 3D
Range of product ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Trip unit name TM-D
Trip unit technology thermal-magnetic
Poles description 3P
Product or component type trip unit
Network type DC, AC
Trip unit protection functions LI
[Ue] rated operational voltage 750 V DC, 690 V AC 50/60 Hz
[In] rated current 16 A at 40 °C
Network frequency 50/60 Hz
Complementary
Long time pick-up adjustment type Ir adjustable
Long time pick-up adjustment range 0.7...1 x In
Instantaneous pick-up adjustment range 190 A
Earth-leakage protection without
[tr] long-time delay adjustment range 15-15 s at 6 x Ir, 120-400 s at 1.5 x In
Instantaneous pick-up adjustment type Ii fixed
Long time delay adjustment type fixed
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II
Standards EN/IEC 60947-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 10.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 430.400 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 12.451 kg
