SKU:

5041NMS

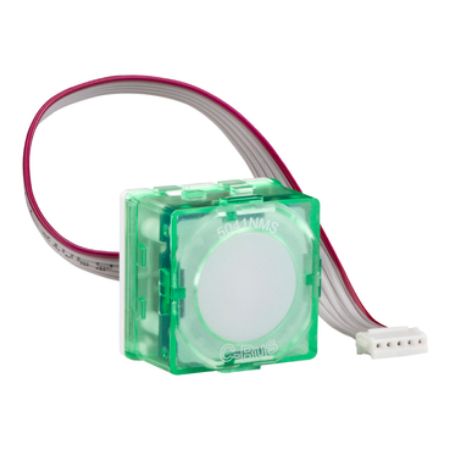

C-Bus, 40 Series Slave Module

Old price: $37.62 INC GST

Price: $45.14 INC GST

Qty:

Available for Shipping : 17-Jun-2025

C-Bus, 40 Series Slave Module

Manufacturer: Clipsal

End of life manual

Product environmental

Brochure

User guide

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Switch application	blind control, fan speed control, shutter control, bell switch, scene control, timer, dimming up/down control, load switching
Device application	control
Colour	transparent green
Range	C-Bus
Product name	Series 40M
Product or component type	push-button interface
Product brand	Clipsal
Complementary
Device mounting	wall mounted by Series 40M grid
Depth	14.5 mm
Width	22.8 mm
Communication network type	C-Bus via 40 series master module
Type of cable	twisted unshielded pairs cable category 5e
Local signalling	LED (red/blue) for status
Method of access	slave
Time delay range	1s...18h12m15s
Dimmer control	255 possible levels
Isolation voltage	3.75 kV from C-Bus to mains
Input impedance	100 kOhm at 1-1 kHz
Control type	push-button
Current consumption	18 mA
Net weight	0.007 kg
Material	plastic
Starting time	5 s
Range compatibility	Pro Series wall plate, Iconic wall plate, C-Bus
[Ue] rated operational voltage	15...36 V DC
Module configuration	programmed with C-Bus software, programmed with learn mode
Height	22.8 mm
Environment
Relative humidity	10-95 % non-condensing
Standards	AS/NZS 60669.2.1, AS/NZS CISPR 14-1, AS/NZS CISPR 15
Ambient air temperature for operation	0-45 °C
Product certifications	RCM
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	2.7 cm
Package 1 Width	2.7 cm
Package 1 Length	2.5 cm
Package 1 Weight	15 g
