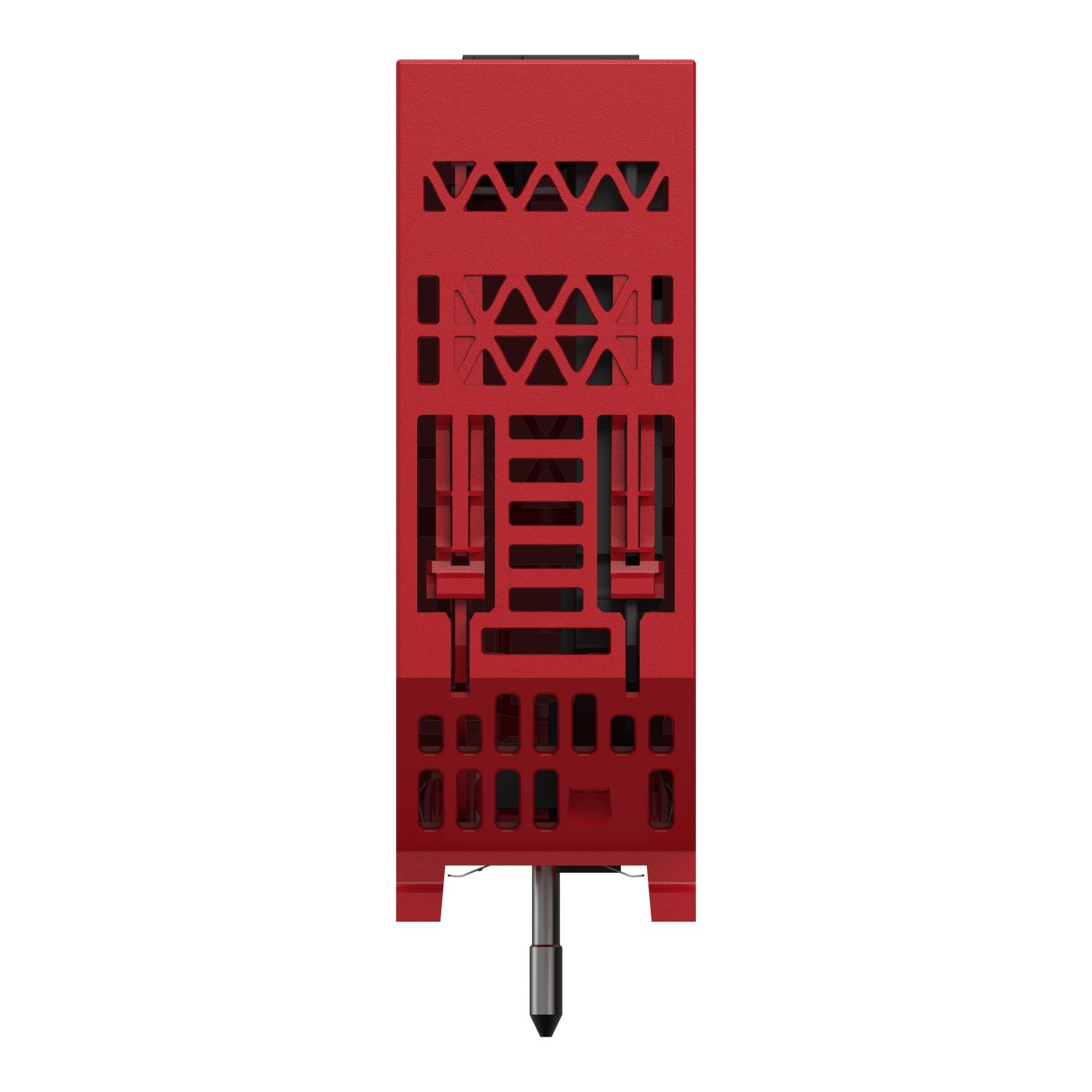

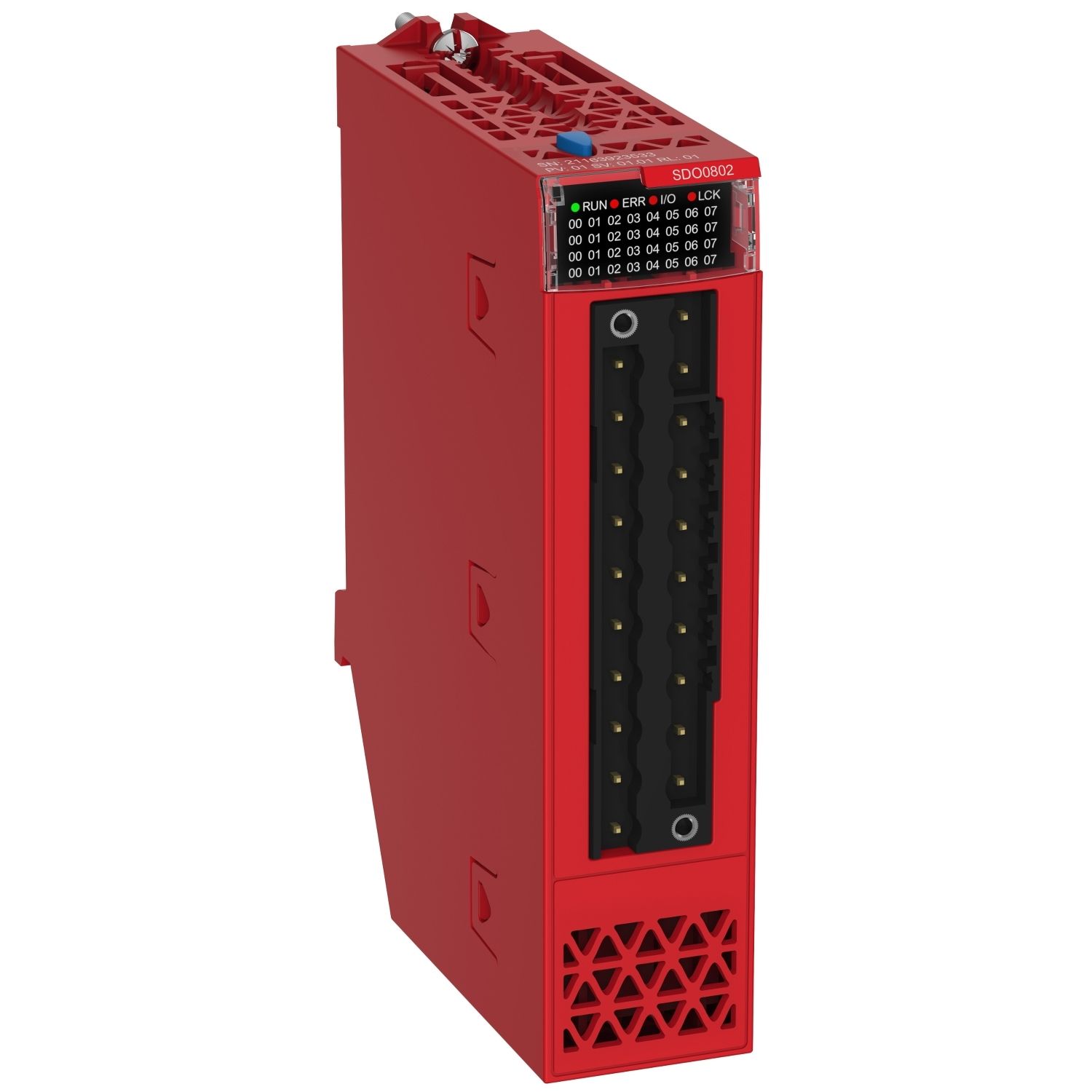

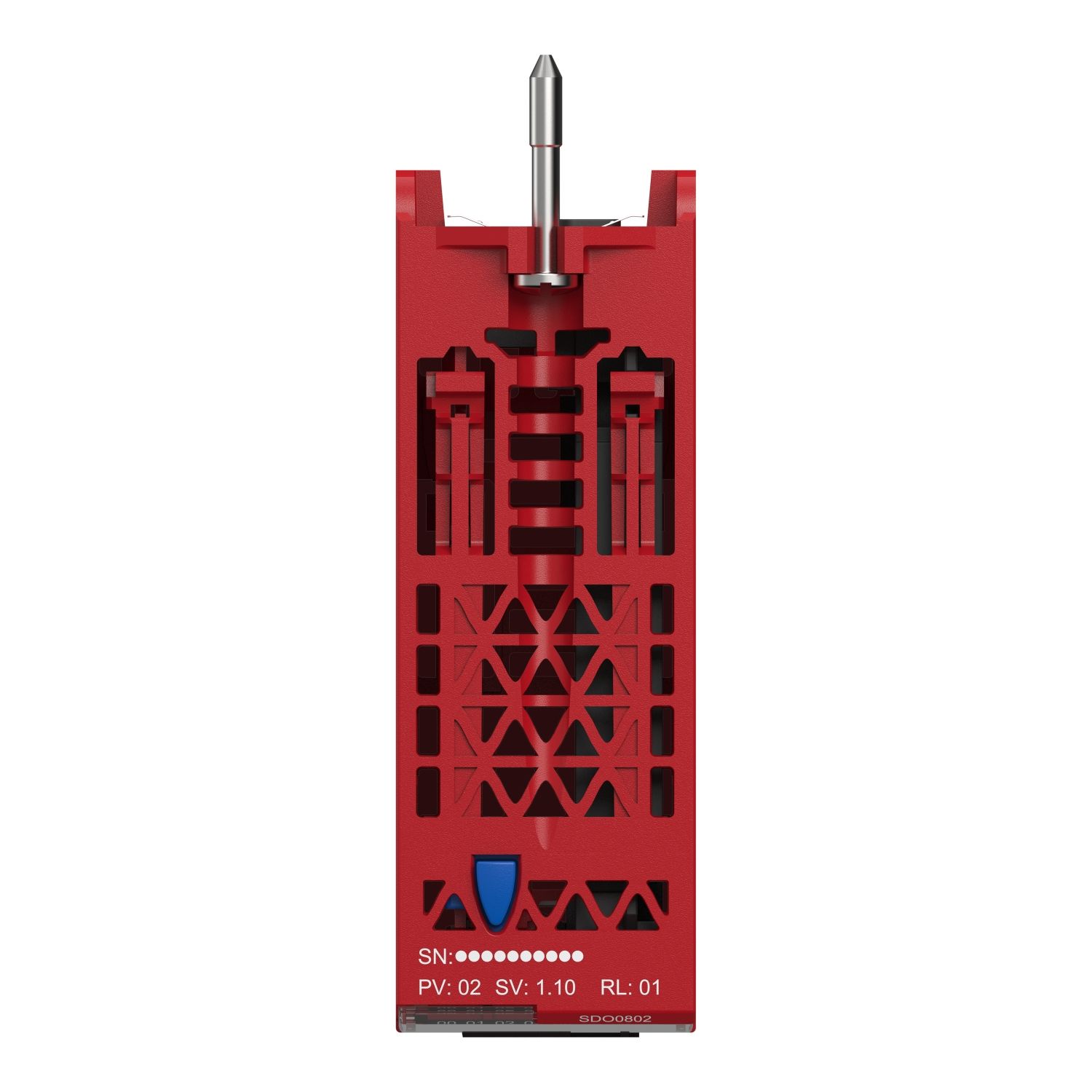

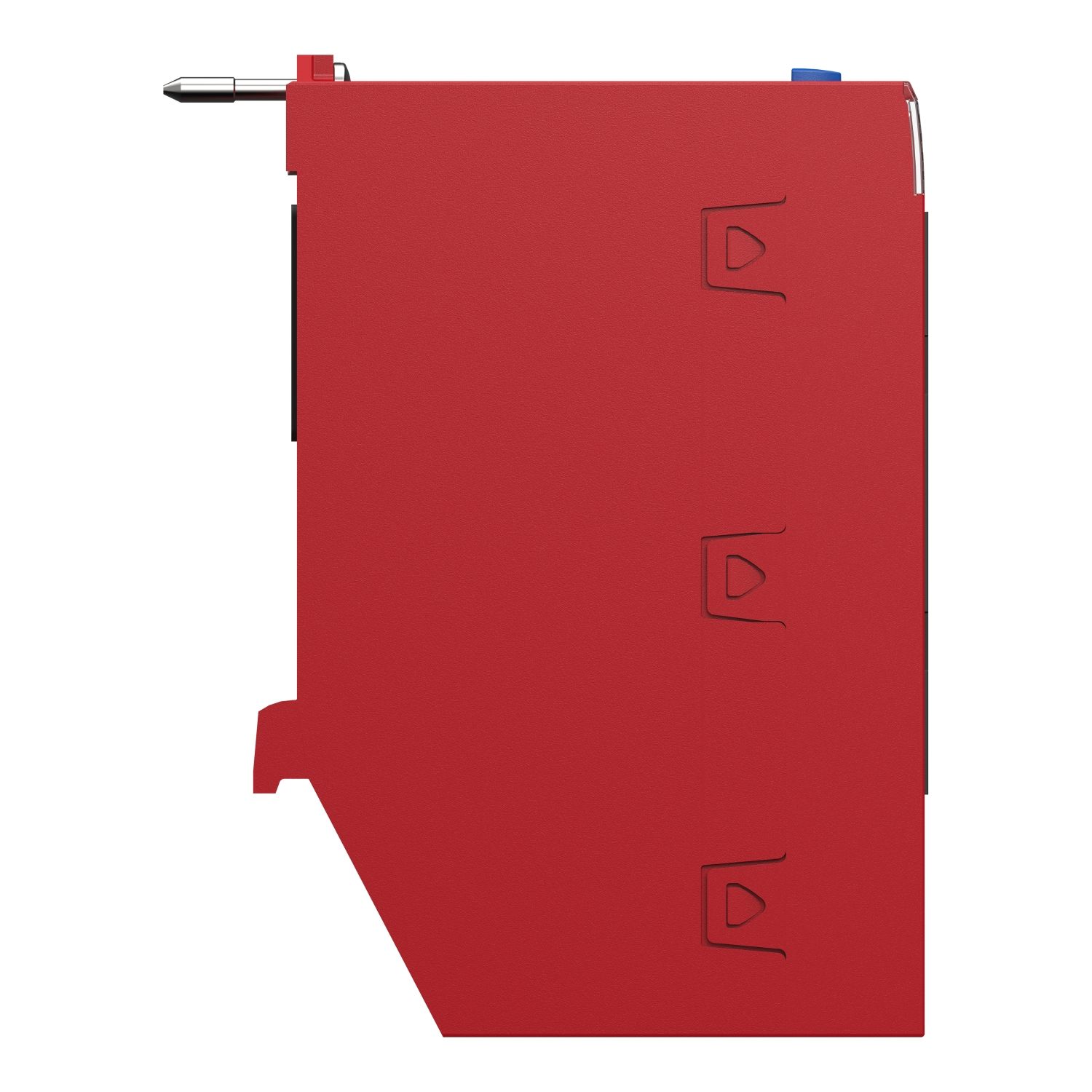

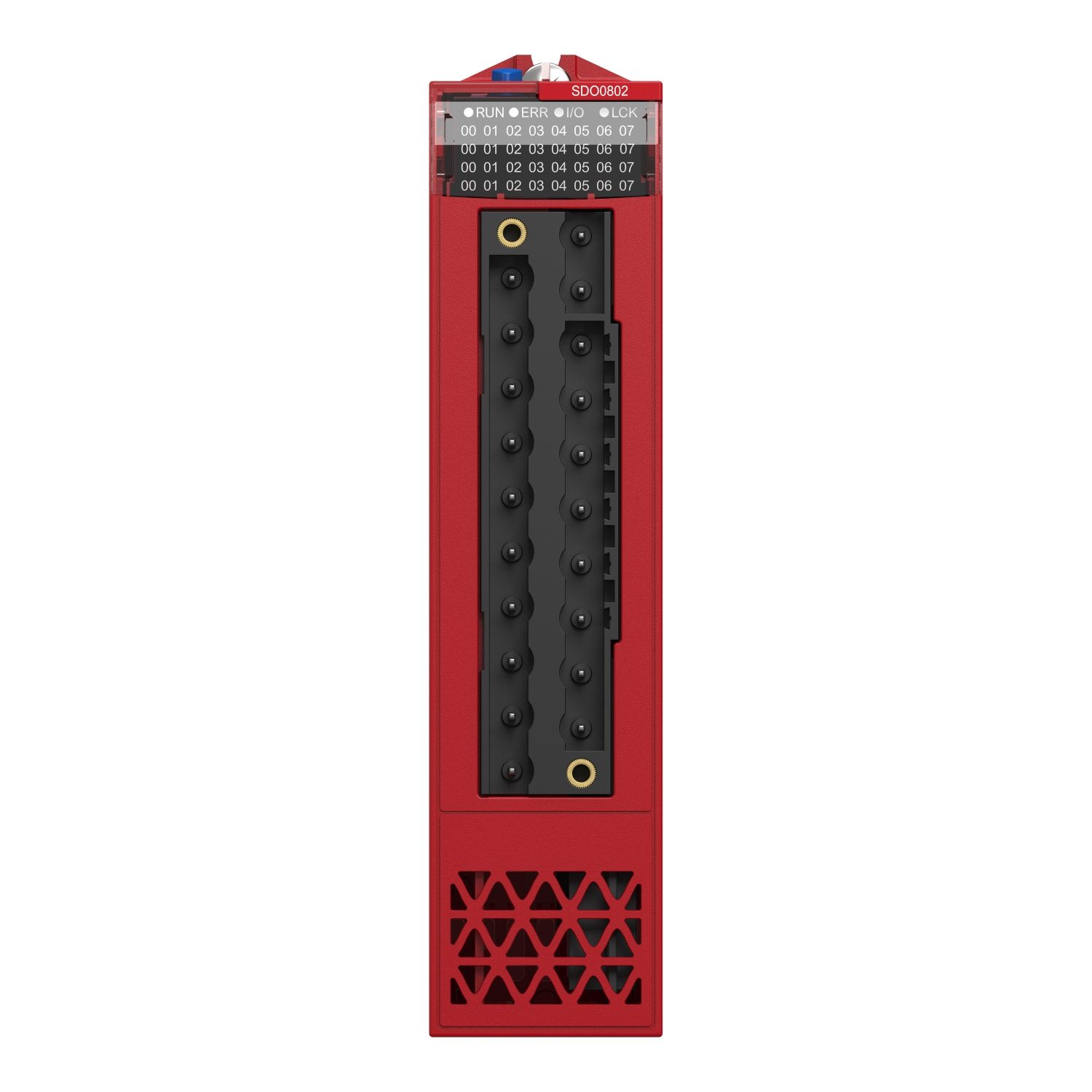

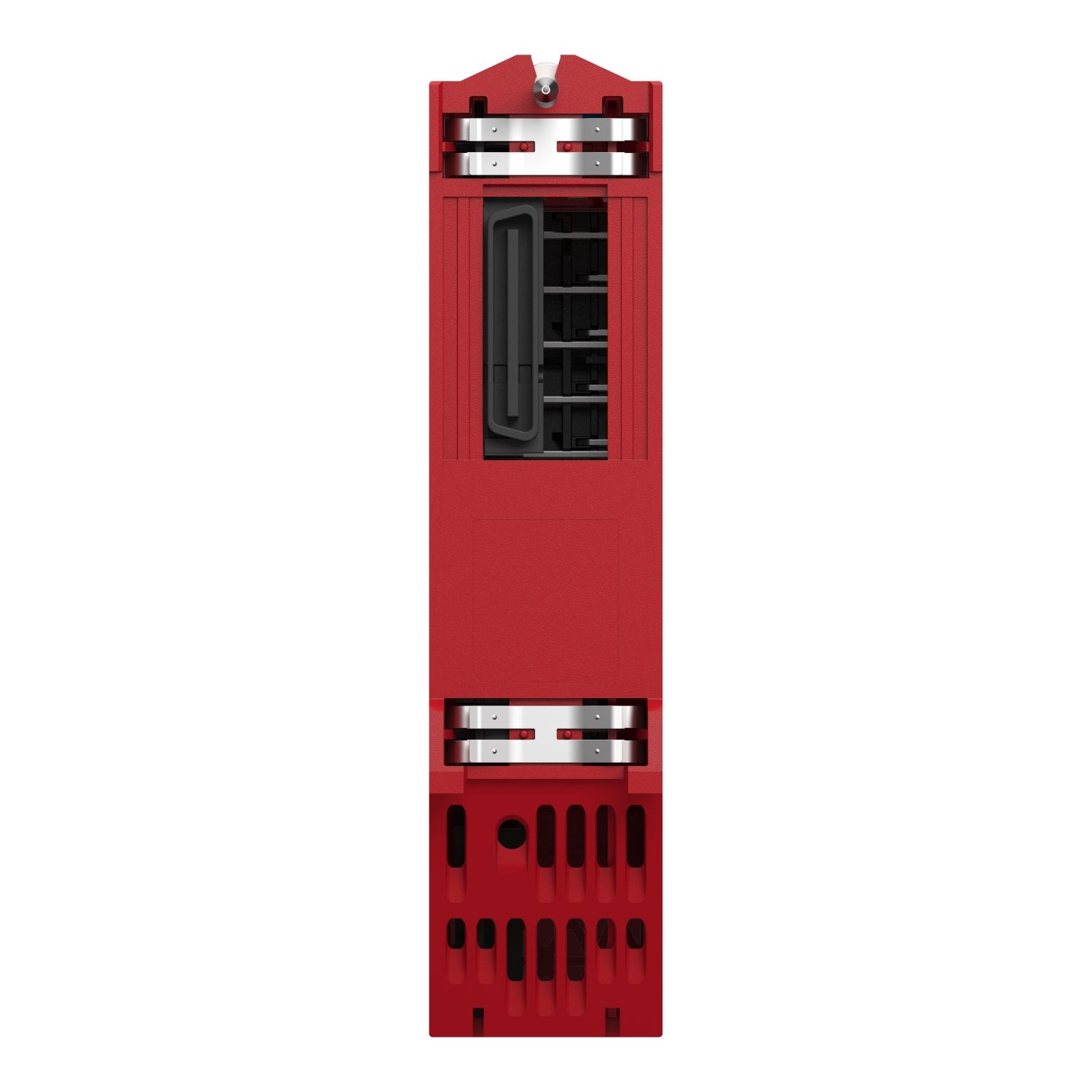

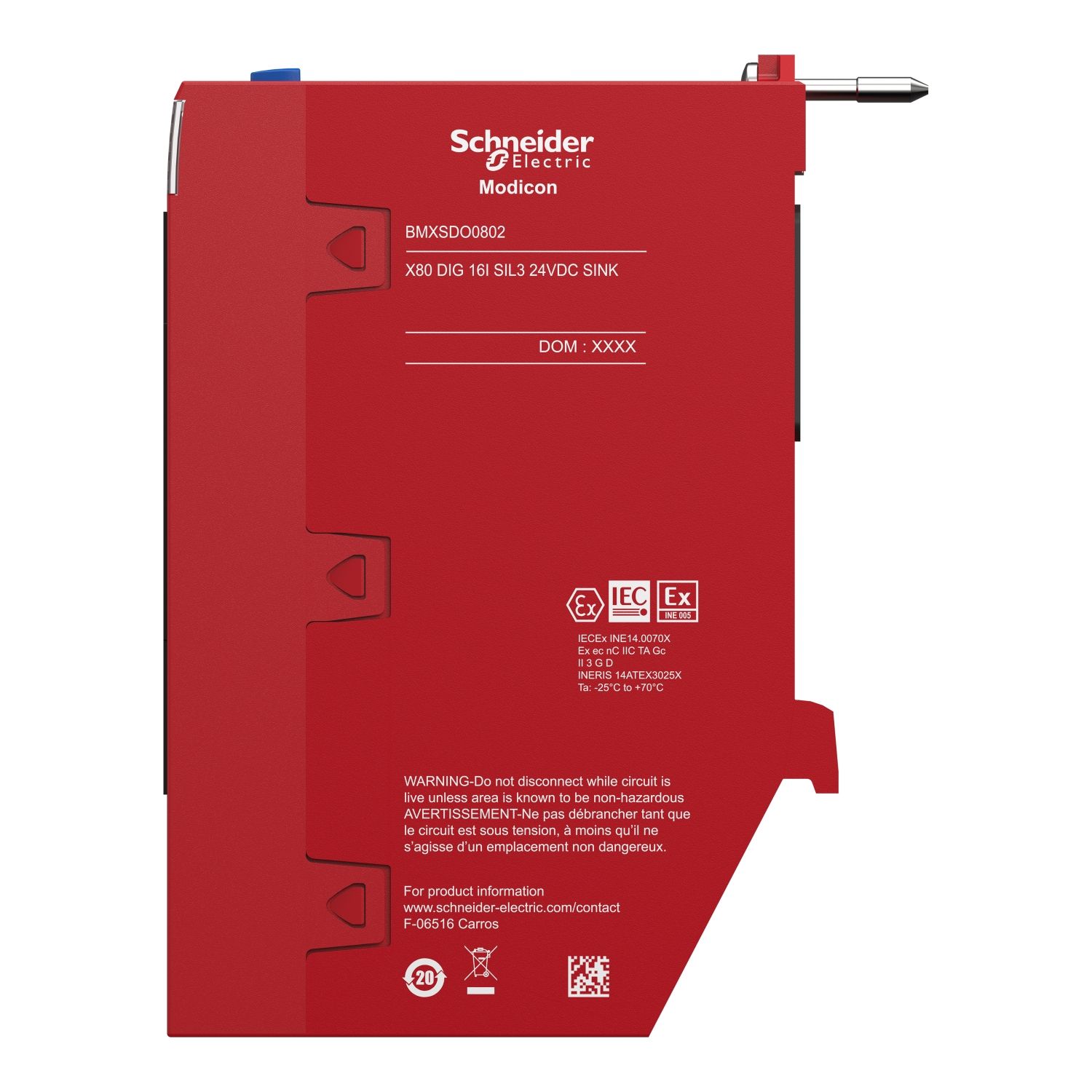

Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Picture of safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
SKU:

BMXSDO0802

safety discrete output module, Modicon X80, 8 outputs, 24V DC positive

$2,001.23 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
safety discrete output module, Modicon X80, 8 outputs, 24V DC positive
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
Declaration of conformity
Environmental Disclosure
User guide
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete output module offers 8 positive discrete output logic. It offers discrete output voltage ranges from 19V DC to 30V DC, 24V DC with solid state and not isolated discrete output. It is an IP20 rated product. It weighs 0.12kg. It is to be used with BMXFTB2010 screw clamp type terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Products specifications

Attribute name Attribute value
Main
Discrete output current 0.5 A
Product or component type discrete output module
Discrete output voltage 24 V 19...30 V DC
Output compatibility IEC 61131-2 type 3 DC input, not IEC 61131-2 DC input
Discrete output logic positive
Discrete output number 8 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type not isolated, solid state
Complementary
Response time on output 1.2 ms
Reverse polarity protection reverse mounted diode
Maximum tungsten load 6 W
Output overload protection with electronic circuit breaker 1.5 In < Id < 2 In, with current limiter
Output short-circuit protection with 2 A external fuse
Output overvoltage protection with transil diode
Typical current consumption 15 mA at 24 V, 264 mA at 3.3 V DC
Paralleling of outputs yes : 2 maximum
Load impedance ohmic >= 48 Ohm
Maximum leakage current 0.5 mA at state 0
Net weight 0.12 kg
Power dissipation in W 4.4 W
Protection type short-circuit protection,  overvoltage protection,  overload protection,  reverse polarity protection
Insulation resistance > 10 MOhm 500 V DC
Maximum voltage drop <1.2 V at state 1
Voltage detection threshold > 18 V DC sensor OK, < 14 V DC sensor fault
Current per channel 0.625 A
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Switching frequency 0.5/LI² Hz
Maximum current per module 10 A
MTBF reliability 383000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 15 gn
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 341.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.350 kg
