SKU:

BMXSDI1602

safety discrete input module, Modicon X80, 16 inputs, 24V DC positive

$2,616.02 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
safety discrete input module, Modicon X80, 16 inputs, 24V DC positive
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Declaration of conformity
User guide
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet

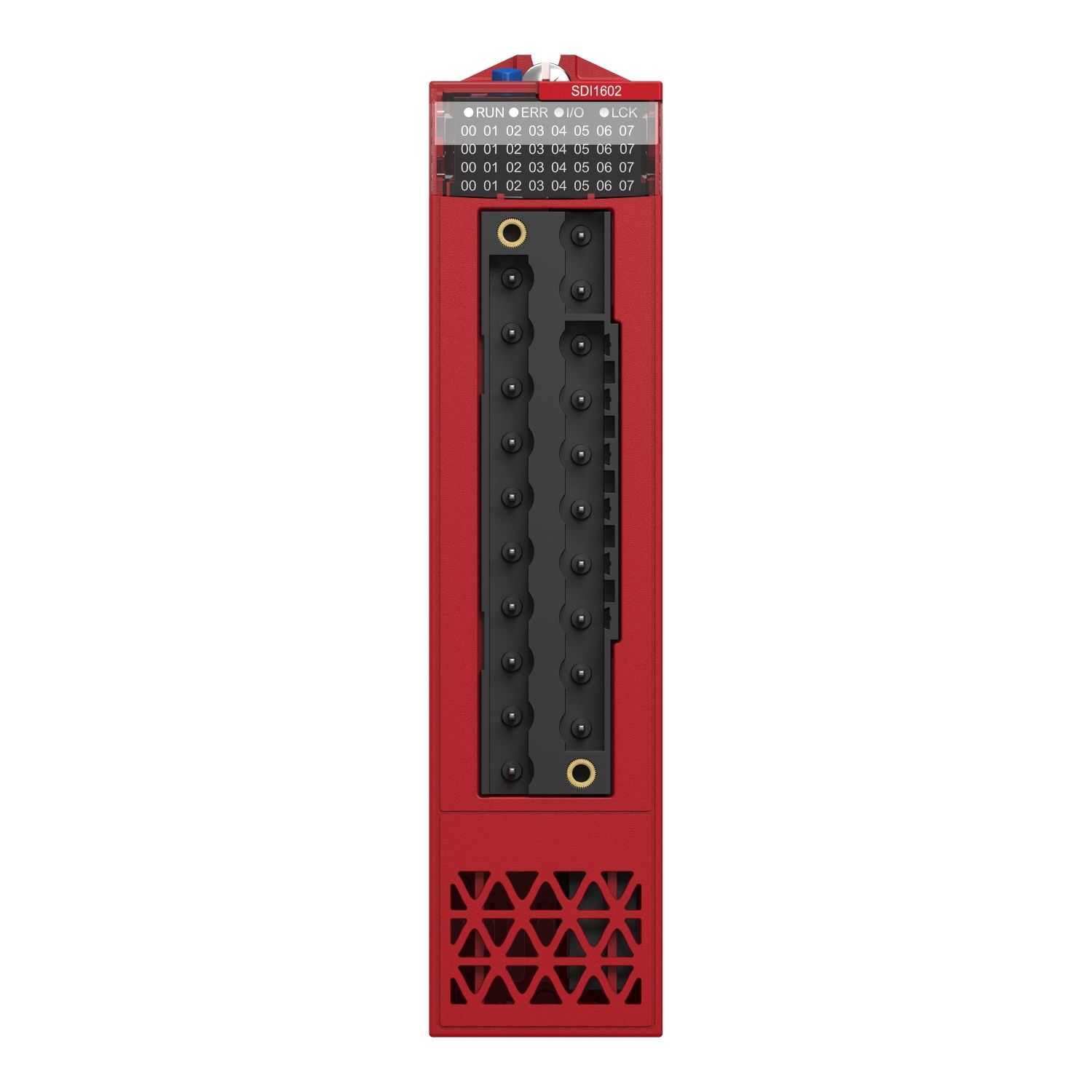

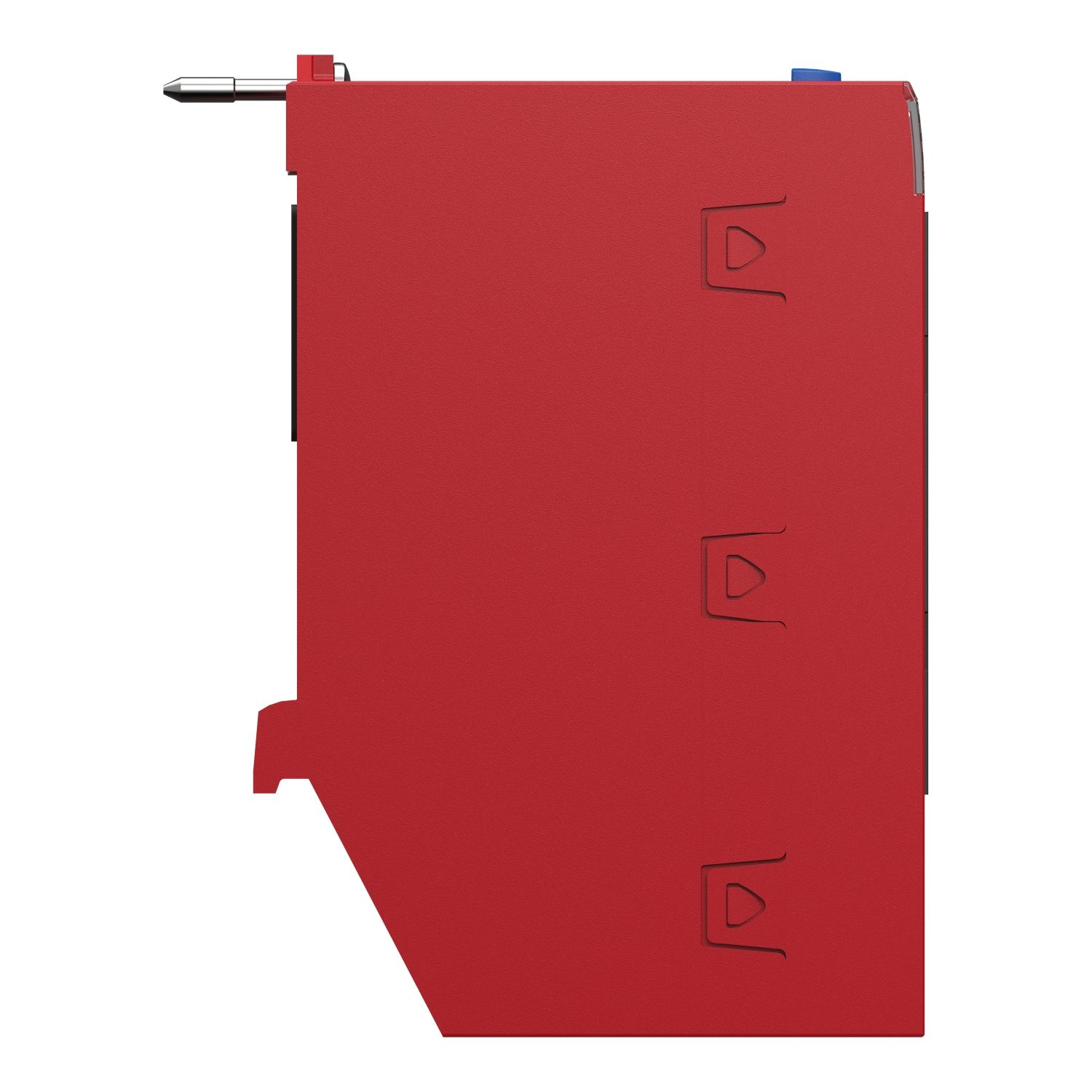

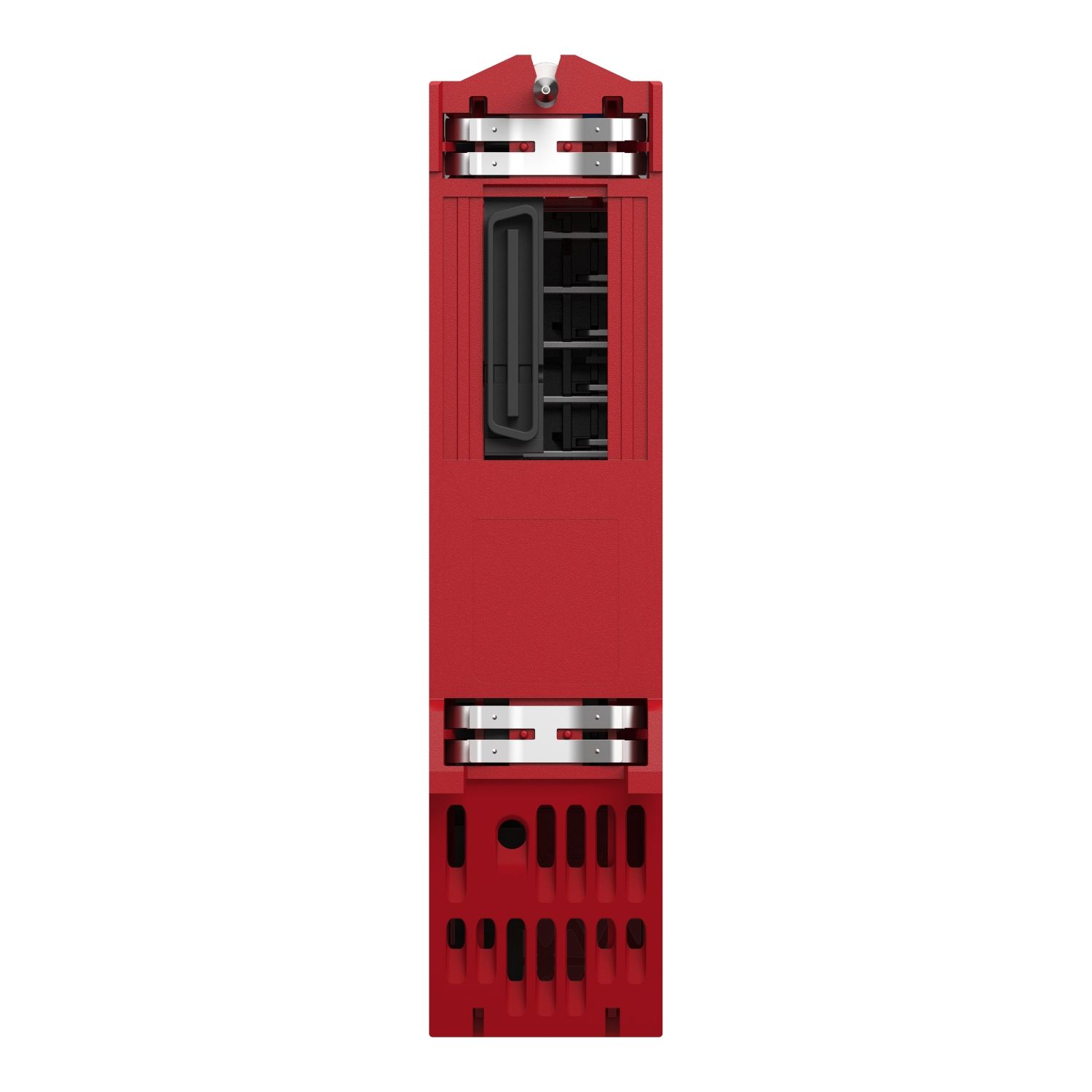

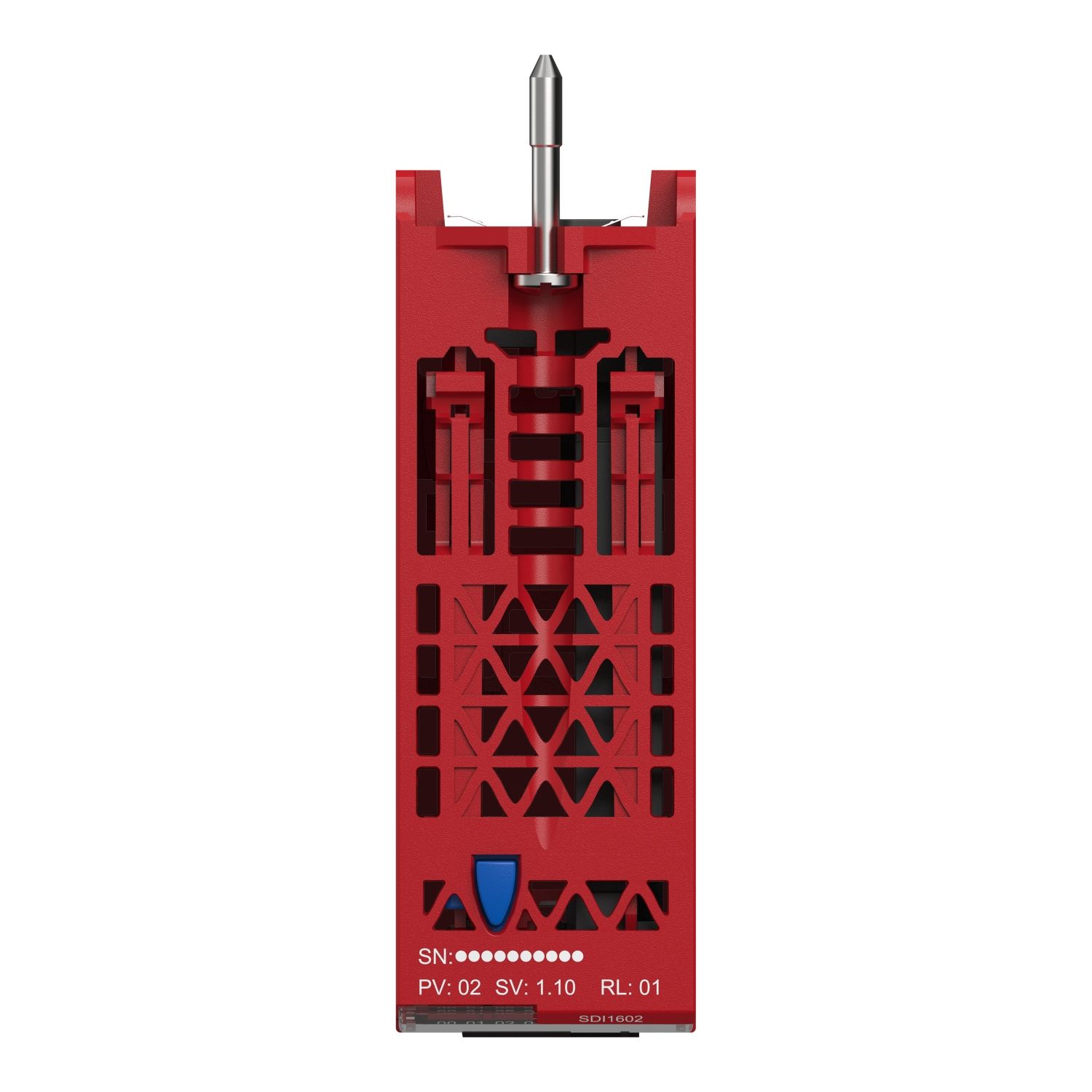

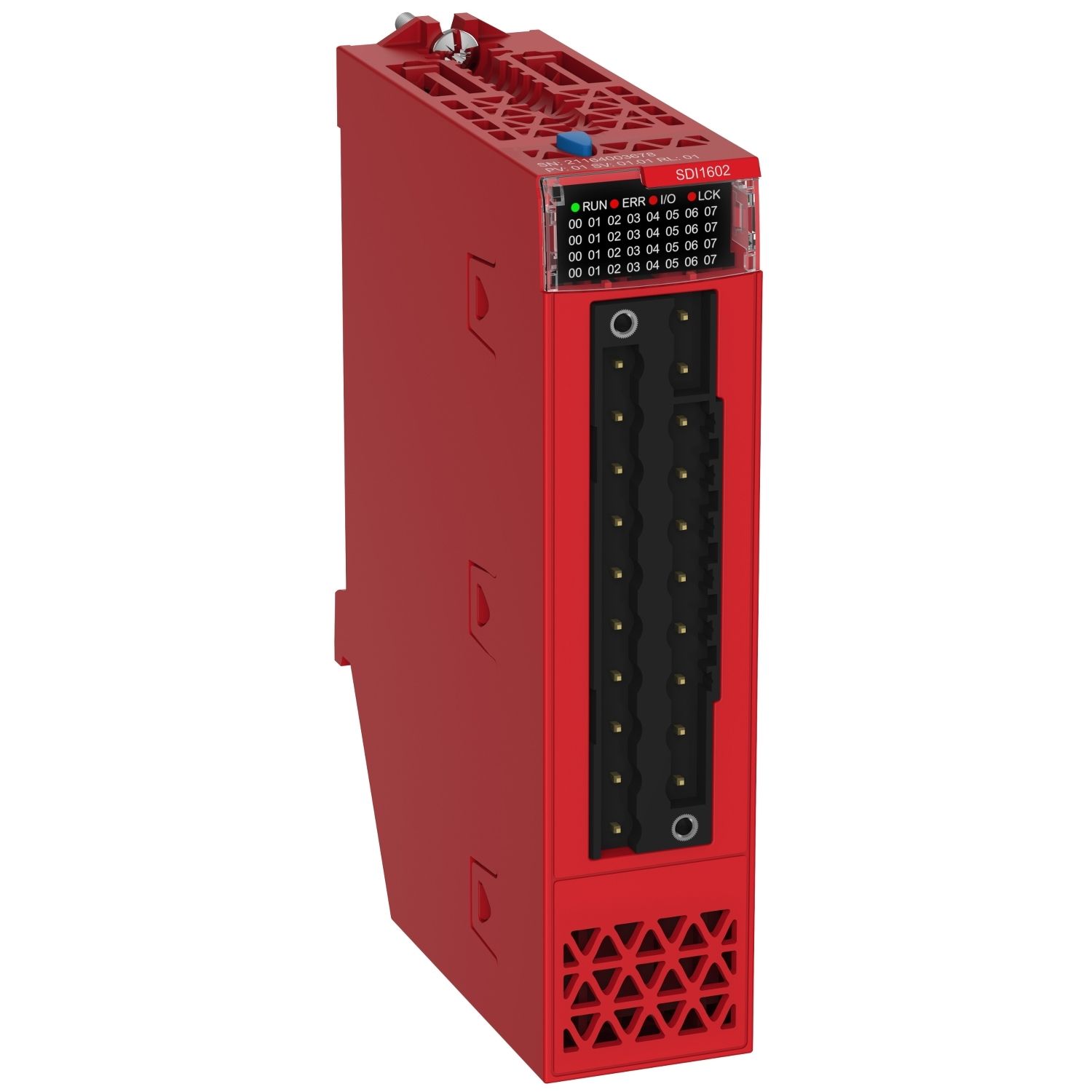

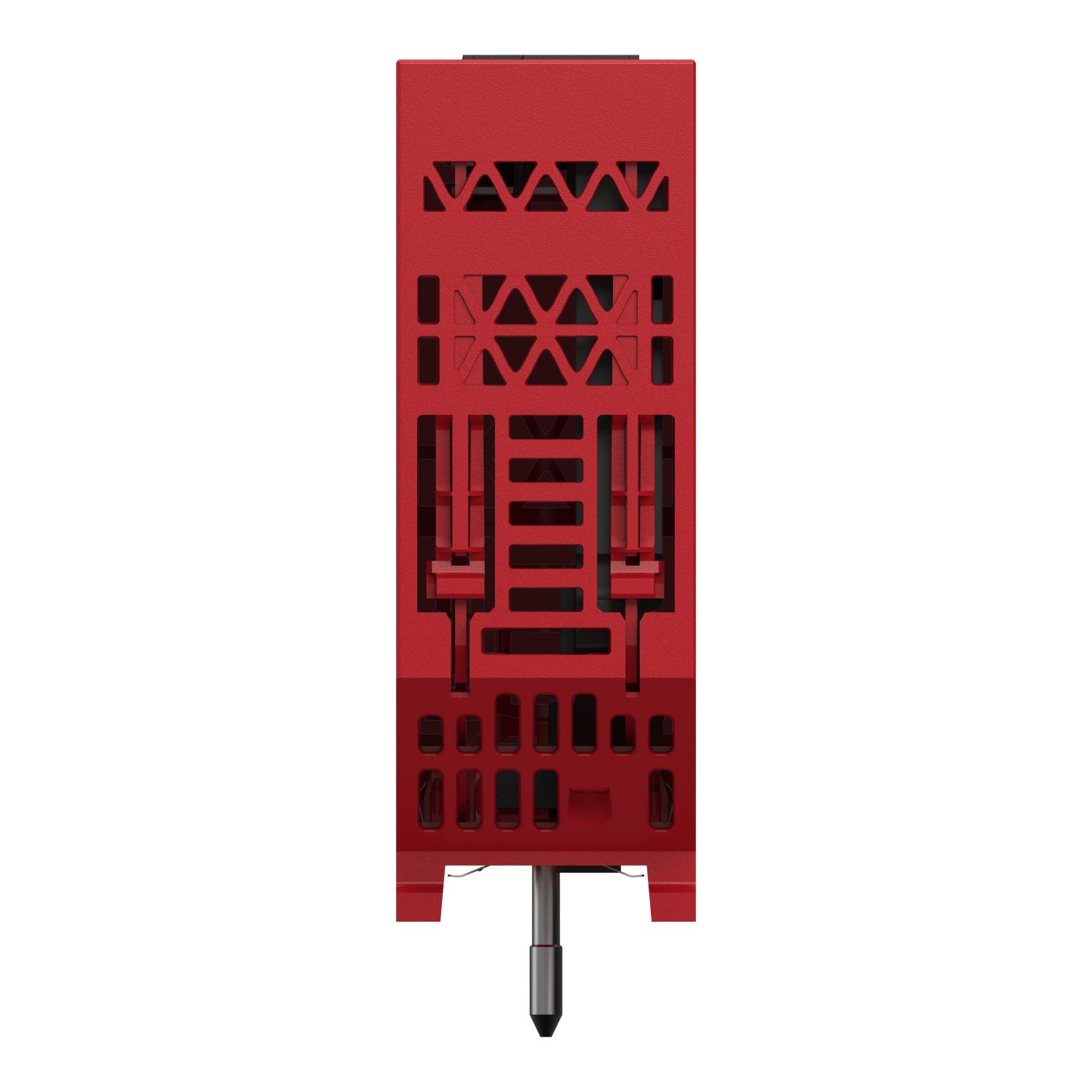

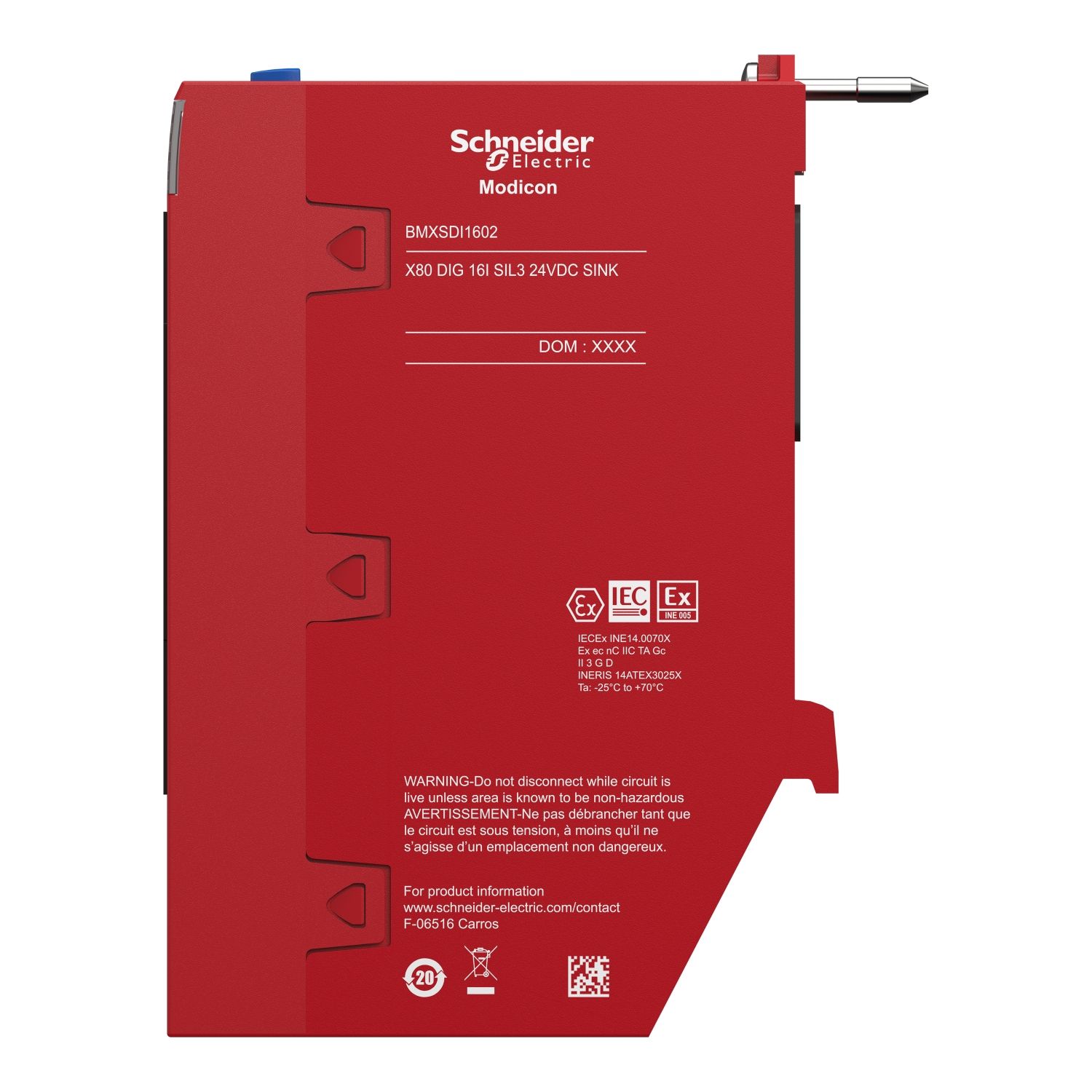

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This discrete input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC with current sink positive logic. It is the Modicon digital input module dedicated to M580 safety systems. It features 16 Type 3 inputs, in two groups of 8 non-isolated inputs. It is an IP20 rated product. It weighs 0.115kg. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. It is to be used with BMXFTB2000 caged terminal block. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Products specifications

Attribute name Attribute value
Main
Discrete input current 3.2 mA
Discrete input number 16
Discrete input type not isolated
Input type current sink (logic positive)
Product or component type discrete input module
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Complementary
DC maximum filtering time 6 ms
Input impedance 7500 Ohm
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 100 mA at 24 V, 256 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
DC typical filtering time 6 ms
Paralleling of inputs yes
Net weight 0.115 kg
Power dissipation in W 3.57 W
Protection type external overload protection0.5 A fast blow,  reverse polarity protection
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 18 V DC sensor OK, < 14 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Voltage range 19...30 V
MTBF reliability 265000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 15 gn
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 338.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.300 kg

Related products

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
$107.15 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

BMXFTB2000
$101.07 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable screw clamp, 1 or 2 x 0.34..1.5mm2

BMXFTB2010
$130.04 INC GST
View Detail
