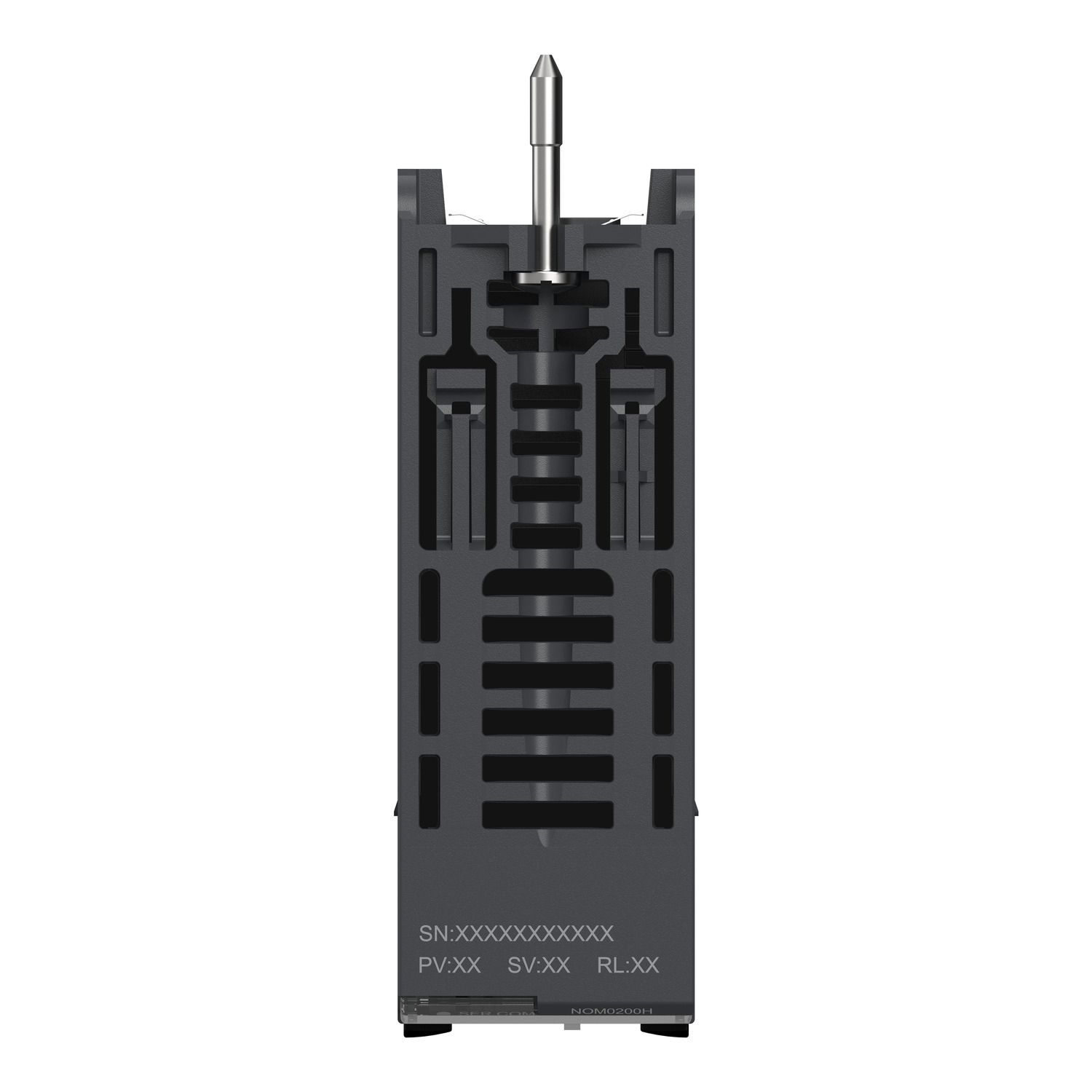

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

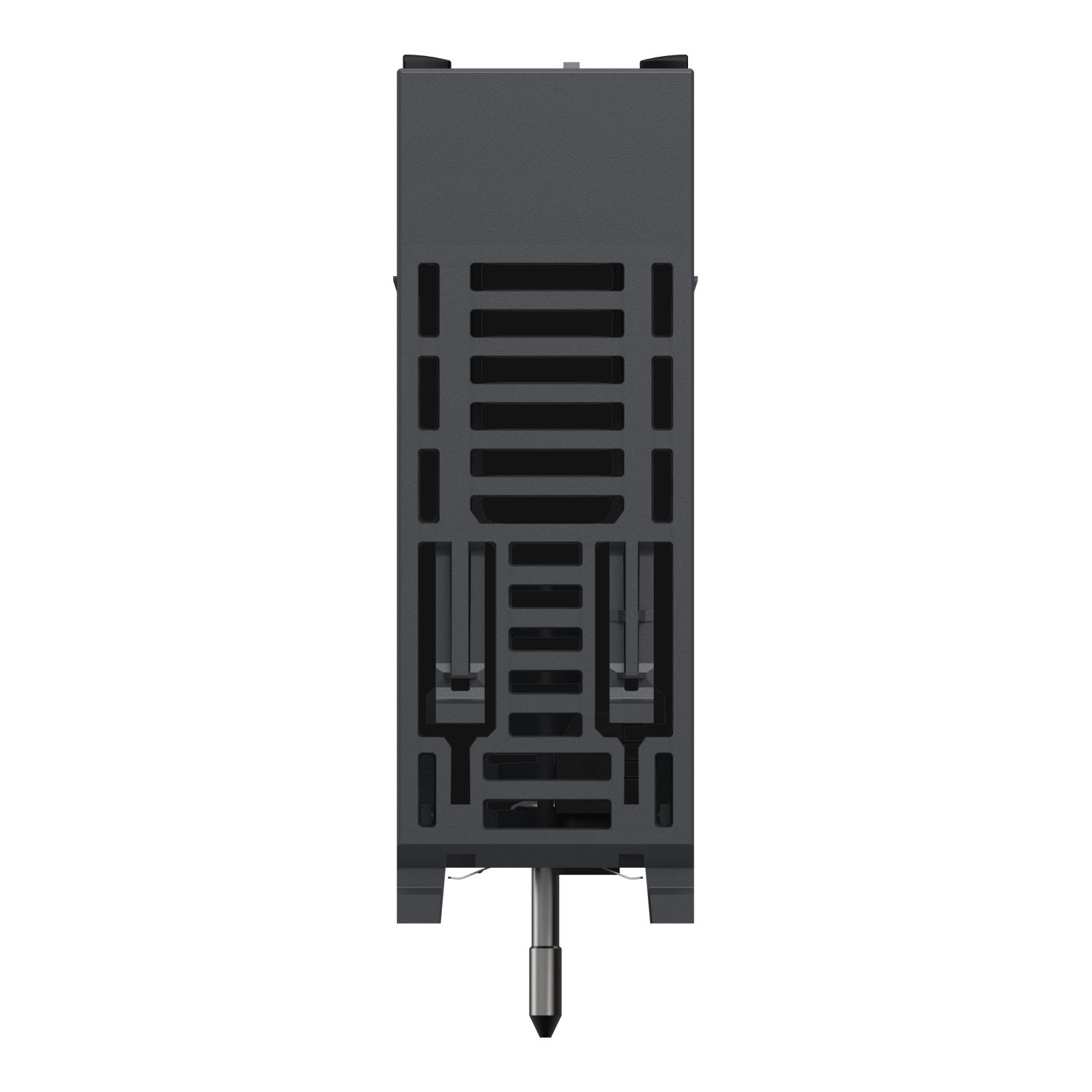

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

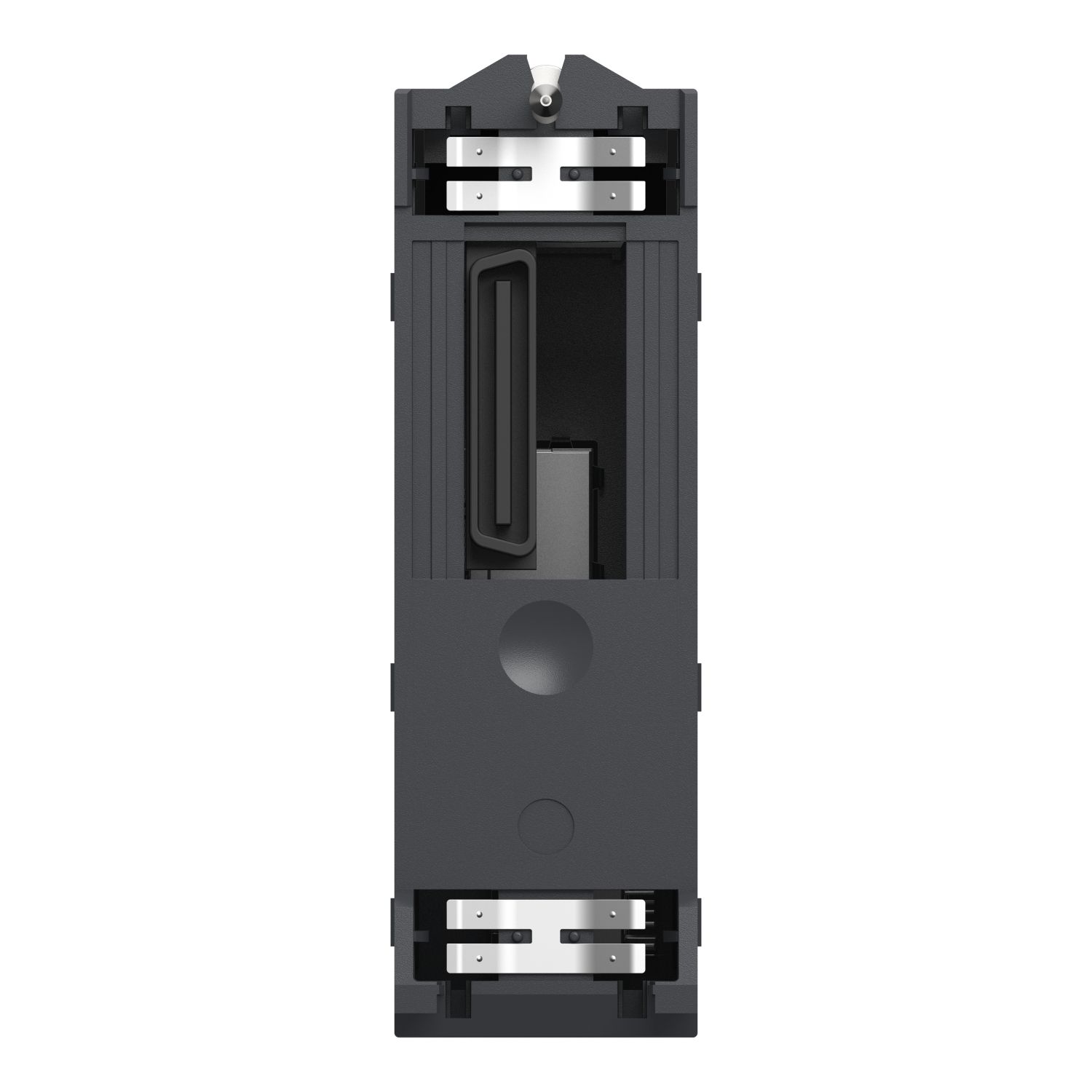

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

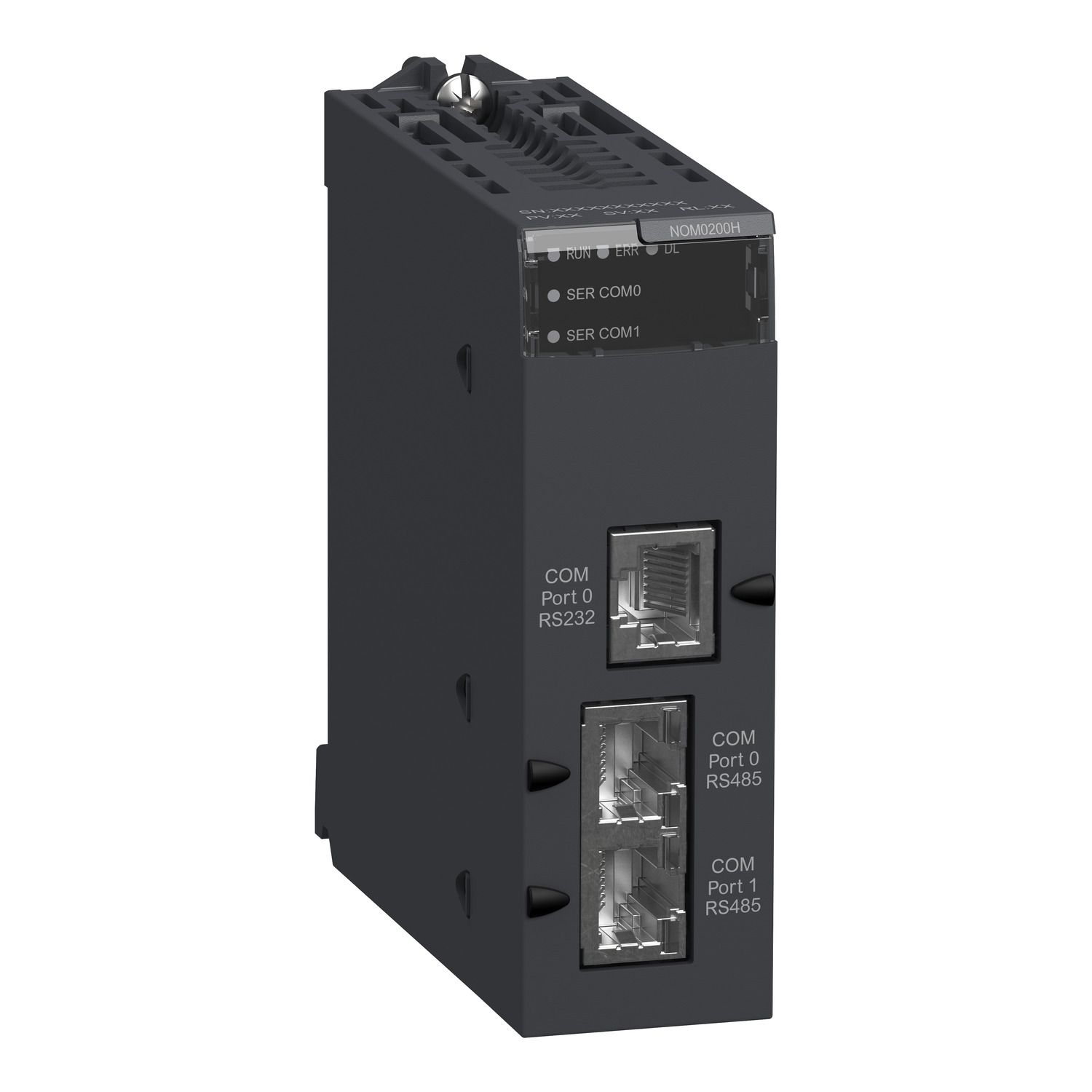

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

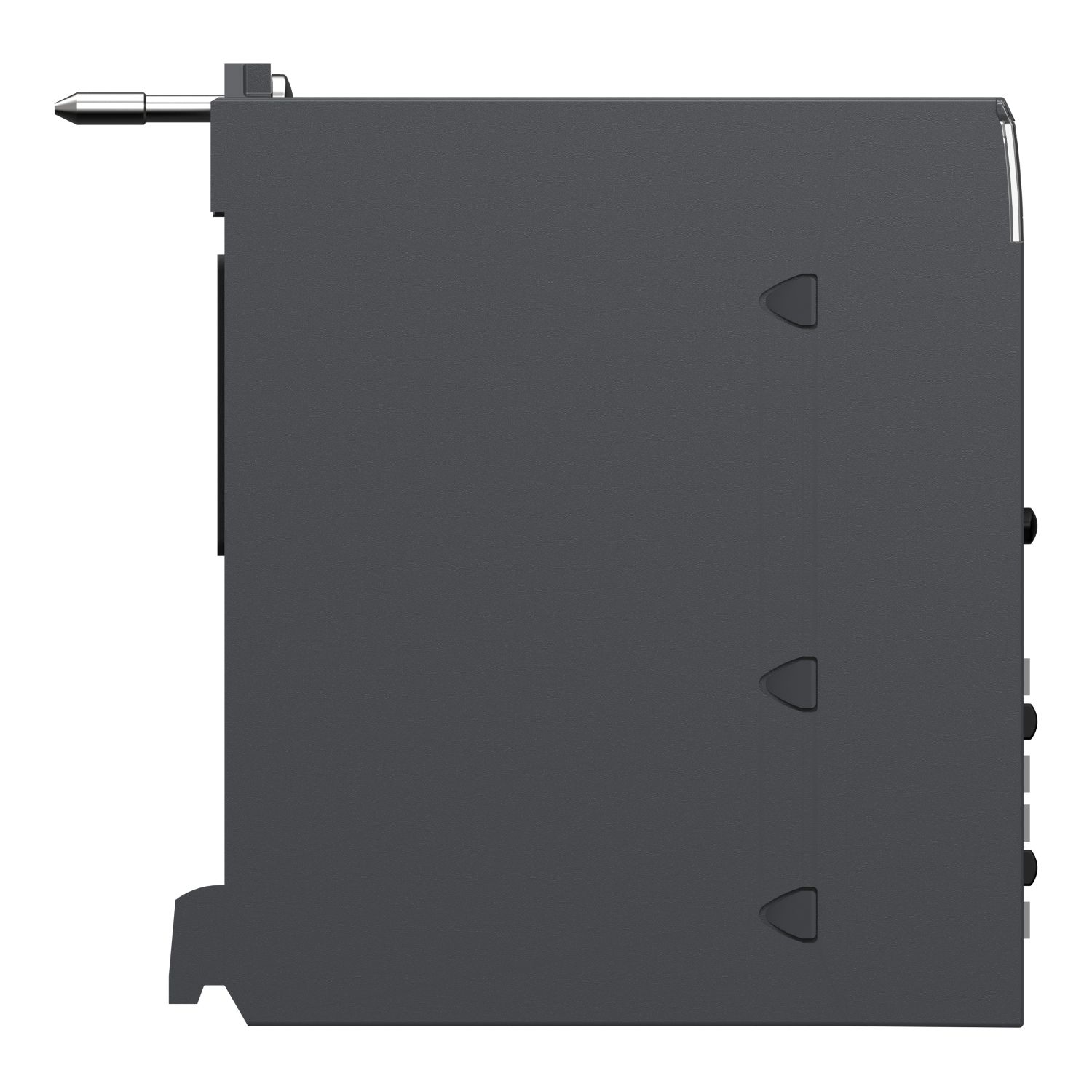

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

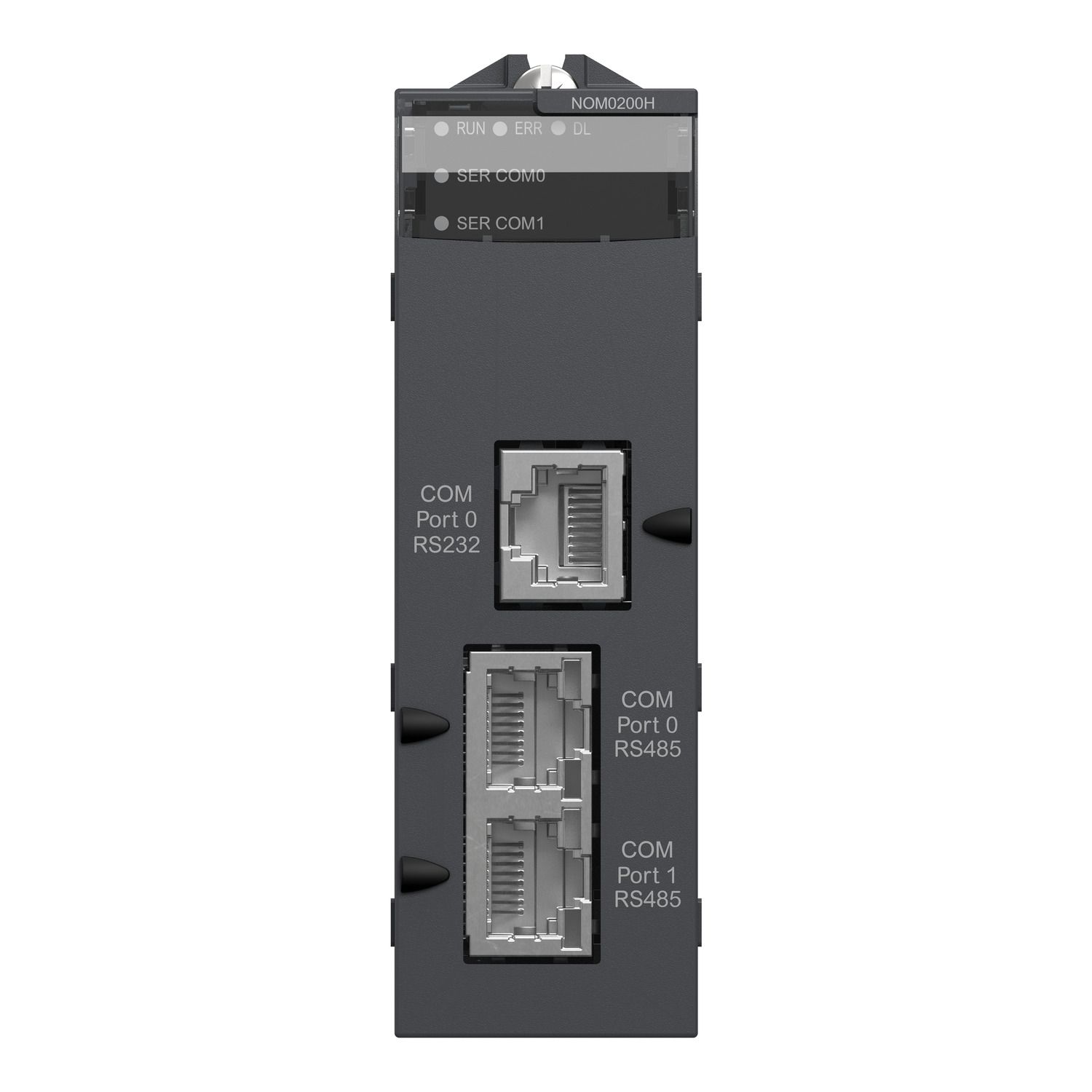

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

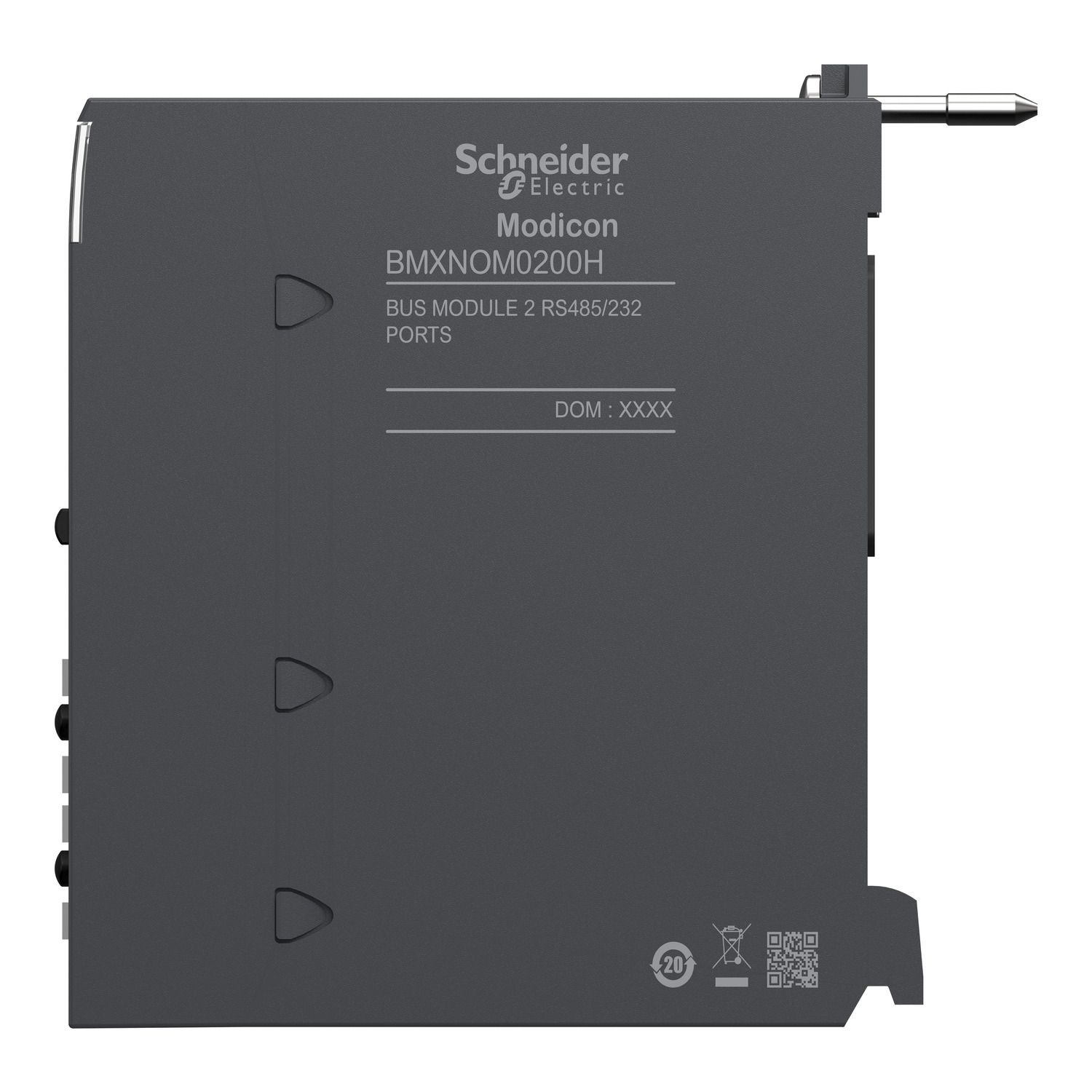

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment
Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment
SKU:

BMXNOM0200H

communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

$3,805.12 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
CAD
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode for harsh chemical environments. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Concept Serial link
Protective treatment conformal coating
Range of product Modicon X80
Product specific application for severe environments
Integrated connection type RS485 RJ45 57.6 kbit/s 1 twisted pair, RS232 RJ45 115.2 kbit/s 8 wires
Product or component type serial links module
Complementary
Module format standard
Marking CE
Local signalling 1 LED (green) for activity on the serial link (SER COM 1), 1 LED (green) for activity on the serial link (SER COM 0), 1 LED (green) for module running (RUN), 1 LED (red) for module fault (ERR)
Net weight 0.23 kg
Current consumption 80 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.2 cm
Package 1 Length 11.8 cm
Package 1 Weight 229.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.682 kg
