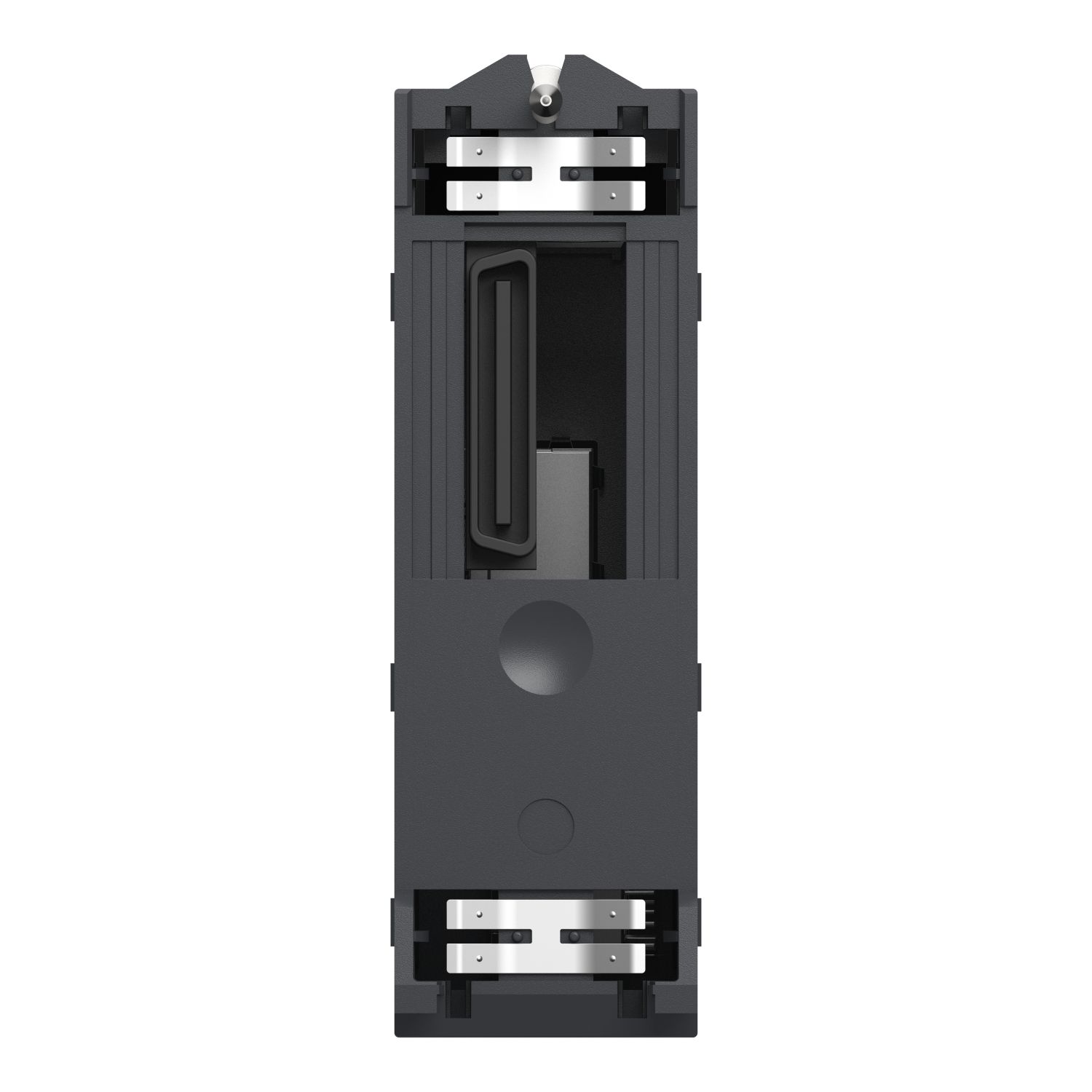

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

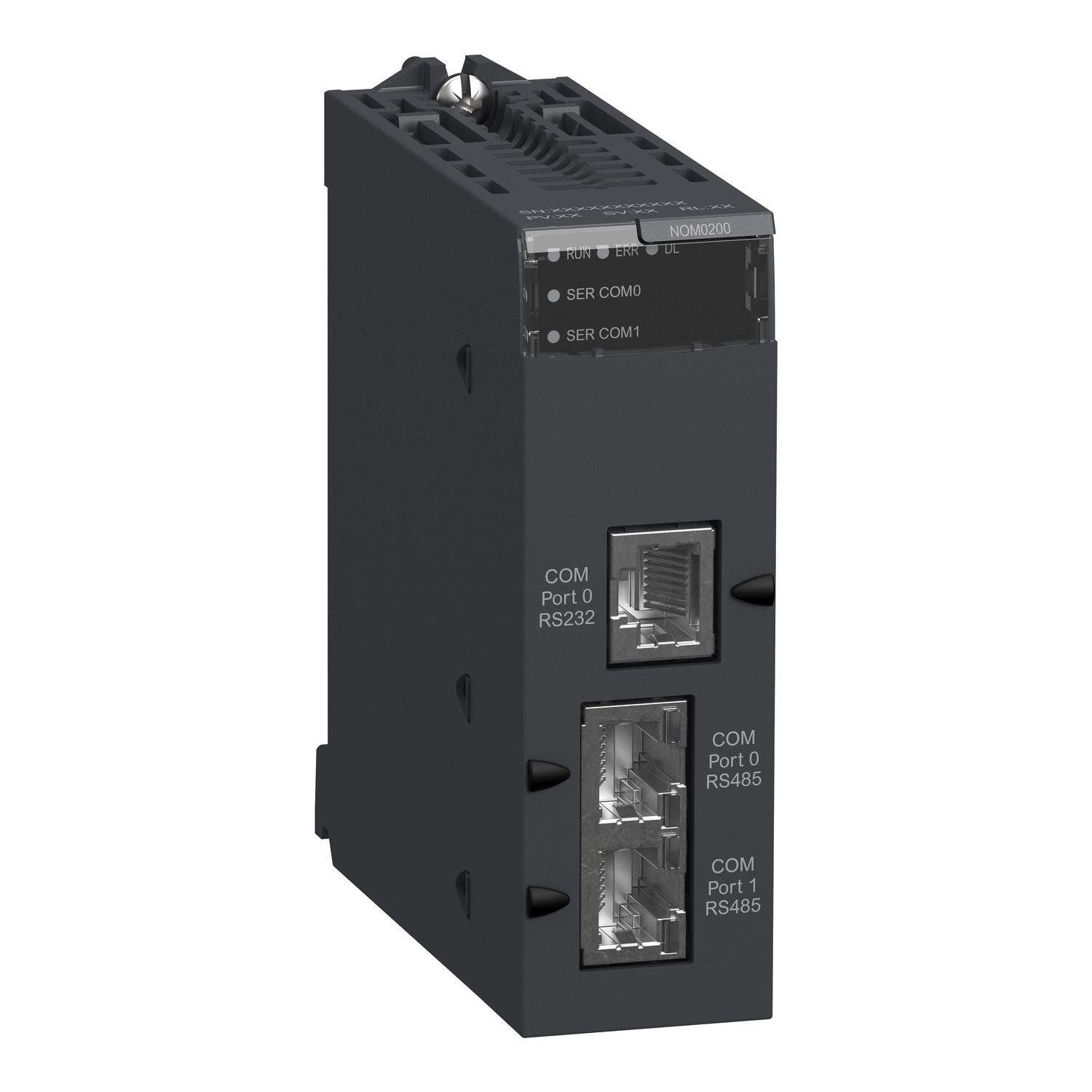

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

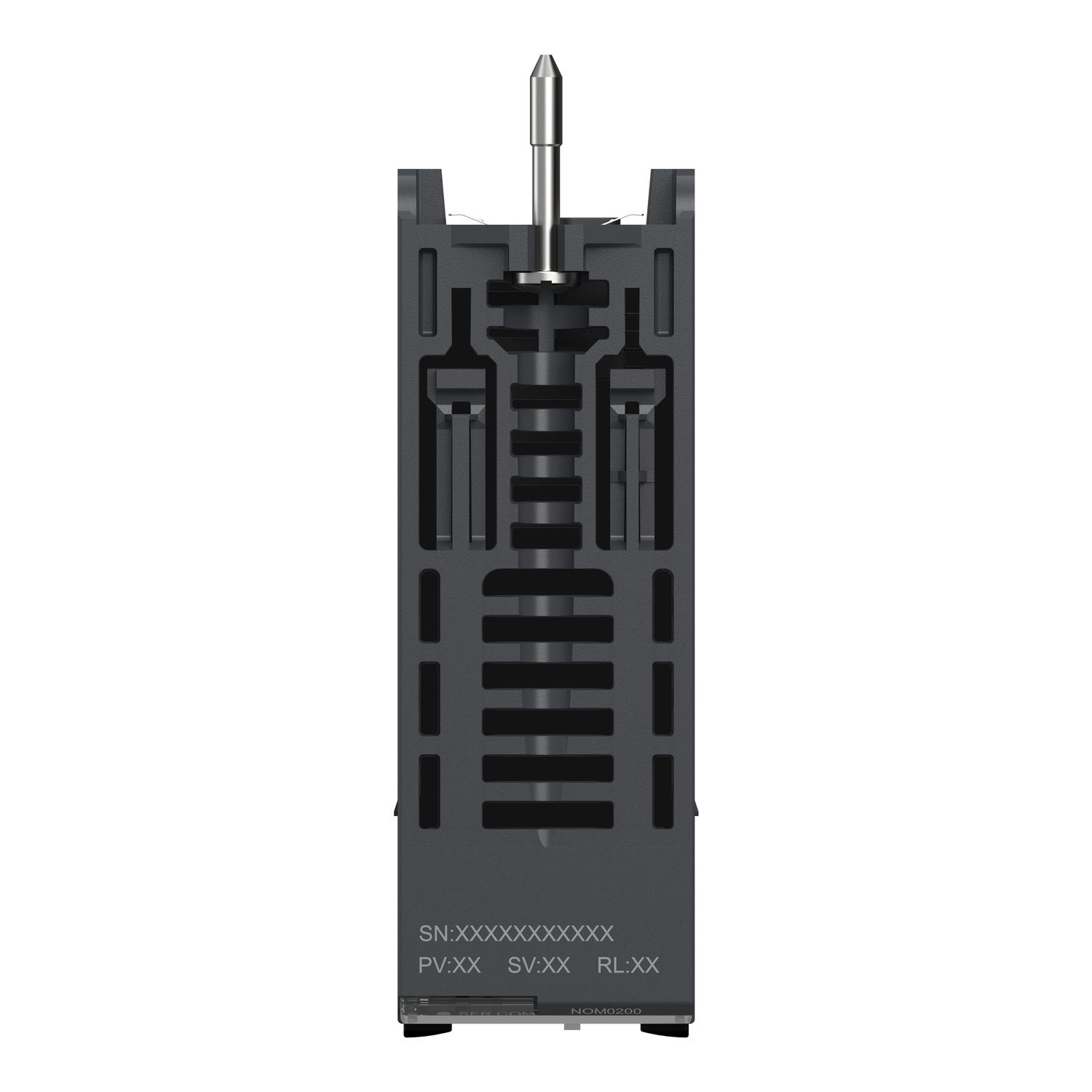

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

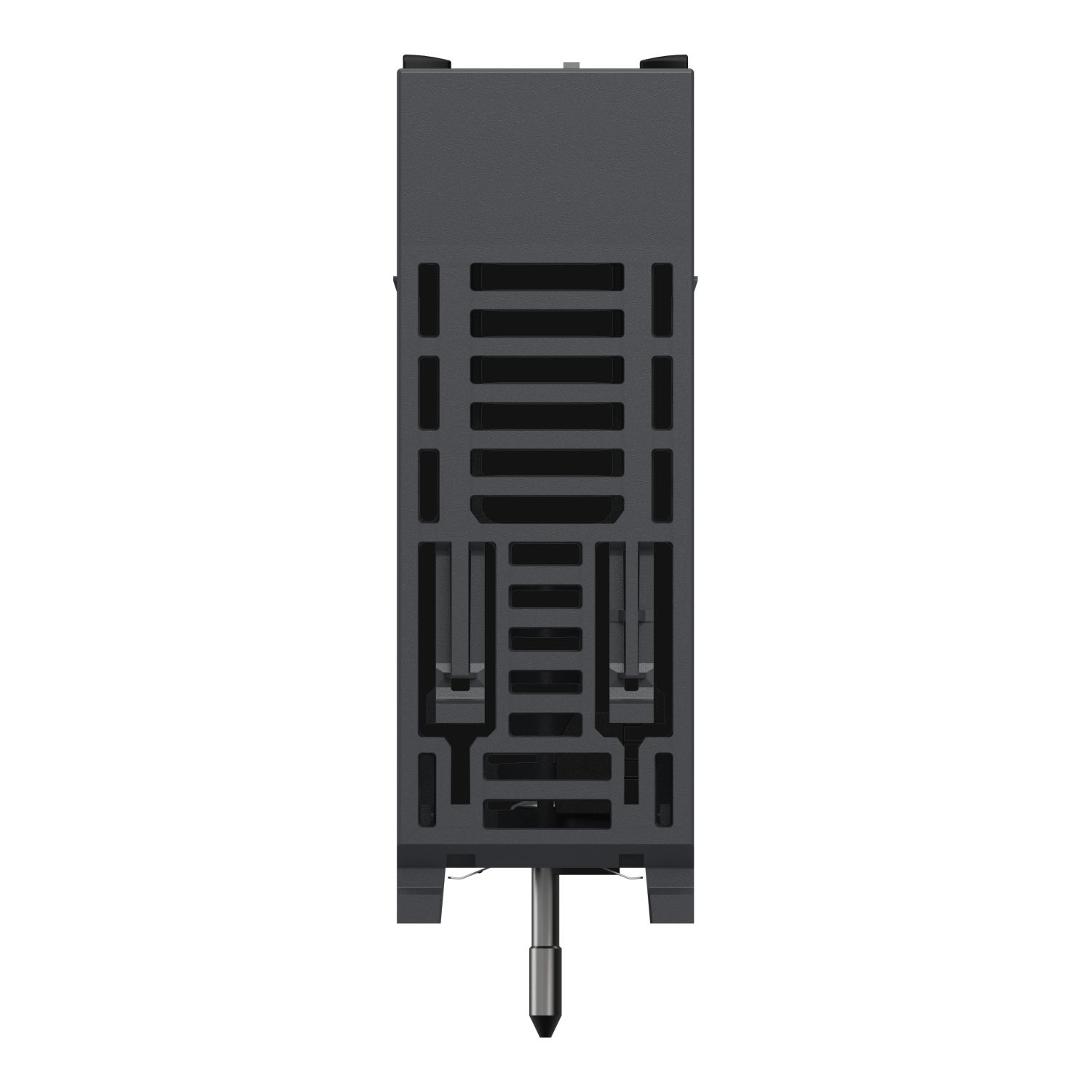

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

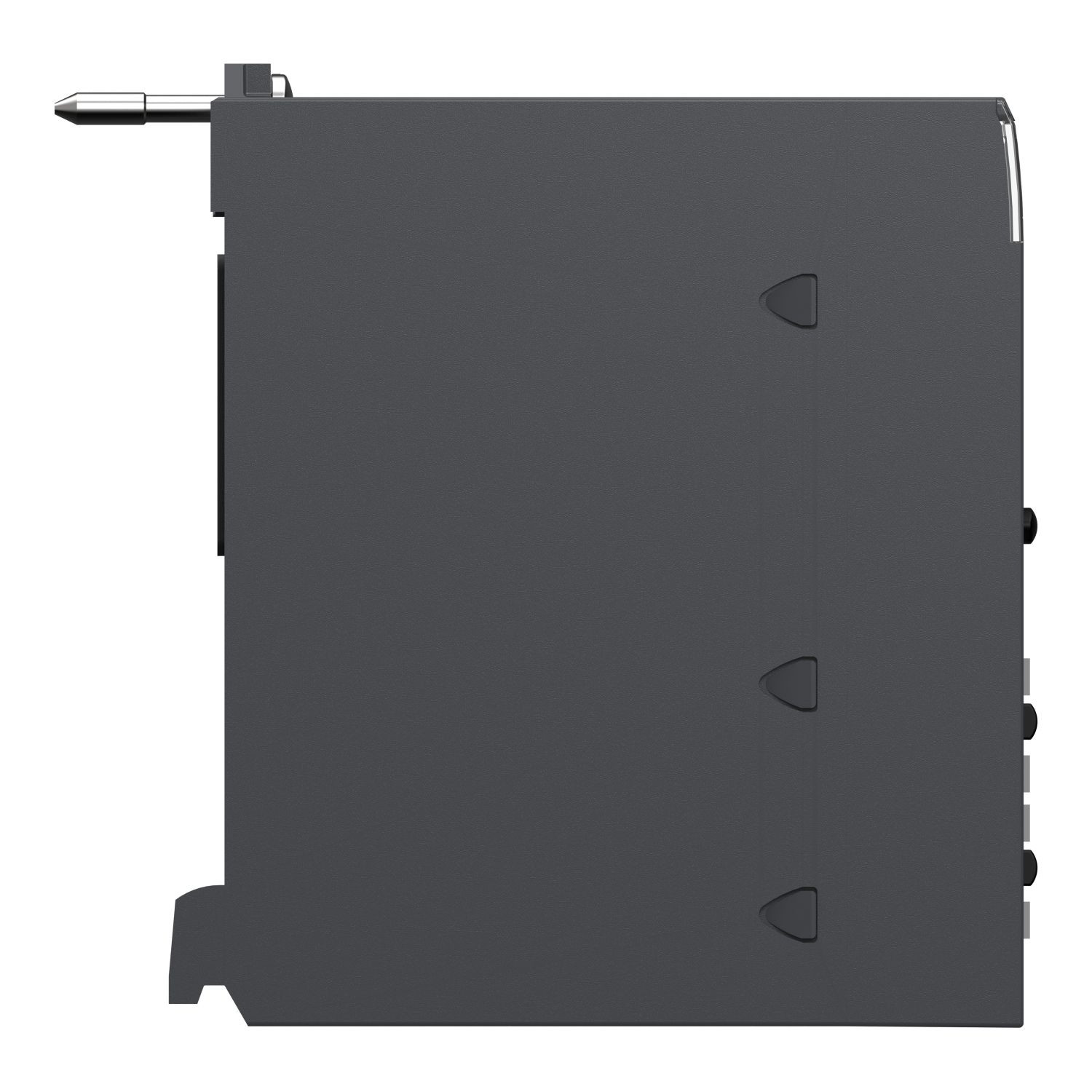

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

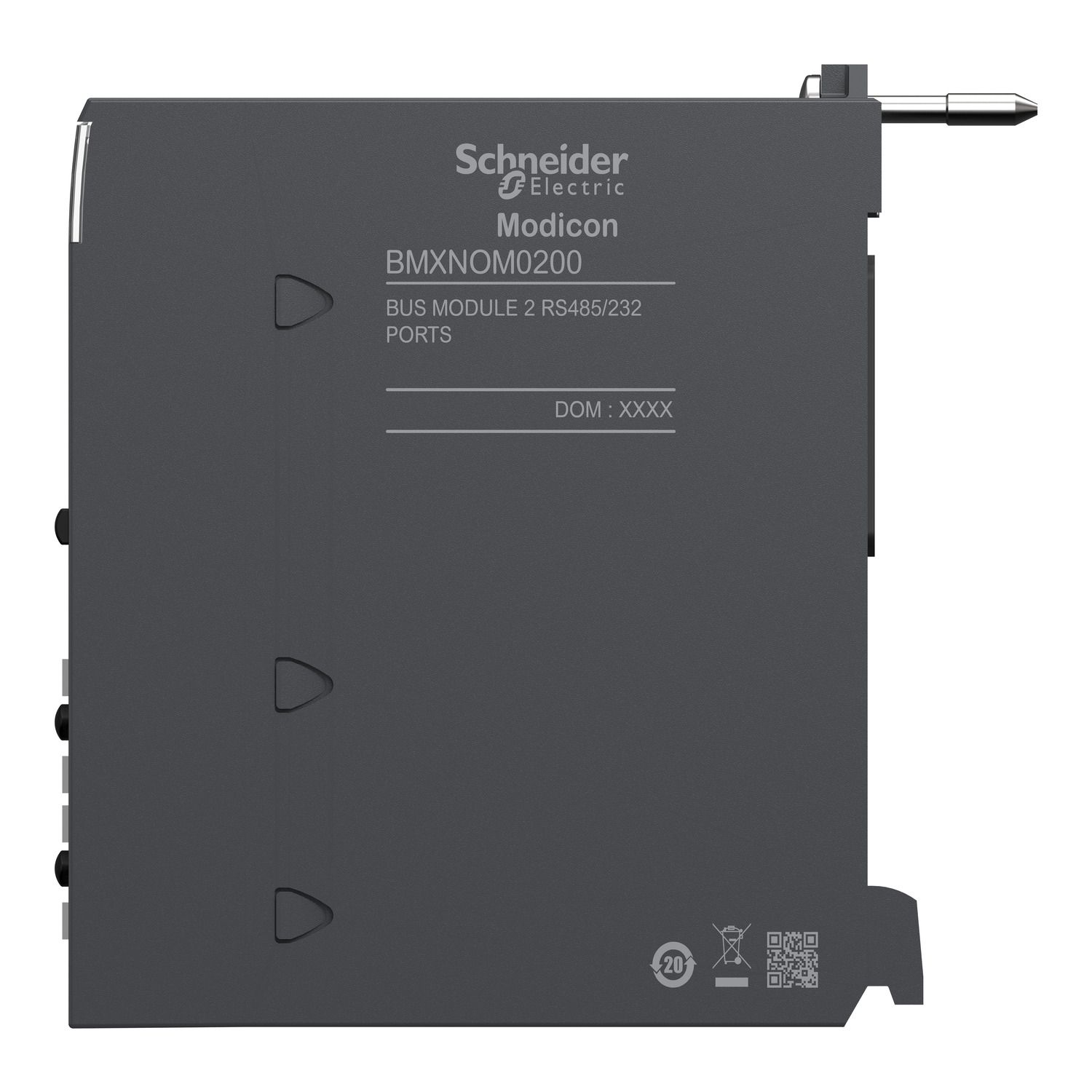

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

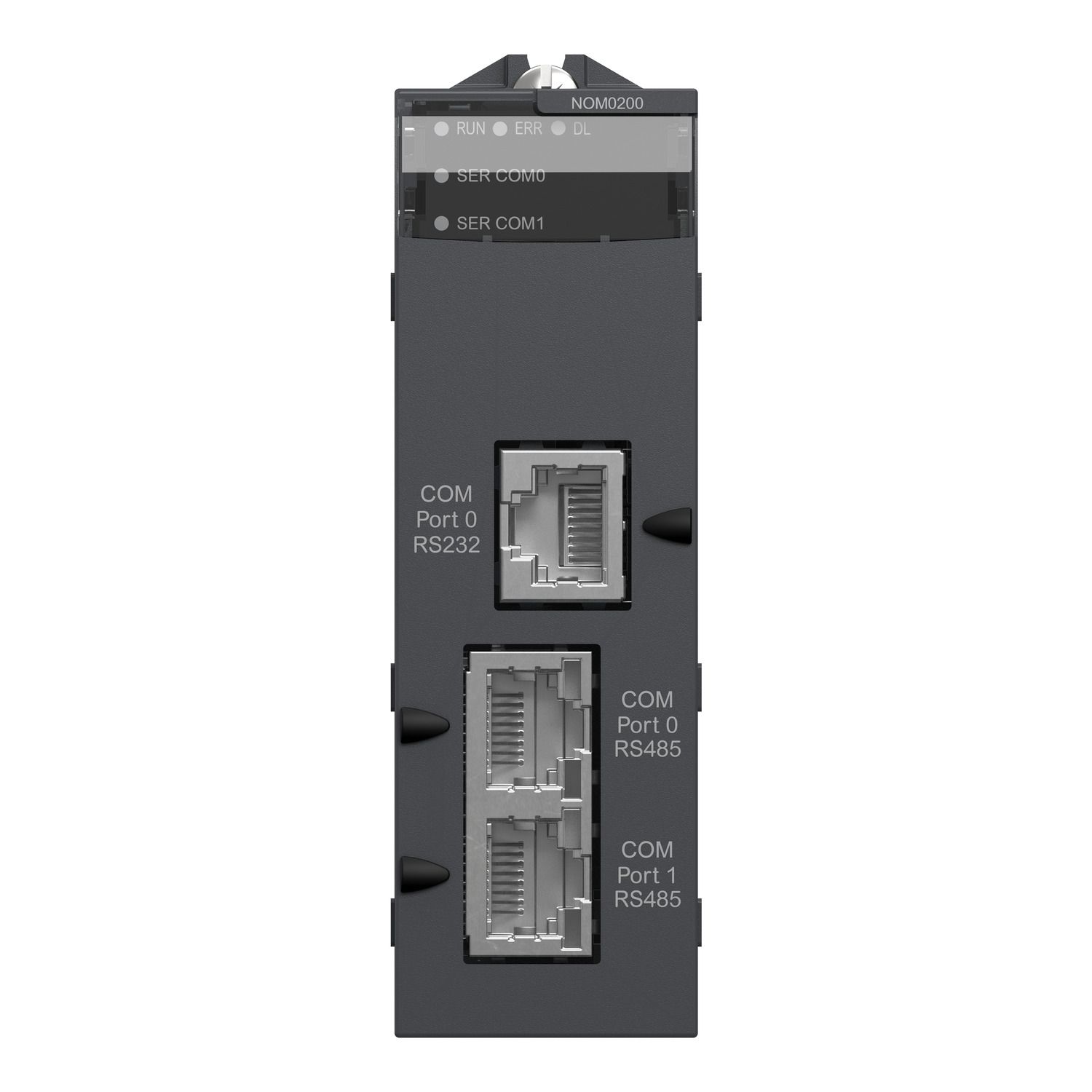

Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode
Picture of communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode
SKU:

BMXNOM0200

communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

$2,765.29 INC GST
Available for Shipping : 05-Mar-2026
Product Selector
communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Mar-2026
Catalog
Circularity Profile
User guide
Declaration of conformity
CAD
Environmental Disclosure
Product Page Link
Product Data Sheet
This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This product is robust, high quality and based on the latest innovative technology. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Concept Serial link
Protective treatment TC
Range of product Modicon X80
Integrated connection type RS485 RJ45 57.6 kbit/s 1 twisted pair, RS232 RJ45 115.2 kbit/s 8 wires
Product or component type serial links module
Complementary
Module format standard
Marking CE
Local signalling 1 LED (green) for activity on the serial link (SER COM 1), 1 LED (green) for activity on the serial link (SER COM 0), 1 LED (green) for module running (RUN), 1 LED (red) for module fault (ERR)
Net weight 0.23 kg
Current consumption 80 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 11.700 cm
Package 1 Length 12.000 cm
Package 1 Weight 217.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.600 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 65.940 kg
