SKU:

BMXNOE0110H

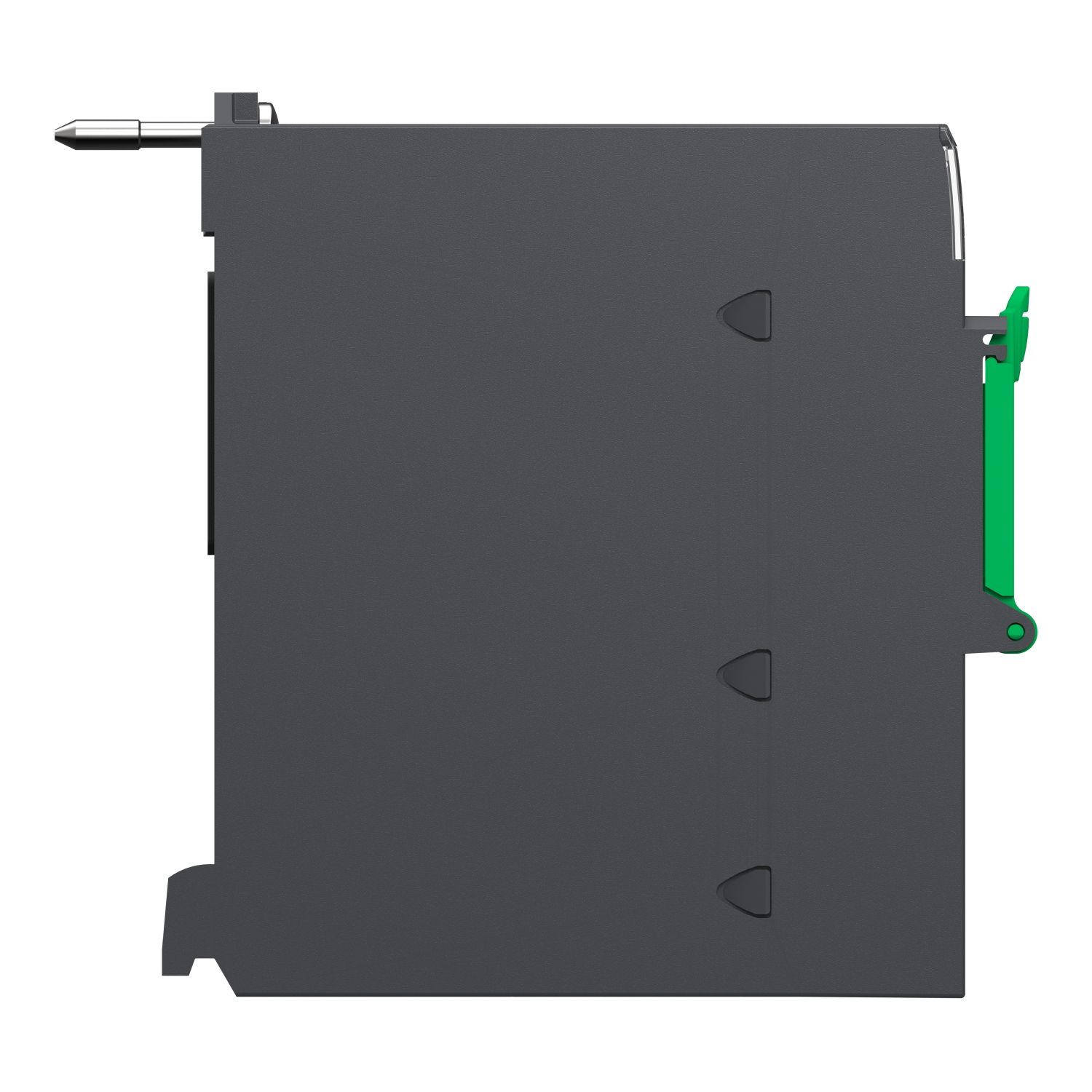

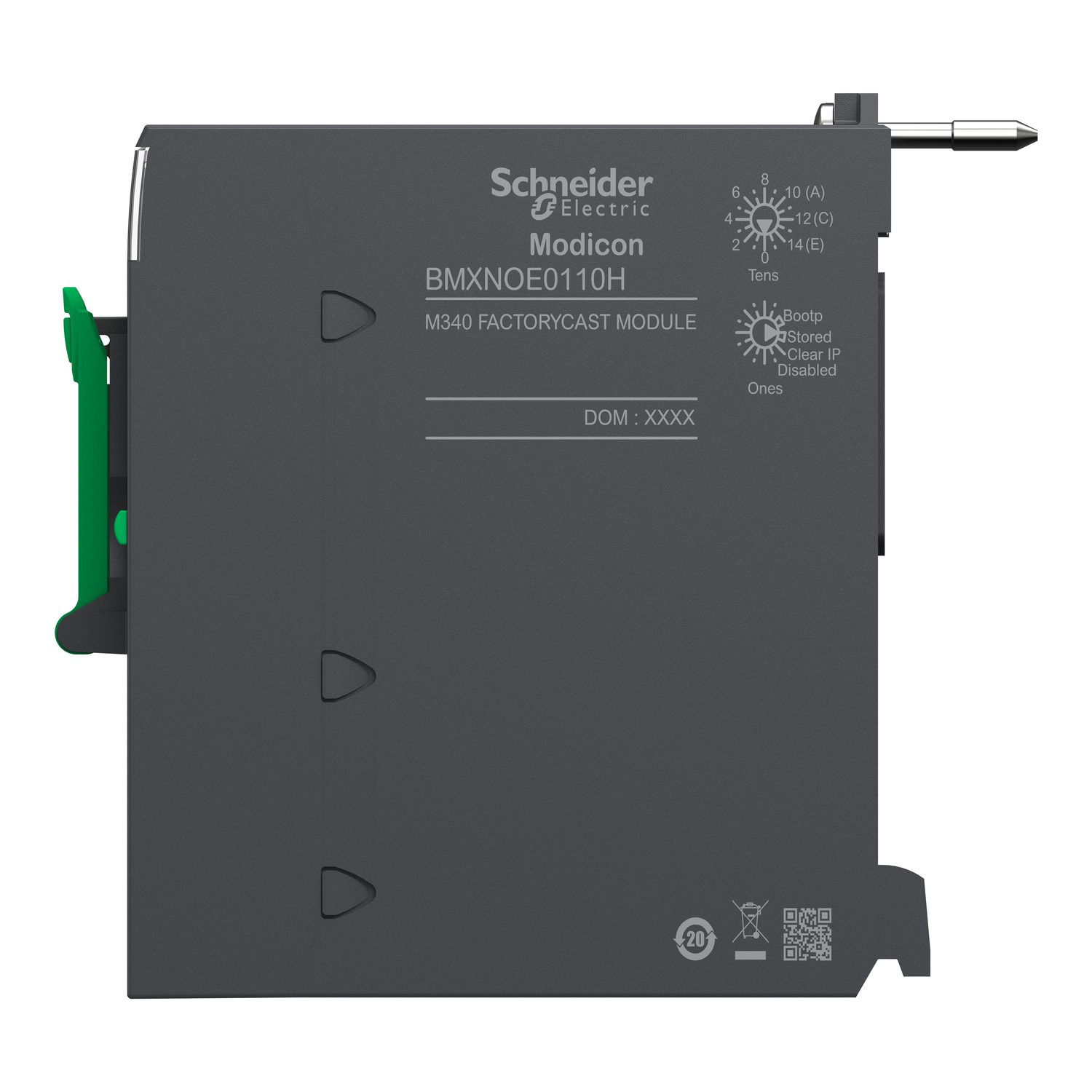

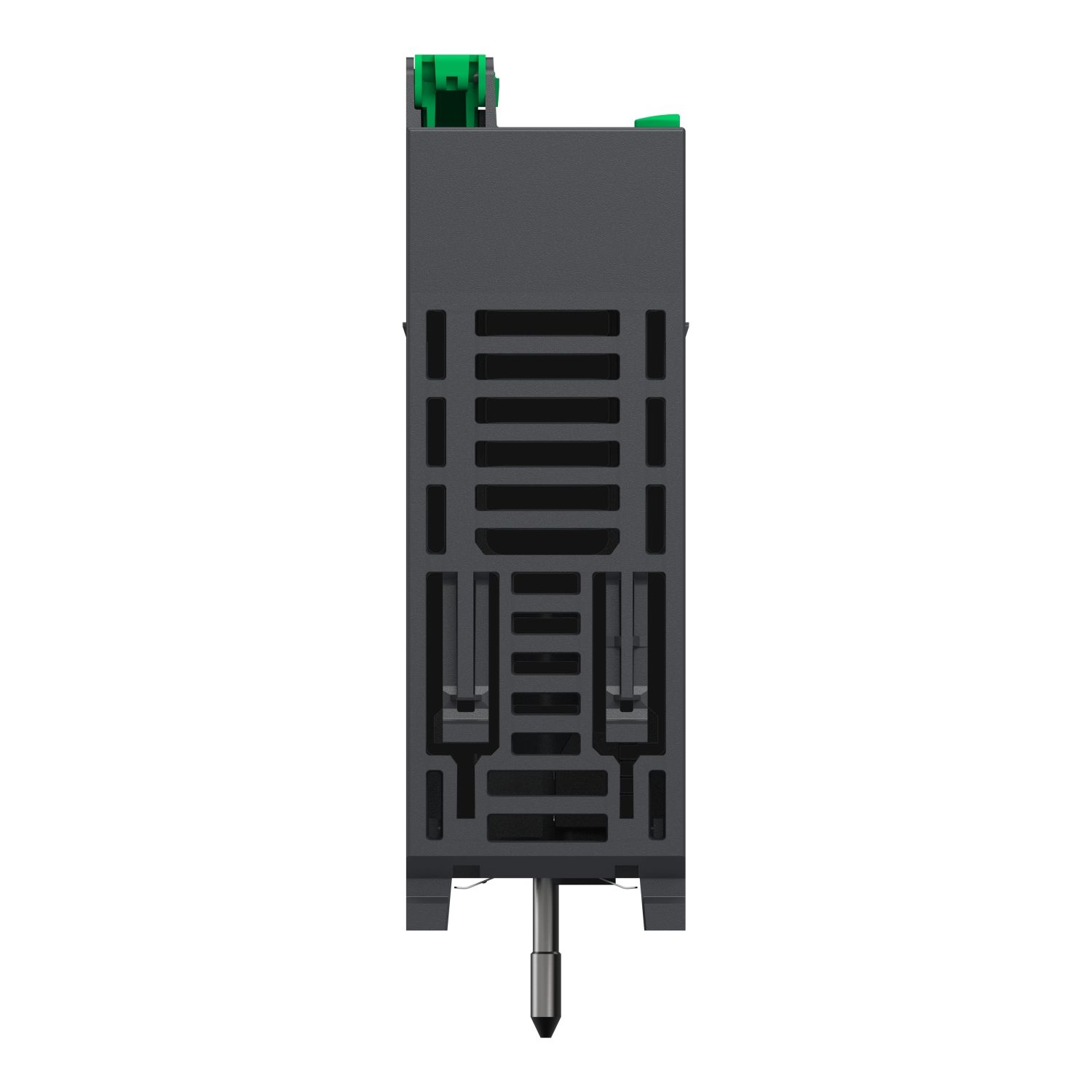

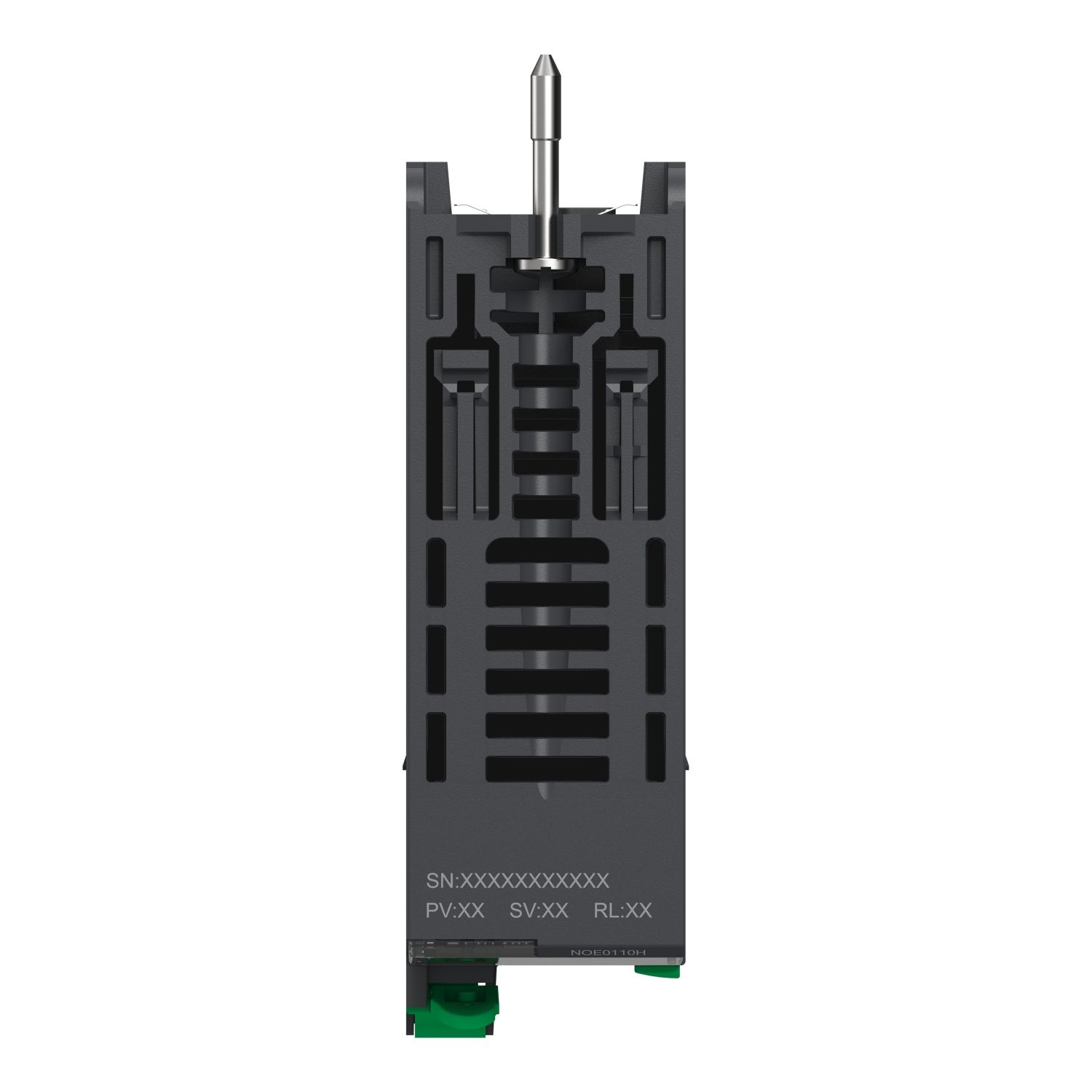

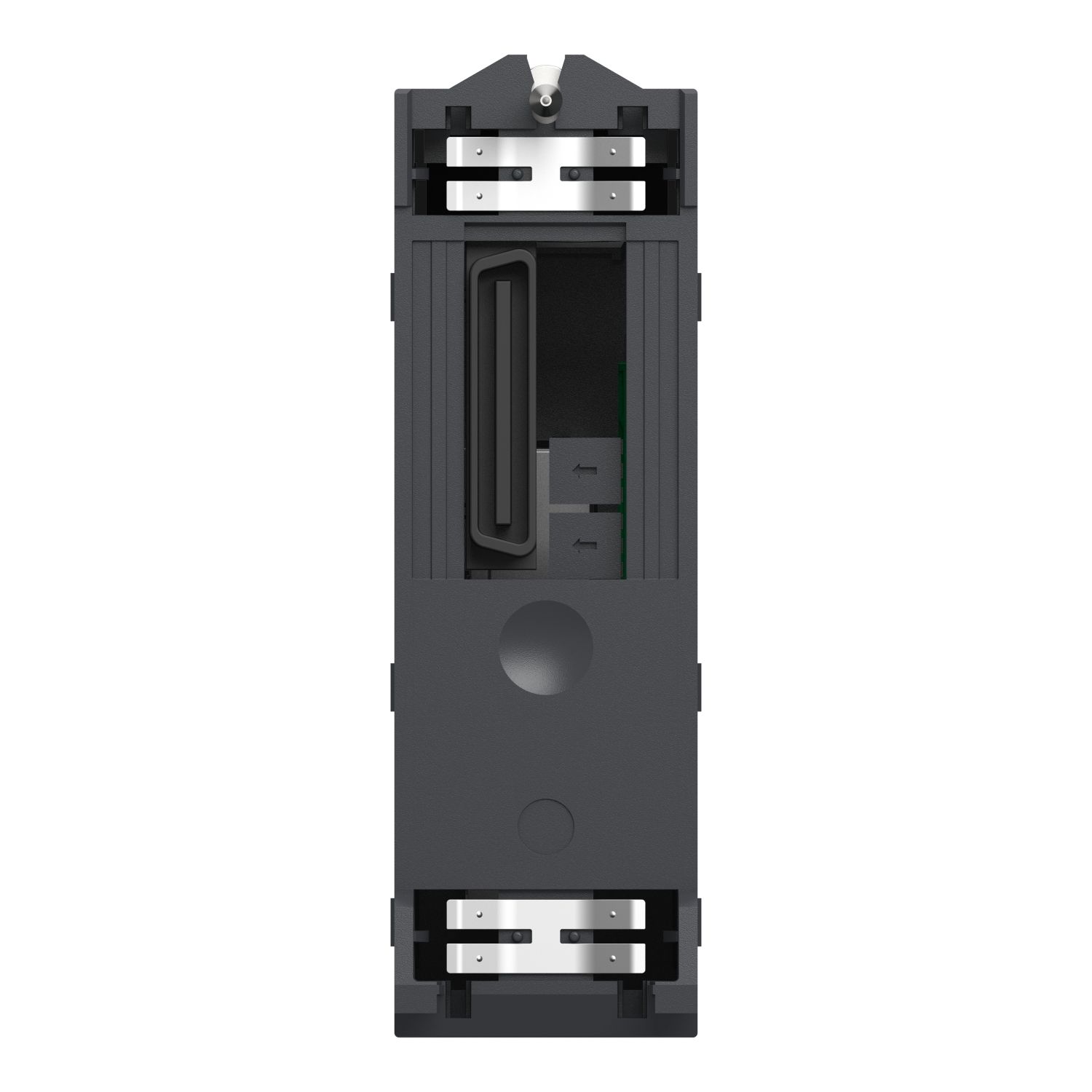

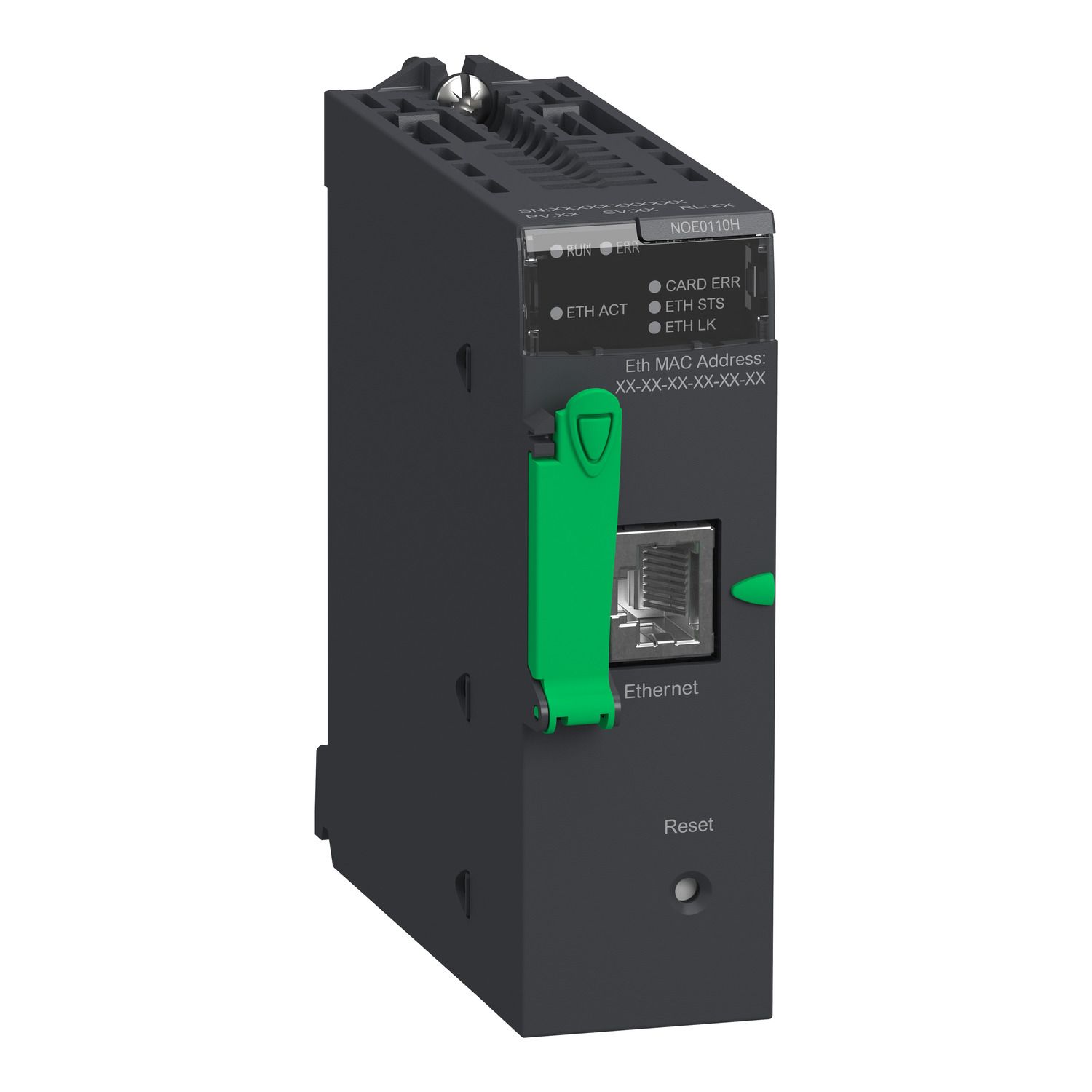

Ethernet TCP/IP network module, Modicon M340 automation platform, transparent ready class C30 server

$7,398.00 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Ethernet TCP/IP network module, Modicon M340 automation platform, transparent ready class C30 server
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Catalog
CAD
User guide
Declaration of conformity
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Protective treatment conformal coating
Product specific application for severe environments
Integrated connection type Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Product or component type Ethernet TCP/IP network module
Range of product Modicon M340 automation platform
Complementary
Memory usage application saving: supplied Flash memory card (BMXRWSC016M), activating the standard web server: supplied Flash memory card (BMXRWSC016M), user web page size: internal RAM
Memory description internal RAM 16000 kB, supplied Flash memory card (BMXRWSC016M)
Port Ethernet 10BASE-T/100BASE-TX
Module format standard

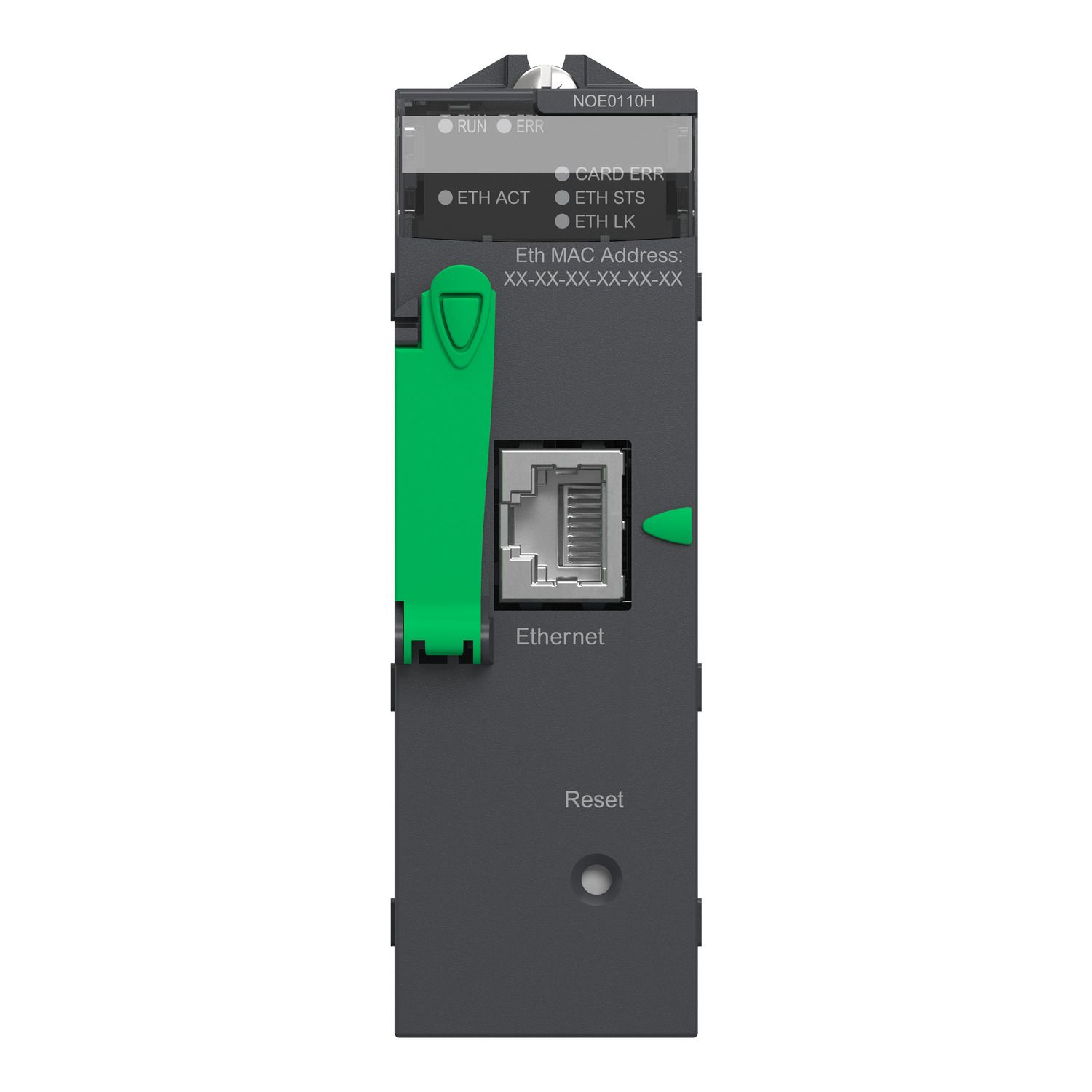

Local signalling 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT)
Communication service SOAP XML Web service (server), Data Editor (via PC, pocket PC or PDA terminal), web server configurable, Modbus TCP messaging, I/O scanning, Global Data, SNMP network administrator, Rack Viewer, FDR server, bandwidth management
Control type RESET push-button cold restart
Net weight 0.2 kg
Marking CE
Current consumption 90 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 246.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.855 kg
