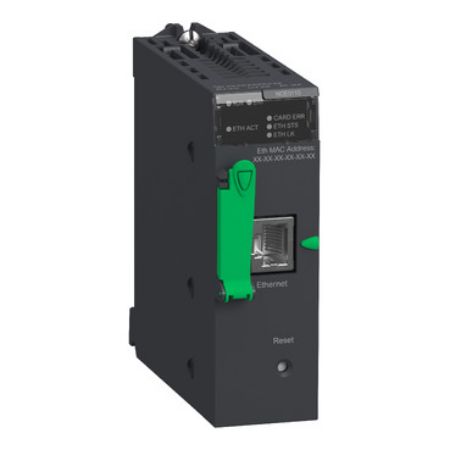

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

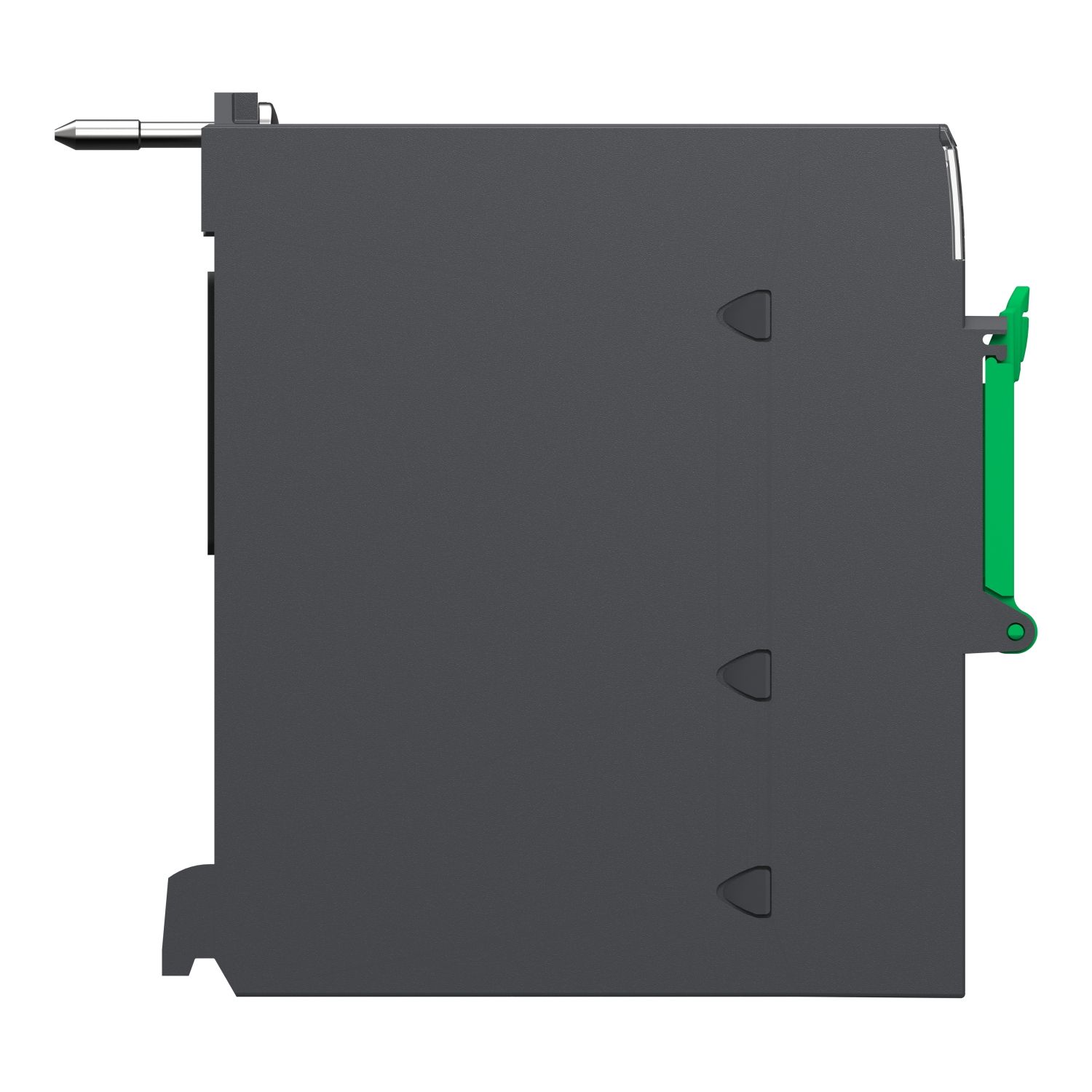

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

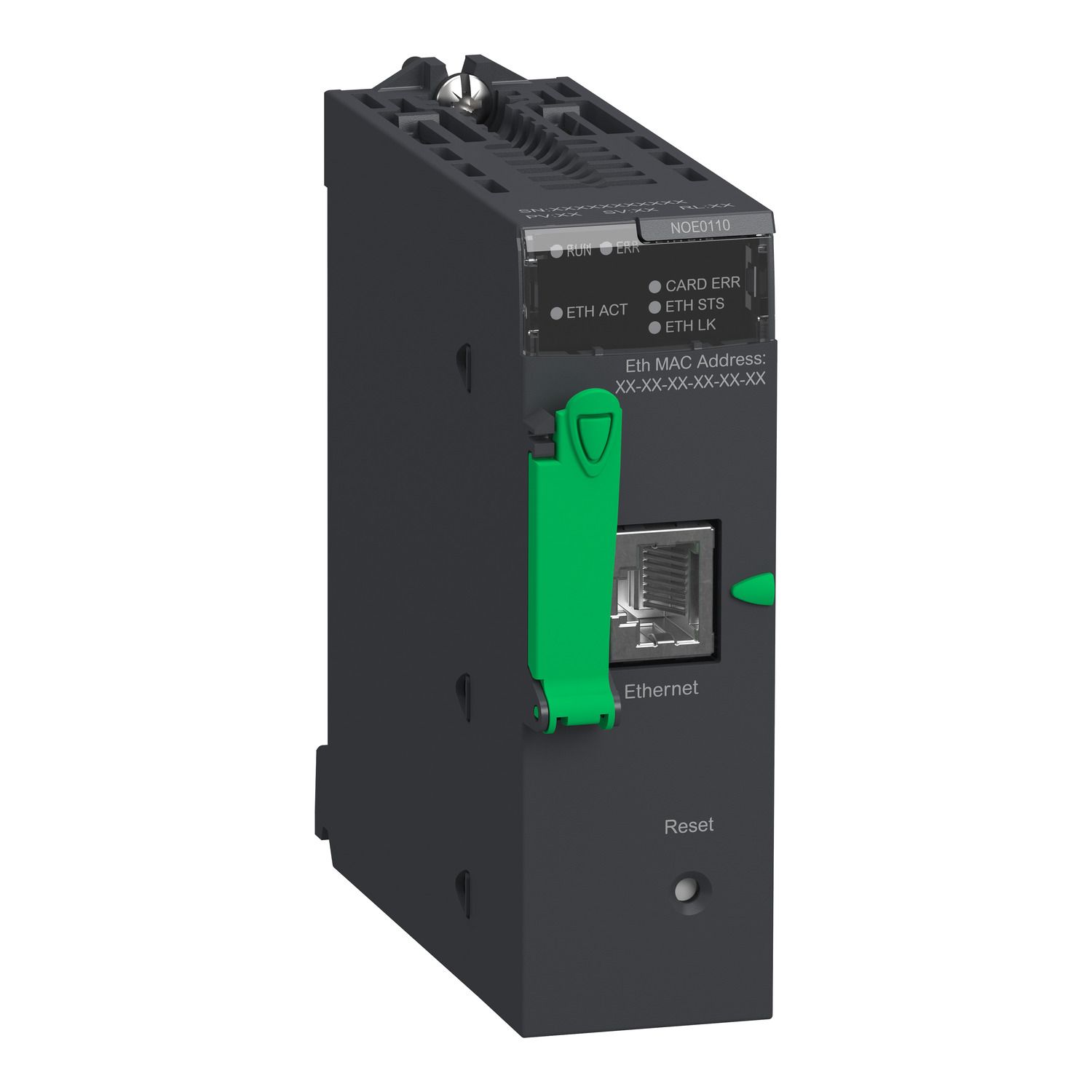

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

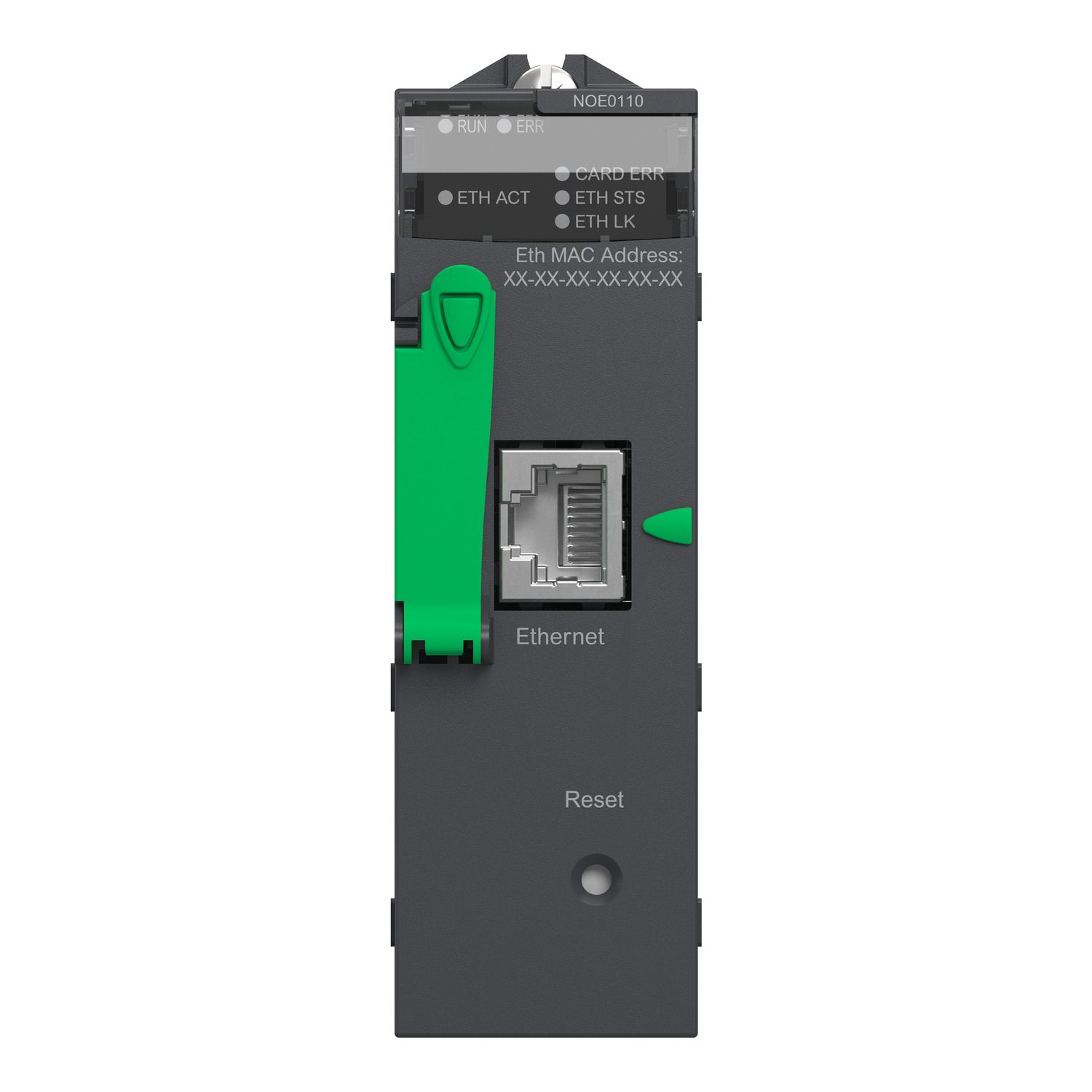

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

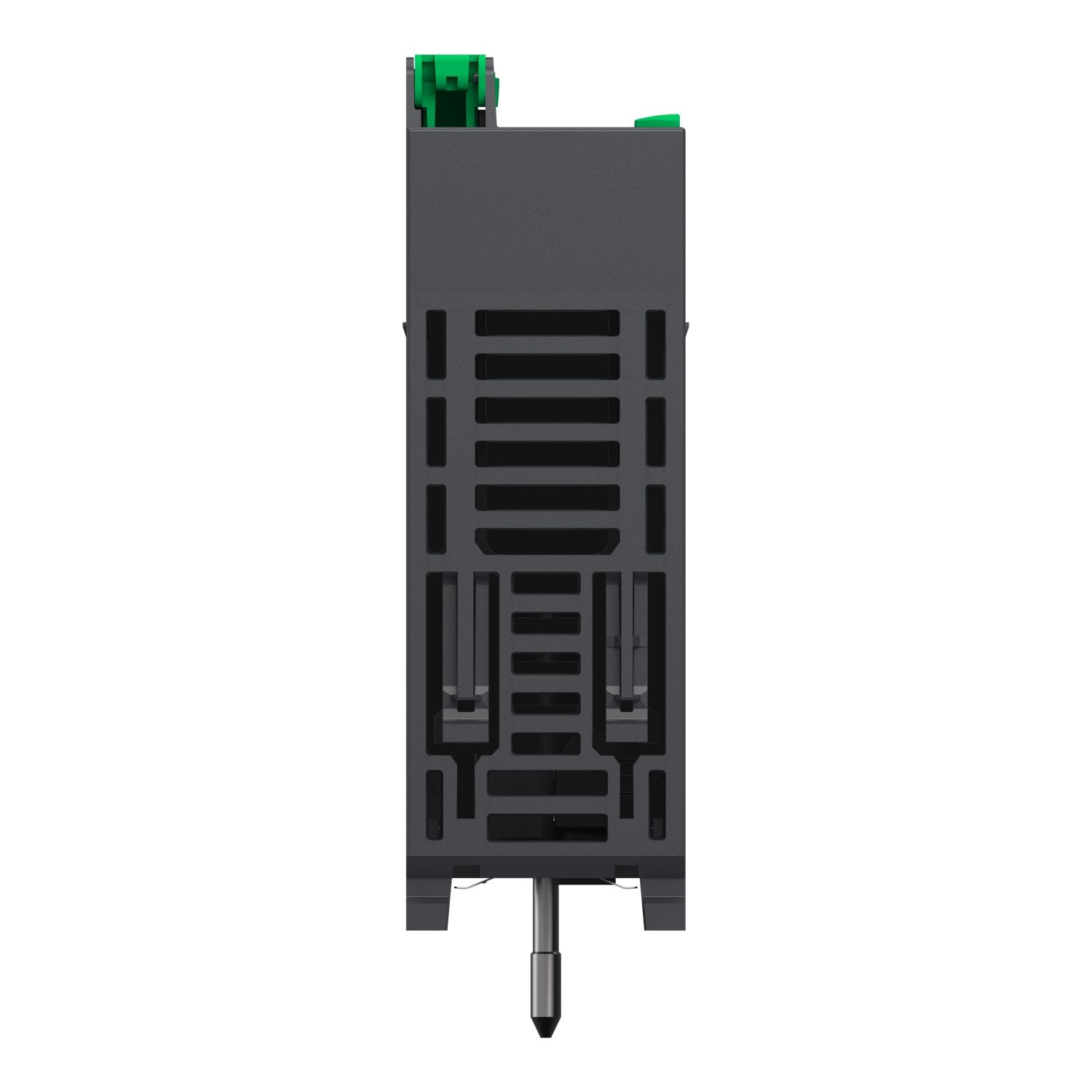

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

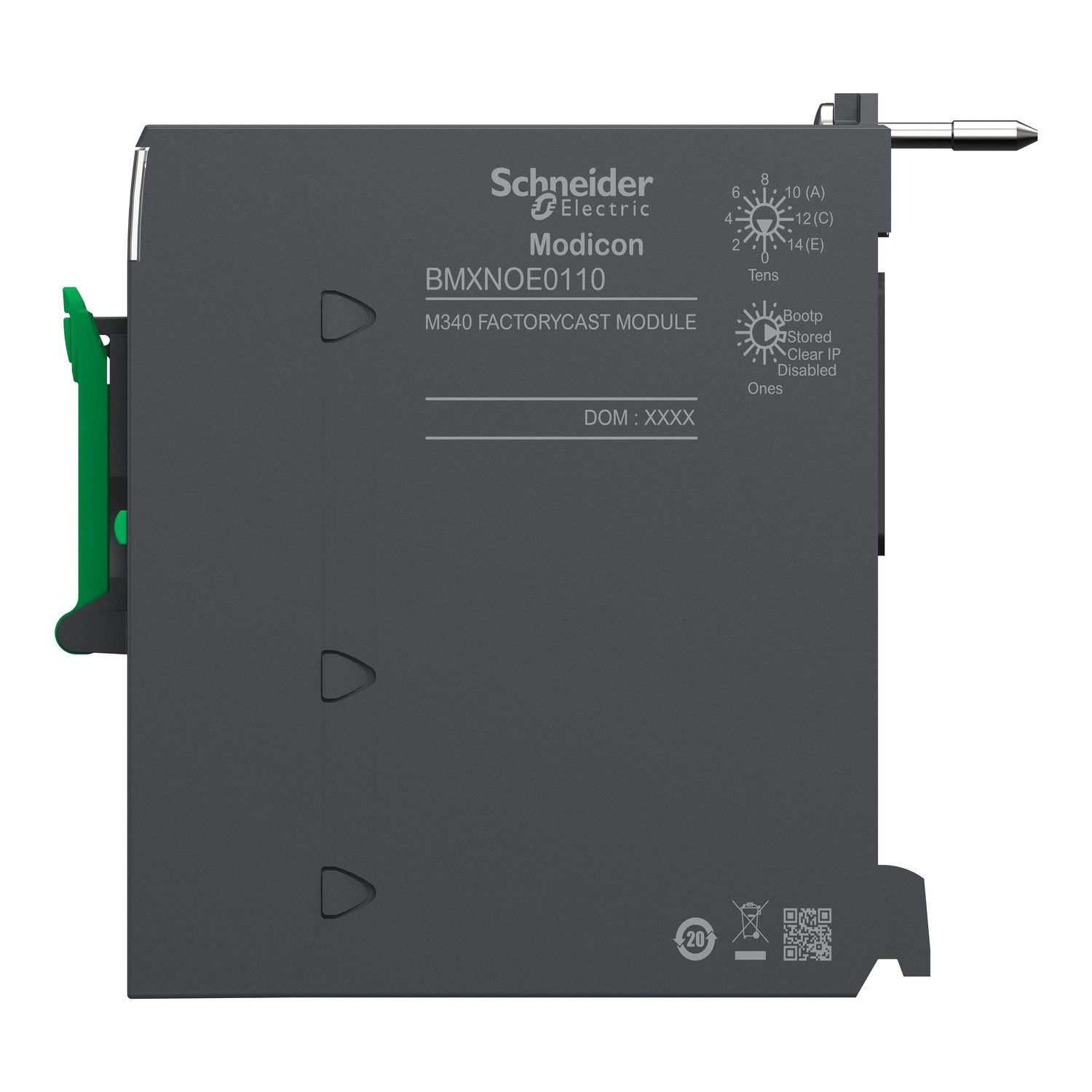

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

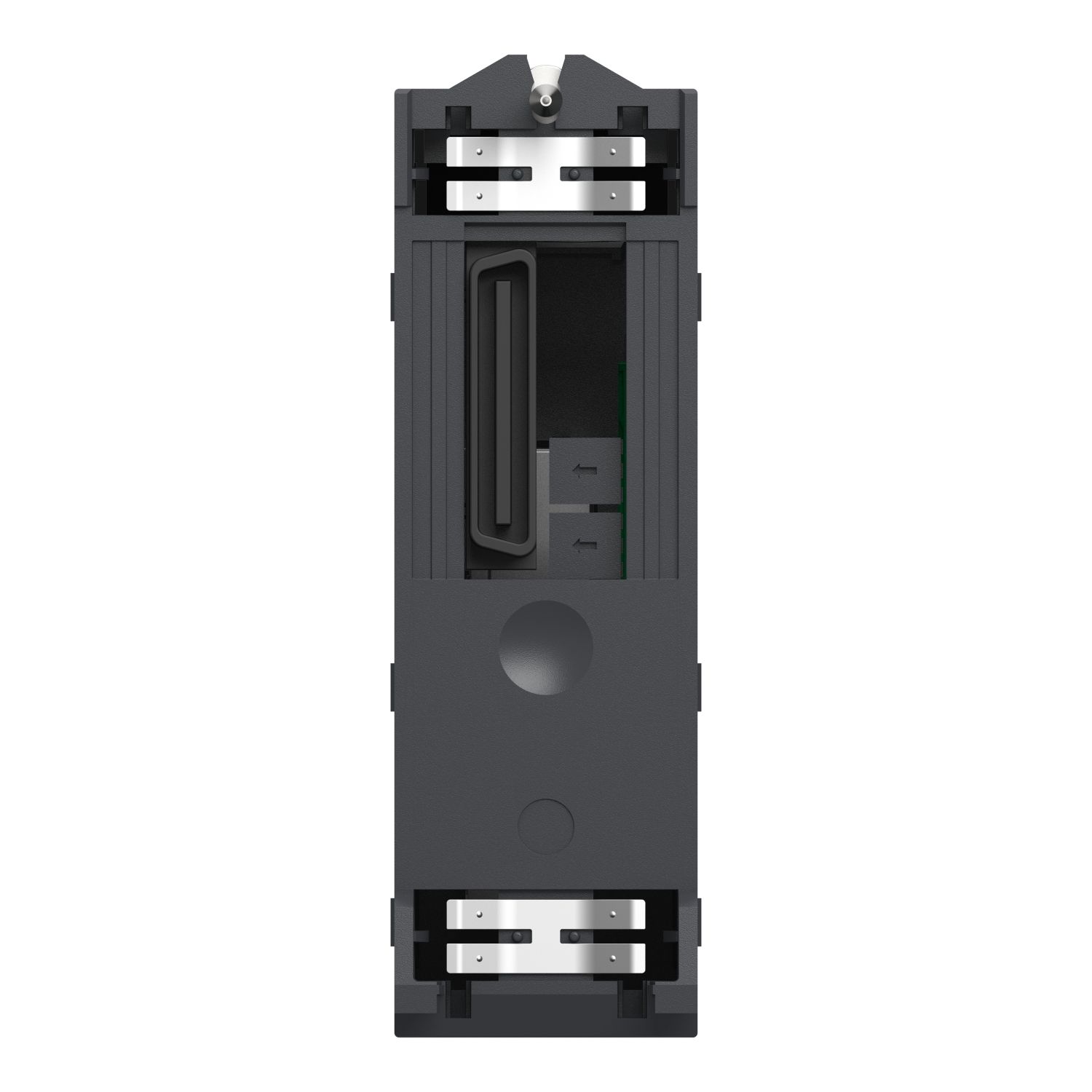

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

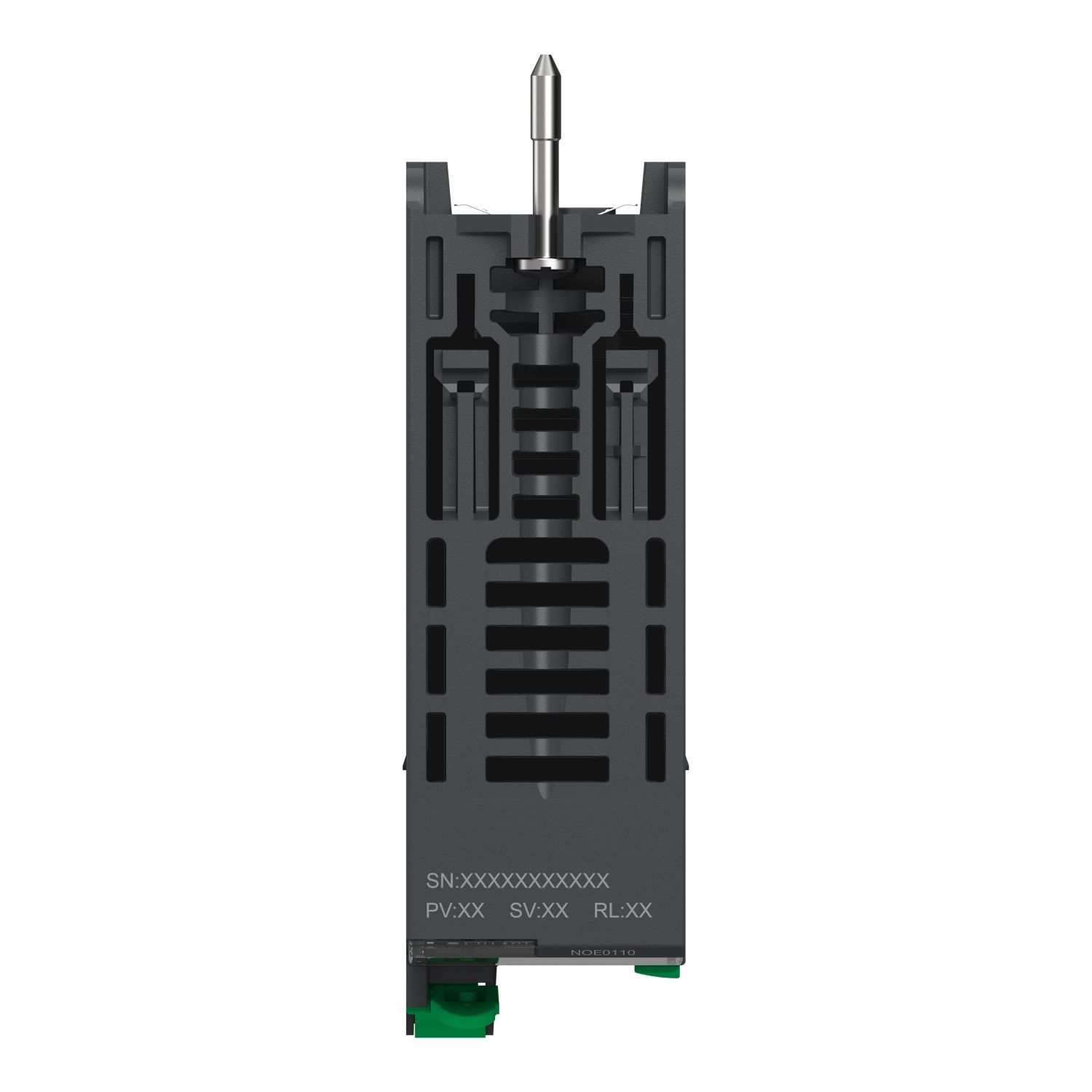

Picture of Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100
SKU:

BMXNOE0110

Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

$5,553.59 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Circularity Profile
User guide
CAD
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Protective treatment TC
Range of product Modicon M340 automation platform
Integrated connection type Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Product or component type Ethernet TCP/IP network module
Complementary
Memory usage application saving: supplied Flash memory card (BMXRWSC016M), activating the standard web server: supplied Flash memory card (BMXRWSC016M), user web page size: internal RAM
Memory description internal RAM 16000 kB, supplied Flash memory card (BMXRWSC016M)
Module format standard
Control type RESET push-button cold restart
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Local signalling 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT)
Communication service SOAP XML Web service (server), Data Editor (via PC, pocket PC or PDA terminal), web server configurable, Modbus TCP messaging, I/O scanning, Global Data, SNMP network administrator, Rack Viewer, FDR server, bandwidth management
Net weight 0.2 kg
Current consumption 90 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 11.500 cm
Package 1 Length 12.000 cm
Package 1 Weight 238.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.951 kg
