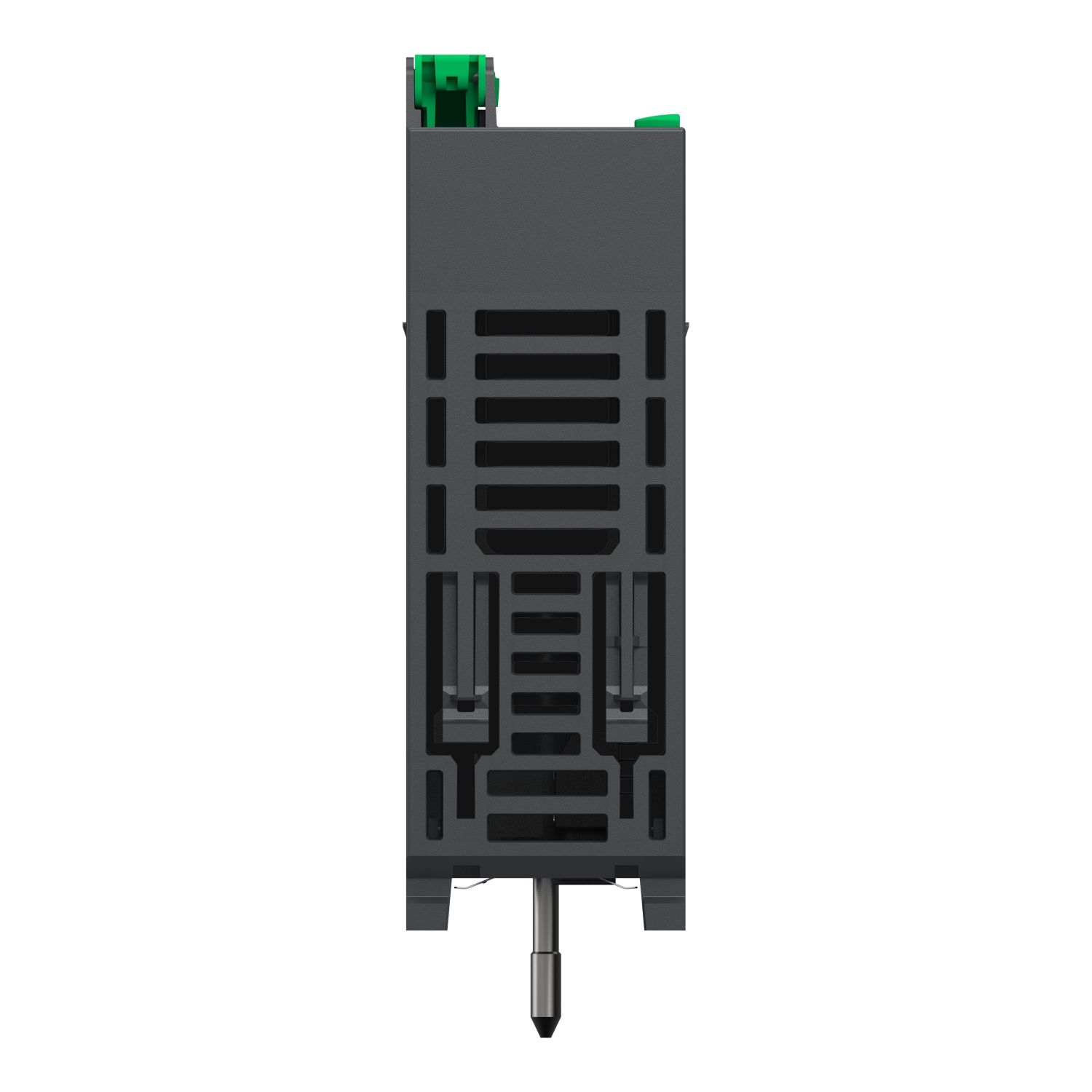

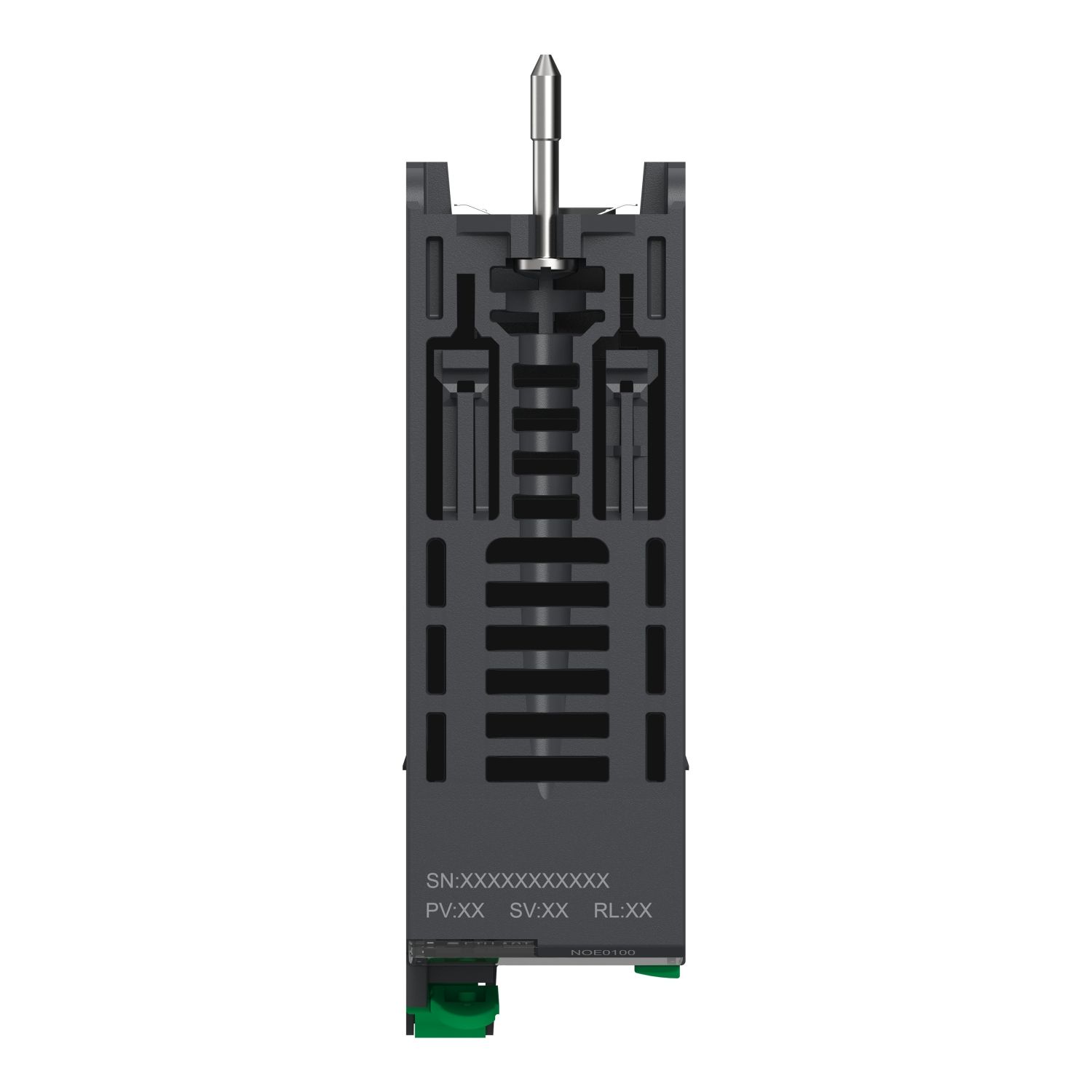

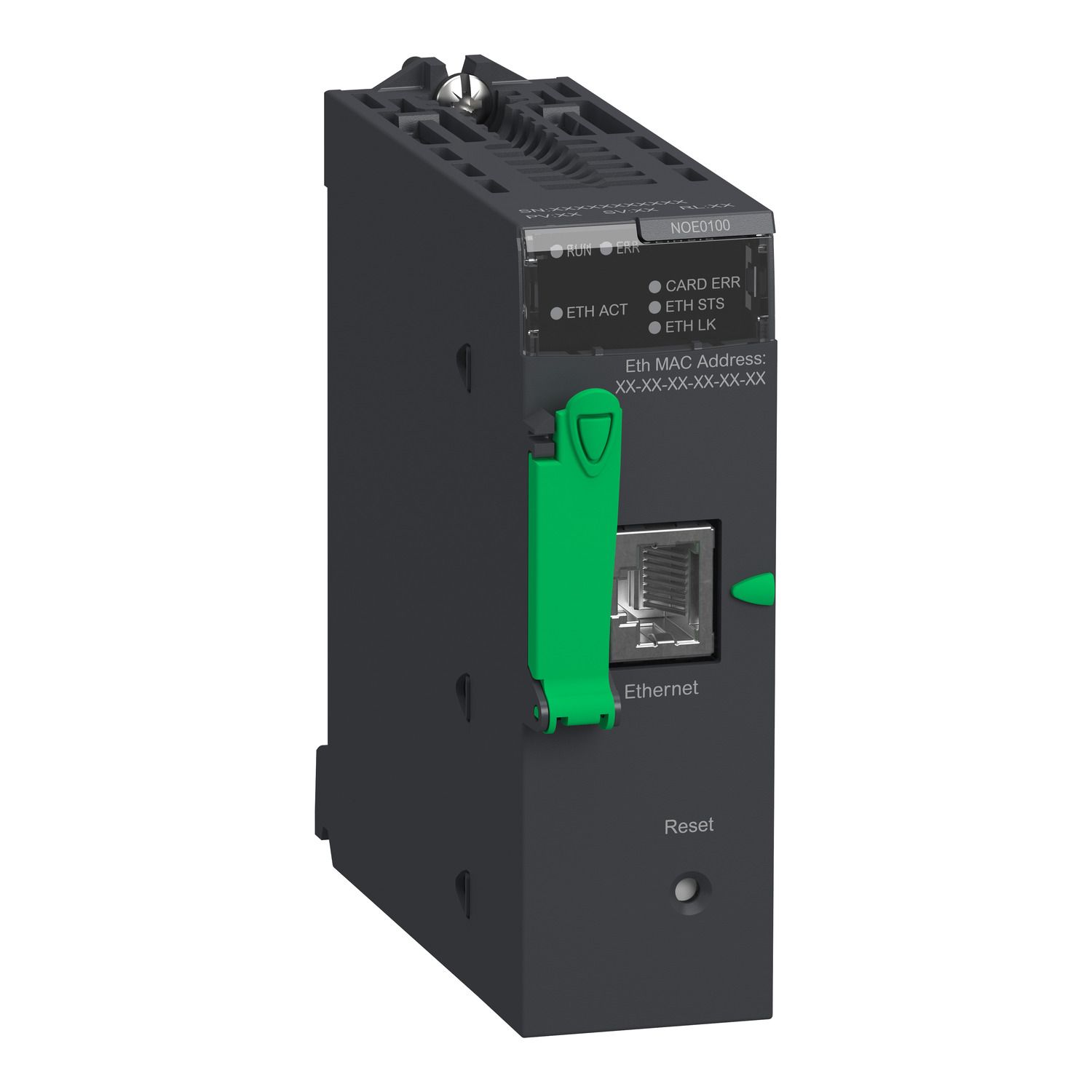

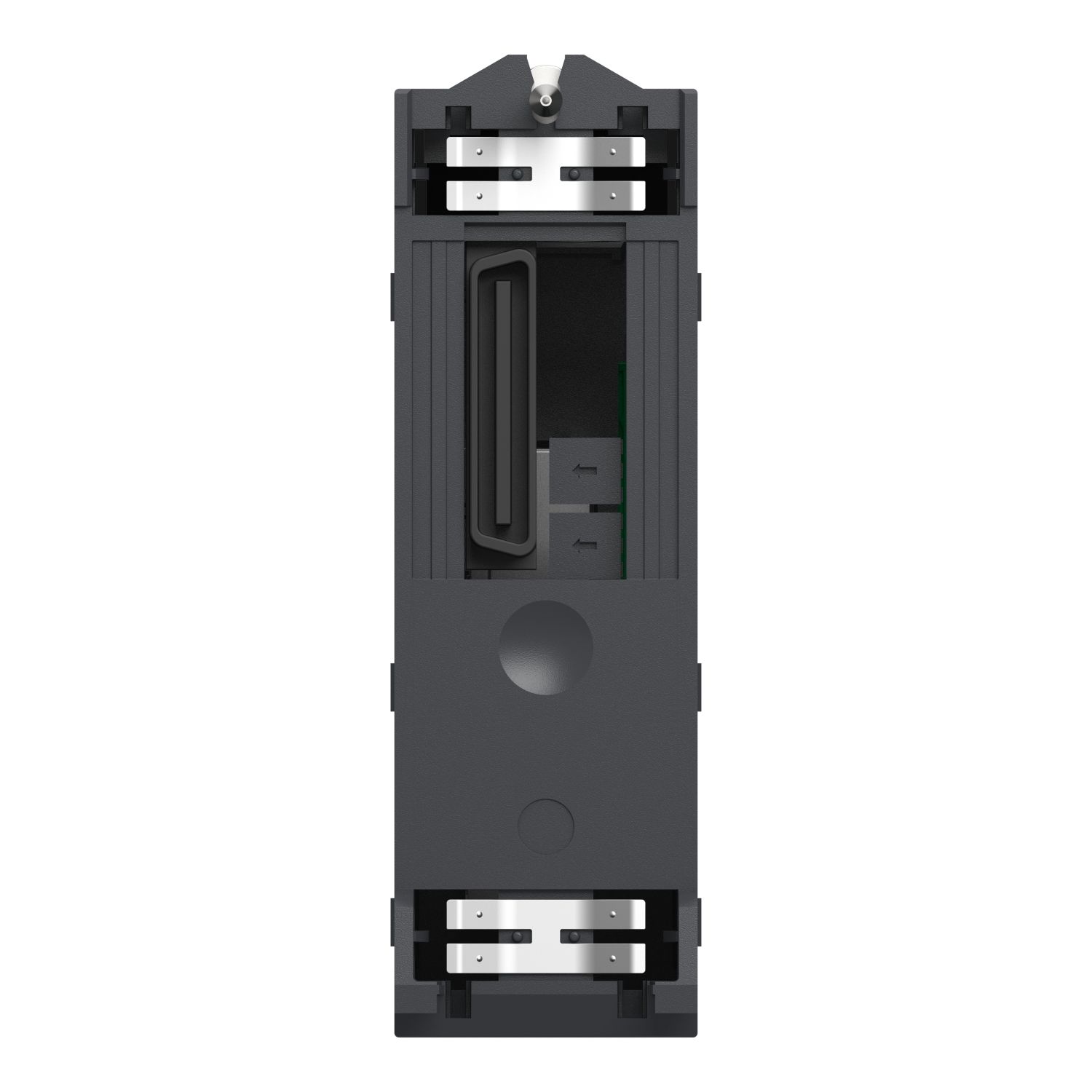

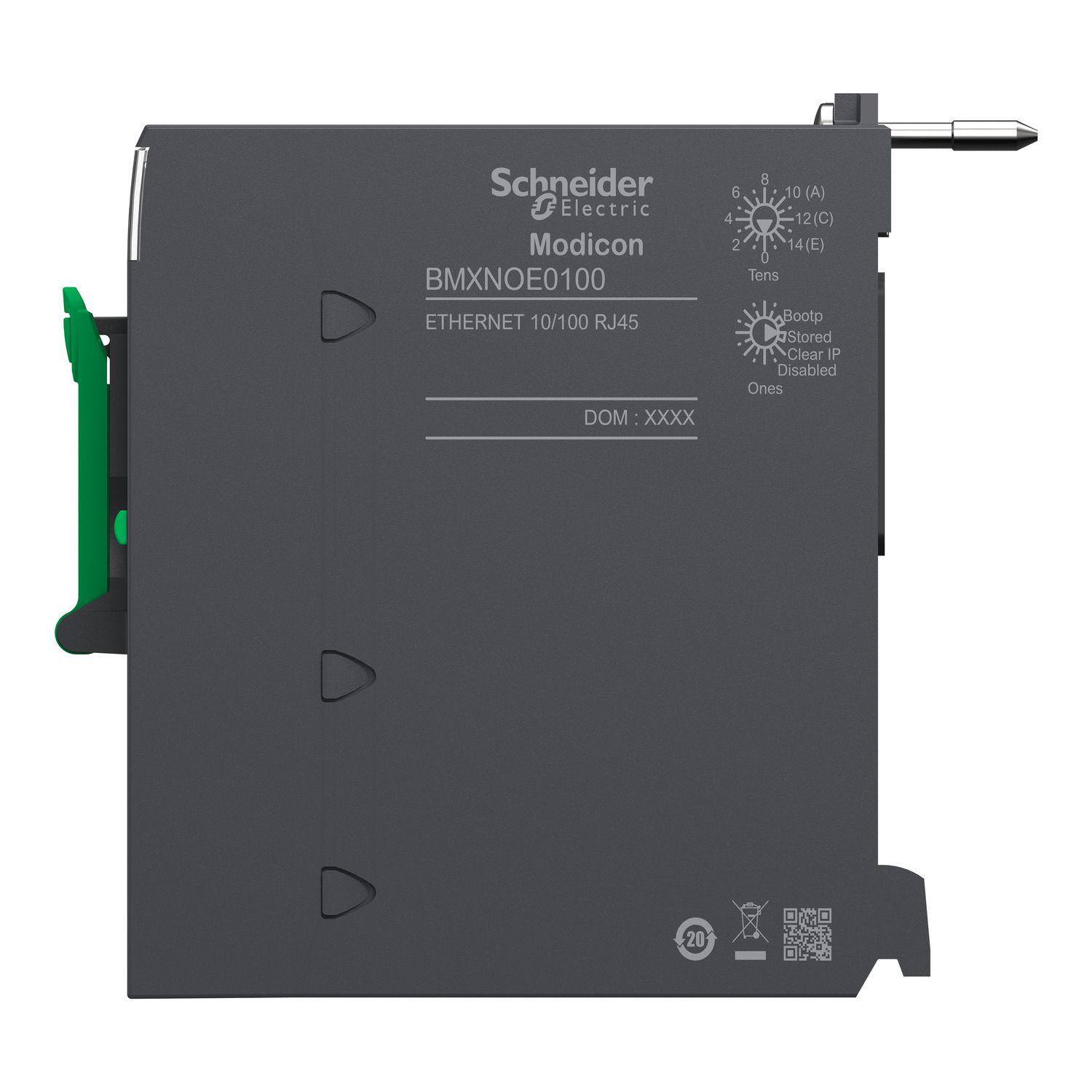

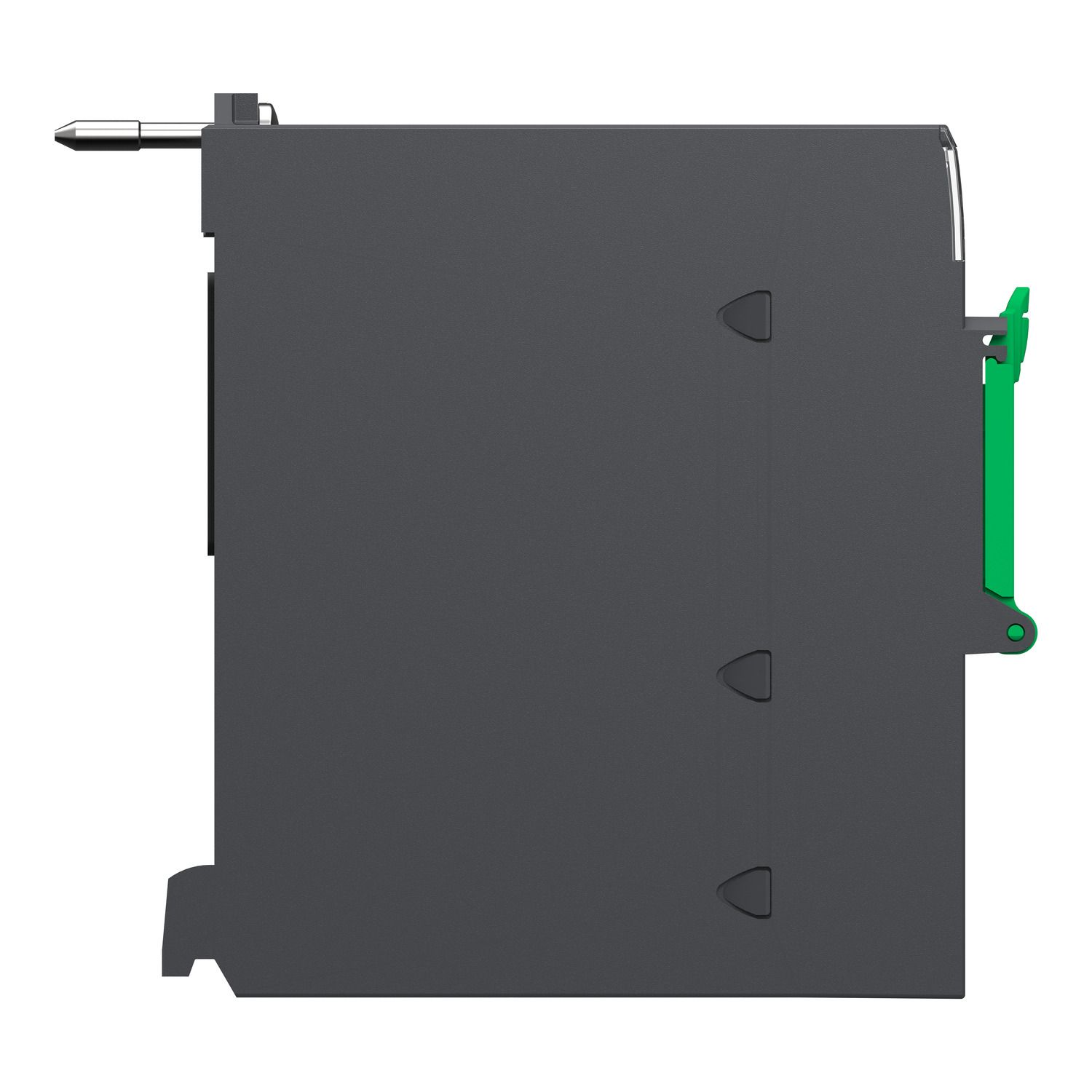

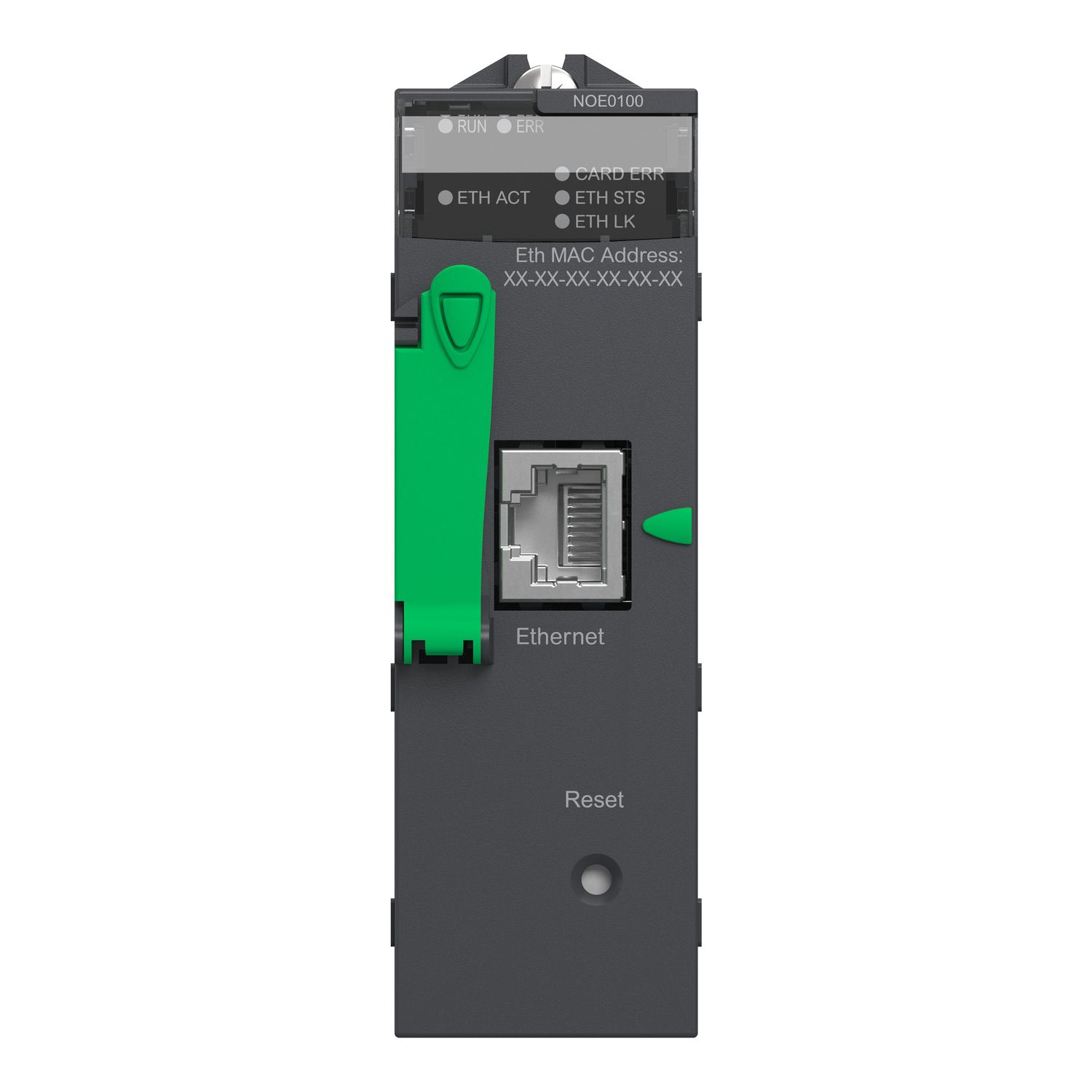

Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Picture of network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
SKU:

BMXNOE0100

network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card

$4,979.62 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Circularity Profile
CAD
User guide
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has RJ45 10/100Mbps connection. It is a module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Products specifications

Attribute name Attribute value
Main
Concept Transparent Ready
Protective treatment TC
Range of product Modicon M340 automation platform
Integrated connection type Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
Product or component type Ethernet TCP/IP network module
Complementary
Memory usage activating the standard web server, application saving
Memory description supplied Flash memory card (BMXRWSC016M)
Module format standard
Control type RESET push-button cold restart
Marking CE
Port Ethernet 10BASE-T/100BASE-TX
Local signalling 1 LED (red) for processor or system fault (ERR), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for data rate (ETH 100), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (green) for processor running (RUN), 1 LED (green) for activity on Ethernet network (ETH ACT)
Communication service web server configurable, Modbus TCP messaging, I/O scanning, Global Data, SNMP network administrator, Rack Viewer, FDR server, Data Editor (via PC terminal), bandwidth management
Net weight 0.2 kg
Current consumption 90 mA at 24 V DC
Supply internal power supply via rack
Environment
IP degree of protection IP20
Relative humidity 10-95 % without condensation
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.100 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 235.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.868 kg

Related products

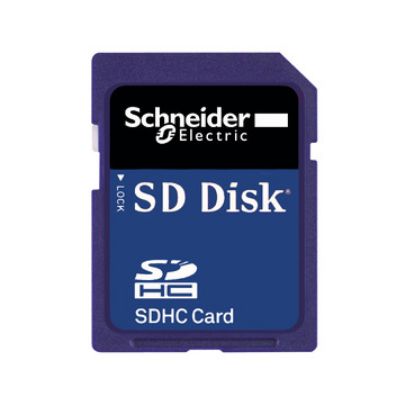

Picture of SD flash memory card, Modicon M340, 16MB, for network module BMXNOE0100
