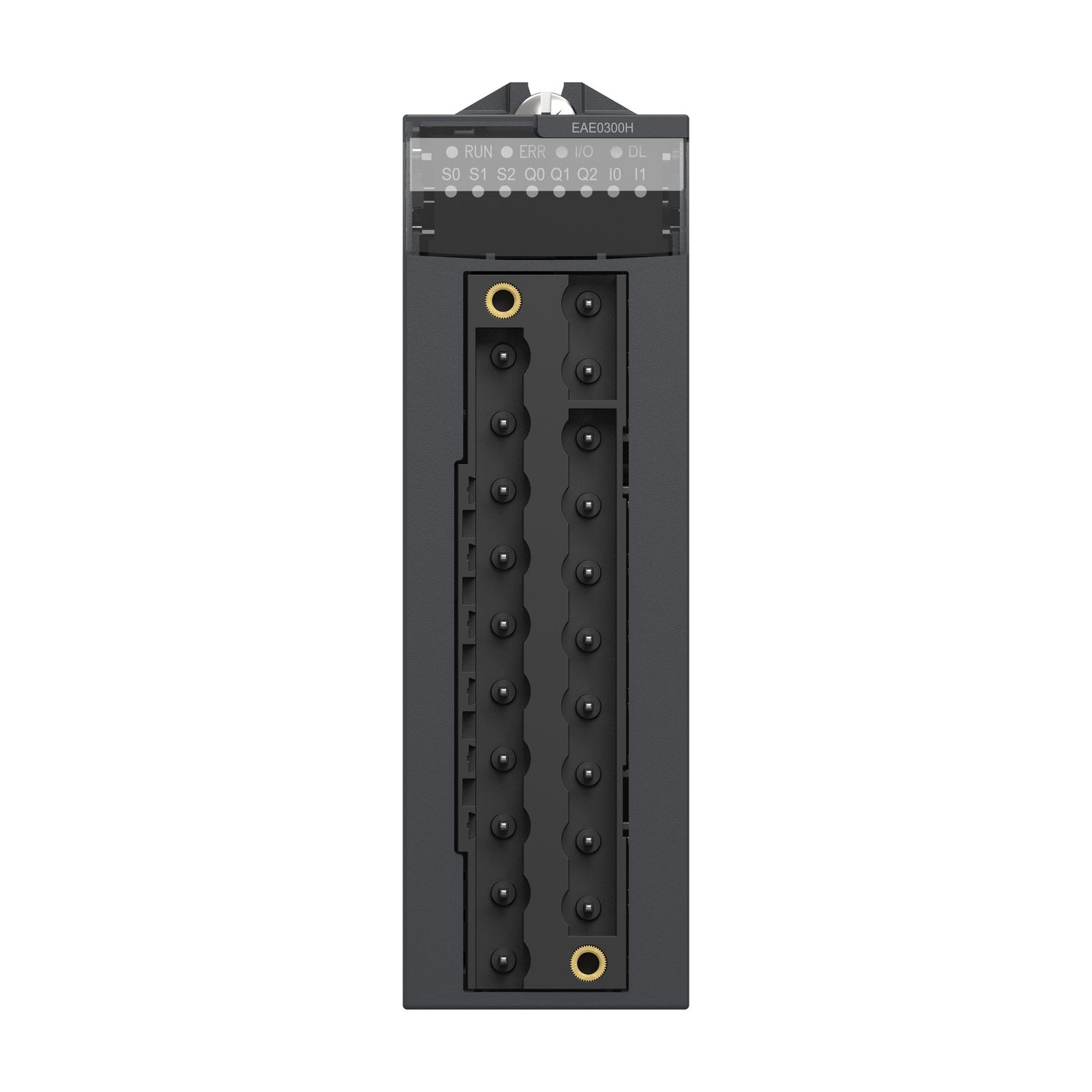

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

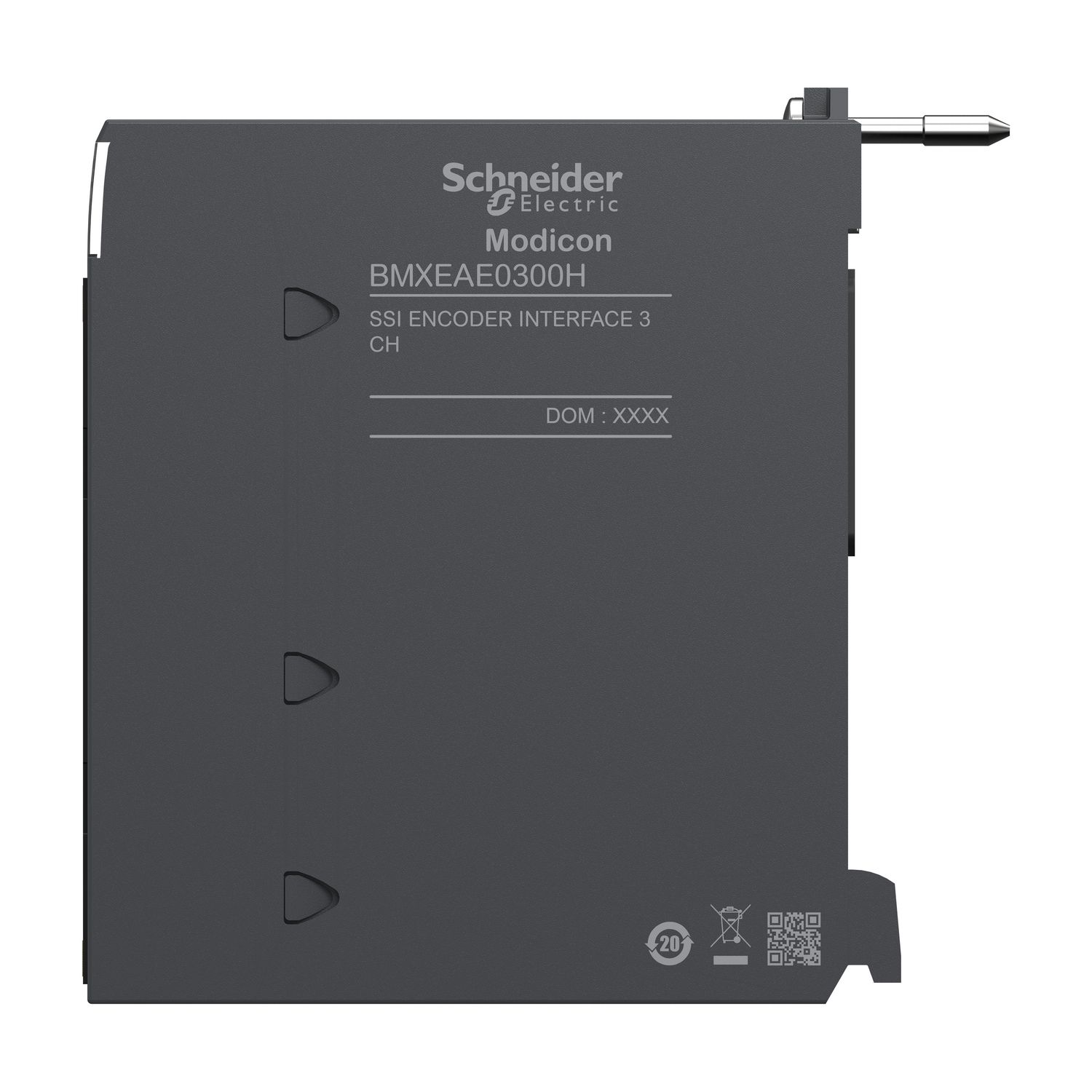

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

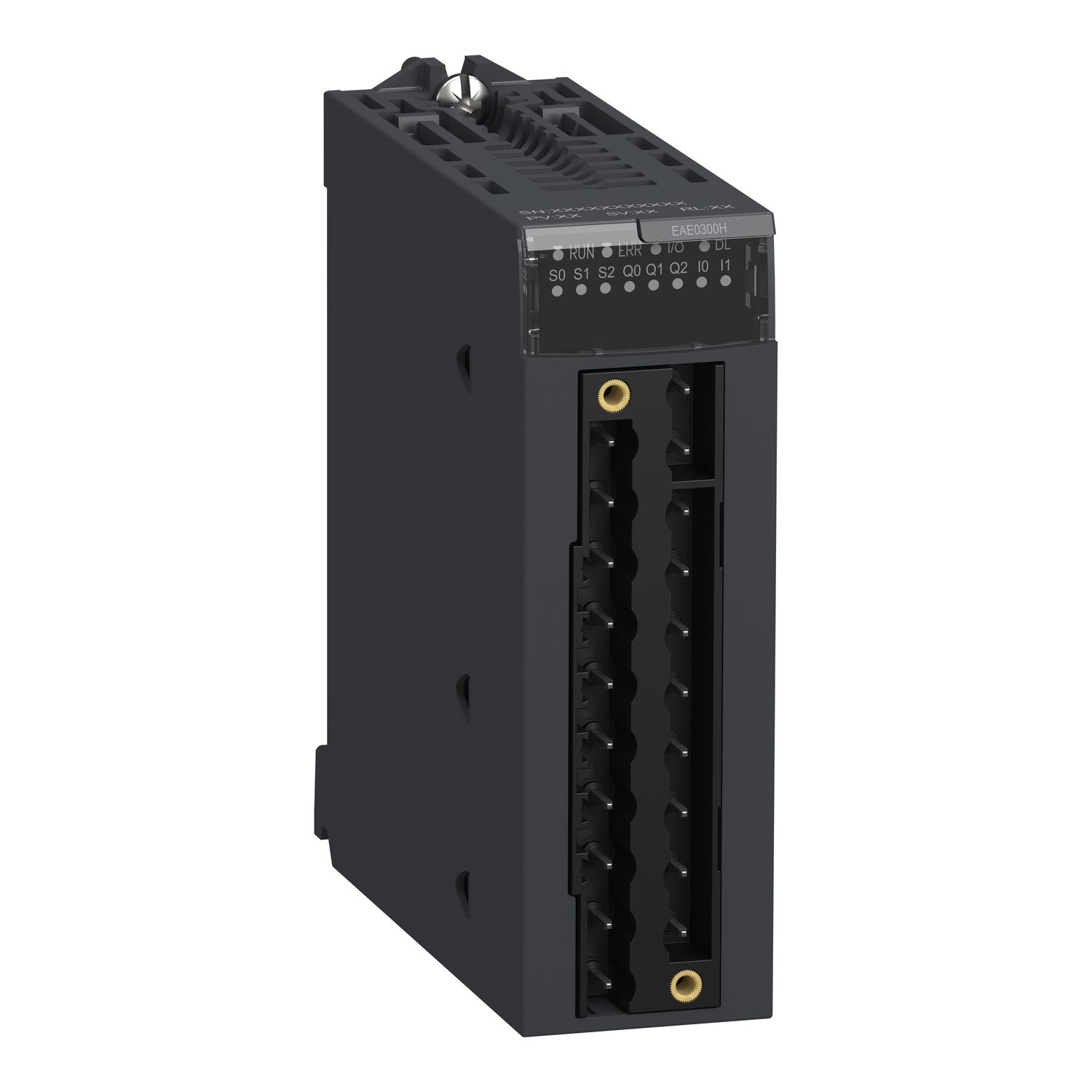

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

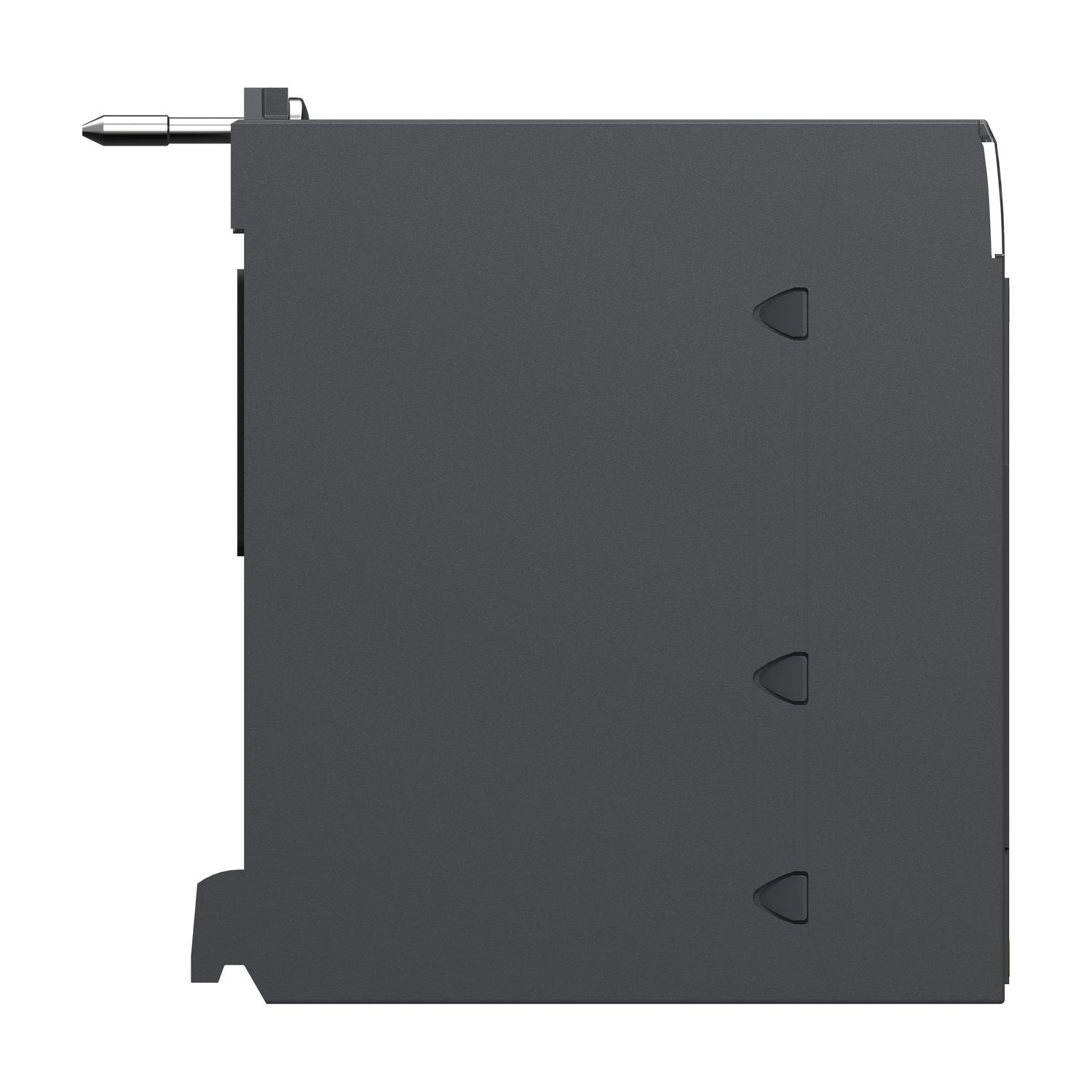

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

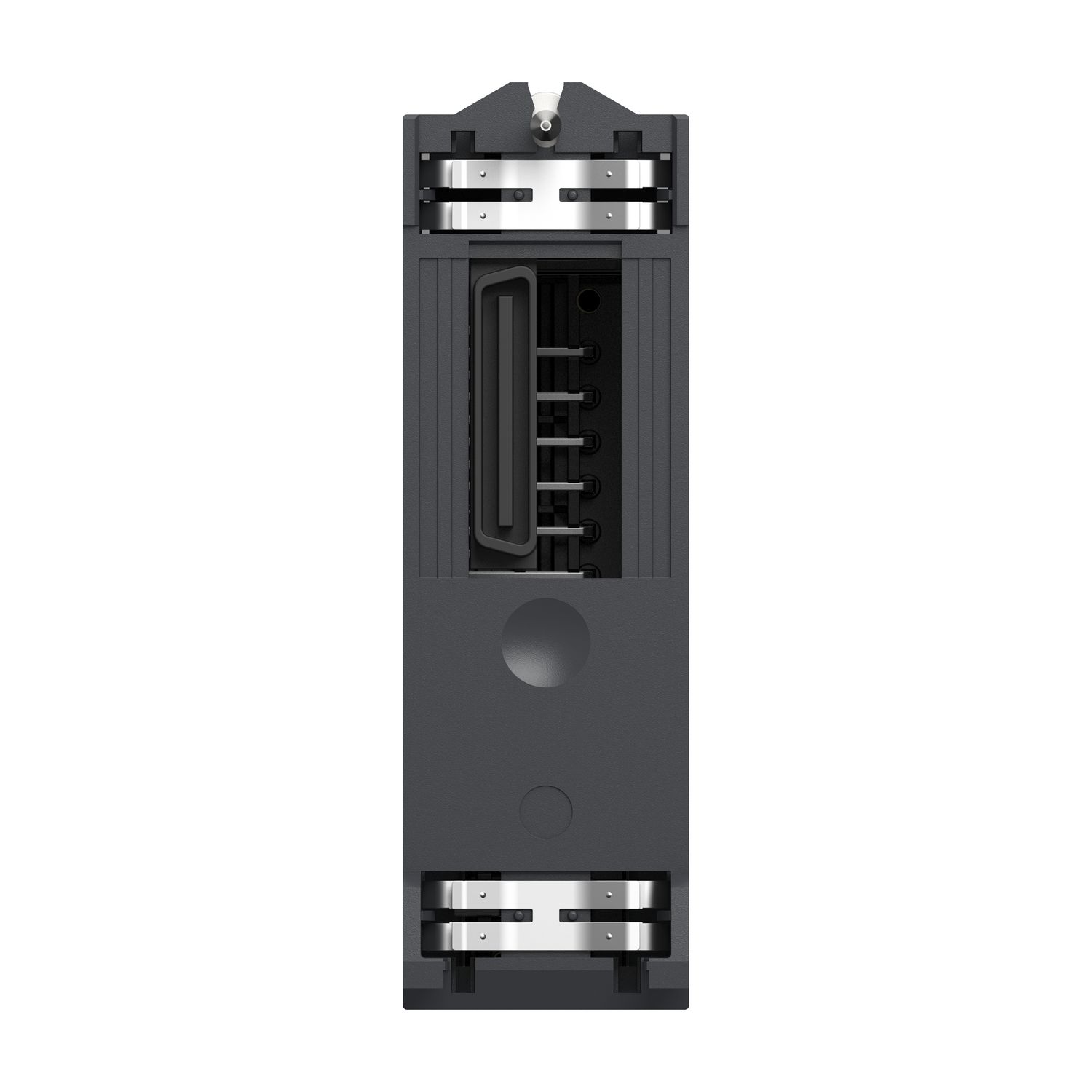

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

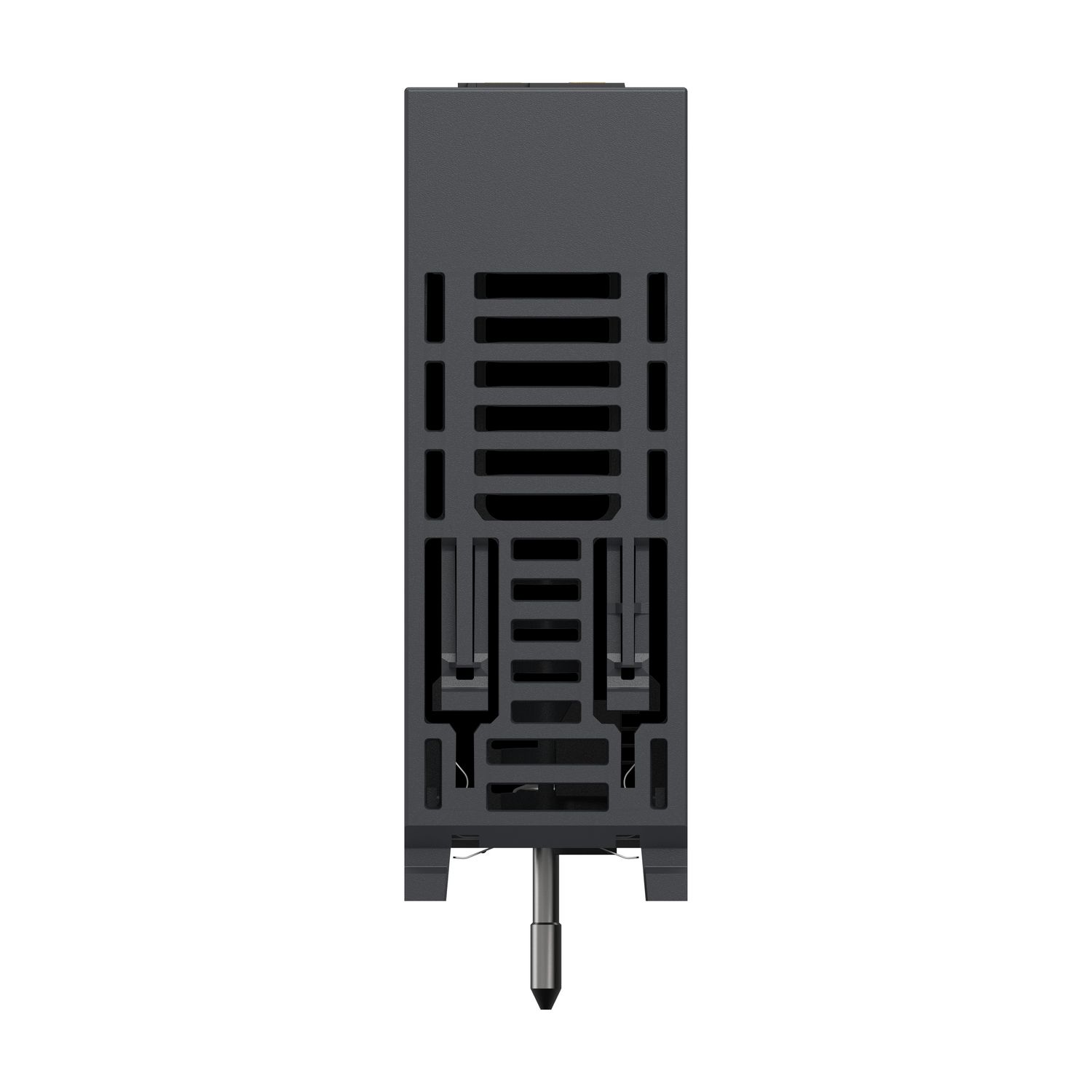

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

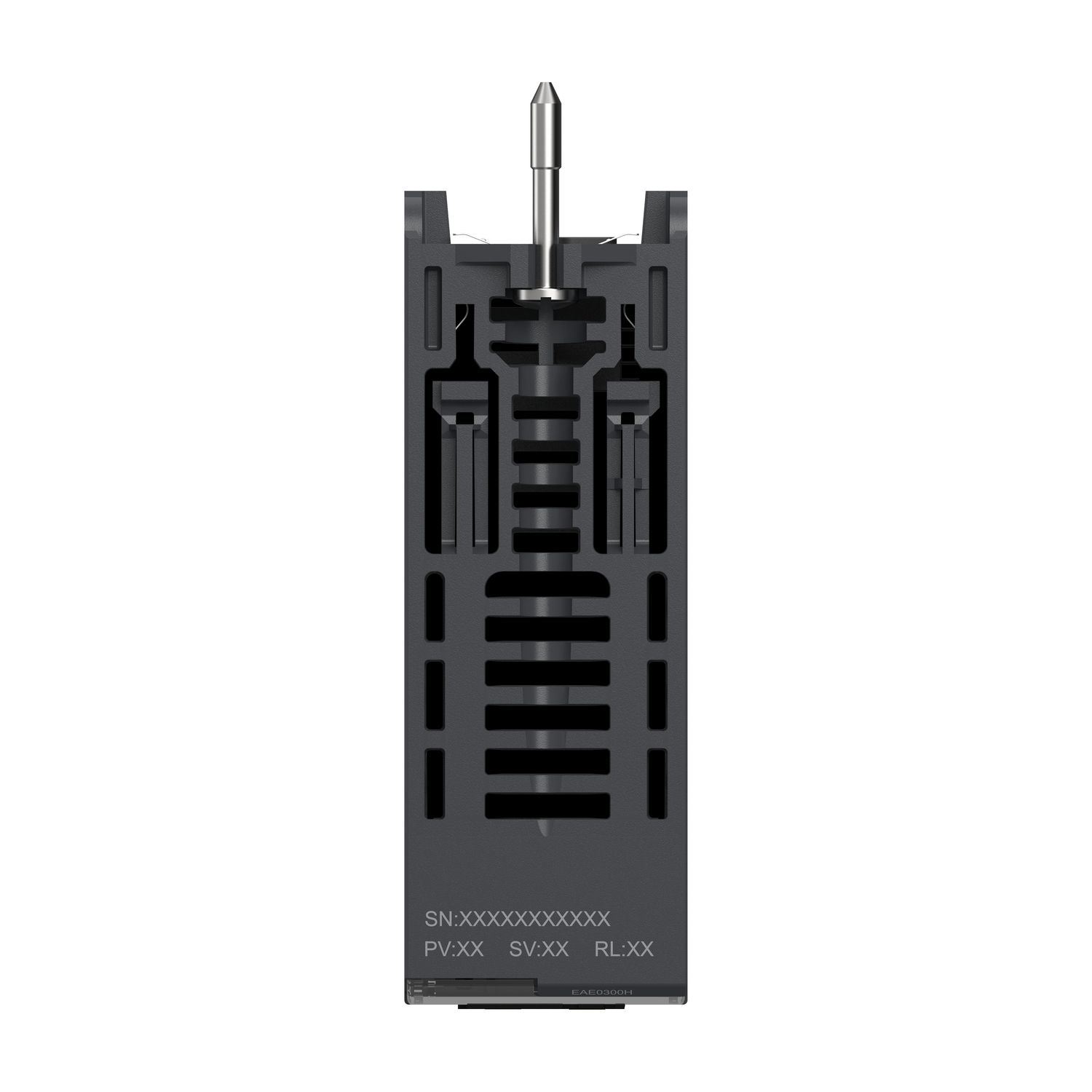

Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe
Picture of SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe
SKU:

BMXEAE0300H

SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe

$2,917.09 INC GST
Available for Shipping : 04-Feb-2026
Product Selector
SSI encoder interface mod - 3 ch - upto 31 data bits/1 Mbauds - severe
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Feb-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This SSI encoder interface module is part of the Modicon X80 range, an offer of common input/output for Modicon M340 and Modicon M580. This encoder interface module has 3 SSI channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. Its casing provides IP20 protection of the electronics. This module has a weight of 0.138kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product complies with CE, UL, CSA, RCM, and EAC standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This input is compatible with 24V DC SSI absolute encoder for 200mA per channel. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Number of channels 3 SSI channel
Product specific application for severe environments
Function available compare, reduction, capture, modulo, offset
Number of inputs 2 24 V DC capture digital inputs for the 3 SSI channels
Product or component type encoder interface module
Range of product Modicon X80
Number of outputs 1 24 V DC reflex digital output for each SSI channel
Complementary
Transmission rate 100 kbauds, 200 kbauds, 500 kbauds, 1 Mbauds
Refresh time 1 ms
Current consumption 250 mA at 3.3 V DC for back plane, (maximum), 150 mA at 3.3 V DC for back plane, (typical)
Input compatibility 24 V DC SSI absolute encoder (voltage limits: 19.2-30 V) for 200 mA per channel
Net weight 0.138 kg
Data format 8...31 bits
Dielectric strength 1400 V DC 60 s
Protection type overvoltage protection DC
[Us] rated supply voltage 24 V DC, <30 mA (typical), 19.2...30 V DC, <30 mA
Environment
Operating altitude 0...4000 m
IP degree of protection IP20
Protective treatment conformal coating
Directives 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Product certifications IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 182.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.730 kg
