BMXDRC0805

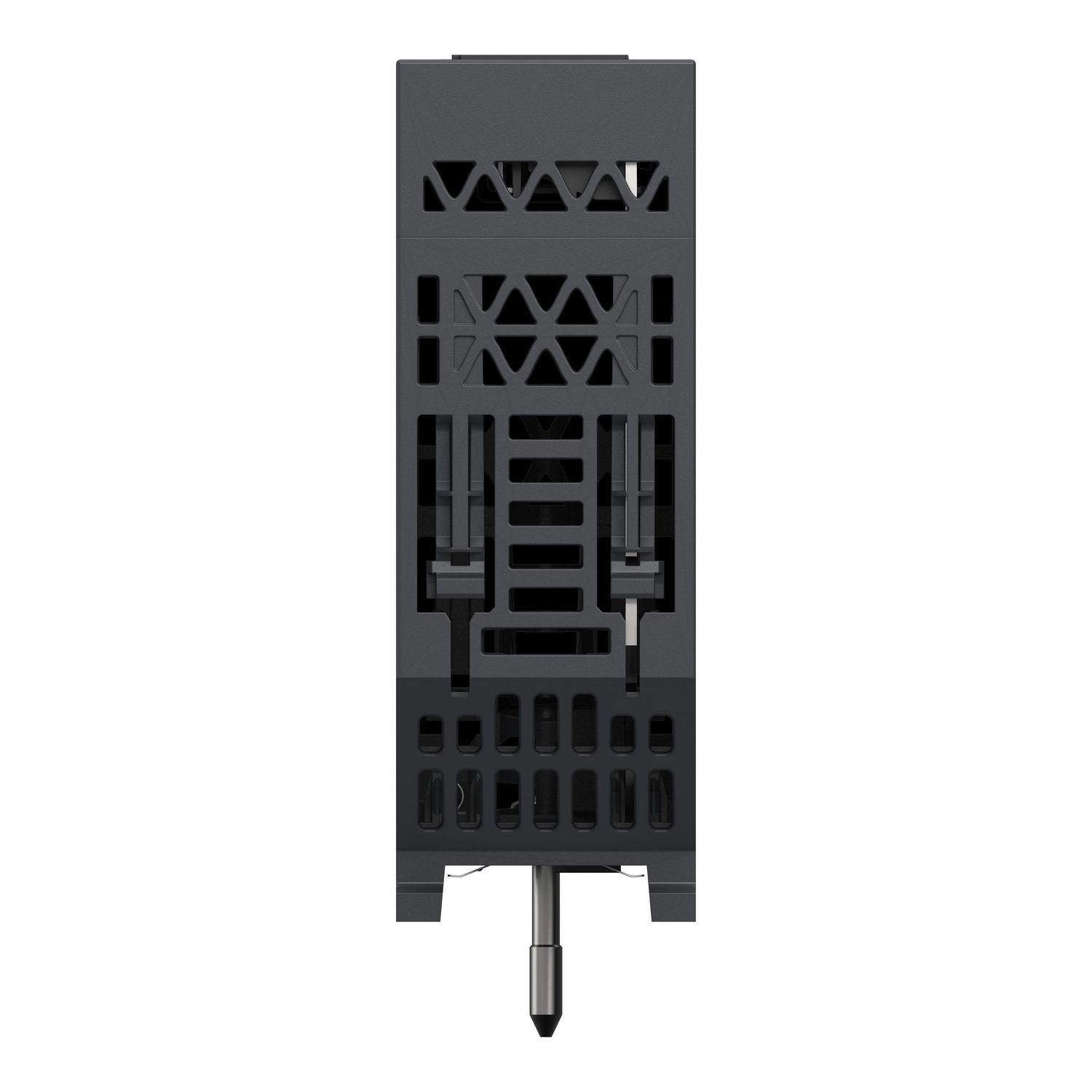

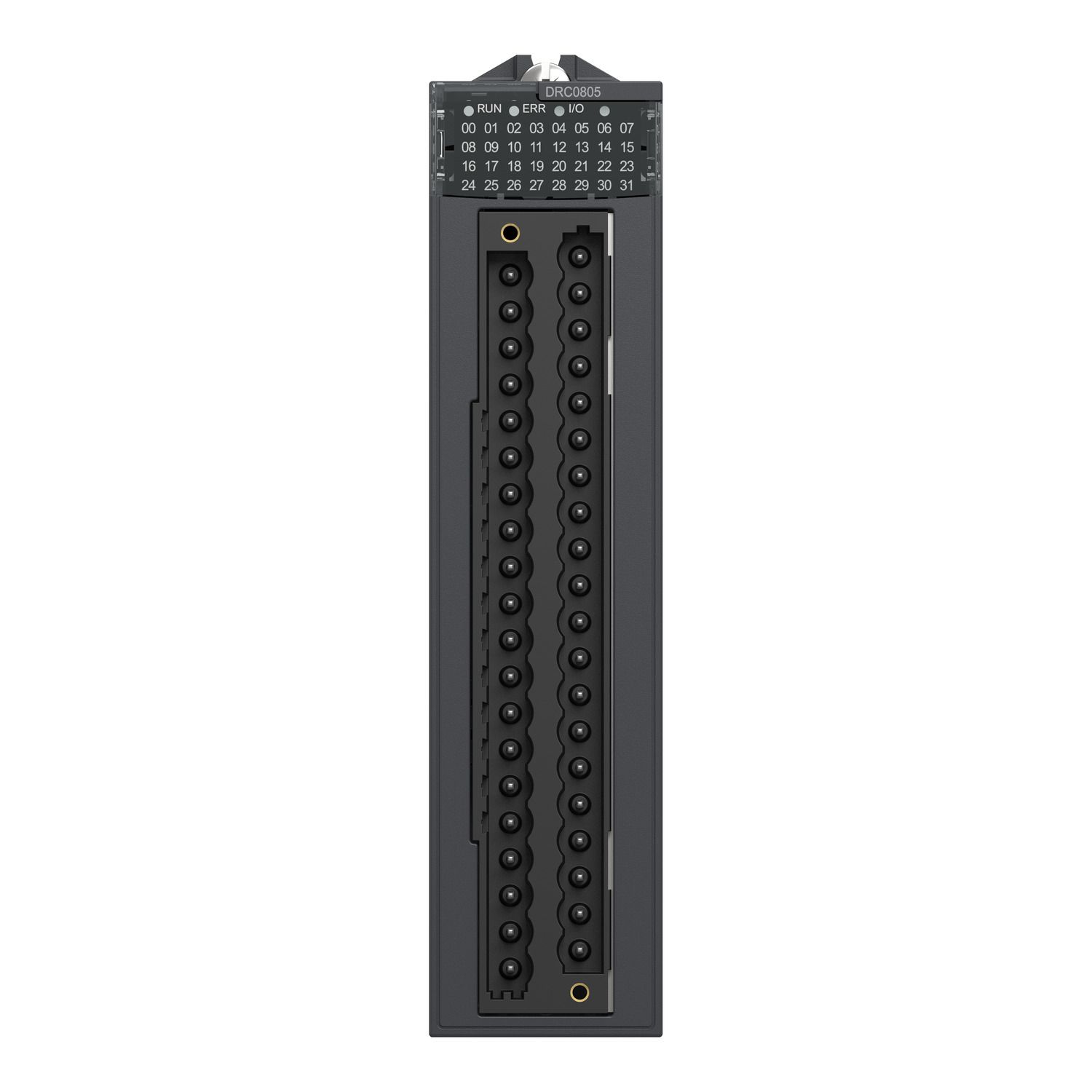

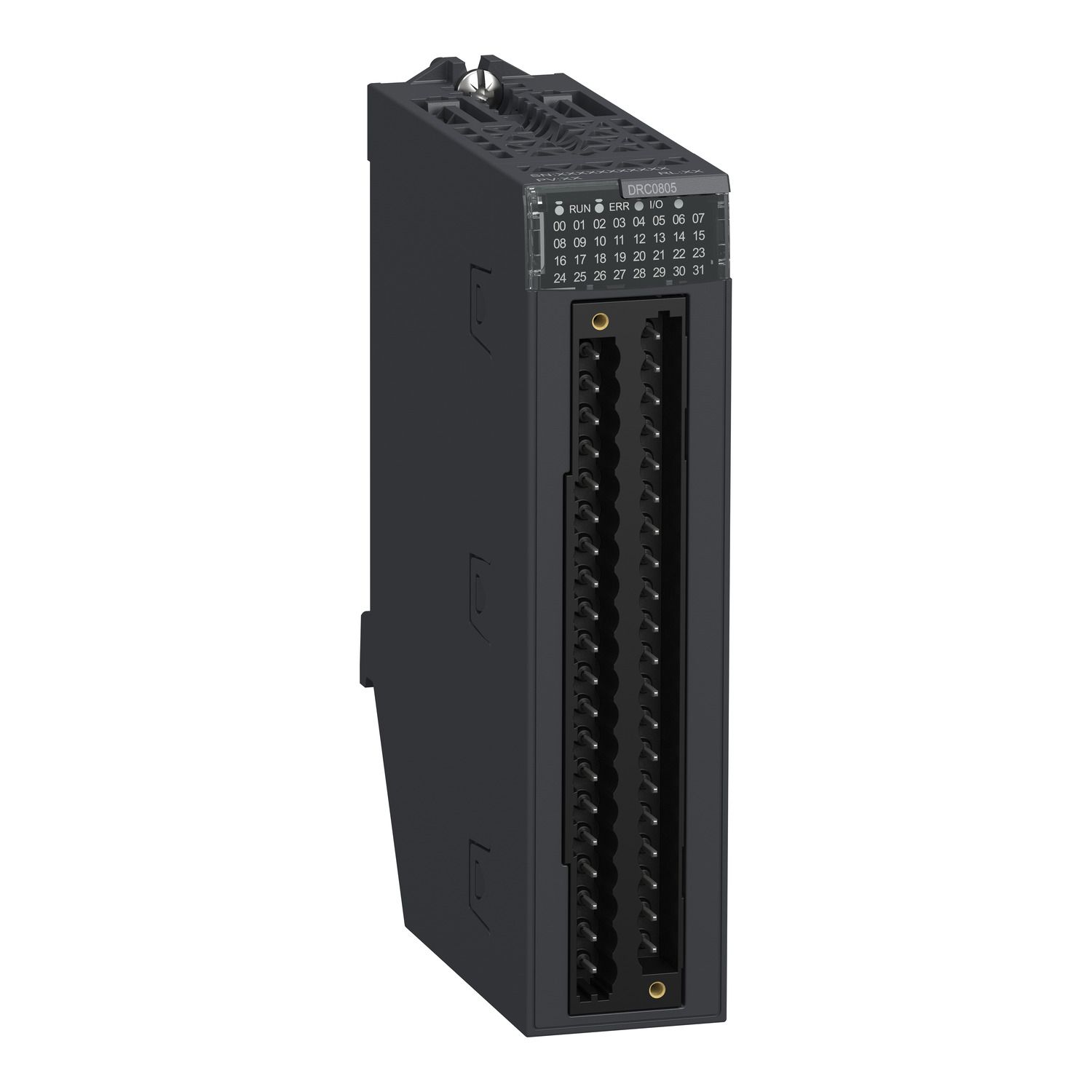

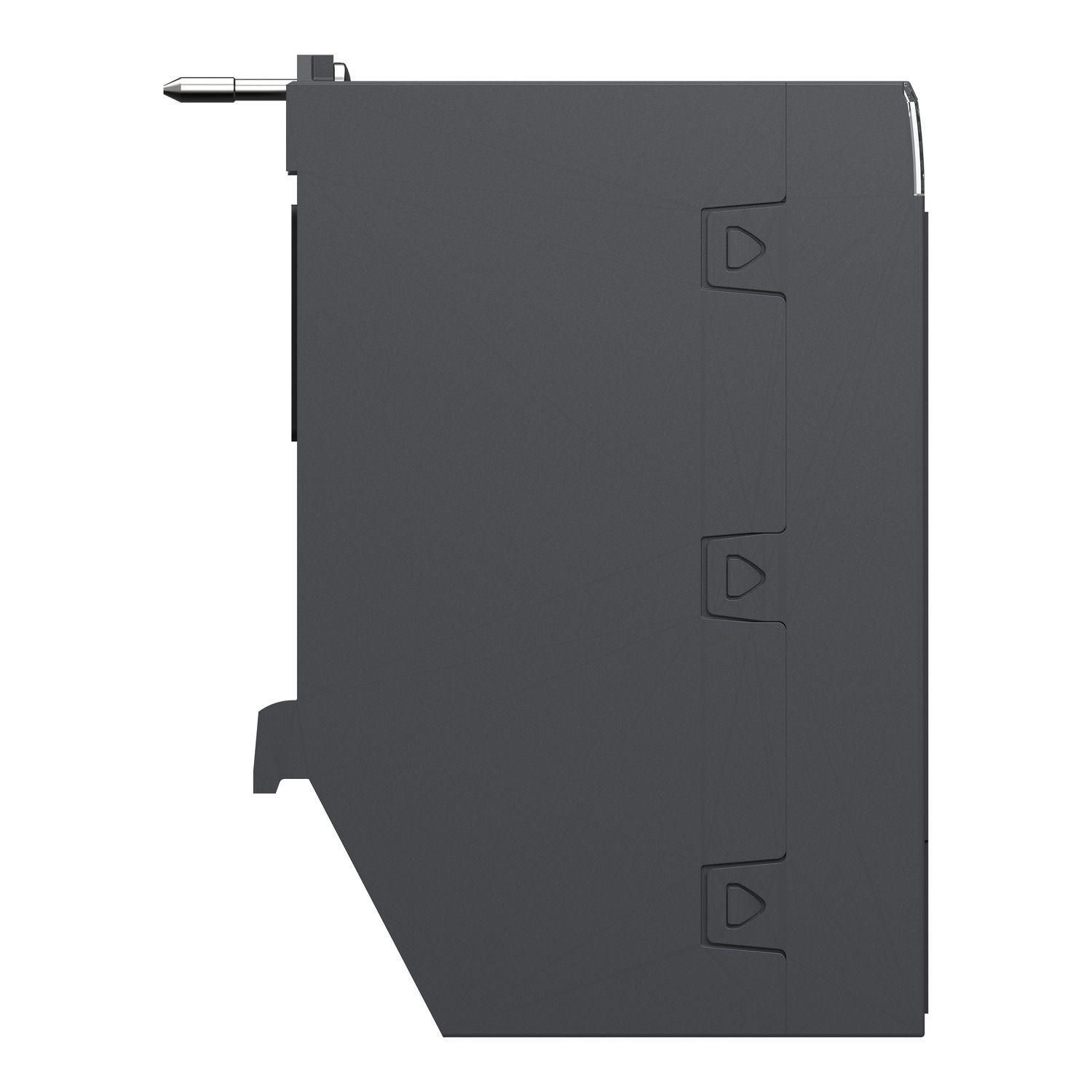

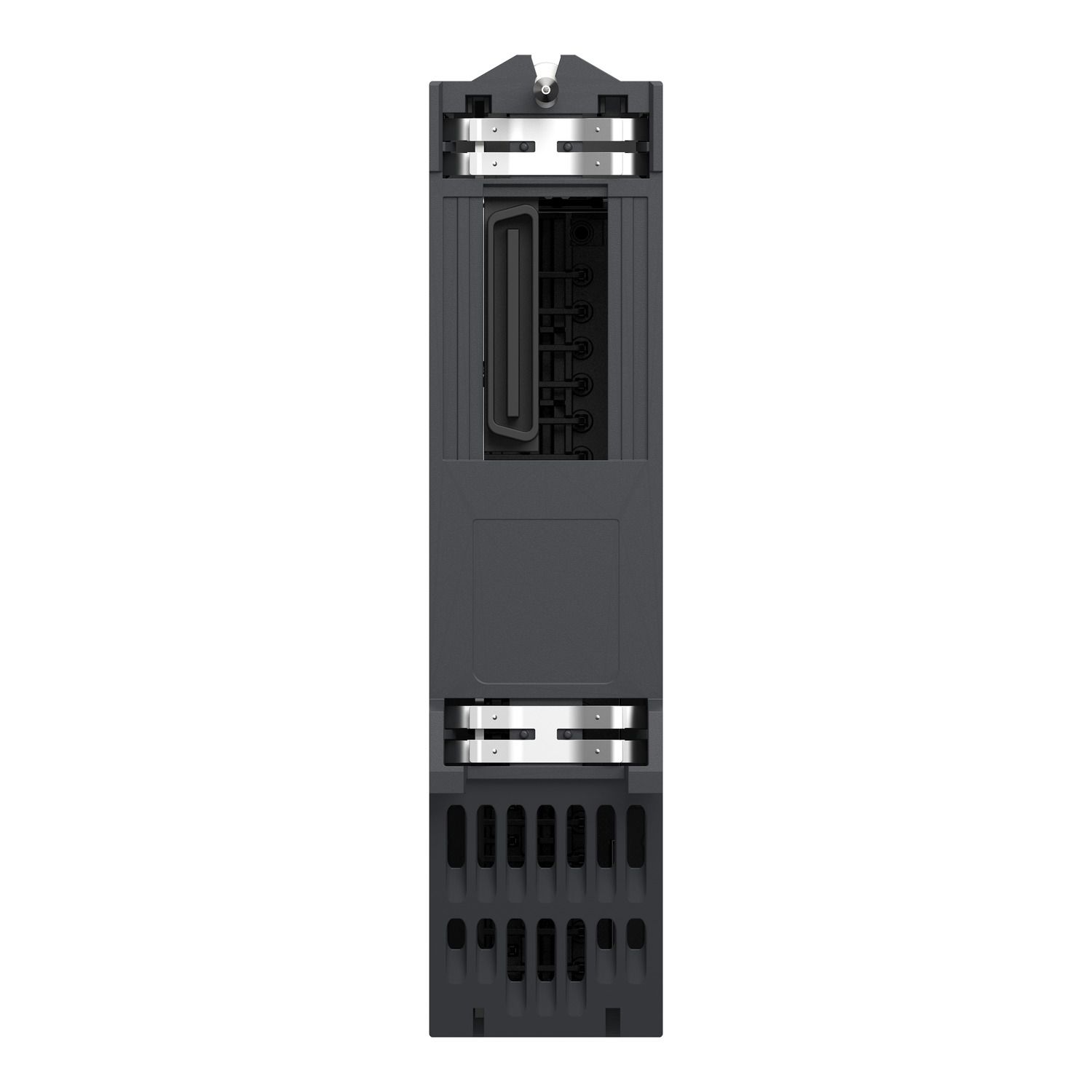

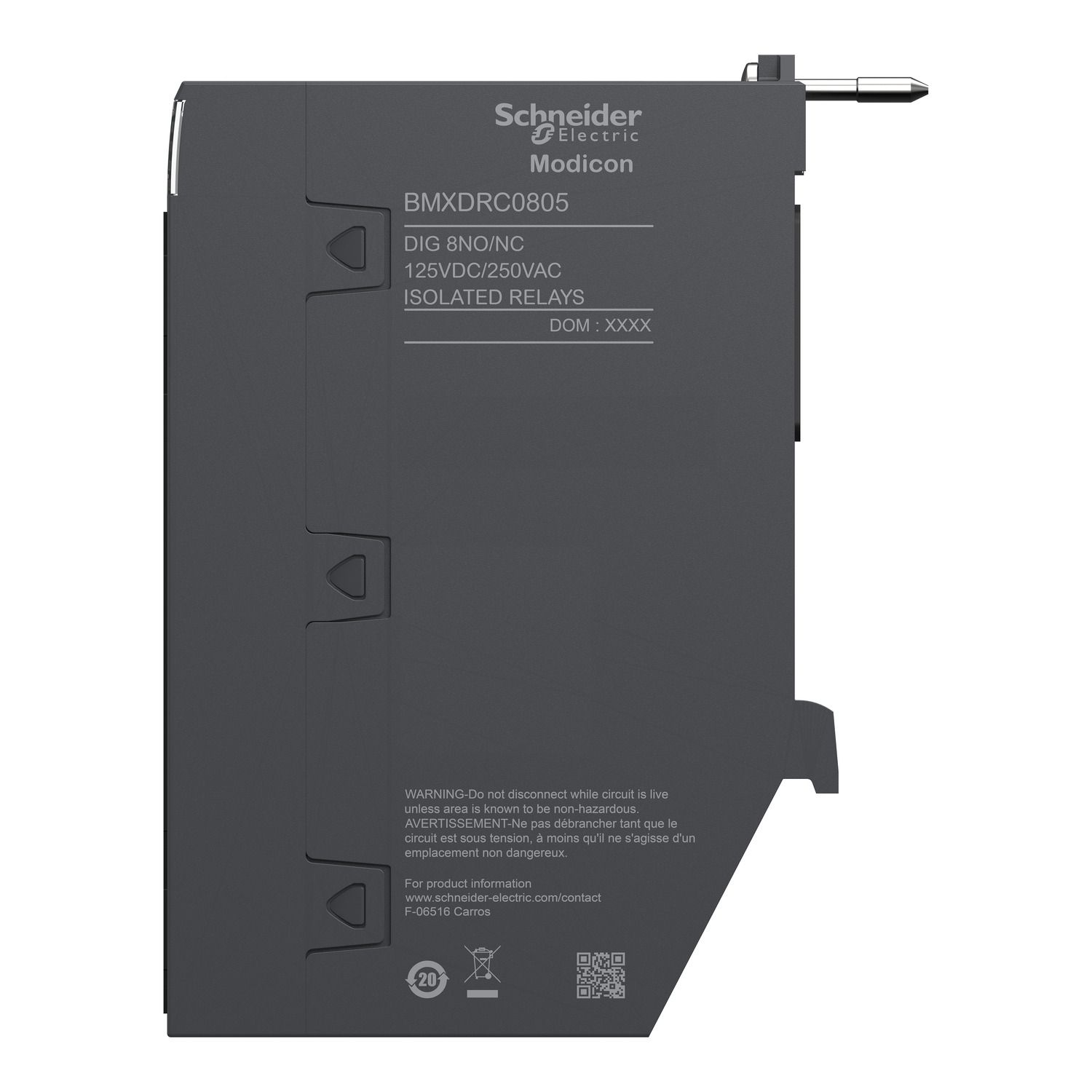

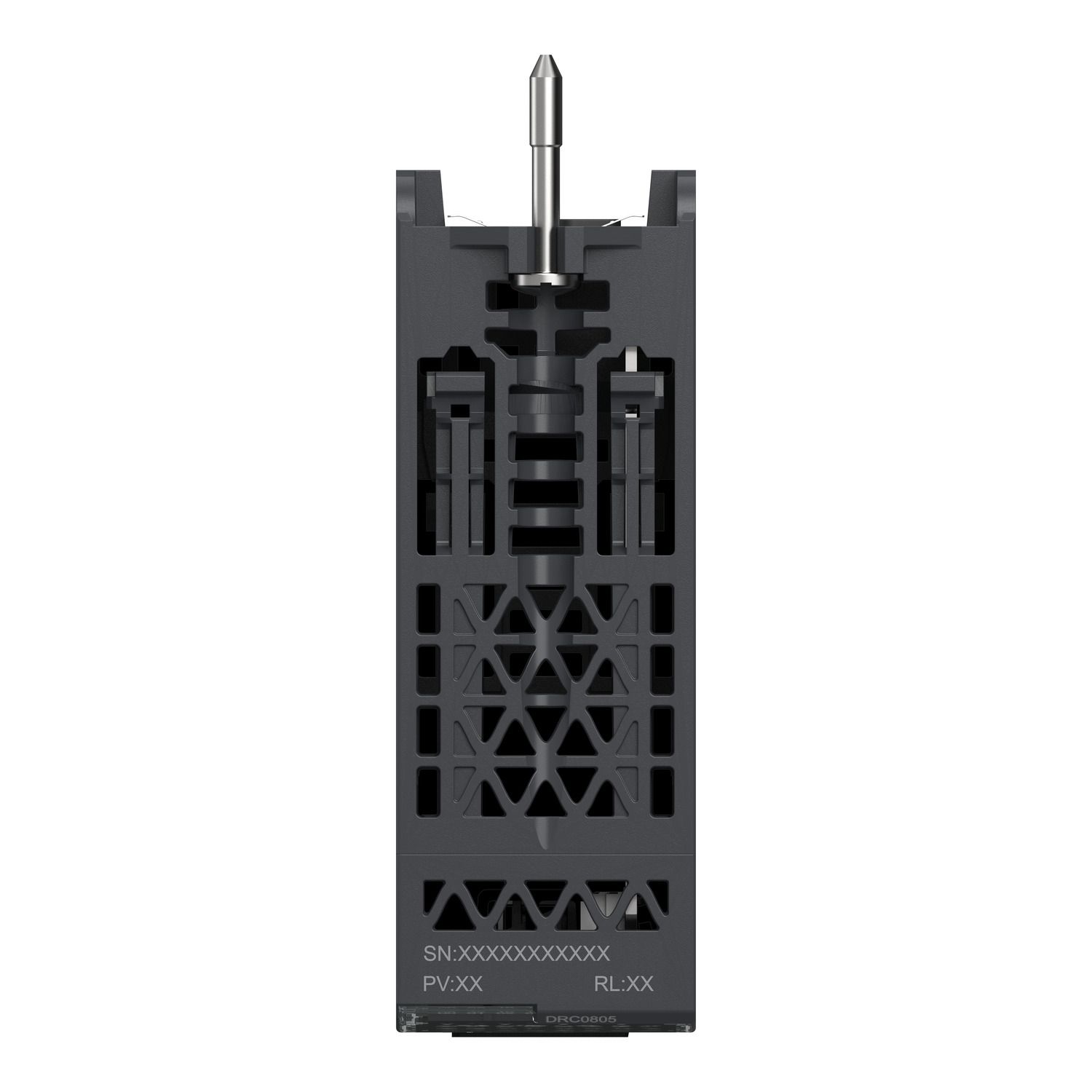

discrete output module, Modicon X80, 8 NO or NC relay outputs, 24 to 240V AC, 24 to 125V DC

$1,338.37 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
discrete output module, Modicon X80, 8 NO or NC relay outputs, 24 to 240V AC, 24 to 125V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open and normally close isolated relay outputs, and it is supplied with 24 to 240V AC/24 to 125V DC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 2652590 hours of MTBF. This discrete module has a weight of 0.189kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product or component type relay discrete output module
Discrete output voltage 24...240 V 19...264 V AC, 5...125 V 5...150 V DC
Discrete output logic positive or negative
Discrete output number 8 conforming to EN/IEC 61131-2
Range of product Modicon X80
Complementary
Response time on output <= 13 ms deactivation, <= 10 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC
Typical current consumption 101 mA at 24 V DC, 40 mA at 3.3 V DC
Electrical durability DC-13: 100000 cycles at 15 W 100...125 V at 0-60 °C, DC-13: 40000 cycles at 40 W 48...60 V at 0-60 °C, DC-13: 40000 cycles at 48 W 24 V at 0-60 °C, DC-13: 60000 cycles at 24 W 24 V at 0-60 °C, DC-13: 100000 cycles at 10 W 24 V at 0-60 °C, DC-12: 100000 cycles at 45 W 100...125 V at 0-60 °C, DC-12: 150000 cycles at 40 W 48...60 V at 0-60 °C, DC-12: 150000 cycles at 48 W 24 V at 0-60 °C, DC-12: 200000 cycles at 24 W 24 V at 0-60 °C, AC-15: 150000 cycles at 220 VA 200...250 V at 0-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 110 VA 200...250 V at 0-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 50 VA 200...250 V at 0-60 °C (load factor 0.4 ), AC-15: 1000000 cycles at 10 VA 200...250 V at 0-60 °C (load factor 0.4 ), AC-15: 70000 cycles at 220 VA 100...120 V at 0-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 110 VA 100...120 V at 0-60 °C (load factor 0.4 ), AC-15: 300000 cycles at 50 VA 100...120 V at 0-60 °C (load factor 0.4 ), AC-15: 1000000 cycles at 10 VA 100...120 V at 0-60 °C (load factor 0.4 ), AC-15: 100000 cycles at 96 VA 48 V at 0-60 °C (load factor 0.4 ), AC-15: 300000 cycles at 48 VA 48 V at 0-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 24 VA 48 V at 0-60 °C (load factor 0.4 ), AC-15: 700000 cycles at 10 VA 48 V at 0-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 48 VA 24 V at 0-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 24 VA 24 V at 0-60 °C (load factor 0.4 ), AC-15: 700000 cycles at 10 VA 24 V at 0-60 °C (load factor 0.4 ), AC-12: 150000 cycles at 500 VA 200...250 V at 0-60 °C, AC-12: 300000 cycles at 220 VA 200...250 V at 0-60 °C, AC-12: 150000 cycles at 220 VA 100...120 V at 0-60 °C, AC-12: 300000 cycles at 110 VA 100...120 V at 0-60 °C, AC-12: 150000 cycles at 96 VA 48 V at 0-60 °C, AC-12: 300000 cycles at 48 VA 48 V at 0-60 °C, AC-12: 200000 cycles at 48 VA 24 V at 0-60 °C
Electrical connection 40 ways terminal block
Net weight 0.189 kg
Power dissipation in W 3.6 W
Protection type external overvoltage protection, inductive DC network , external overvoltage protection, inductive AC network , external overload protection, external short-circuit protection
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
[Ith] conventional free air thermal current 2 A 60 °C, 3 A 50 °C, 4 A 40 °C
Minimum switching current 10 mA 5 V DC
Voltage range 19...264 V, 5...150 V
Network frequency 50/60 Hz
MTBF reliability 2650000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 0-95 % at 0-60 °C without condensation
Vibration resistance 3 gn
Dielectric strength 1780 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 338.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.180 kg
