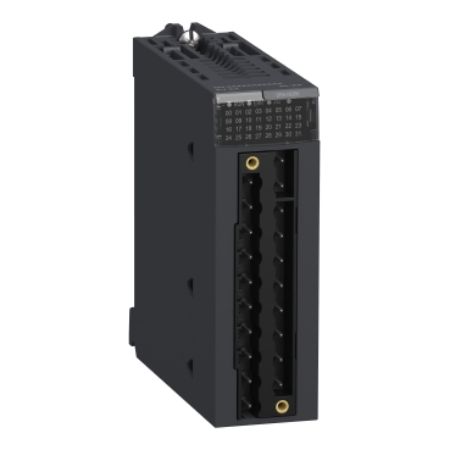

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

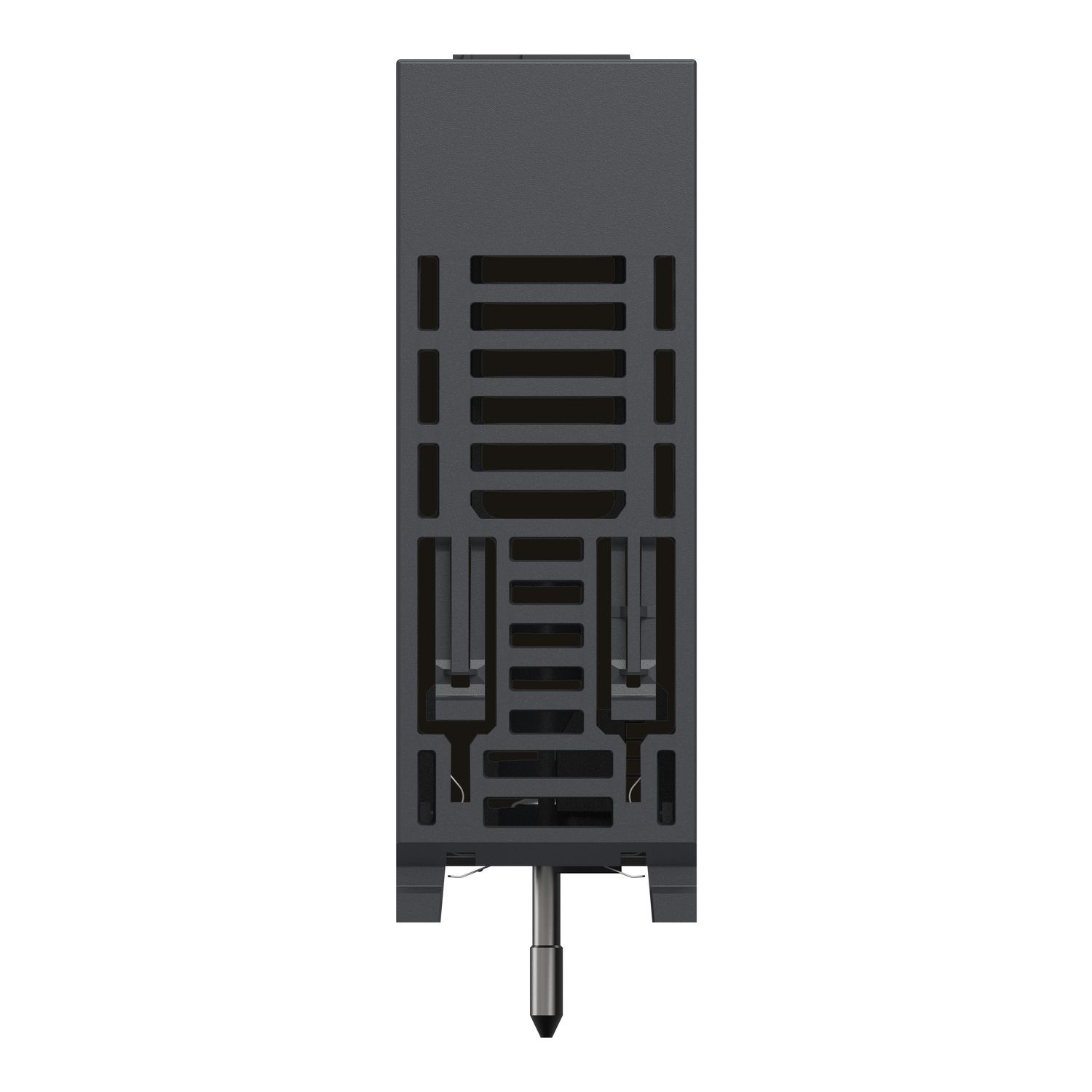

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

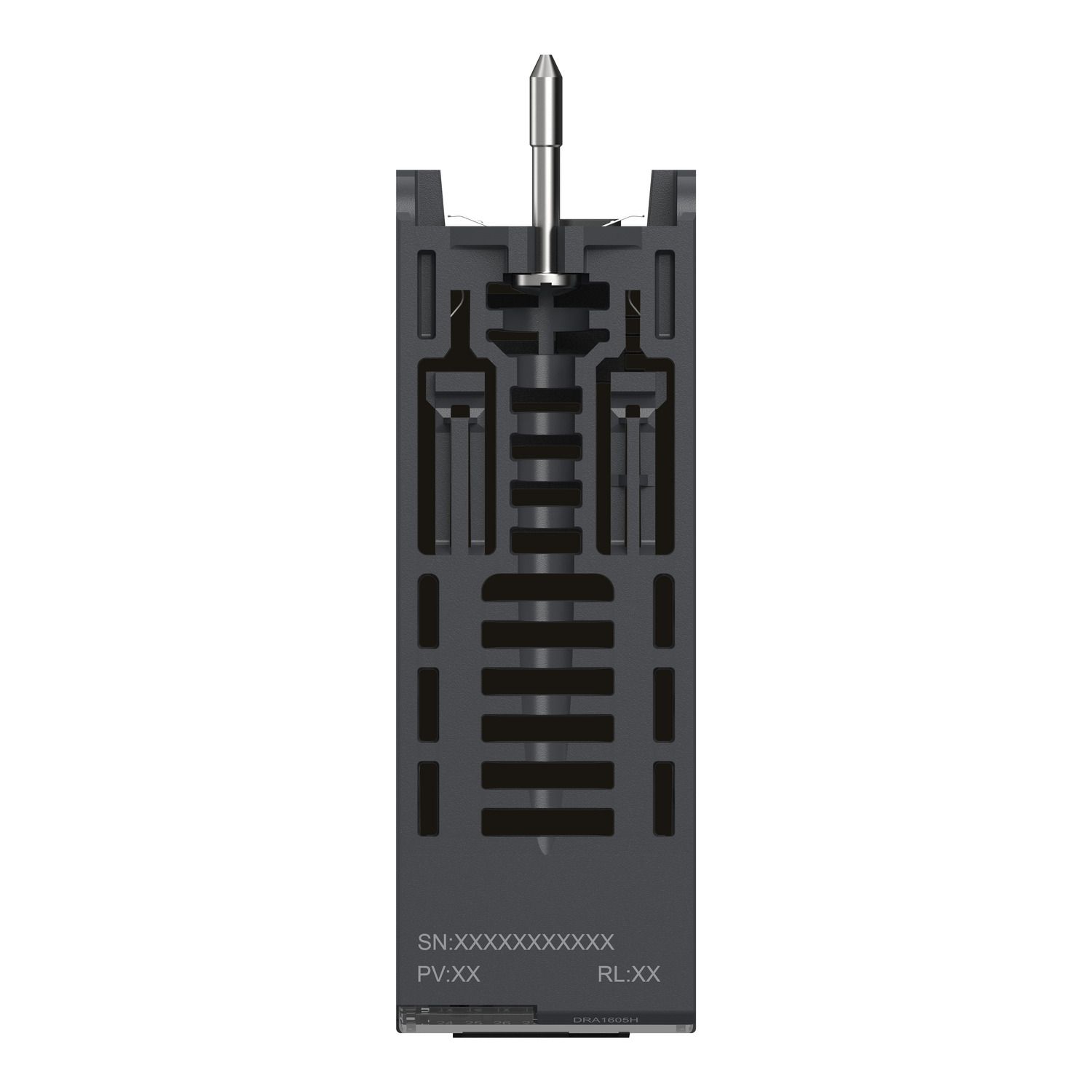

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

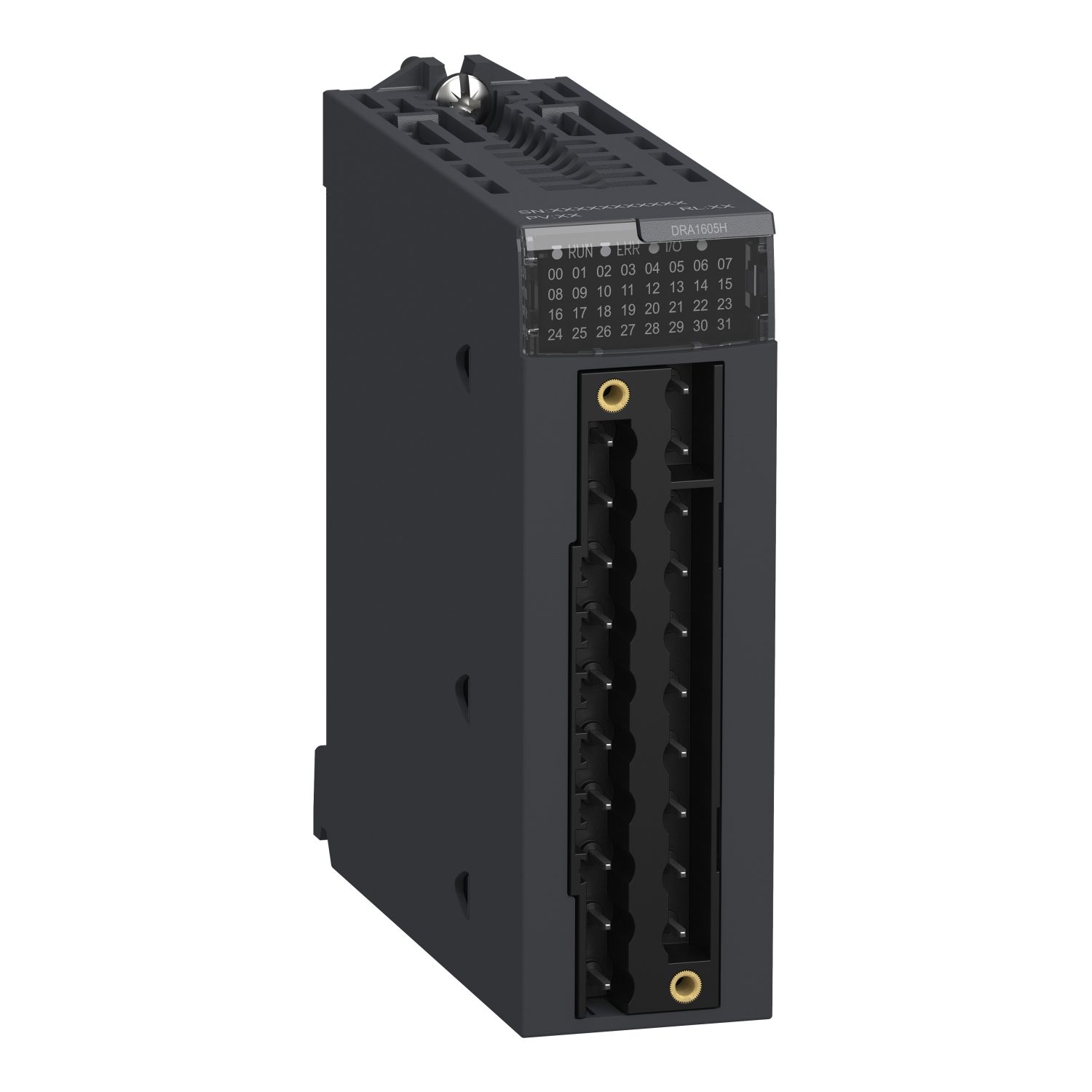

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

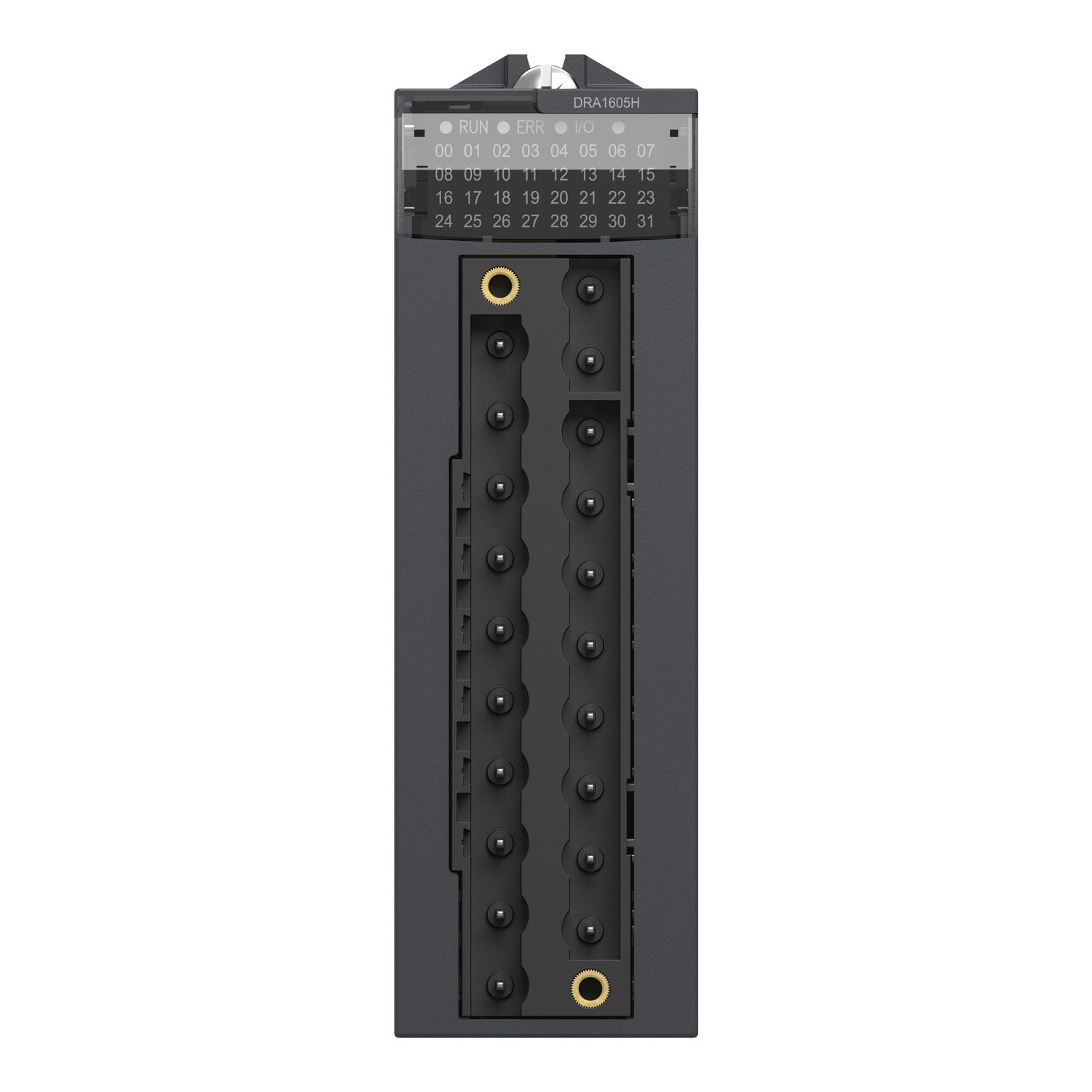

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

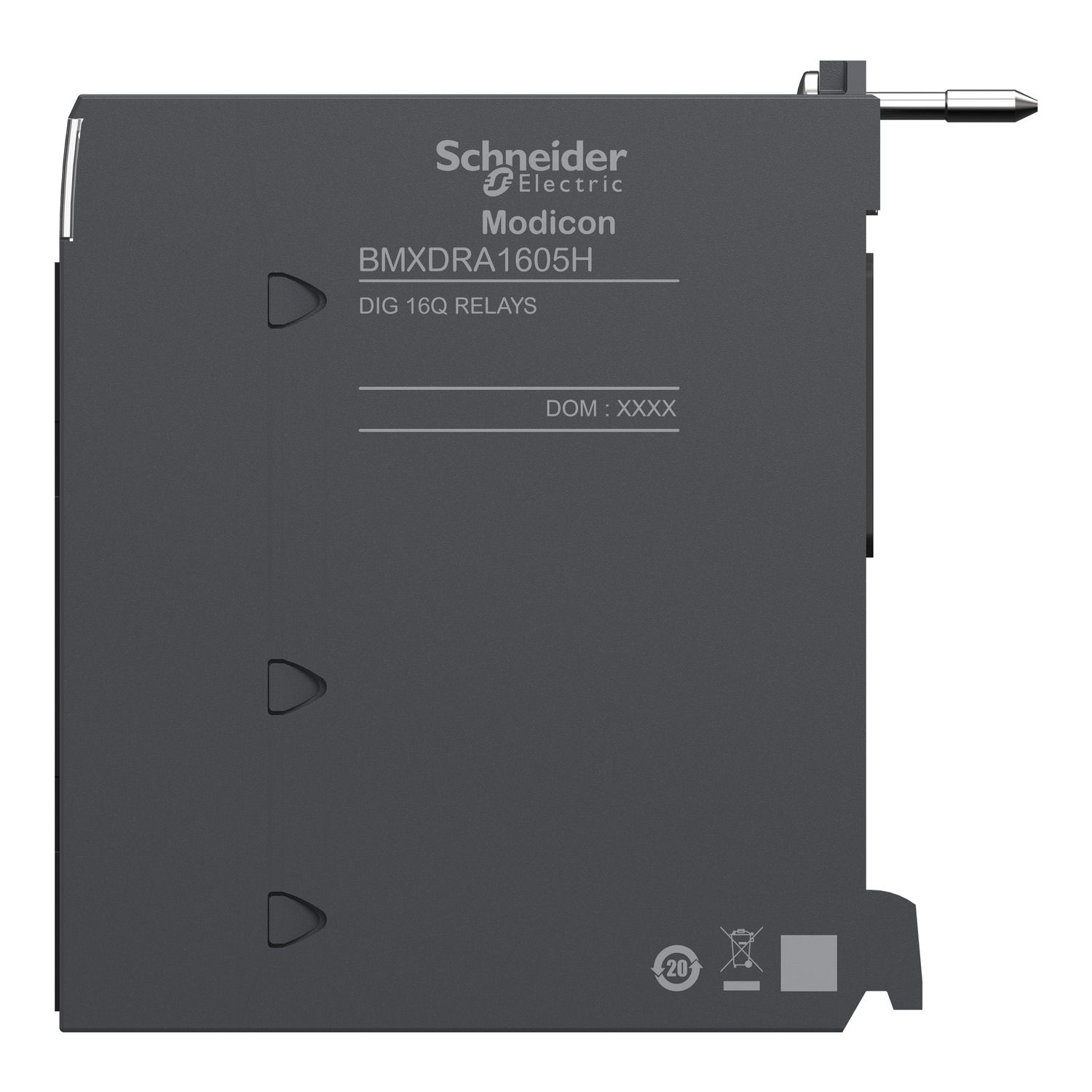

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
SKU:

BMXDRA1605H

discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments

$1,530.65 INC GST
Available for Shipping : 21-Jan-2026
Product Selector
discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 relay outputs. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, 240V, 19V AC to 264V AC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 300000, 50000, 7000 cycles and 1357810 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Product or component type discrete output module
Discrete output voltage 24...240 V 19…264 V AC, 24...48 V 19...60 V DC
Discrete output number 16 conforming to IEC 61131-2
Range of product Modicon X80
Discrete output type relay
Complementary
Response time on output < 10 ms deactivation, < 8 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC
Typical current consumption 95 mA at 24 V DC, 100 mA at 3.3 V DC
Electrical durability DC-12: 50000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 24 V, DC-13: 300000 cycles at 3 W 48 V, DC-13: 300000 cycles at 3 W 24 V, AC-15: 300000 cycles at 72 VA 24 V, AC-15: 300000 cycles at 36 VA 24 V, AC-15: 300000 cycles at 72 VA 48 V, AC-15: 300000 cycles at 36 VA 48 V, AC-15: 300000 cycles at 72 VA 100 V, AC-15: 300000 cycles at 36 VA 100 V, AC-12: 300000 cycles at 50 VA 48 V, AC-12: 300000 cycles at 80 VA 100 V, AC-12: 300000 cycles at 200 VA 200 V, AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35 ), AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7 ), DC-13: 100000 cycles at 10 W 48 V, DC-13: 100000 cycles at 10 W 24 V, DC-12: 100000 cycles at 24 W 24 V, AC-15: 100000 cycles at 120 VA 48 V, AC-15: 100000 cycles at 120 VA 24 V, AC-15: 100000 cycles at 120 VA 100 V, AC-12: 100000 cycles at 50 VA 24 V, AC-12: 100000 cycles at 80 VA 48 V, AC-12: 100000 cycles at 200 VA 100 V, AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35 ), AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7 )
Net weight 0.15 kg
Power dissipation in W 3 W
[Ith] conventional free air thermal current 2 A
Insulation resistance > 10 MOhm 500 V DC
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Minimum switching current 1 mA 5 V DC
MTBF reliability 2100000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 2000 V AC at 50/60 Hz 1 min
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.0 cm
Package 1 Length 11.6 cm
Package 1 Weight 190.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.15 kg
