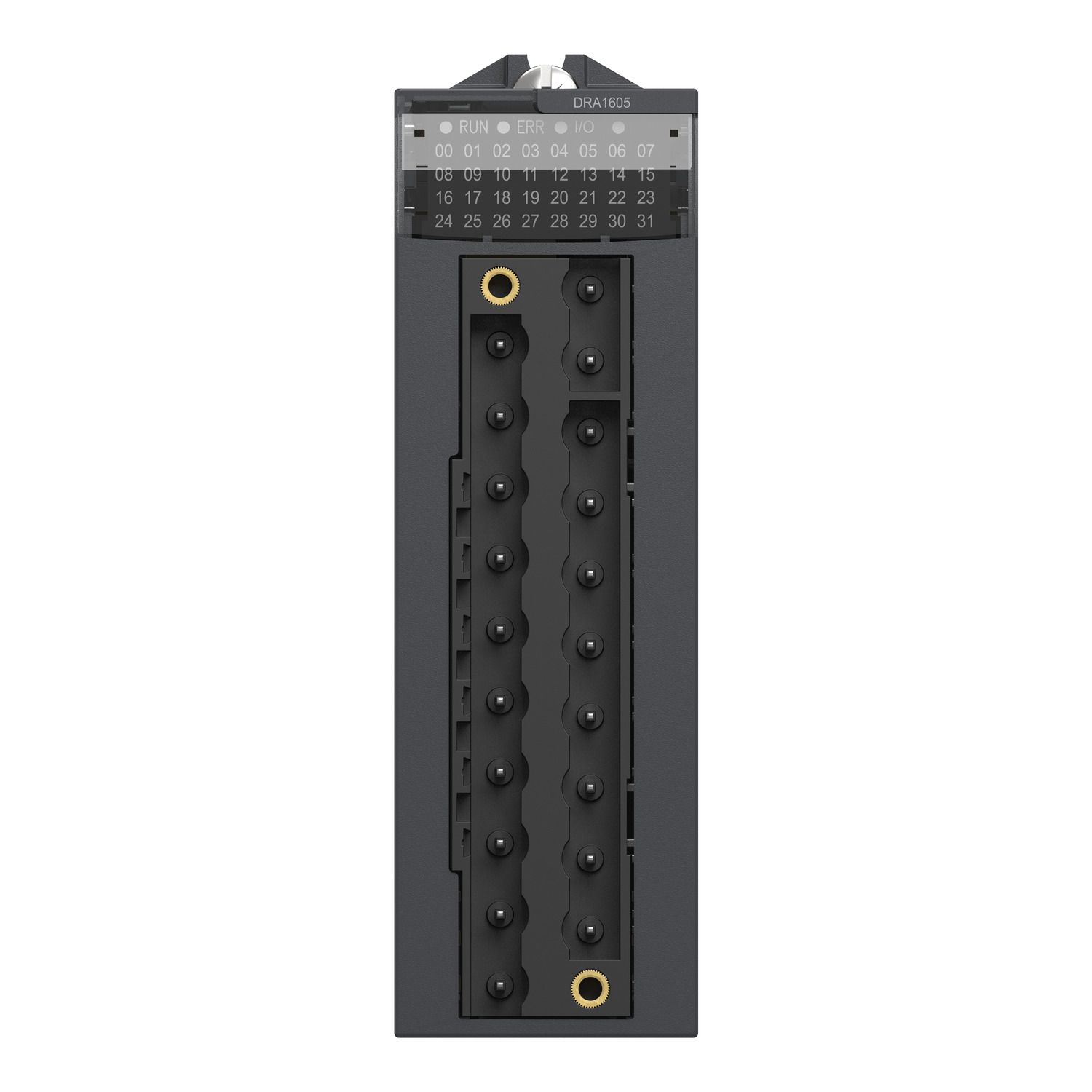

Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Picture of discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
SKU:

BMXDRA1605

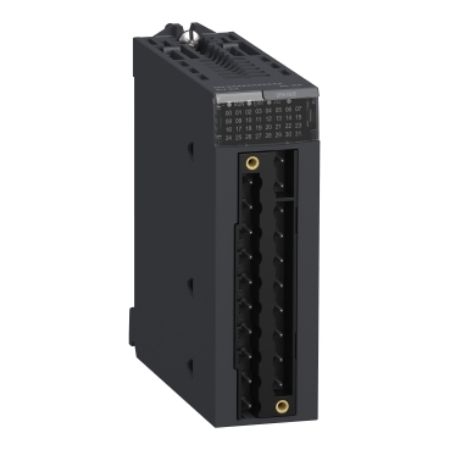

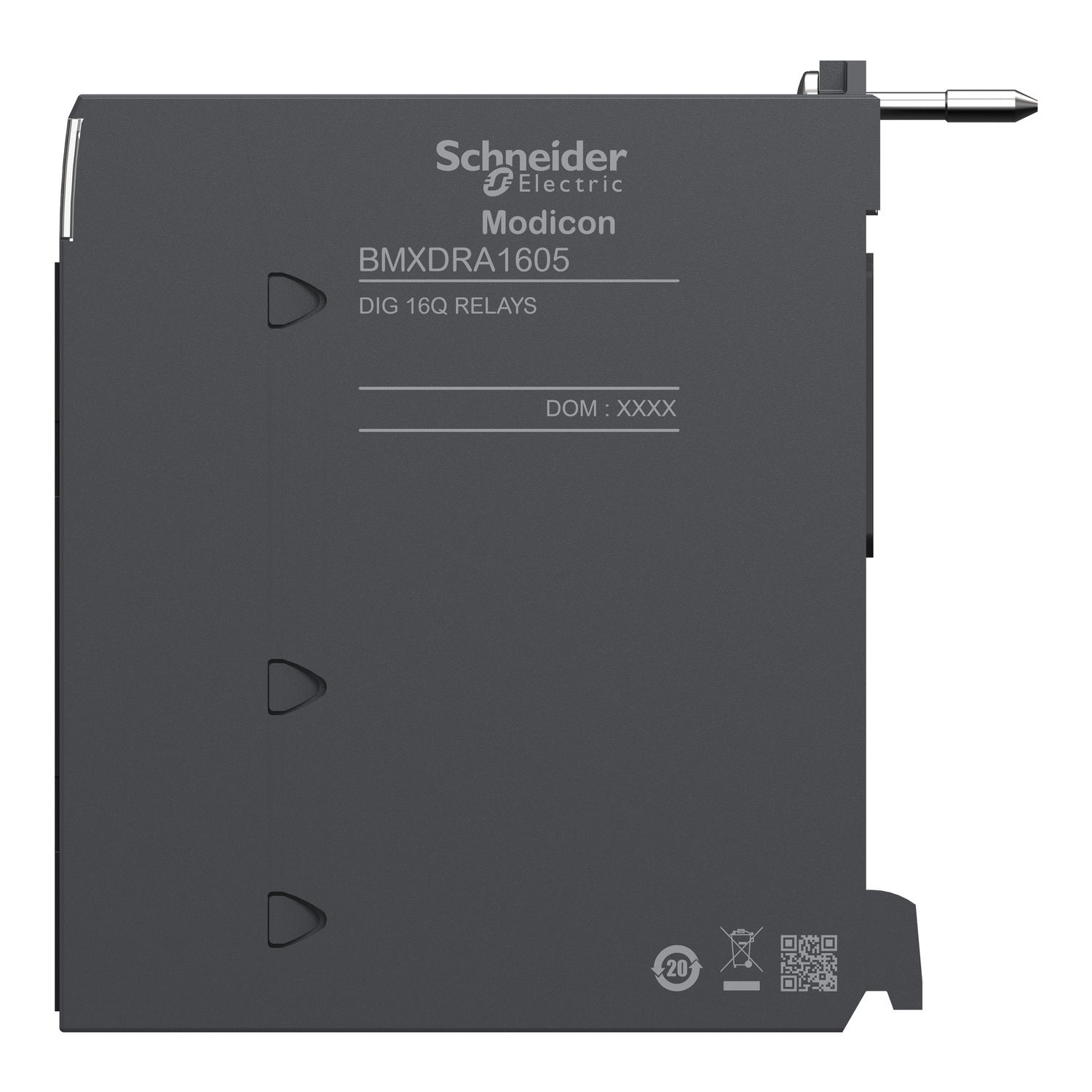

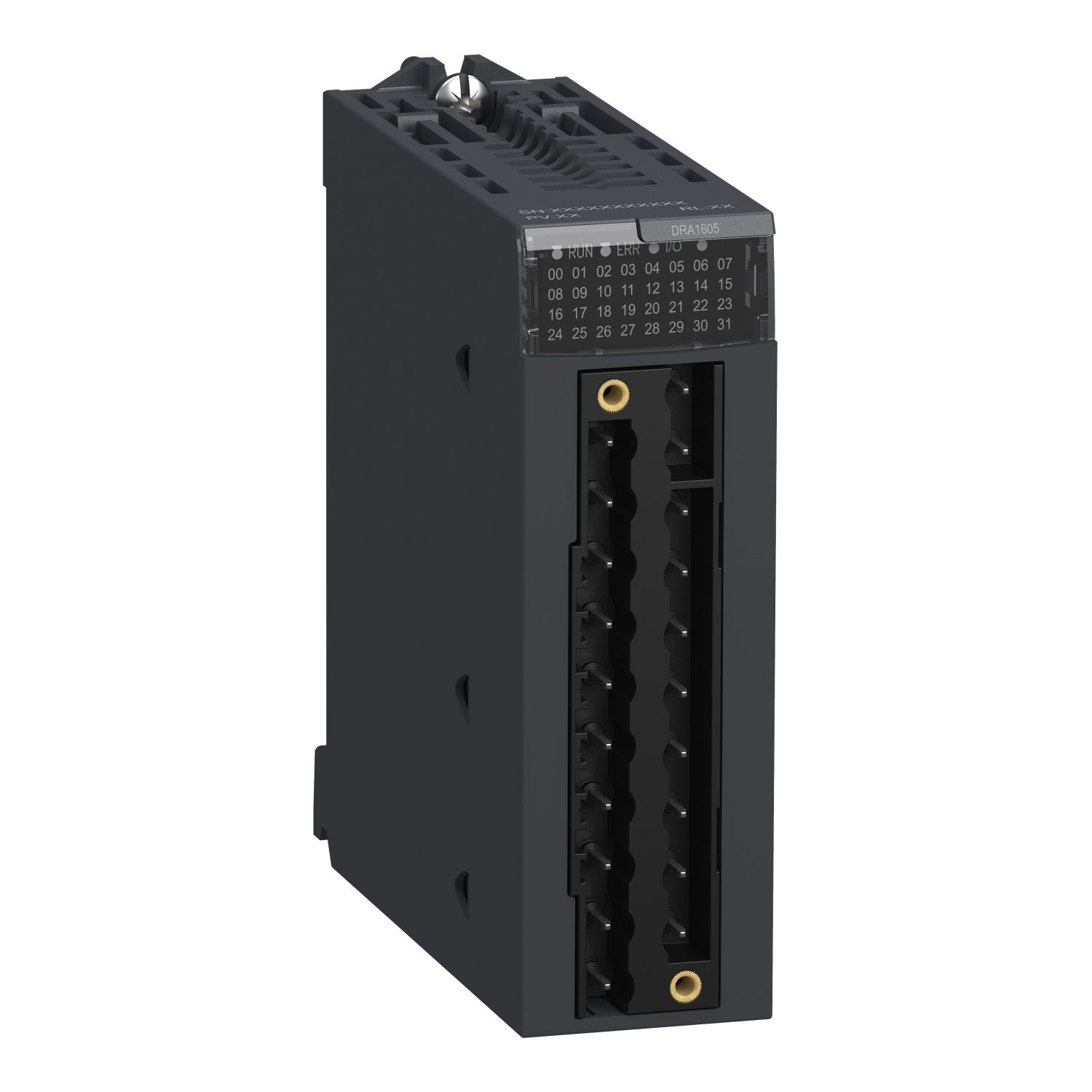

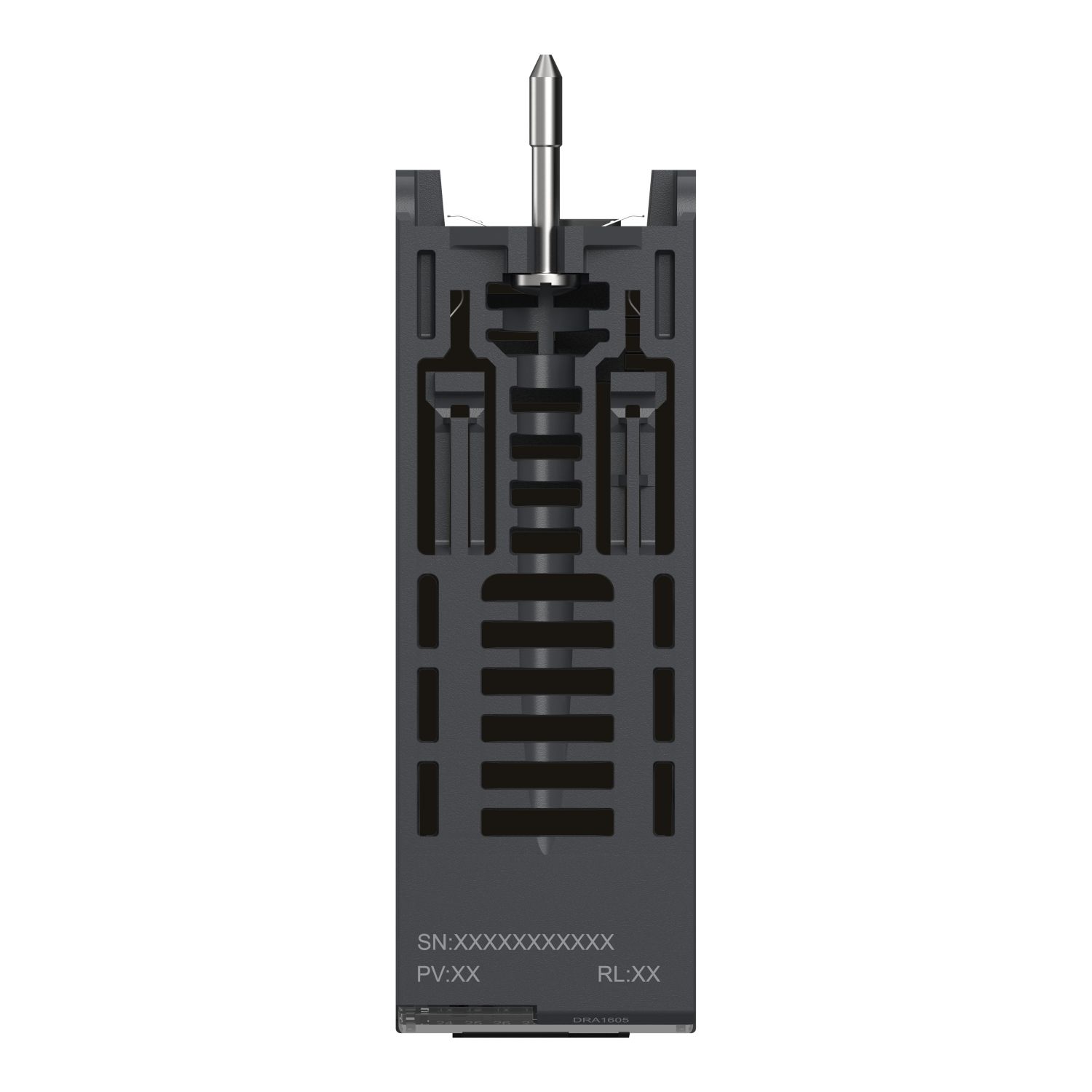

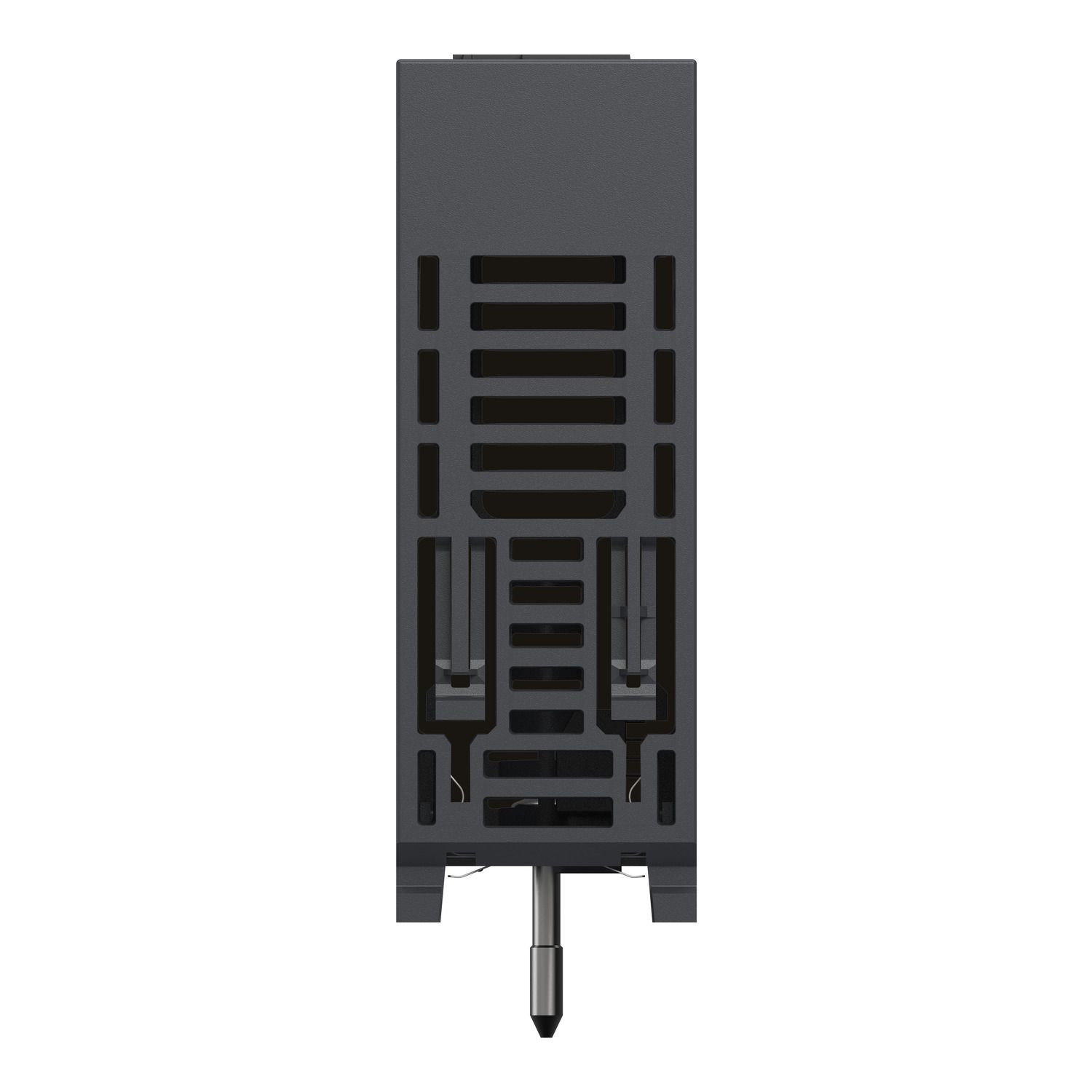

discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC

$1,158.74 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name Attribute value
Main
Product or component type discrete output module
Discrete output voltage 24...240 V 19…264 V AC, 24...48 V 19...60 V DC
Discrete output number 16 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type relay
Complementary
Response time on output < 10 ms deactivation, < 8 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC
Typical current consumption 95 mA at 24 V DC, 100 mA at 3.3 V DC
Electrical durability DC-12: 50000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 48 V, DC-13: 7000 cycles at 24 W 24 V, DC-13: 300000 cycles at 3 W 48 V, DC-13: 300000 cycles at 3 W 24 V, AC-15: 300000 cycles at 72 VA 24 V, AC-15: 300000 cycles at 36 VA 24 V, AC-15: 300000 cycles at 72 VA 48 V, AC-15: 300000 cycles at 36 VA 48 V, AC-15: 300000 cycles at 72 VA 100 V, AC-15: 300000 cycles at 36 VA 100 V, AC-12: 300000 cycles at 50 VA 48 V, AC-12: 300000 cycles at 80 VA 100 V, AC-12: 300000 cycles at 200 VA 200 V, AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35 ), AC-15: 300000 cycles at 72 VA 200 V (load factor 0.7 ), DC-13: 100000 cycles at 10 W 48 V, DC-13: 100000 cycles at 10 W 24 V, DC-12: 100000 cycles at 24 W 24 V, AC-15: 100000 cycles at 120 VA 48 V, AC-15: 100000 cycles at 120 VA 24 V, AC-15: 100000 cycles at 120 VA 100 V, AC-12: 100000 cycles at 50 VA 24 V, AC-12: 100000 cycles at 80 VA 48 V, AC-12: 100000 cycles at 200 VA 100 V, AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35 ), AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7 )
Net weight 0.15 kg
Power dissipation in W 3 W
[Ith] conventional free air thermal current 2 A
Insulation resistance > 10 MOhm 500 V DC
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Minimum switching current 1 mA 5 V DC
MTBF reliability 2100000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 2000 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 179.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.960 kg

Related products

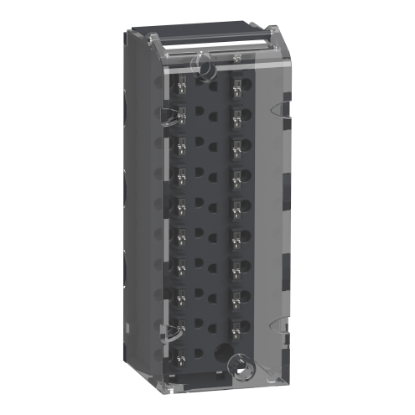

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
$107.15 INC GST
View Detail

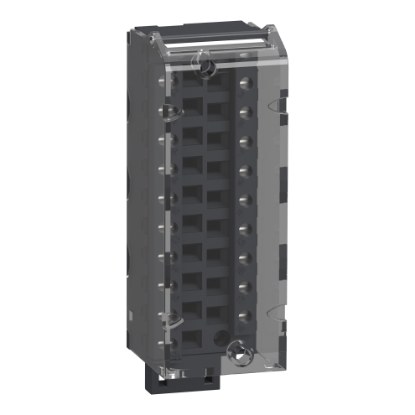

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

BMXFTB2000
$101.07 INC GST
View Detail

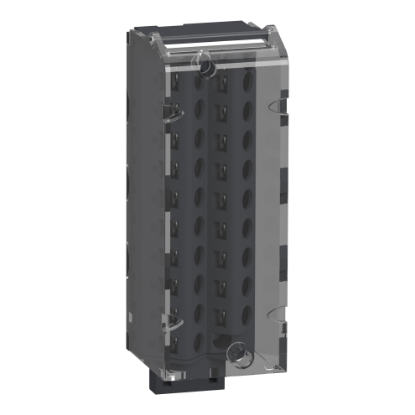

terminal block, Modicon X80, 20-pin removable screw clamp, 1 or 2 x 0.34..1.5mm2
