BMXDRA0815H

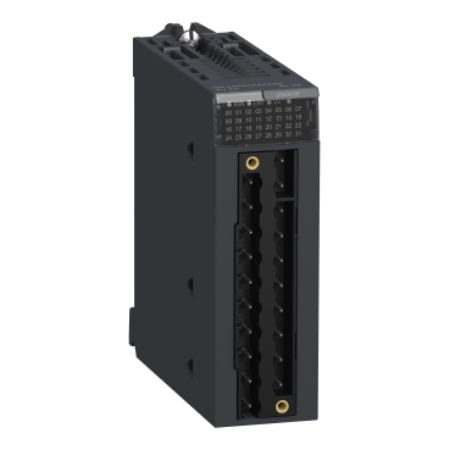

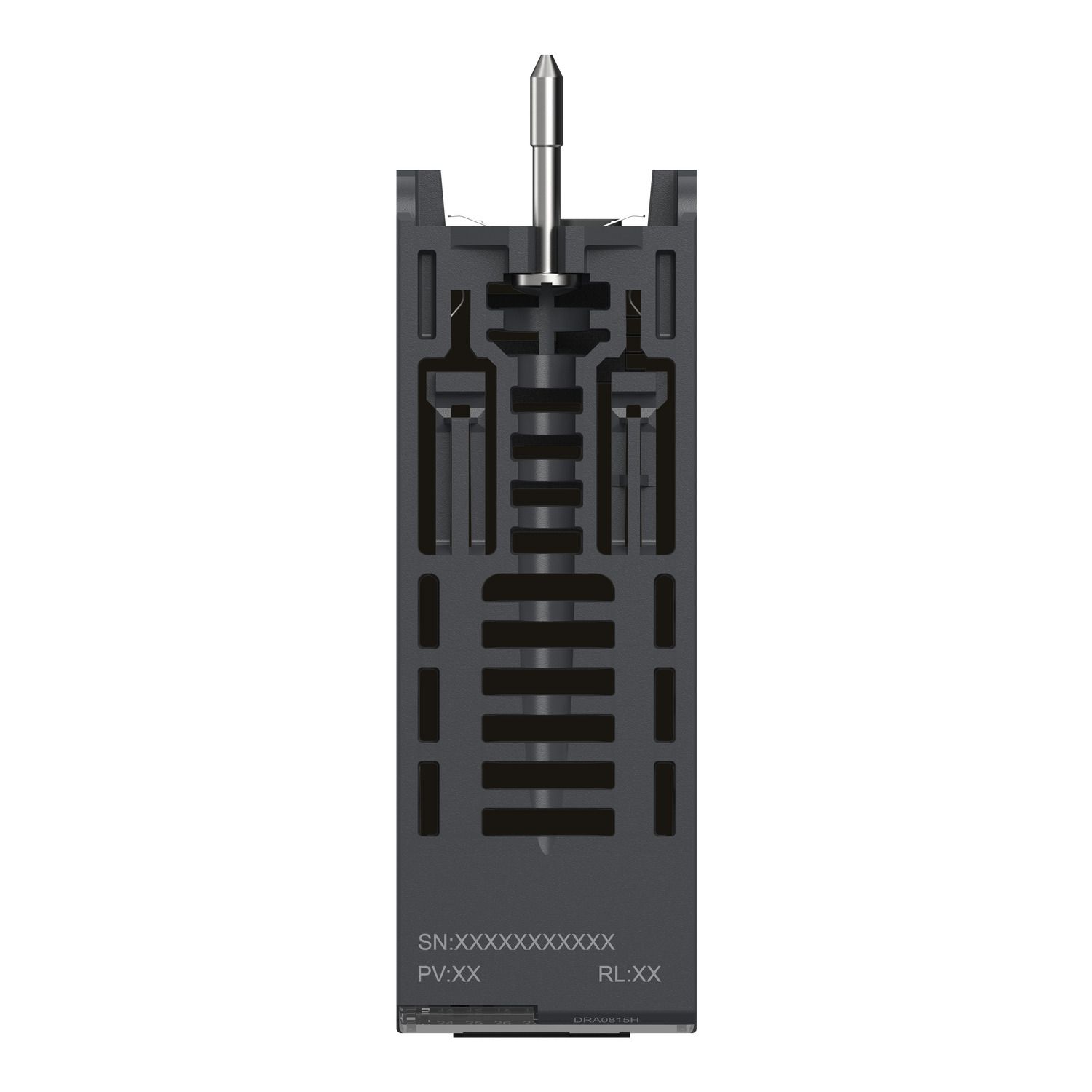

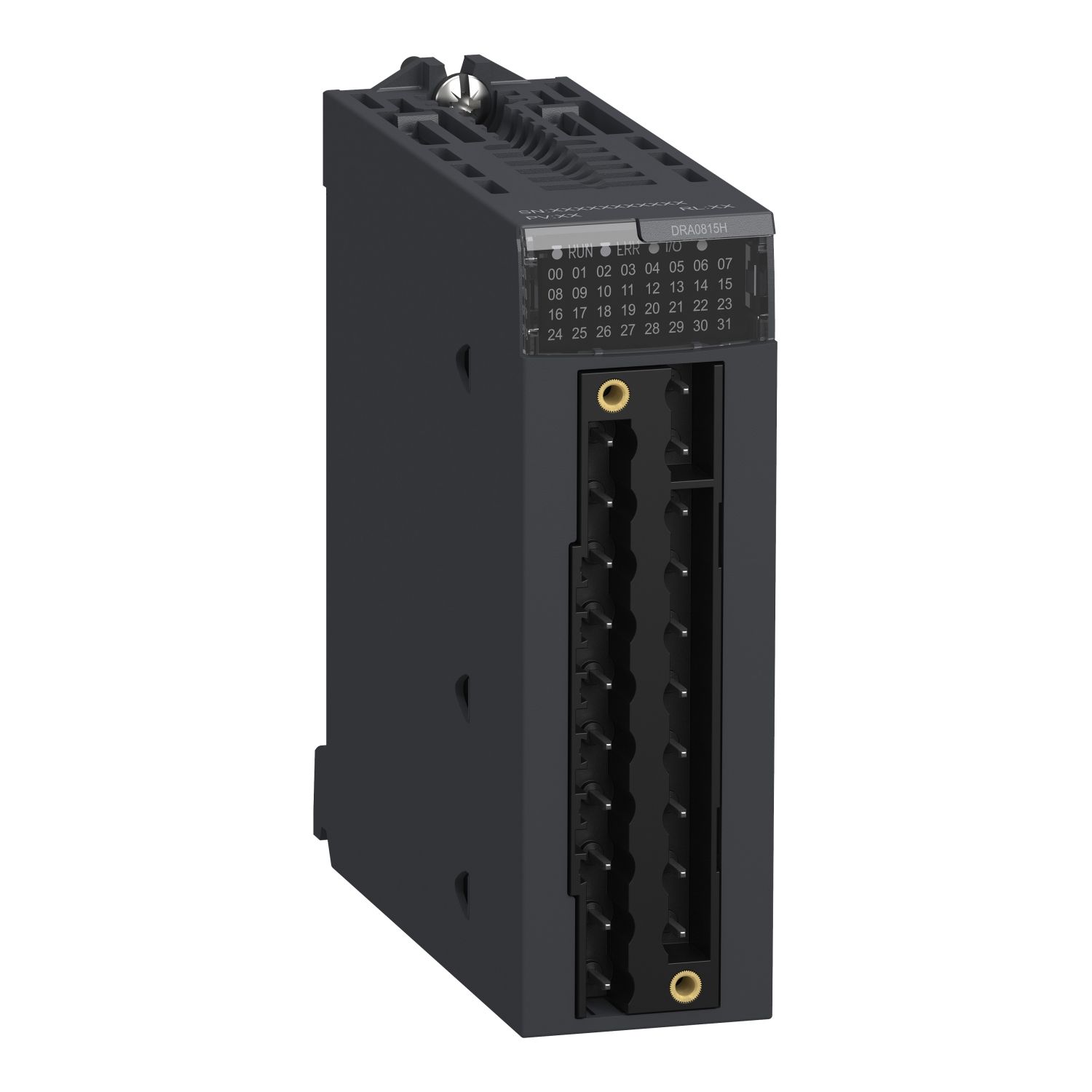

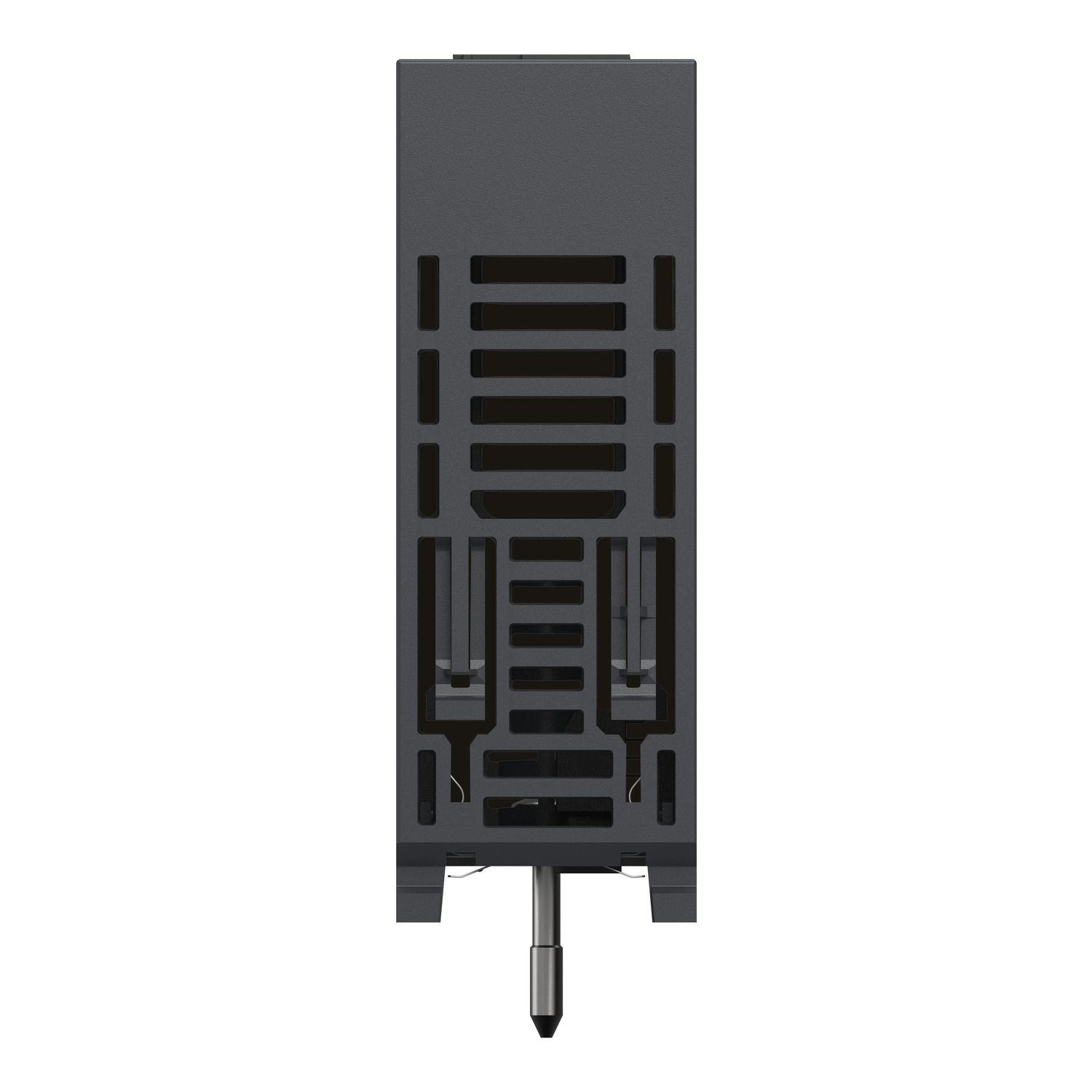

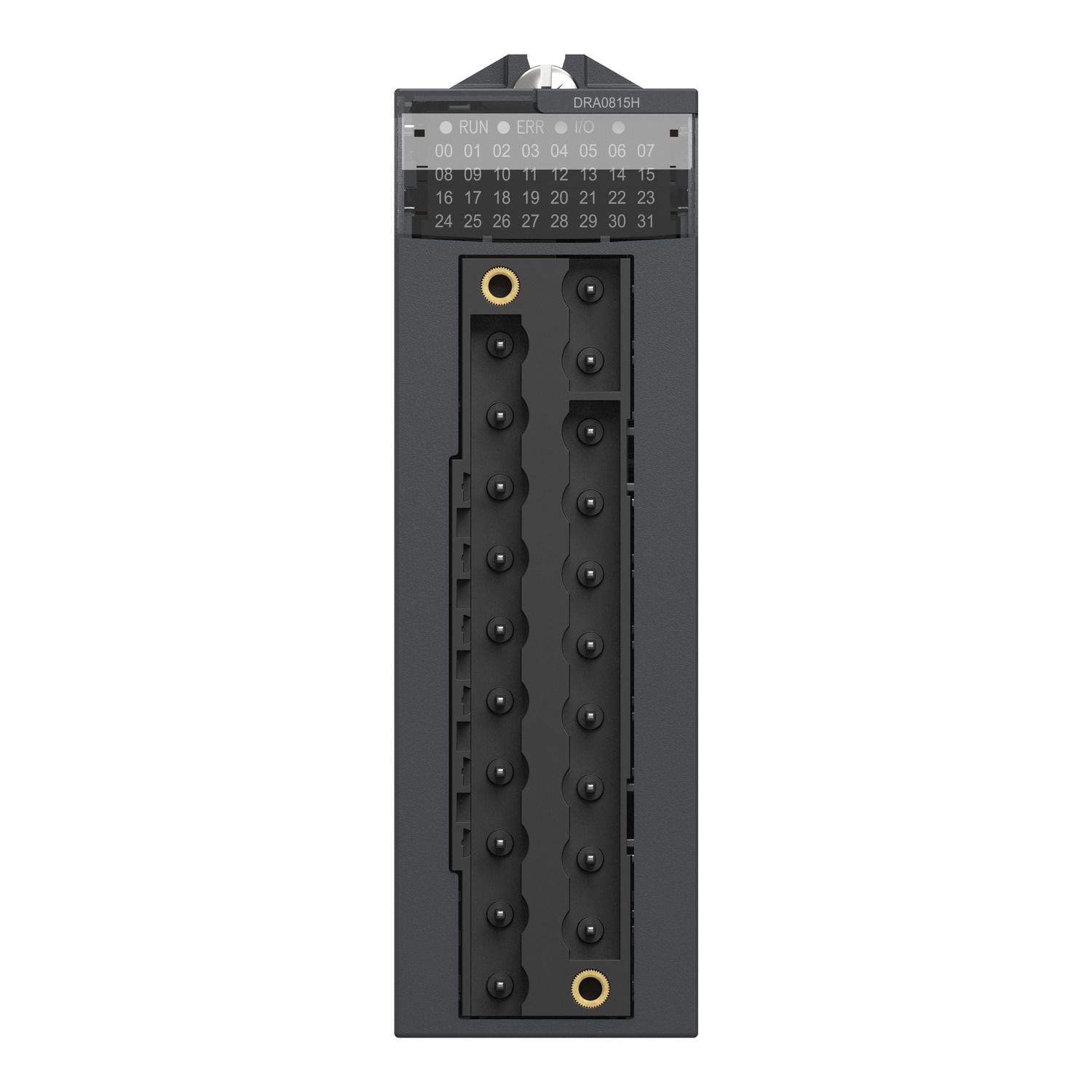

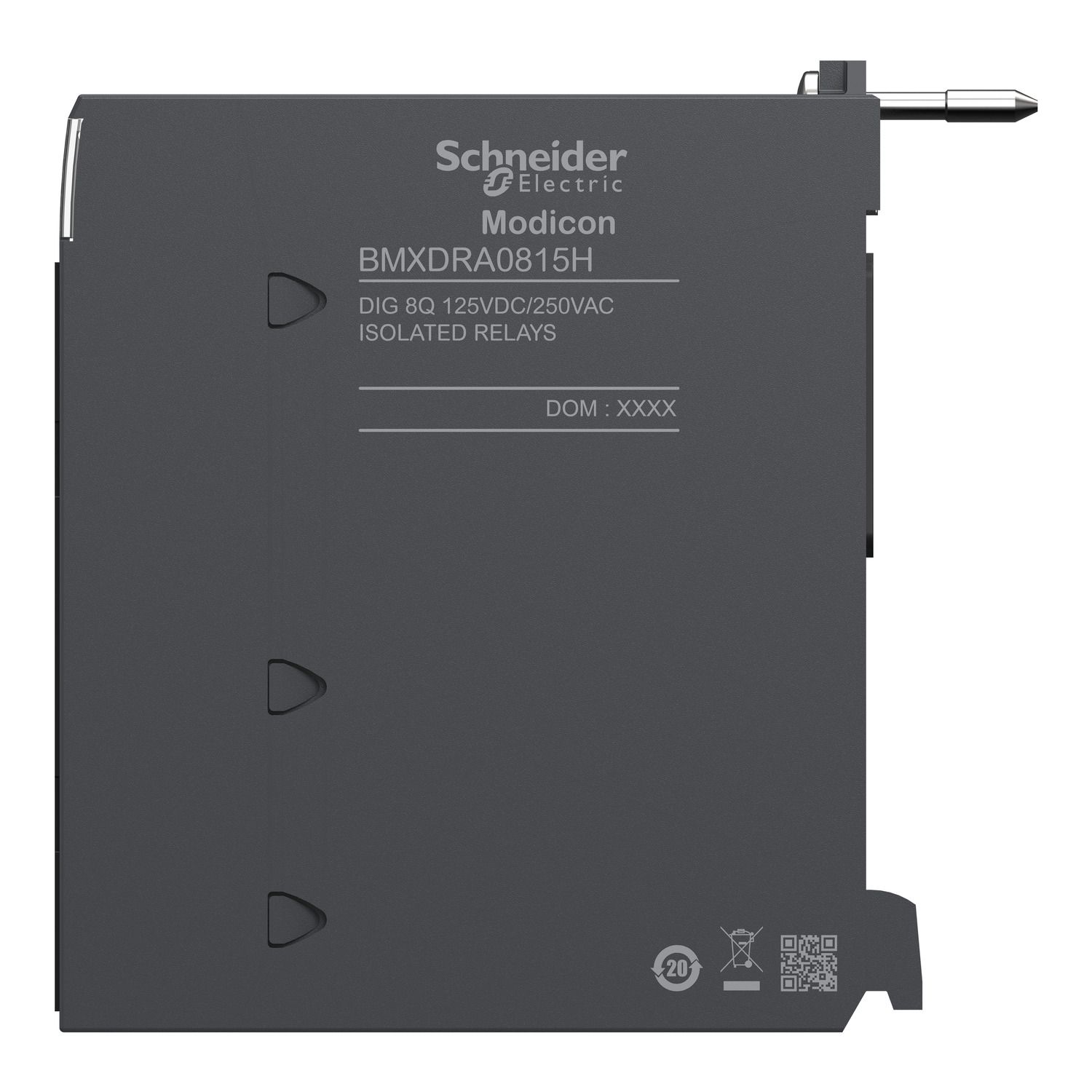

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments

$1,063.86 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24 to 125V DC, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open isolated relay outputs and it is supplied with 24 to 240V AC/24 to 125V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 3223310 hours of MTBF. This discrete module has a weight of 0.210kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Product or component type relay discrete output module
Discrete output voltage 24...125 V 5...150 V DC, 24...240 V 19...264 V AC
Discrete output logic positive
Discrete output number 8 conforming to EN/IEC 61131-2
Range of product Modicon X80
Complementary
Response time on output <= 13 ms deactivation, <= 10 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC
Typical current consumption 101 mA at 24 V DC, 40 mA at 3.3 V DC
Electrical durability DC-13: 40000 cycles at 15 W 100...125 V at 70-70 °C, DC-13: 100000 cycles at 15 W 100...125 V at -25-60 °C, DC-13: 40000 cycles at 24 W 48...60 V at 70-70 °C, DC-13: 40000 cycles at 40 W 48...60 V at -25-60 °C, DC-13: 40000 cycles at 28.8 W 24 V at 70-70 °C, DC-13: 40000 cycles at 48 W 24 V at -25-60 °C, DC-13: 60000 cycles at 14.4 W 24 V at 70-70 °C, DC-13: 60000 cycles at 24 W 24 V at -25-60 °C, DC-13: 100000 cycles at 6 W 24 V at 70-70 °C, DC-13: 100000 cycles at 10 W 24 V at -25-60 °C, DC-12: 60000 cycles at 45 W 100...125 V at 70-70 °C, DC-12: 100000 cycles at 45 W 100...125 V at -25-60 °C, DC-12: 150000 cycles at 24 W 48...60 V at 70-70 °C, DC-12: 150000 cycles at 40 W 48...60 V at -25-60 °C, DC-12: 150000 cycles at 28.8 W 24 V at 70-70 °C, DC-12: 150000 cycles at 48 W 24 V at -25-60 °C, DC-12: 200000 cycles at 14.4 W 24 V at 70-70 °C, DC-12: 200000 cycles at 24 W 24 V at -25-60 °C, AC-15: 150000 cycles at 132 VA 200...250 V at 70-70 °C (load factor 0.4 ), AC-15: 150000 cycles at 220 VA 200...250 V at -25-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 66 VA 200...250 V at 70-70 °C (load factor 0.4 ), AC-15: 200000 cycles at 110 VA 200...250 V at -25-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 30 VA 200...250 V at 70-70 °C (load factor 0.4 ), AC-15: 500000 cycles at 50 VA 200...250 V at -25-60 °C (load factor 0.4 ), AC-15: 1000000 cycles at 6 VA 200...250 V at 70-70 °C (load factor 0.4 ), AC-15: 1000000 cycles at 10 VA 200...250 V at -25-60 °C (load factor 0.4 ), AC-15: 70000 cycles at 132 VA 100...120 V at 70-70 °C (load factor 0.4 ), AC-15: 70000 cycles at 220 VA 100...120 V at -25-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 66 VA 100...120 V at 70-70 °C (load factor 0.4 ), AC-15: 200000 cycles at 110 VA 100...120 V at -25-60 °C (load factor 0.4 ), AC-15: 300000 cycles at 30 VA 100...120 V at 70-70 °C (load factor 0.4 ), AC-15: 300000 cycles at 50 VA 100...120 V at -25-60 °C (load factor 0.4 ), AC-15: 1000000 cycles at 6 VA 100...120 V at 70-70 °C (load factor 0.4 ), AC-15: 1000000 cycles at 10 VA 100...120 V at -25-60 °C (load factor 0.4 ), AC-15: 100000 cycles at 57.6 VA 48 V at 70-70 °C (load factor 0.4 ), AC-15: 100000 cycles at 96 VA 48 V at -25-60 °C (load factor 0.4 ), AC-15: 300000 cycles at 28.8 VA 48 V at 70-70 °C (load factor 0.4 ), AC-15: 300000 cycles at 48 VA 48 V at -25-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 14.4 VA 48 V at 70-70 °C (load factor 0.4 ), AC-15: 500000 cycles at 24 VA 48 V at -25-60 °C (load factor 0.4 ), AC-15: 700000 cycles at 6 VA 48 V at 70-70 °C (load factor 0.4 ), AC-15: 700000 cycles at 10 VA 48 V at -25-60 °C (load factor 0.4 ), AC-15: 200000 cycles at 28.8 VA 24 V at 70-70 °C (load factor 0.4 ), AC-15: 200000 cycles at 48 VA 24 V at -25-60 °C (load factor 0.4 ), AC-15: 500000 cycles at 14.4 VA 24 V at 70-70 °C (load factor 0.4 ), AC-15: 500000 cycles at 24 VA 24 V at -25-60 °C (load factor 0.4 ), AC-15: 700000 cycles at 6 VA 24 V at 70-70 °C (load factor 0.4 ), AC-15: 700000 cycles at 10 VA 24 V at -25-60 °C (load factor 0.4 ), AC-12: 150000 cycles at 300 VA 200...250 V at 70-70 °C, AC-12: 150000 cycles at 500 VA 200...250 V at -25-60 °C, AC-12: 300000 cycles at 132 VA 200...250 V at 70-70 °C, AC-12: 300000 cycles at 220 VA 200...250 V at -25-60 °C, AC-12: 150000 cycles at 132 VA 100...120 V at 70-70 °C, AC-12: 150000 cycles at 220 VA 100...120 V at -25-60 °C, AC-12: 300000 cycles at 66 VA 100...120 V at 70-70 °C, AC-12: 300000 cycles at 110 VA 100...120 V at -25-60 °C, AC-12: 150000 cycles at 57.6 VA 48 V at 70-70 °C, AC-12: 150000 cycles at 96 VA 48 V at -25-60 °C, AC-12: 300000 cycles at 28.8 VA 48 V at 70-70 °C, AC-12: 300000 cycles at 48 VA 48 V at -25-60 °C, AC-12: 200000 cycles at 28.8 VA 24 V at 70-70 °C, AC-12: 200000 cycles at 48 VA 24 V at -25-60 °C
Electrical connection 20 ways terminal block
Net weight 0.169 kg
Power dissipation in W 3.6 W
Protection type external overvoltage protection, inductive DC network , external overvoltage protection, inductive AC network , external overload protection, external short-circuit protection
[Ith] conventional free air thermal current 3 A
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Minimum switching current 1 mA 5 V DC
Voltage range 19...264 V, 5...150 V
Network frequency 50/60 Hz
MTBF reliability 3200000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 0-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 1780 V AC at 50/60 Hz 1 min
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.600 cm
Package 1 Length 12.300 cm
Package 1 Weight 209.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.442 kg
