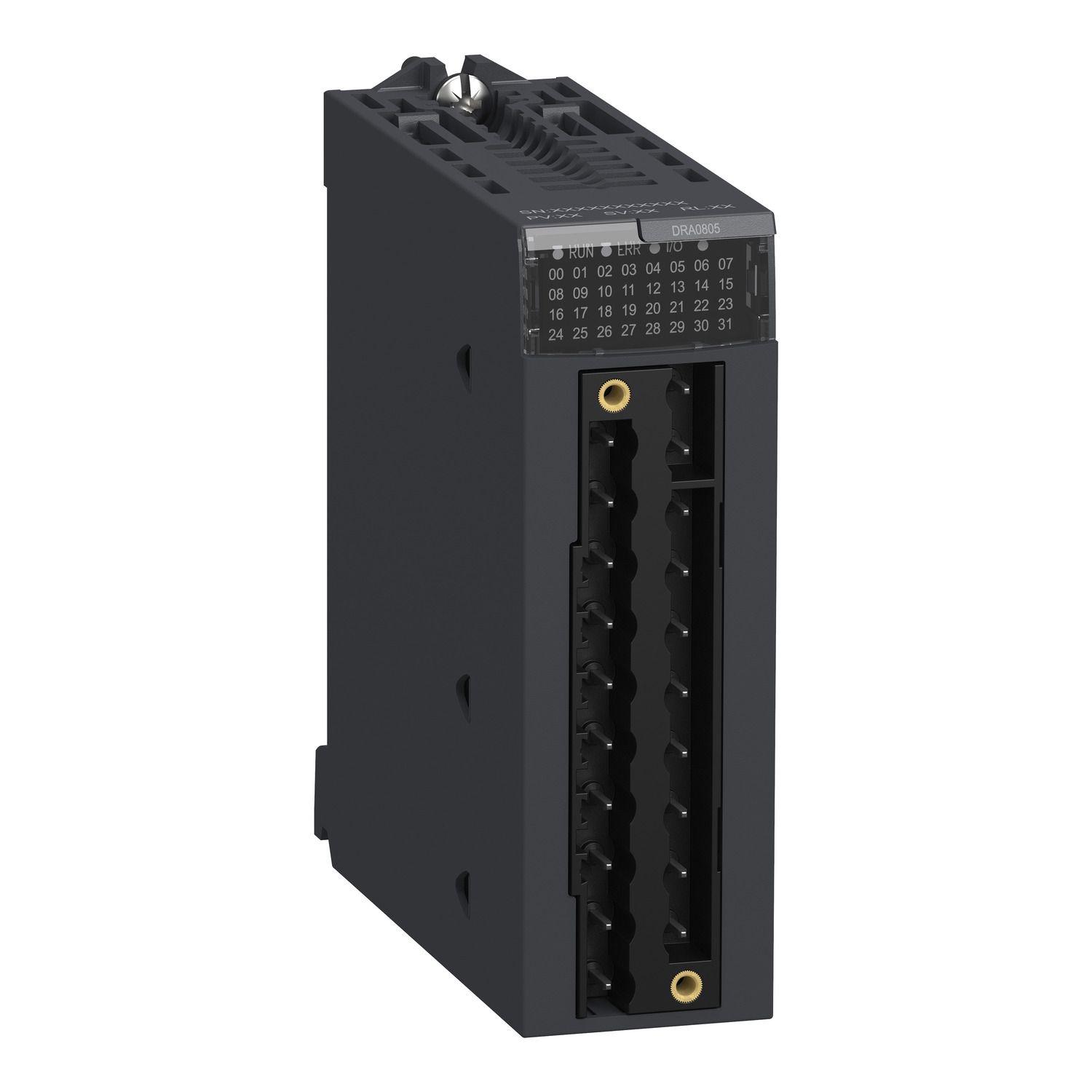

Picture of Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
SKU:

BMXDRA0805

Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC

$896.44 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product or component type discrete output module
Discrete output voltage 12...24 V 10...34 V DC, 24...240 V 19...264 V AC
Discrete output number 8 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type relay
Complementary
Response time on output < 8 ms deactivation, < 10 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use ZNO surge limiter on each output AC, use RC circuit on each output AC, use discharge diode on each output DC
Typical current consumption 79 mA at 3.3 V DC
Electrical durability AC-12: 700000 cycles at 50 VA 24 V, AC-15: 500000 cycles at 24 VA 24 V (load factor 0.35 ), AC-15: 5000000 cycles at 10 VA 48 V (load factor 0.35 ), AC-12: 500000 cycles at 220 VA 110...120 V, AC-12: 500000 cycles at 110 VA 48 V, AC-15: 3000000 cycles at 50 VA 200...240 V (load factor 0.35 ), DC-12: 300000 cycles at 40 W 24 V, DC-13: 2000000 cycles at 10 W 24 V, AC-15: 2000000 cycles at 24 VA 48 V (load factor 0.35 ), AC-15: 1500000 cycles at 50 VA 110...120 V (load factor 0.35 ), AC-15: 150000 cycles at 110 VA 110...120 V (load factor 0.35 ), AC-15: 10000000 cycles at 10 VA 200...240 V (load factor 0.35 ), AC-15: 10000000 cycles at 10 VA 110...120 V (load factor 0.35 ), DC-13: 1000000 cycles at 24 W 24 V, DC-12: 1000000 cycles at 24 W 24 V, AC-15: 1000000 cycles at 110 VA 200...240 V (load factor 0.35 ), AC-12: 1000000 cycles at 50 VA 48 V, AC-12: 1000000 cycles at 220 VA 200...240 V, AC-12: 1000000 cycles at 110 VA 110...120 V, AC-15: 100000 cycles at 220 VA 200...240 V (load factor 0.35 )
Net weight 0.145 kg
Power dissipation in W 2.7 W
[Ith] conventional free air thermal current 3 A
Insulation resistance > 10 MOhm 500 V DC
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Minimum switching current 10 mA 5 V DC
MTBF reliability 2119902 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 2000 V AC at 50/60 Hz 1 min
Environmental characteristic dust resistant, corrosion resistance
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 11.0 cm
Package 1 Length 12.0 cm
Package 1 Weight 177.0 g
