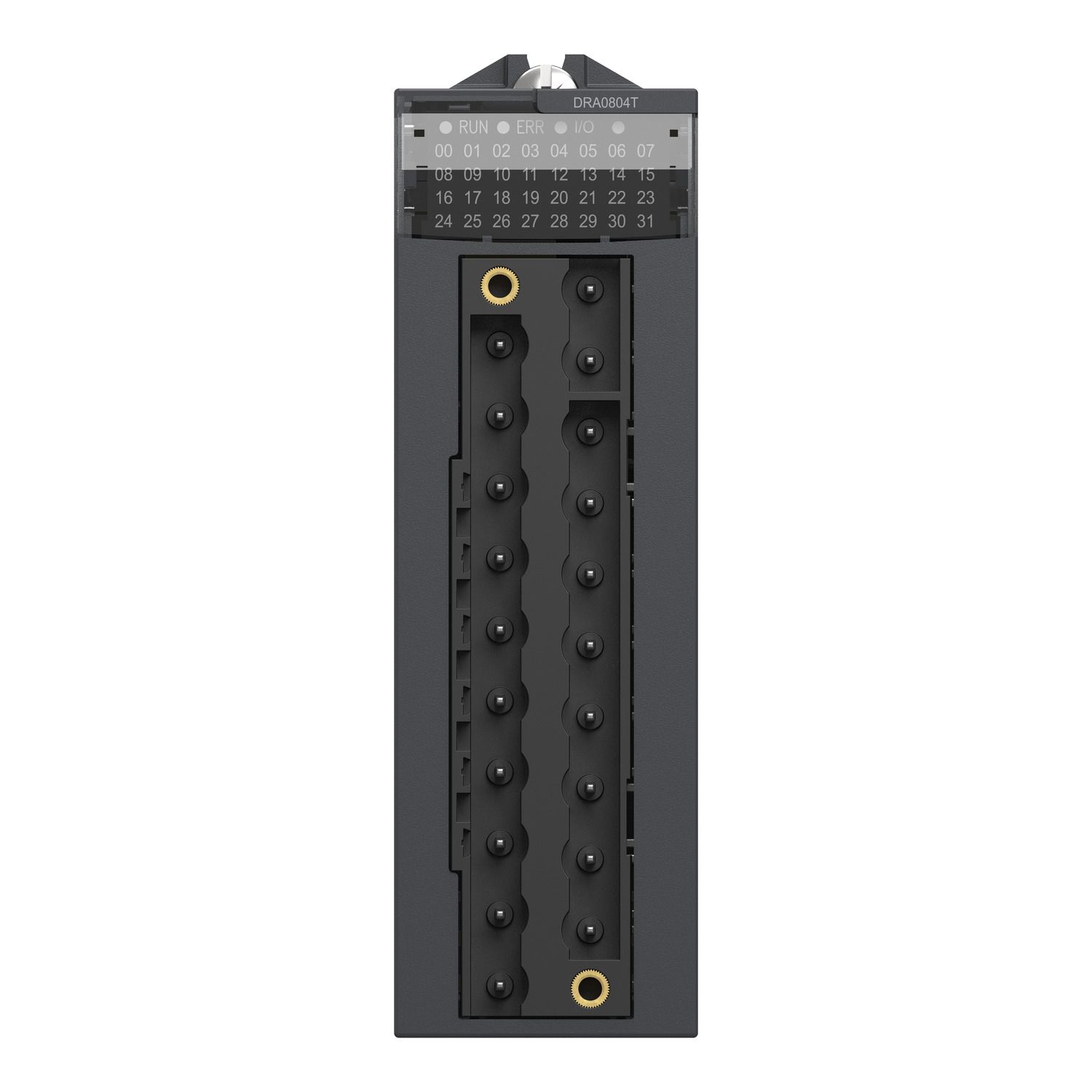

Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

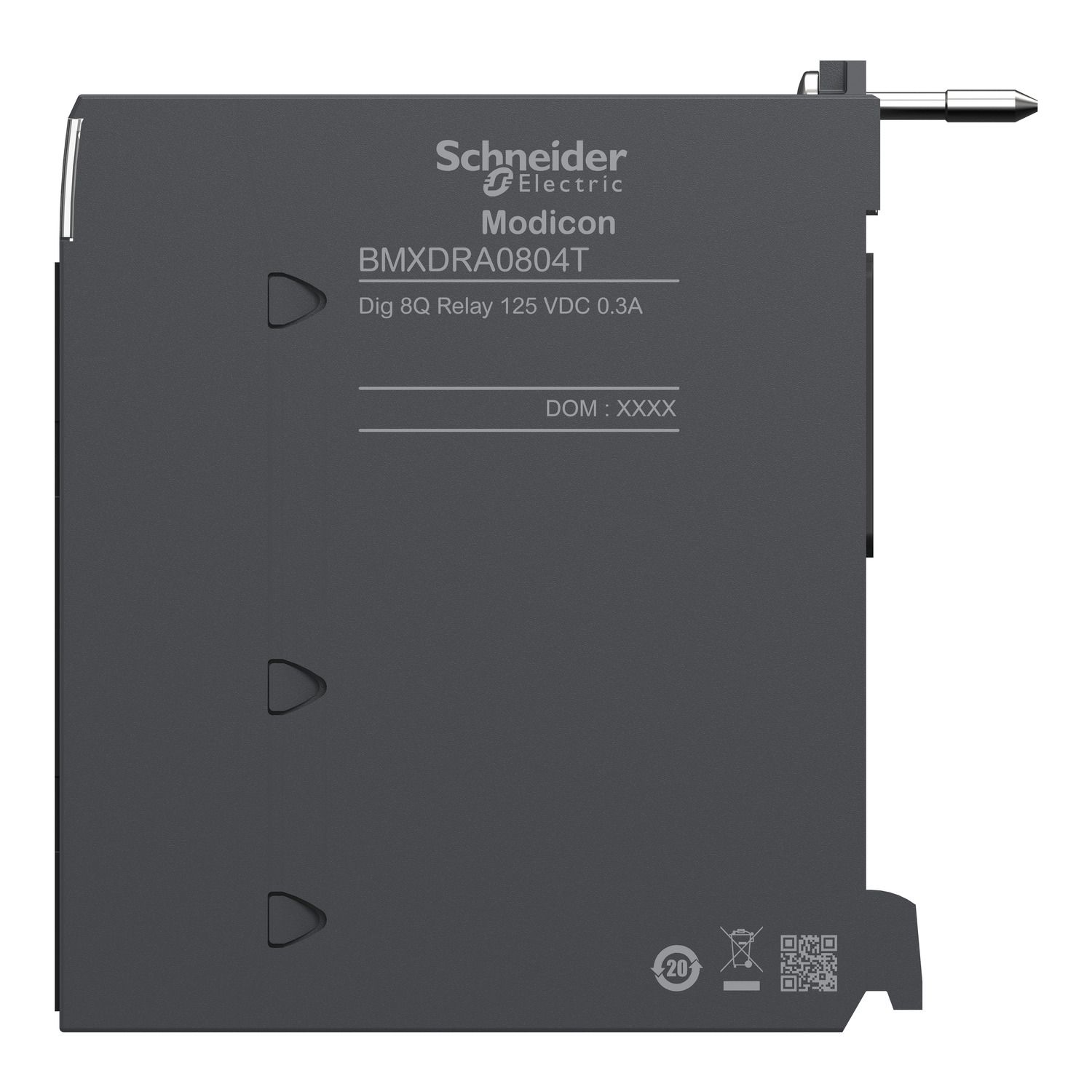

Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

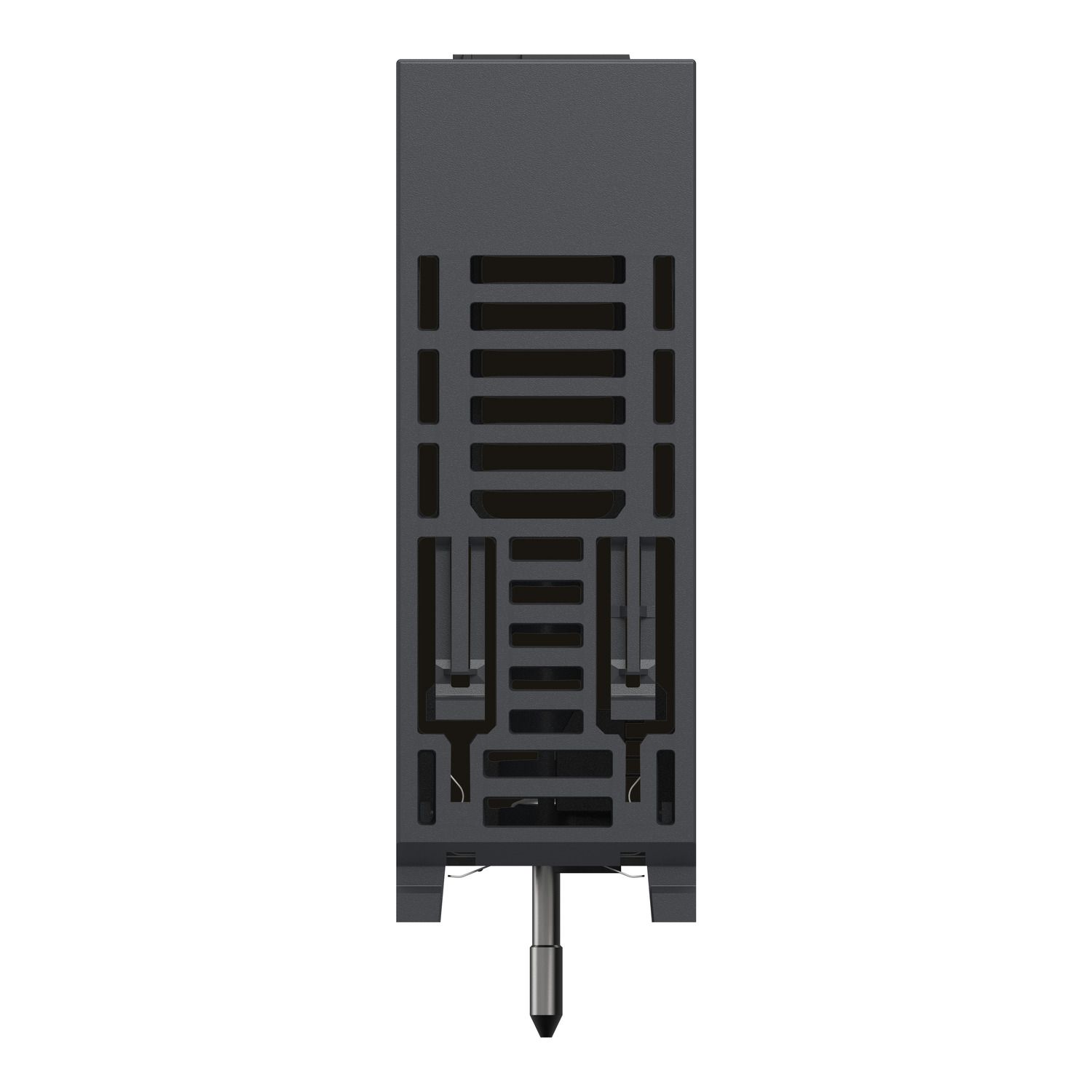

Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

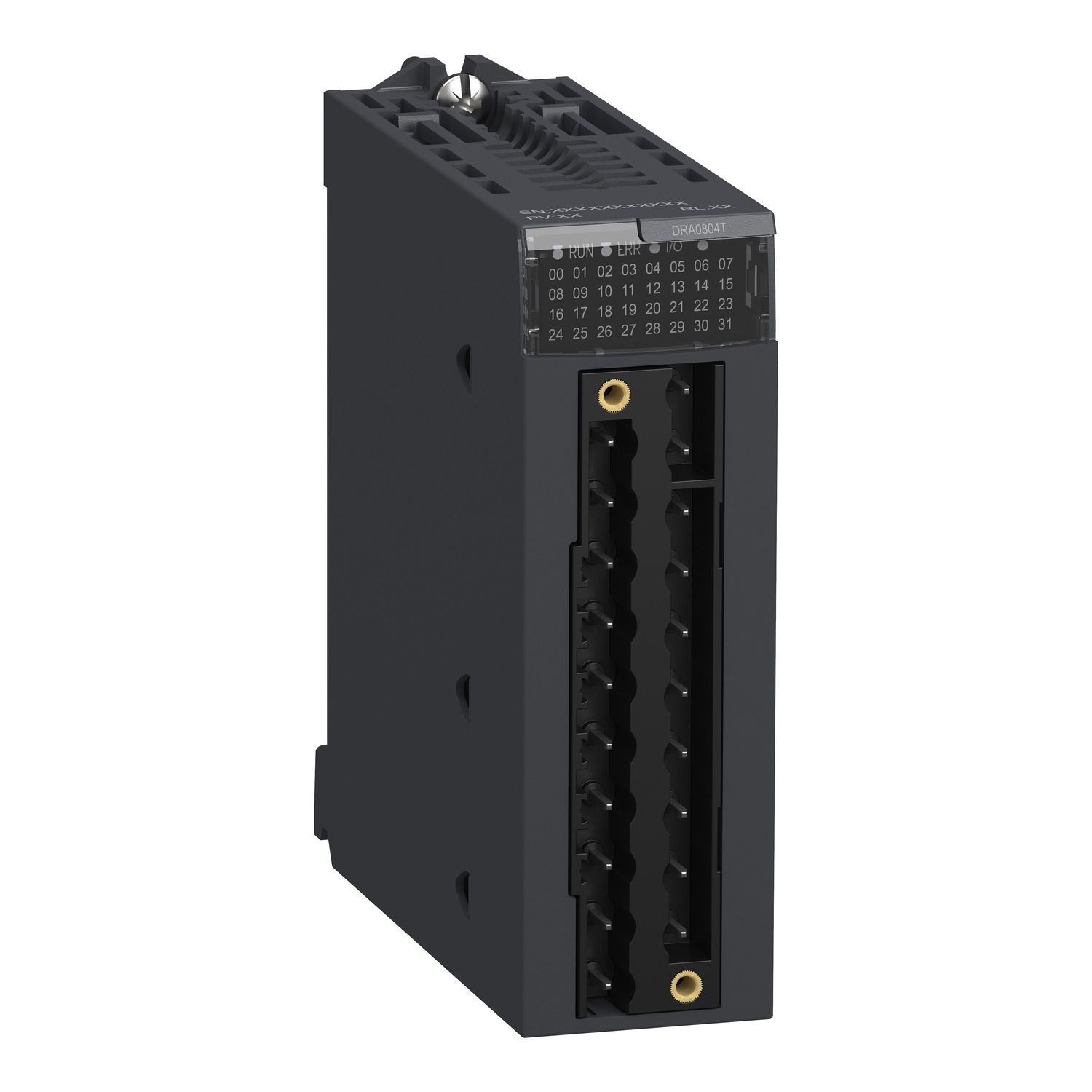

Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

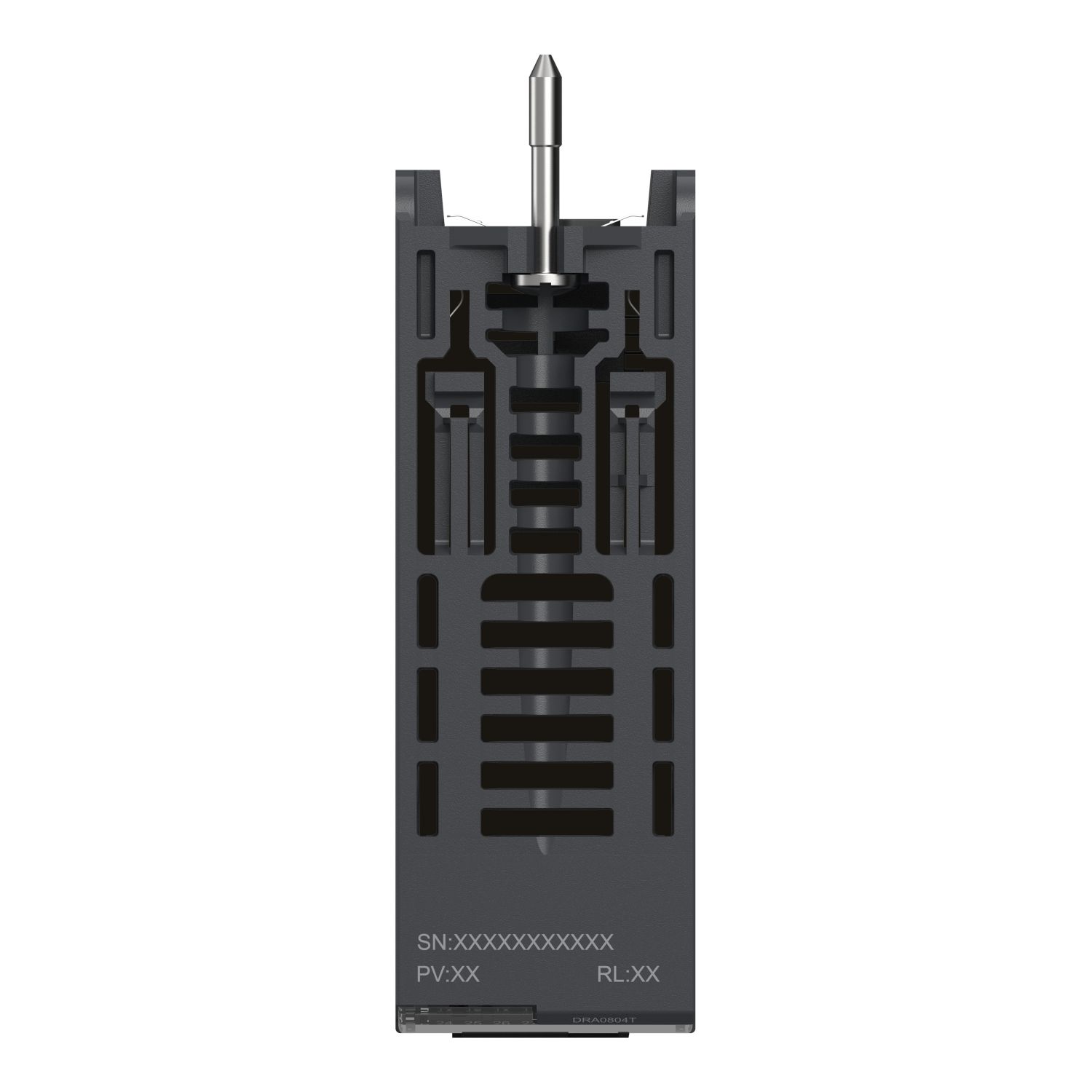

Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Picture of discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
SKU:

BMXDRA0804T

discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature

$1,528.12 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete output voltage 100...150 V DC
Range of product Modicon X80
Discrete output type relay
Product specific application extended temperature
Product or component type discrete output module
Discrete output number 8 conforming to EN/IEC 61131-2
Complementary
Response time on output < 10 ms deactivation, < 10 ms activation
Output overload protection use 1 fast blow fuse per channel or group of channel
Mechanical durability 20000000 cycles
Output short-circuit protection use 1 fast blow fuse per channel or group of channel
Output overvoltage protection use discharge diode on each output DC
Typical current consumption 104 mA at 24 V DC, 61 mA at 3.3 V DC
Electrical durability DC-13: 100000 cycles at 12 W 125 V, DC-12: 100000 cycles at 37 W 125 V
Power dissipation in W 3.17 W
Maximum switching current 0.3 A
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
MTBF reliability 2800000 H
Net weight 0.145 kg
Insulation resistance > 10 MOhm 500 V DC
Current consumption <= 117 mA at 24 V DC, <= 112 mA at 3.3 V DC
Minimum switching current 100 mA 5 V DC
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation -25-70 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 2000 V AC at 50/60 Hz 1 min
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.500 cm
Package 1 Weight 198.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.307 kg
