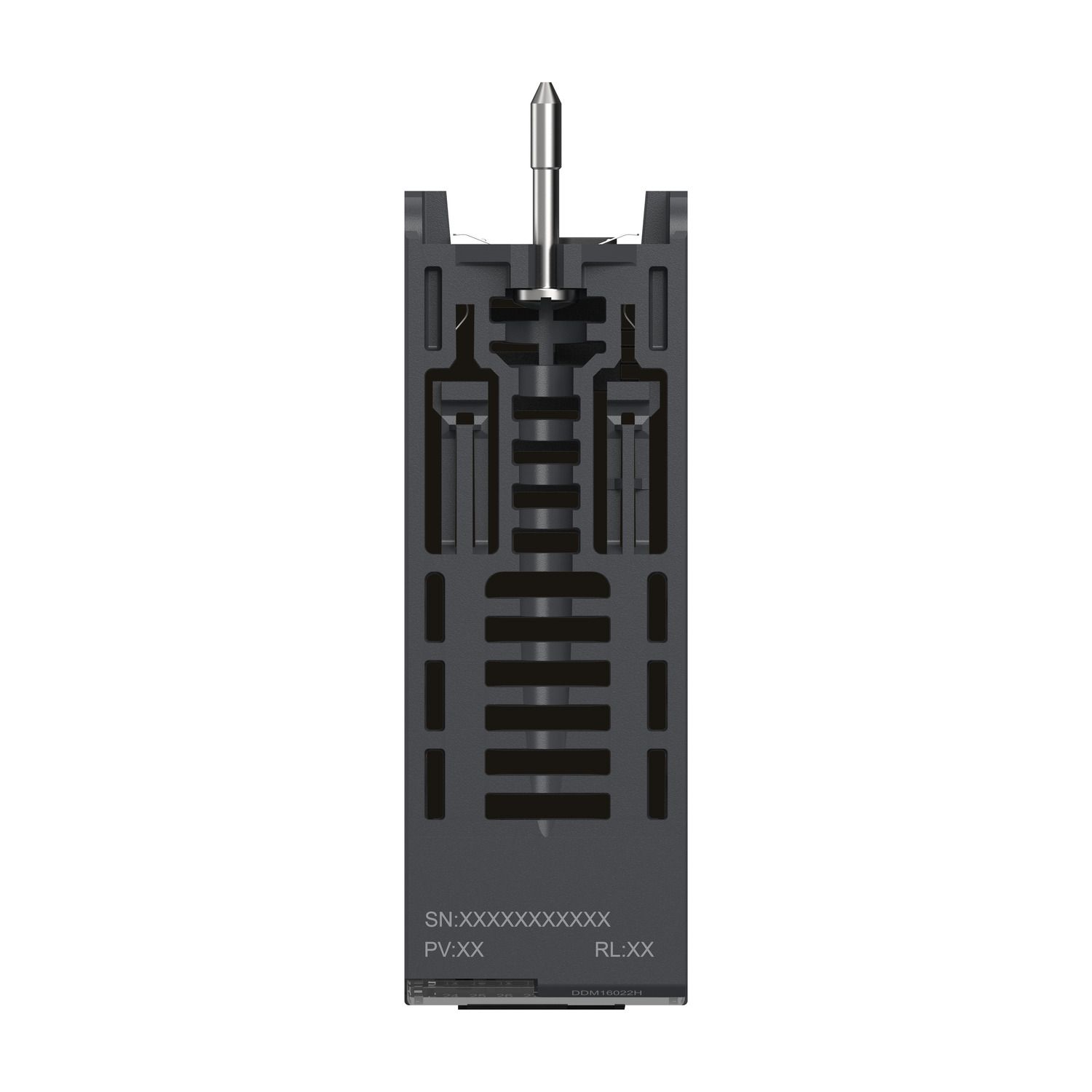

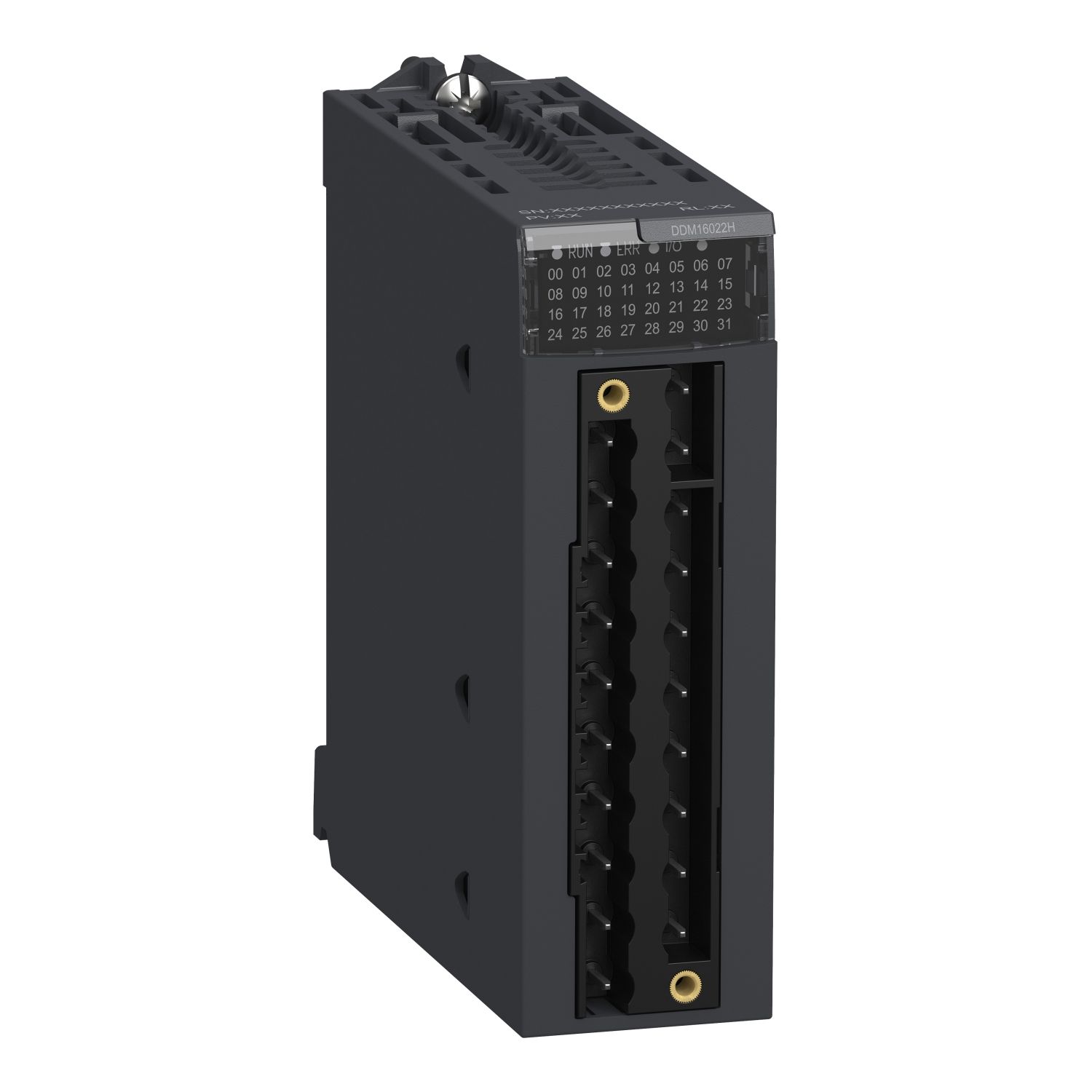

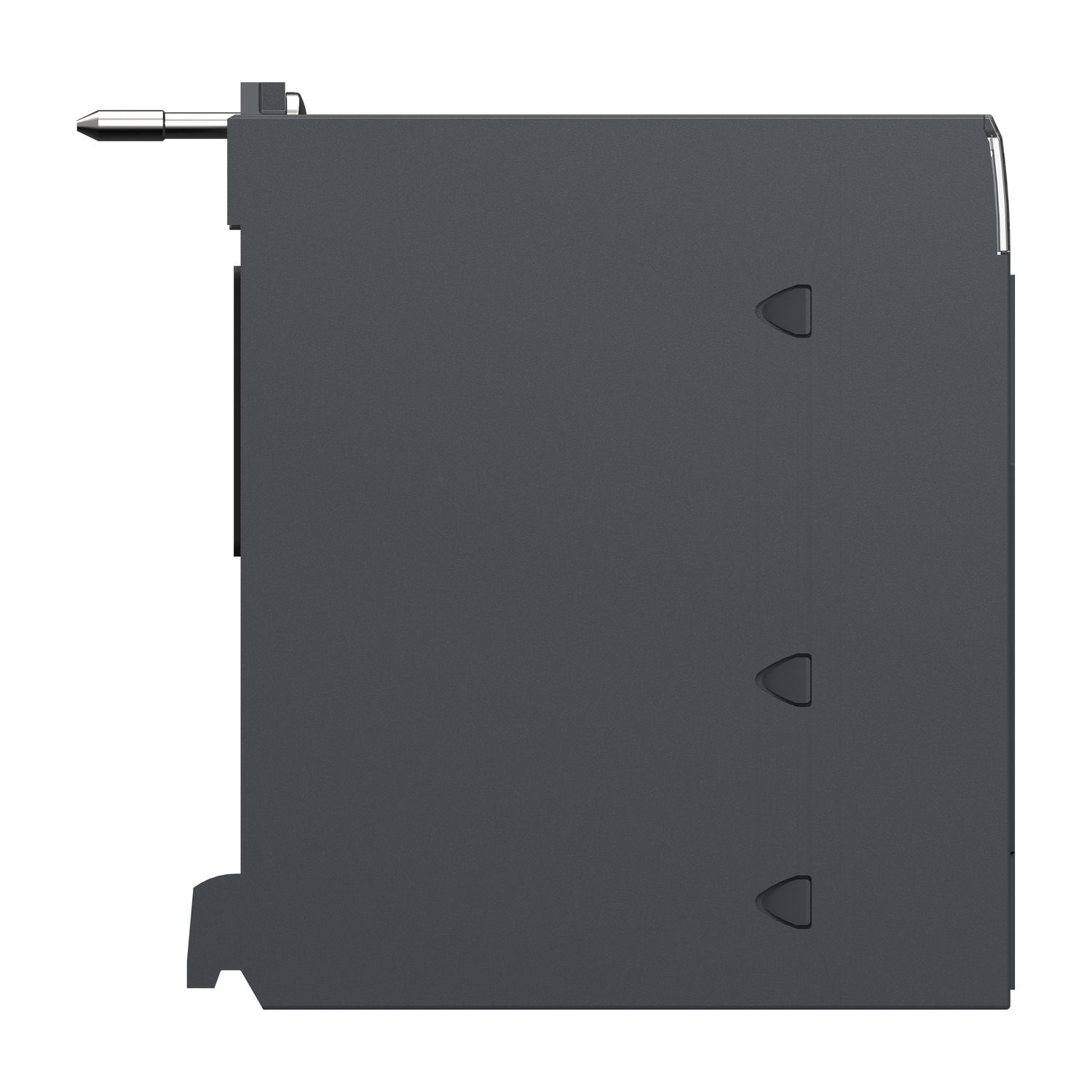

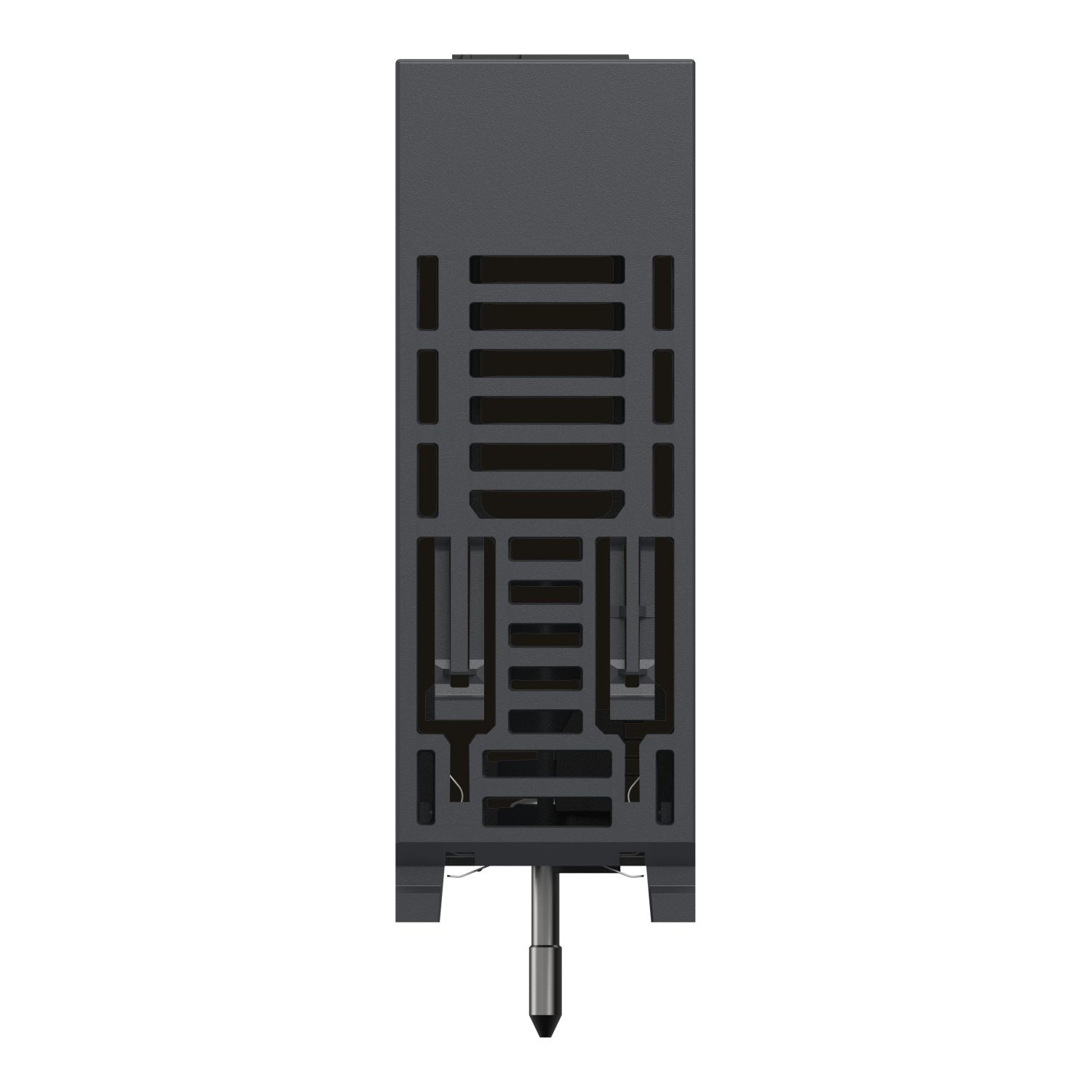

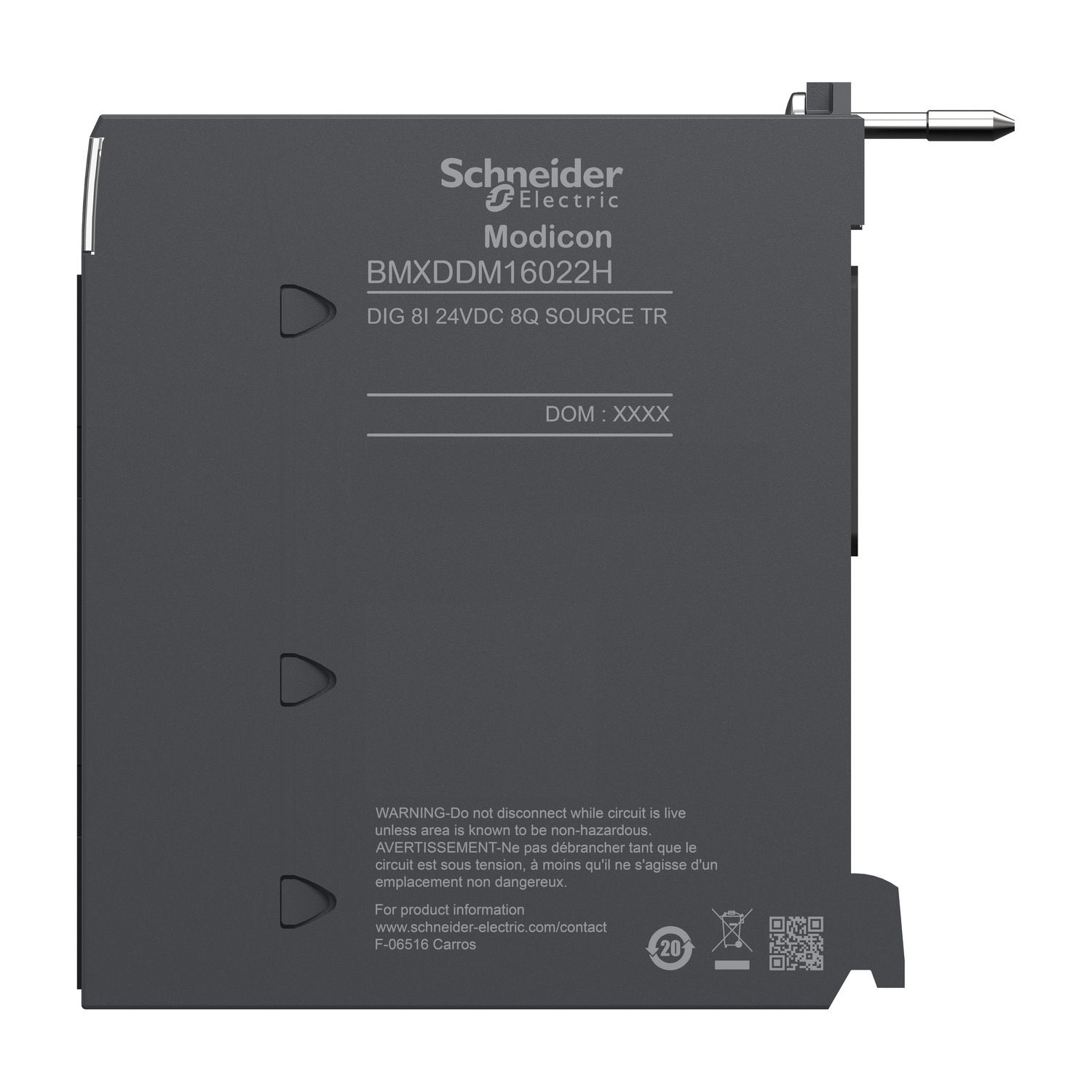

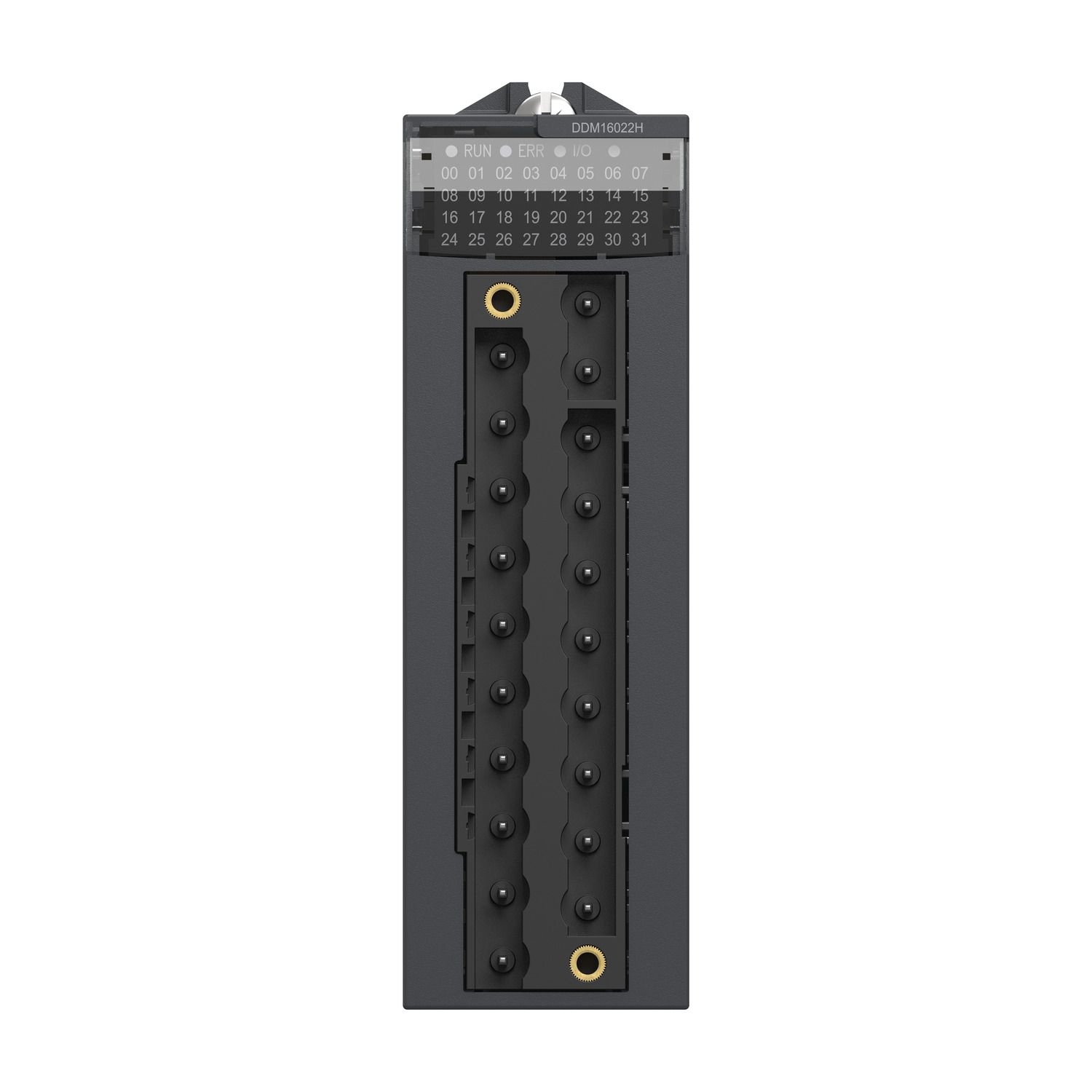

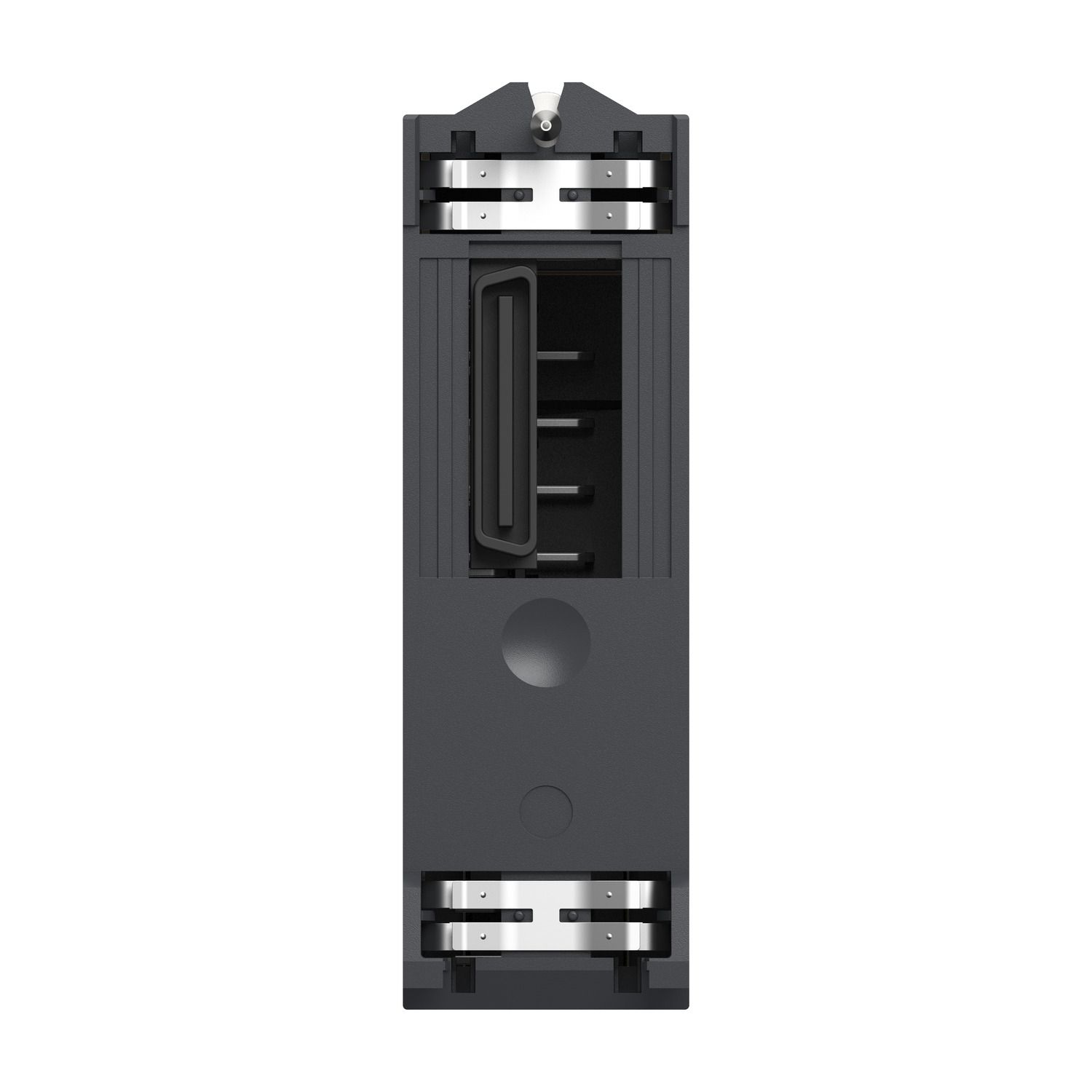

Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Picture of discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
SKU:

BMXDDM16022H

discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe

$1,510.41 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete I/O module X80 - 8 I - 24 V DC - 8 O - solid state- severe
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This discrete mixed I/O module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 444196 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete output current 0.5 A
Discrete output voltage 24 V 26.4 V DC at 70 °C, 24 V 19...30 V DC at 60 °C
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Discrete output type solid state
Discrete input current 3.5 mA
Product specific application for severe environments
Discrete input number 8
Input type current sink (logic positive)
Product or component type discrete I/O module
Discrete output number 8
Complementary
Response time on output 1.2 ms
DC maximum filtering time 7 ms
Output overload protection with current limiter, with electronic circuit breaker 1.5 In < Id < 2 In
Output short-circuit protection with 2 A external fuse
Output overvoltage protection with transil diode
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 59 mA at 24 V DC, 79 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W 3.7 W
Protection type reverse polarity protection on output,  reverse polarity protection on input,  overvoltage protection on output,  1 external fuse per group of input channel0.5 A fast blow
Maximum voltage drop <1.2 V at state 1
Voltage detection threshold > 18 V DC sensor OK, > 18 V DC preactuator OK, < 14 V DC sensor fault, < 14 V DC preactuator fault
Current per channel 0.625 A at 60 °C, 0.55 A at 70 °C
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Maximum overload time 15 ms
Switching frequency 0.5/LI² Hz
Maximum current per module 4.4 A 70 °C, 5 A 60 °C
MTBF reliability 450000 H
Reverse polarity protection reverse mounted diode
Maximum tungsten load 6 W
Input impedance 6800 Ohm
DC typical filtering time 4 ms
Paralleling of outputs yes : 2 maximum
Load impedance ohmic >= 48 Ohm
Maximum leakage current 0.5 mA at state 0
Net weight 0.115 kg
Current state 1 guaranteed >= 3 mA
Insulation resistance > 10 MOhm 500 V DC
Current consumption <= 67 mA at 24 V DC, <= 111 mA at 3.3 V DC
Voltage range 19...30 V 60 °C, 21.1...29.0 V 70 °C
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation -25-70 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of inputs and outputs, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 151.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.542 kg

Related products
