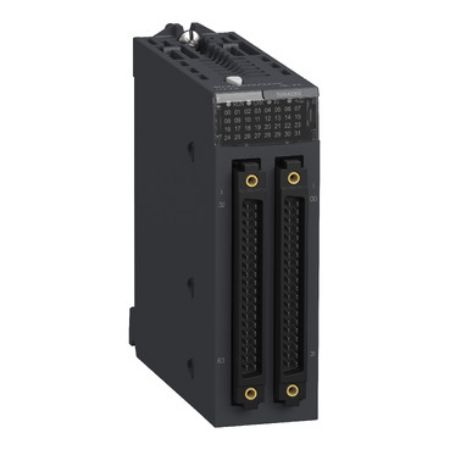

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

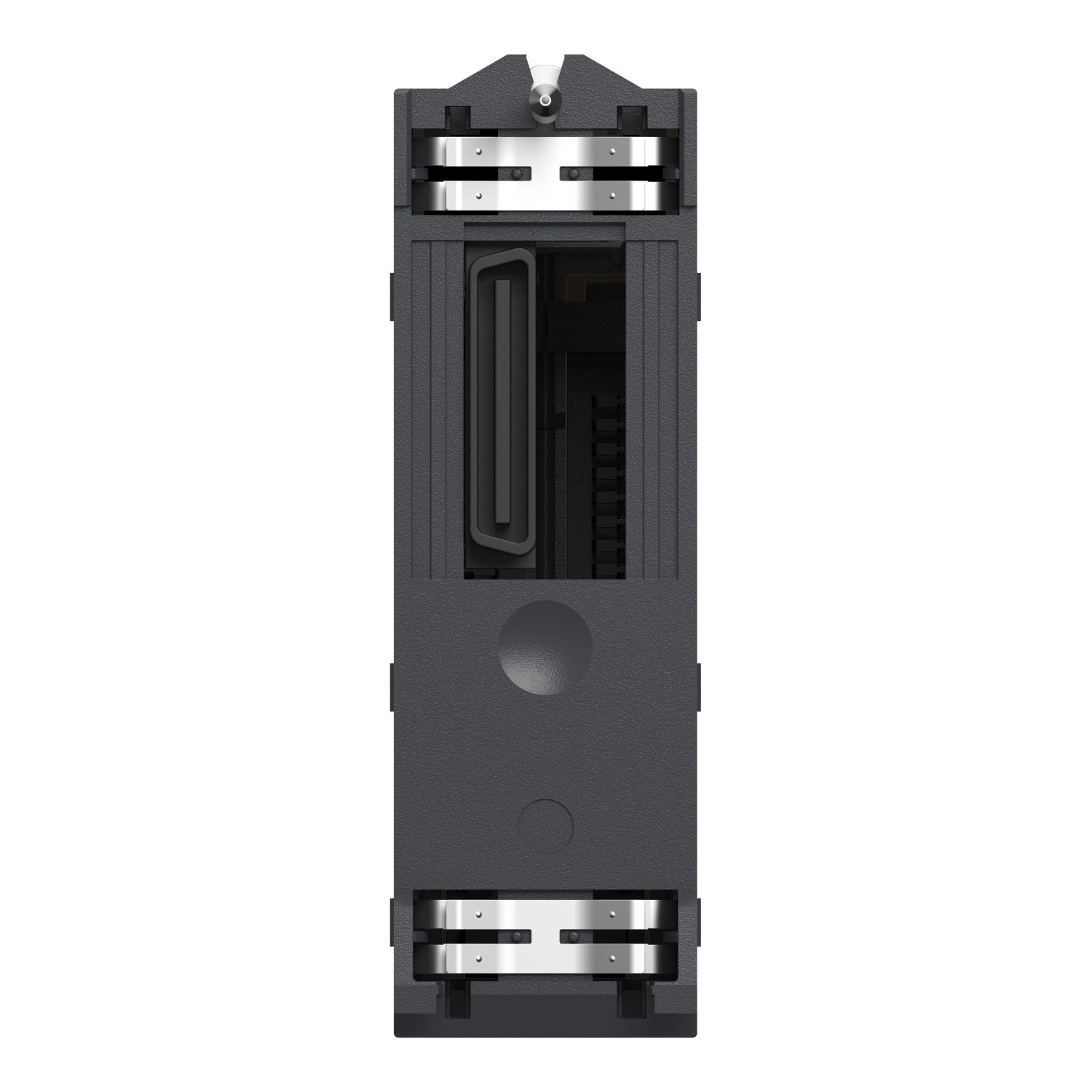

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

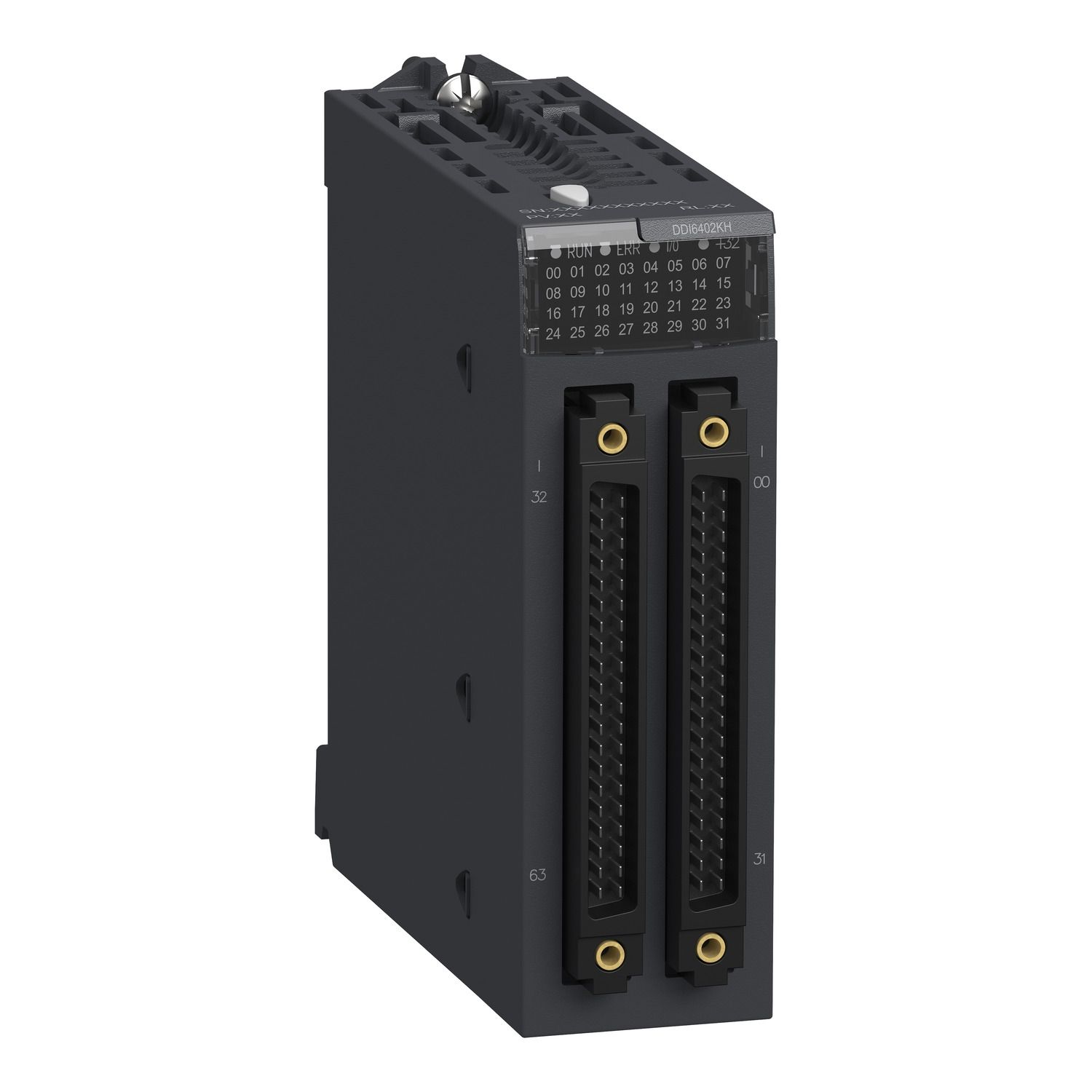

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

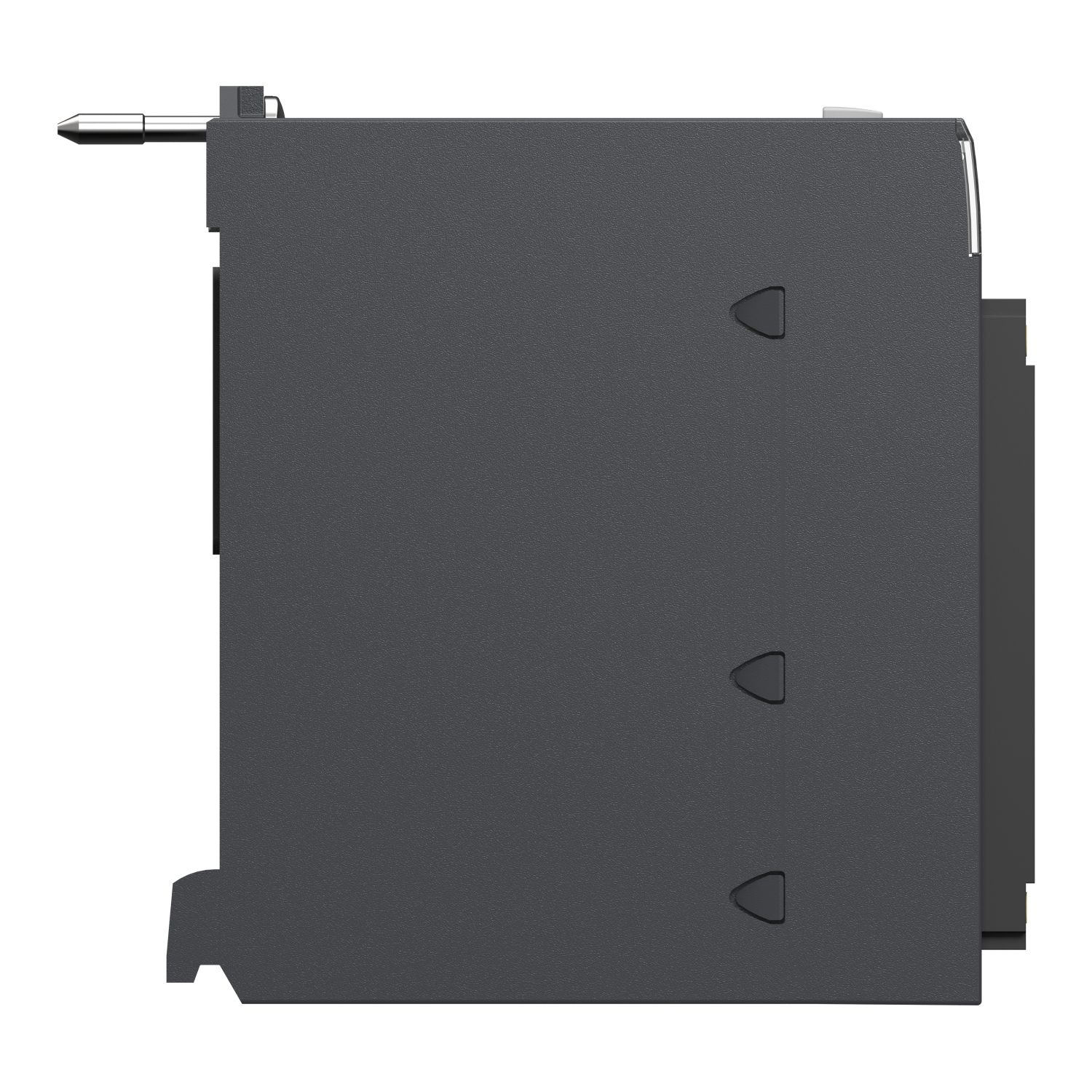

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

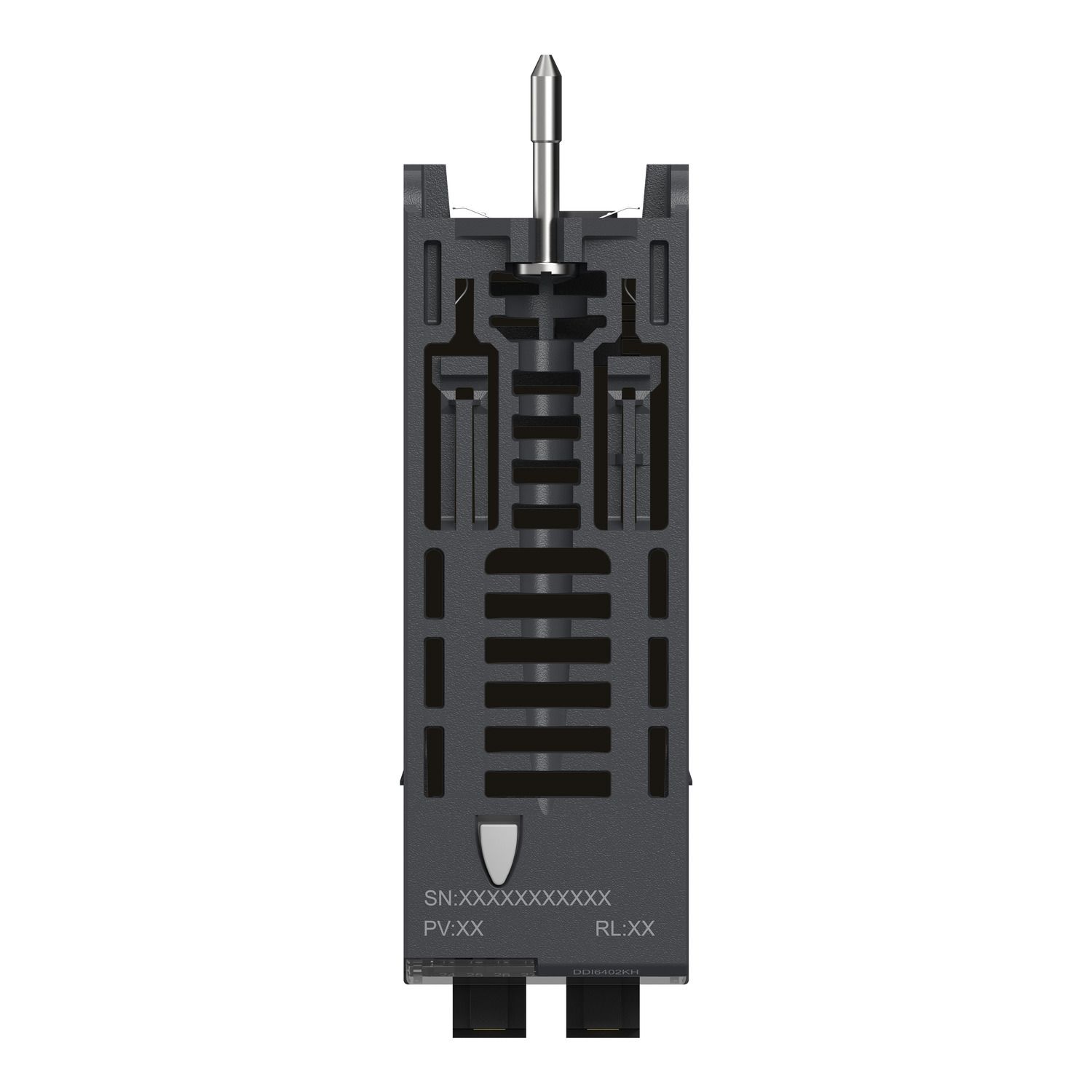

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

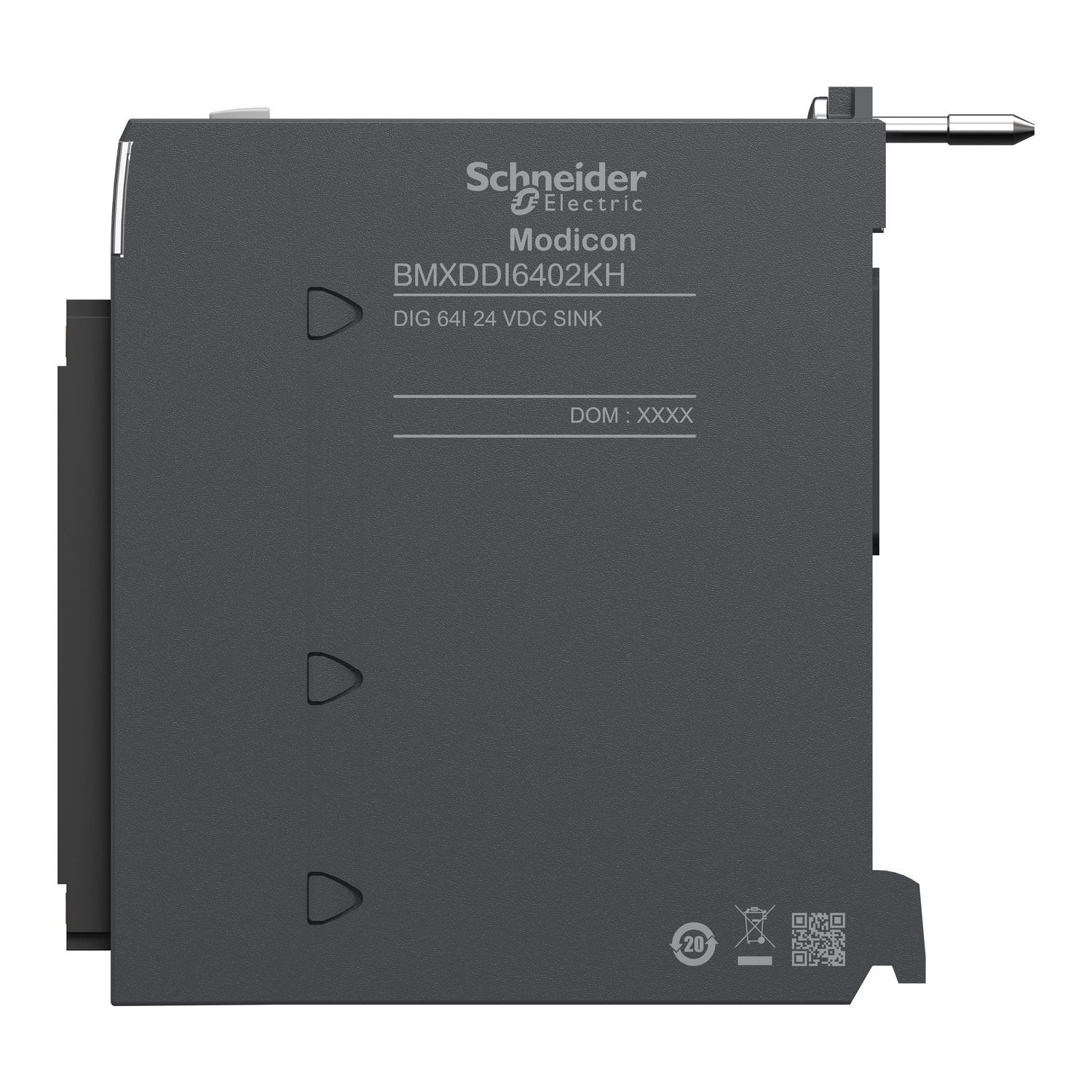

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

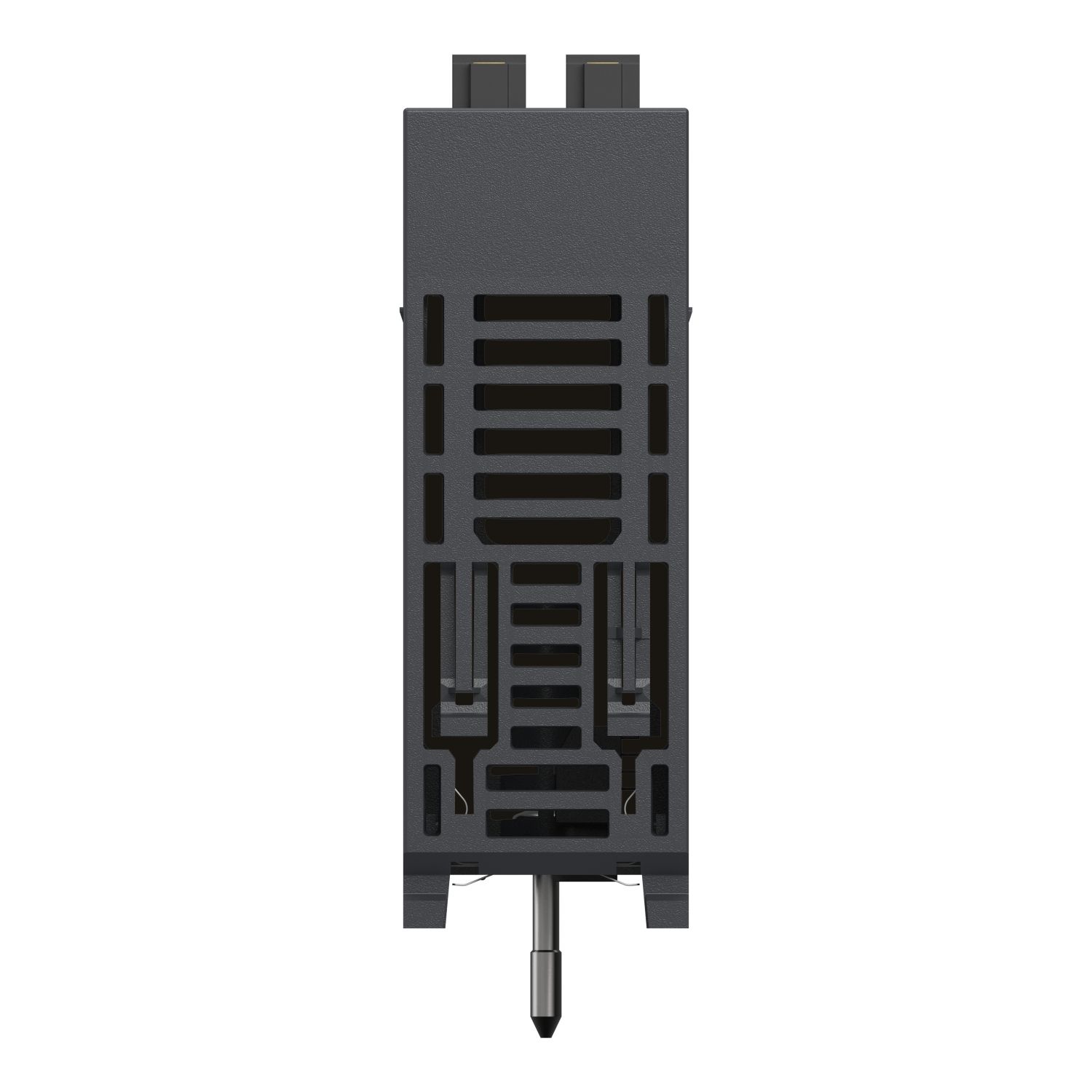

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

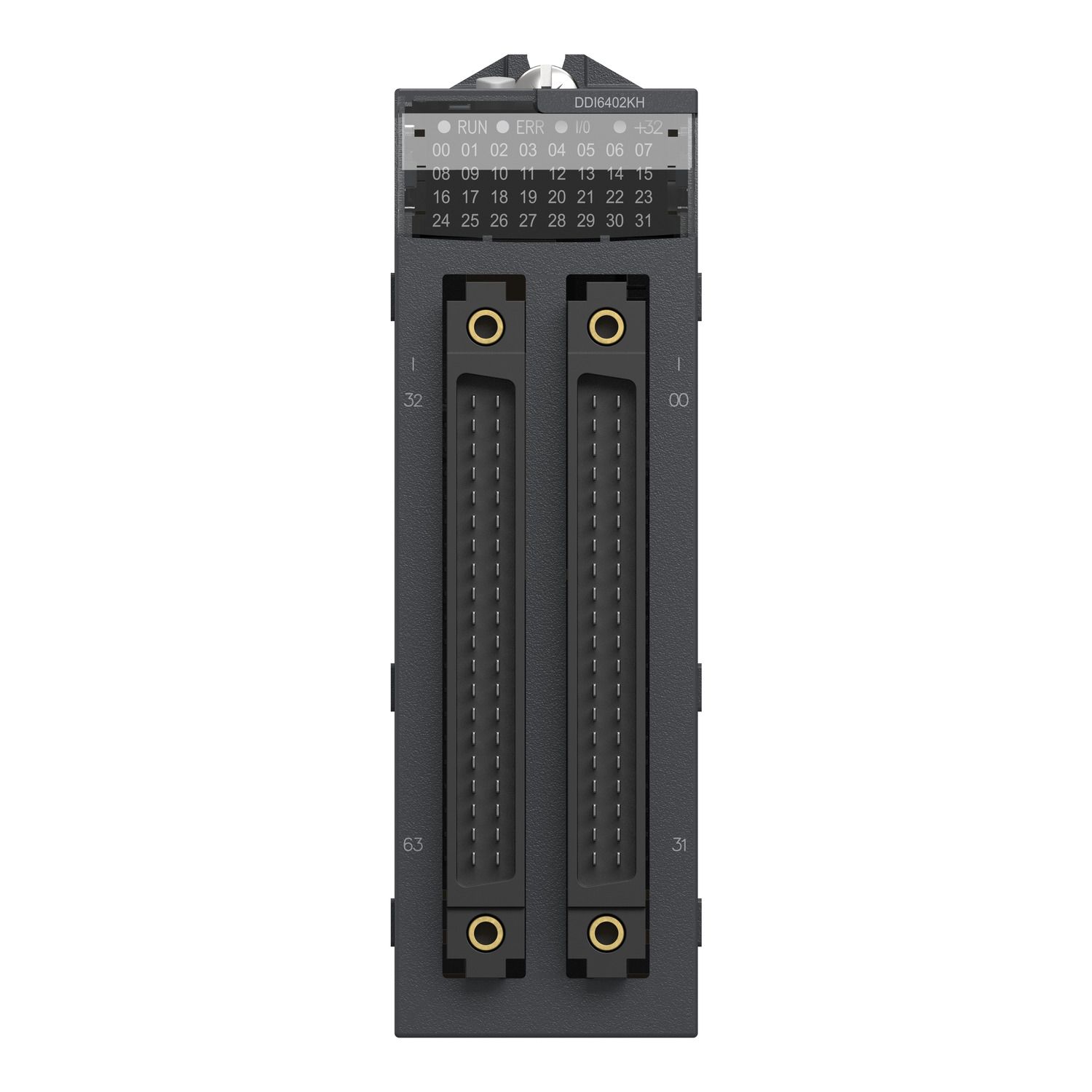

Picture of discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments
SKU:

BMXDDI6402KH

discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments

$2,638.79 INC GST
Available for Shipping : 27-Jan-2026
discrete input module, Modicon X80, 64 inputs, 24V DC positive, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 input channels and it is supplied with 24V DC (positive). This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 511375 hours of MTBF. This discrete module has a weight of 0.145kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete input current 0.6 mA
Product specific application for severe environments
Discrete input number 64
Discrete input type isolated
Input type current sink (logic positive)
Product or component type discrete input module
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Complementary
DC maximum filtering time 7 ms
Input impedance 40000 Ohm
Typical current consumption 160 mA at 3.3 V DC
DC typical filtering time 4 ms
Paralleling of inputs no
Net weight 0.145 kg
Power dissipation in W 4.3 W
Protection type without reverse polarity protection,  1 external fuse per group of channel0.5 A fast blow
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 18 V DC sensor OK, < 14 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN), 1 LED (green) +32 channels indicator
Voltage range 19...30 V
MTBF reliability 510000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at -25-70 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 12.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 191.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.130 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 90.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 58.550 kg
