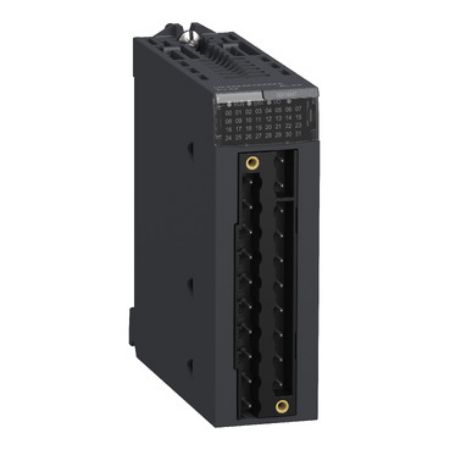

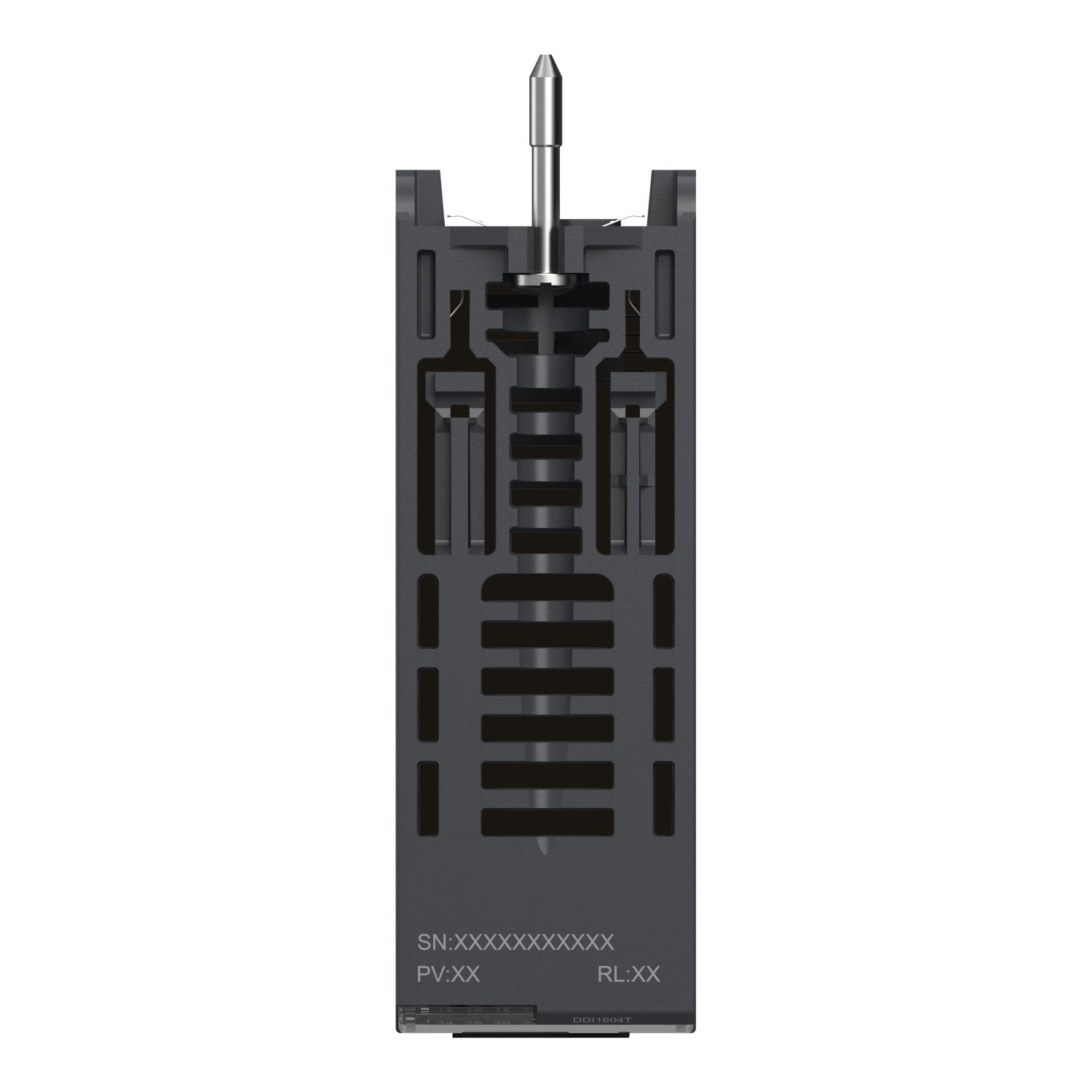

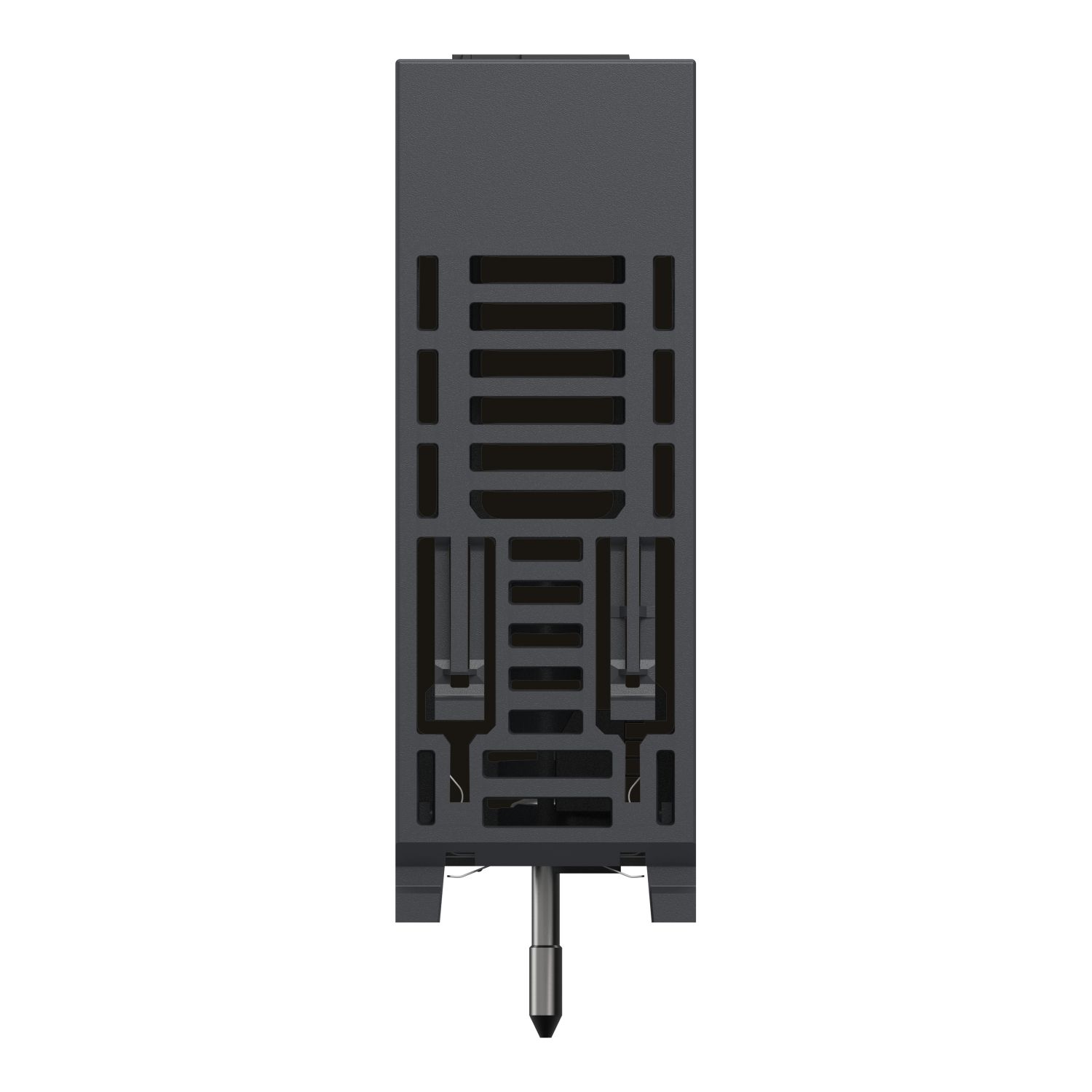

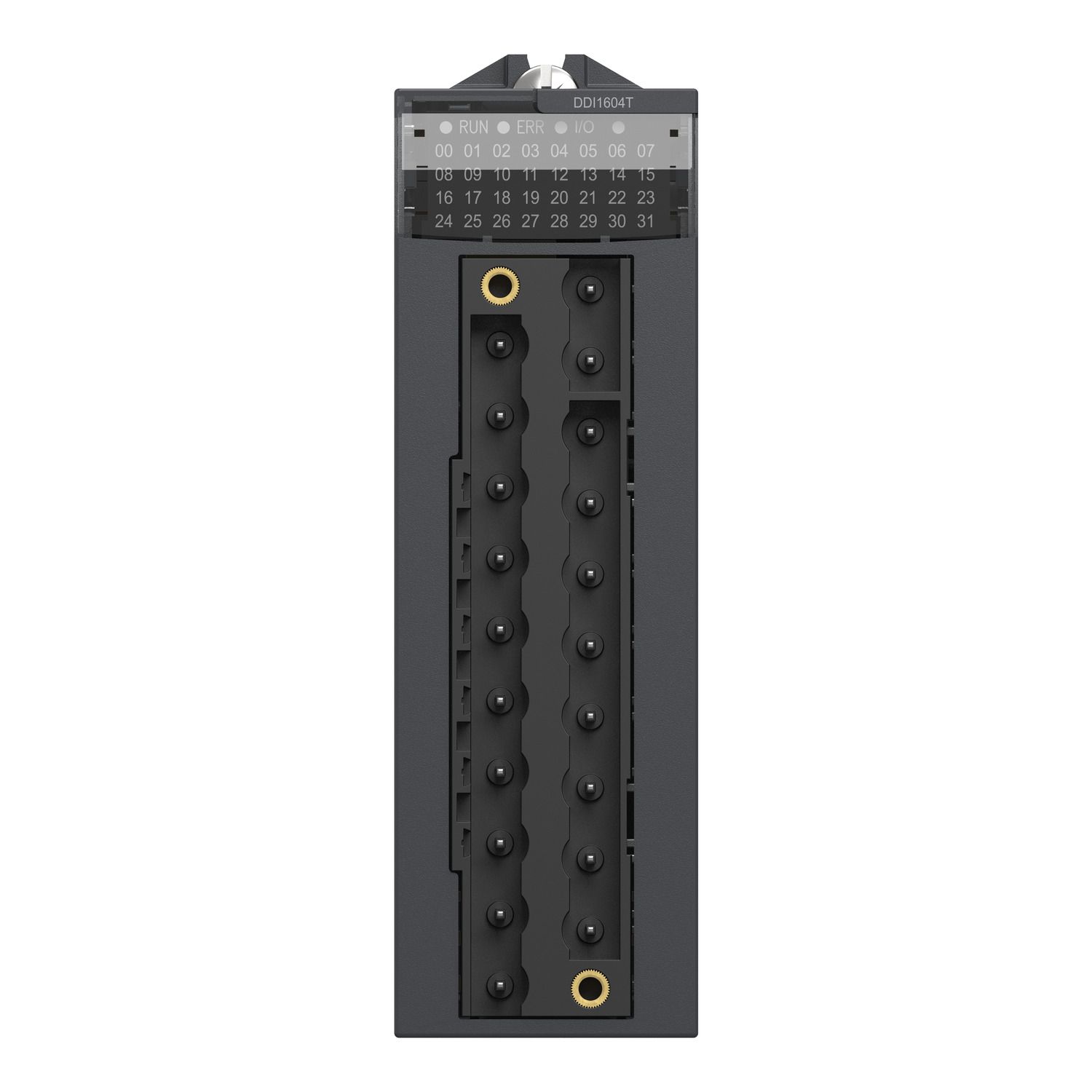

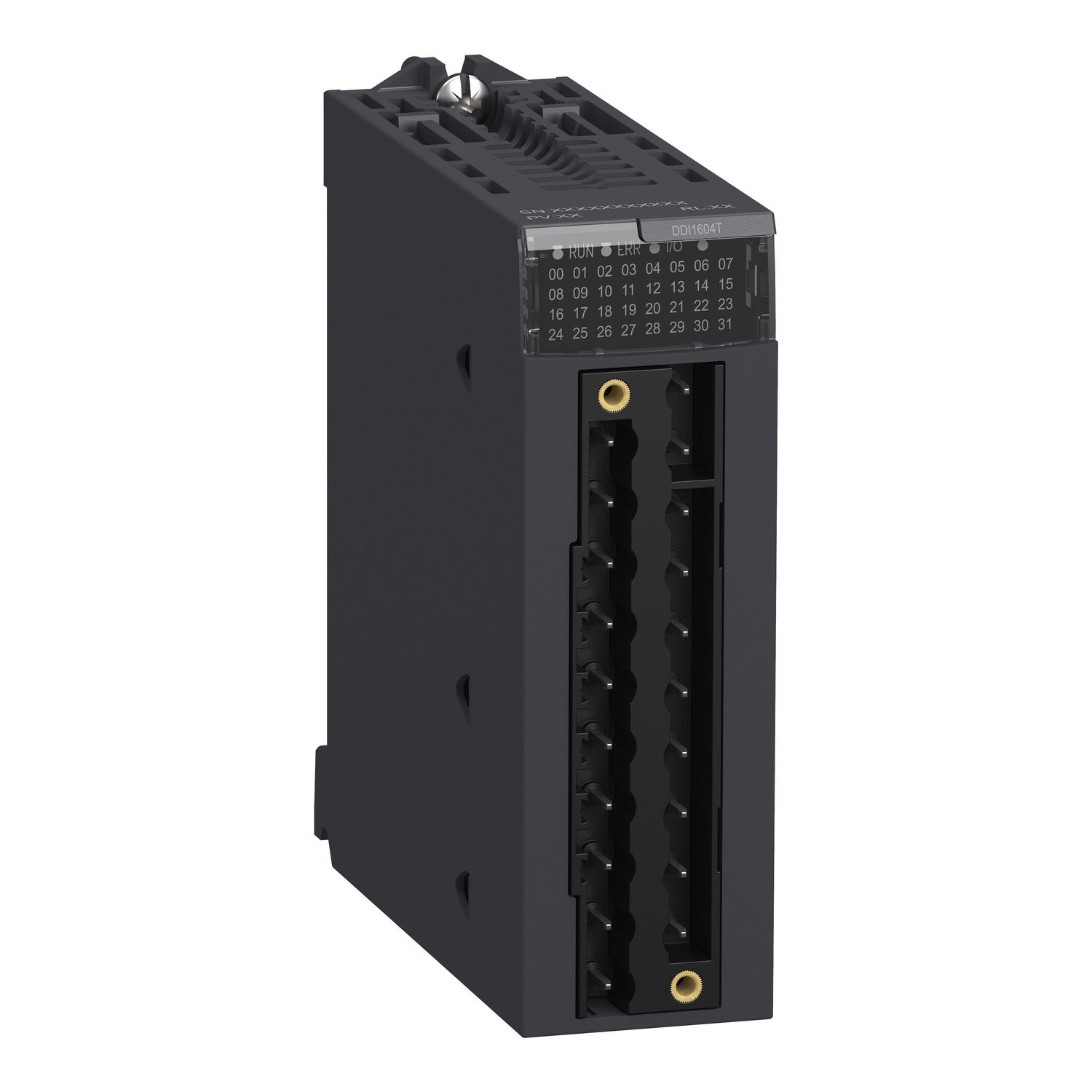

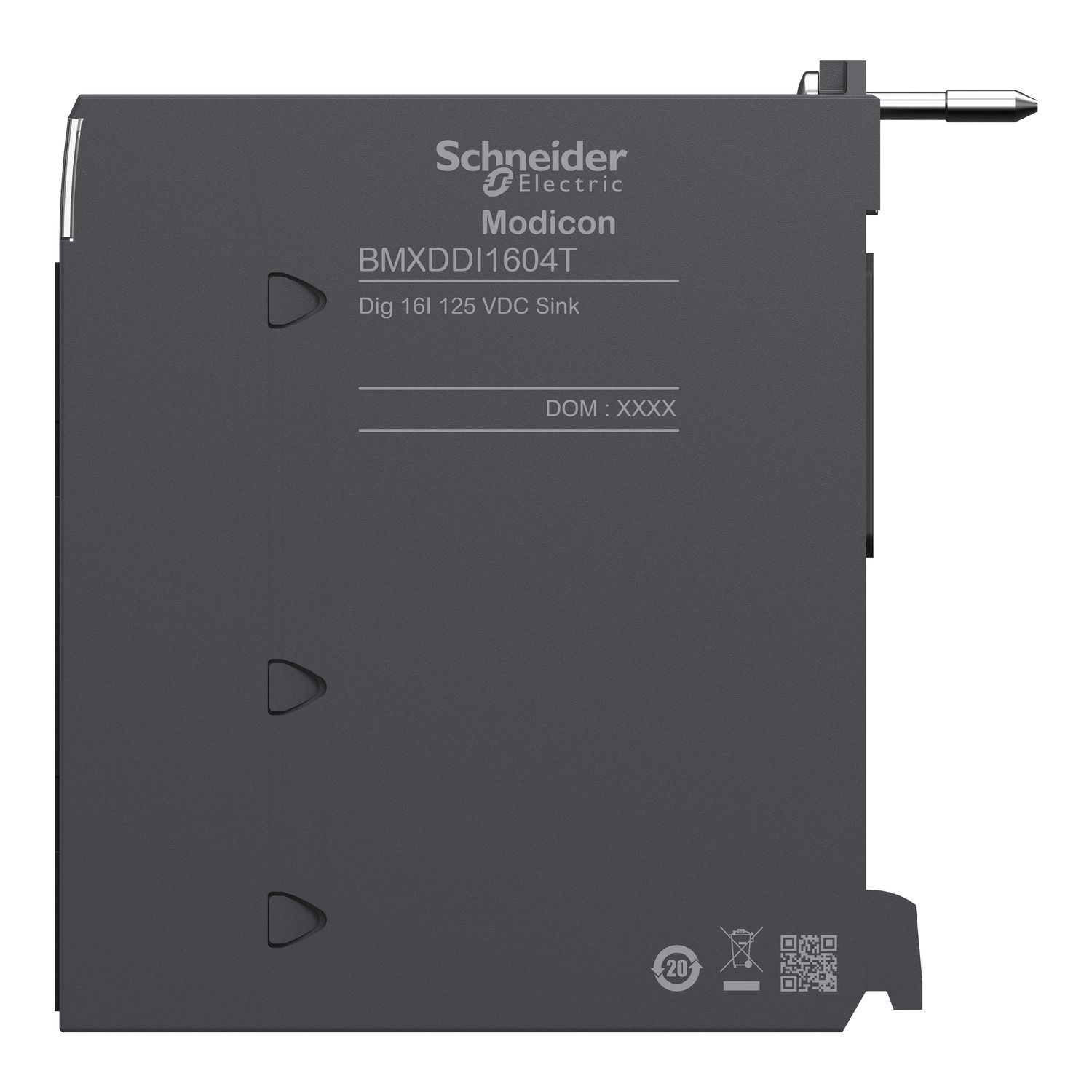

Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Picture of discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
SKU:

BMXDDI1604T

discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature

$2,309.89 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete input module, Modicon X80, 16 inputs, 125V DC positive, extended temperature
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 125V DC, a current consumption of 76mA at 3.3V DC and a power dissipation 8.5W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and extended temperature applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete input type isolated
Discrete input voltage 125 V DC, discrete input logic: positive
Range of product Modicon X80
Discrete input current 2.4 mA
Product specific application extended temperature
Discrete input number 16
Input type current sink (logic positive)
Product or component type discrete input module
Complementary
DC maximum filtering time 9 ms
Current state 0 guaranteed <= 0.5 mA
Typical current consumption 76 mA at 3.3 V DC
Power dissipation in W 8.5 W 40 °C, 6.7 W 50 °C, 5.0 W 60 °C, 3.2 W 70 °C
Protection type 1 external fuse per group of channel0.5 A,  reverse polarity protection fast blow
Voltage detection threshold > 100 V DC sensor OK, < 80 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Input impedance 50000 Ohm
DC typical filtering time 5 ms
Paralleling of inputs yes
Net weight 0.115 kg
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Current consumption <= 107 mA at 3.3 V DC
Voltage range 100...150 V
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation -25-70 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 2500 V AC at 50/60 Hz 1 minute, primary/secondary
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.200 cm
Package 1 Length 11.800 cm
Package 1 Weight 147.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.580 kg
