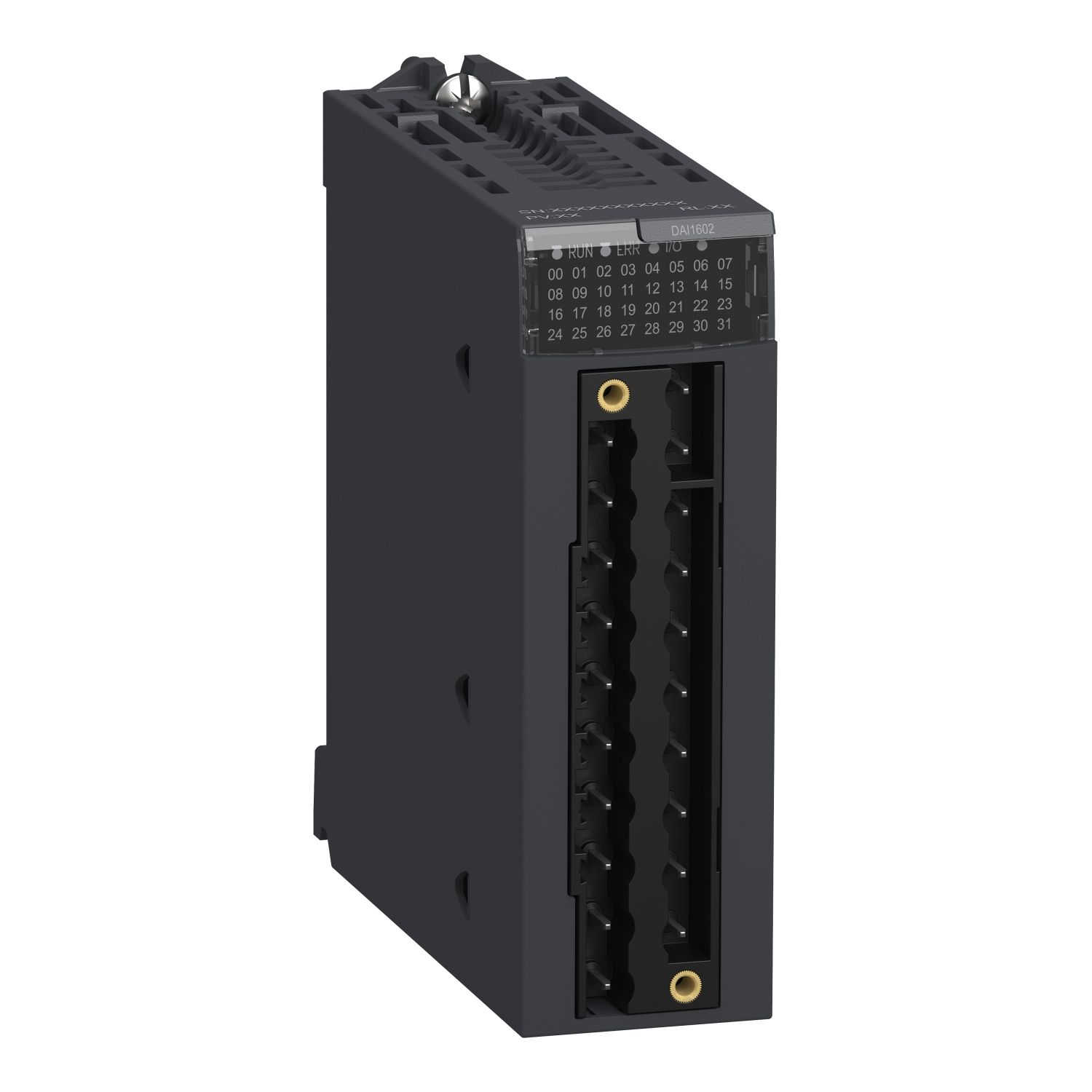

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

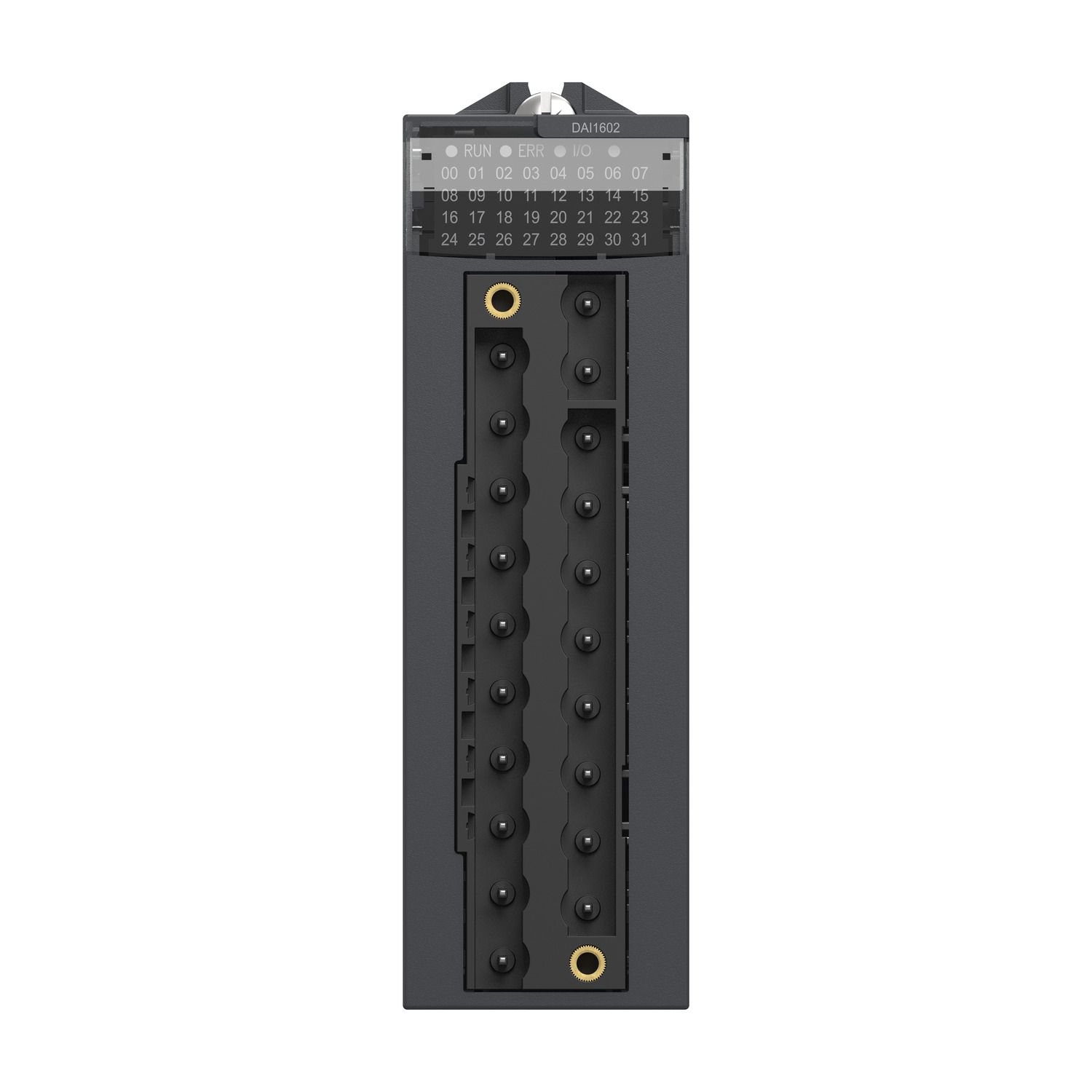

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

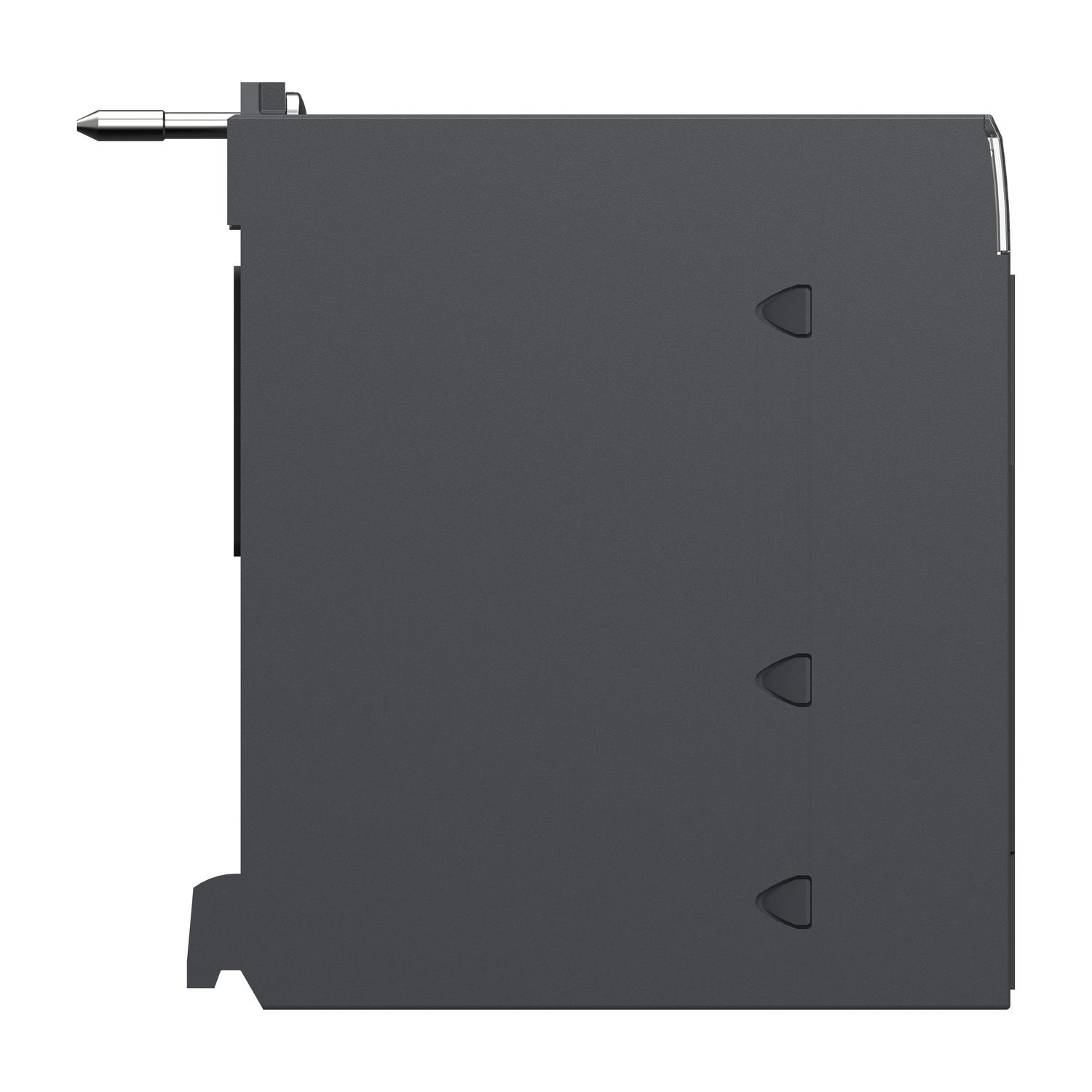

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

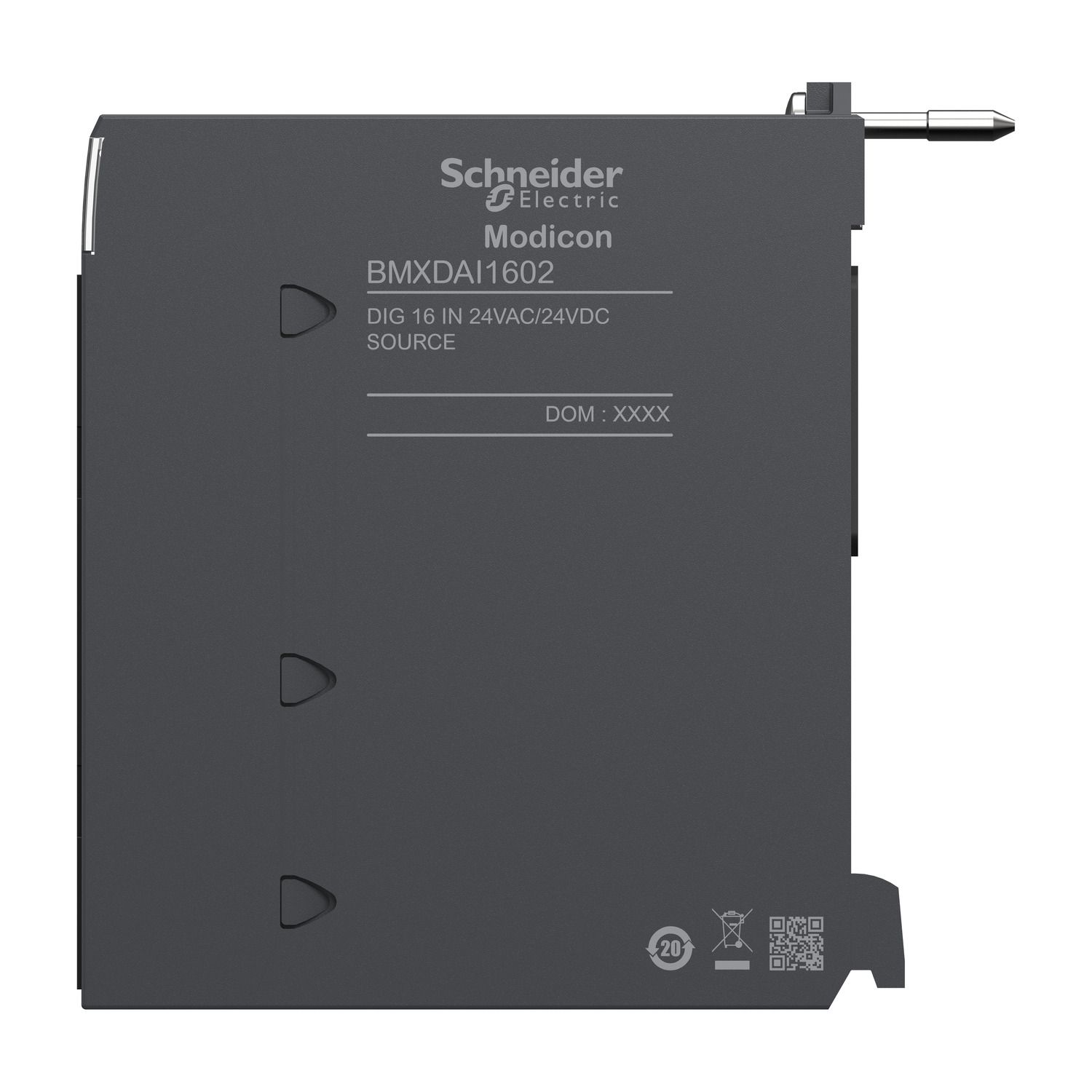

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

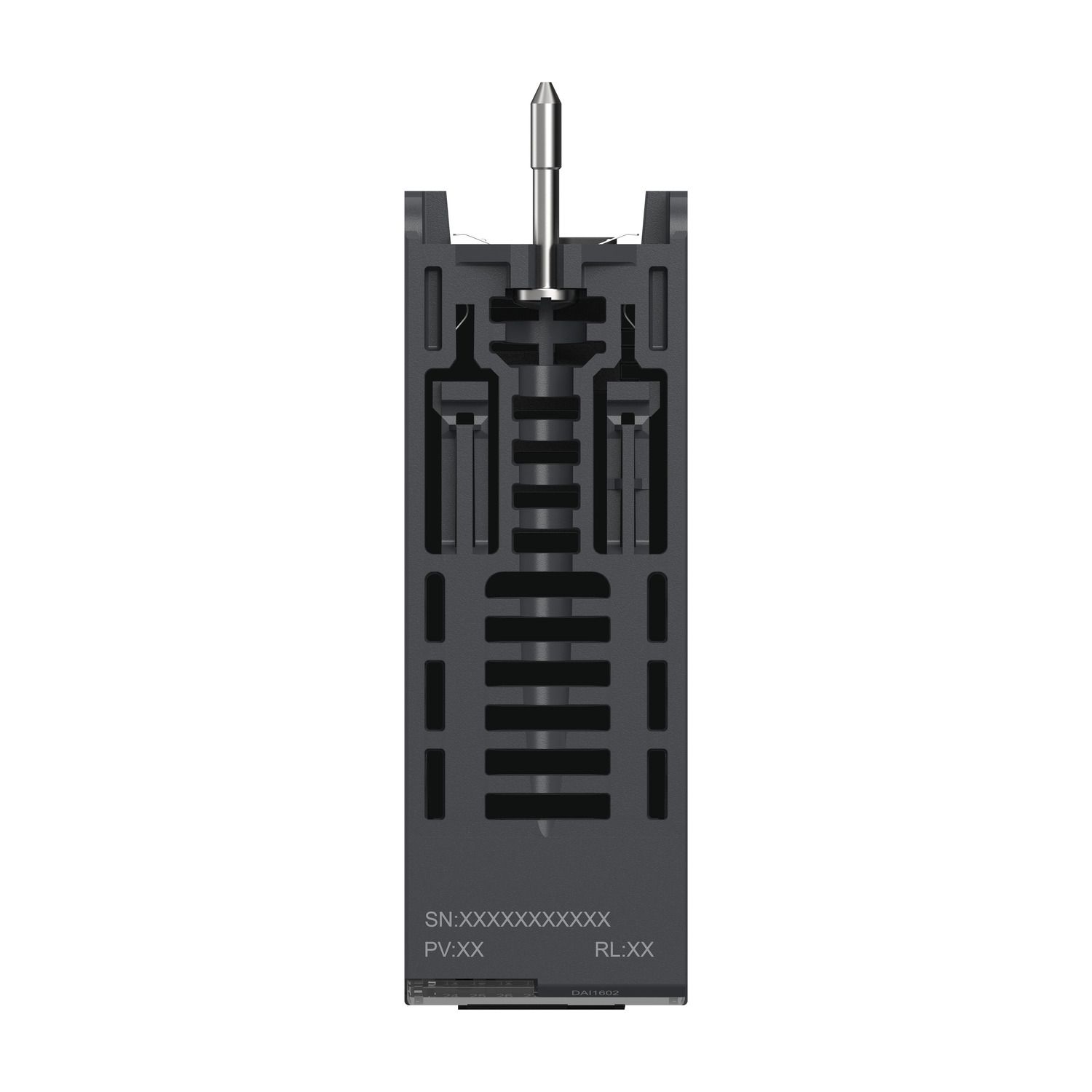

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

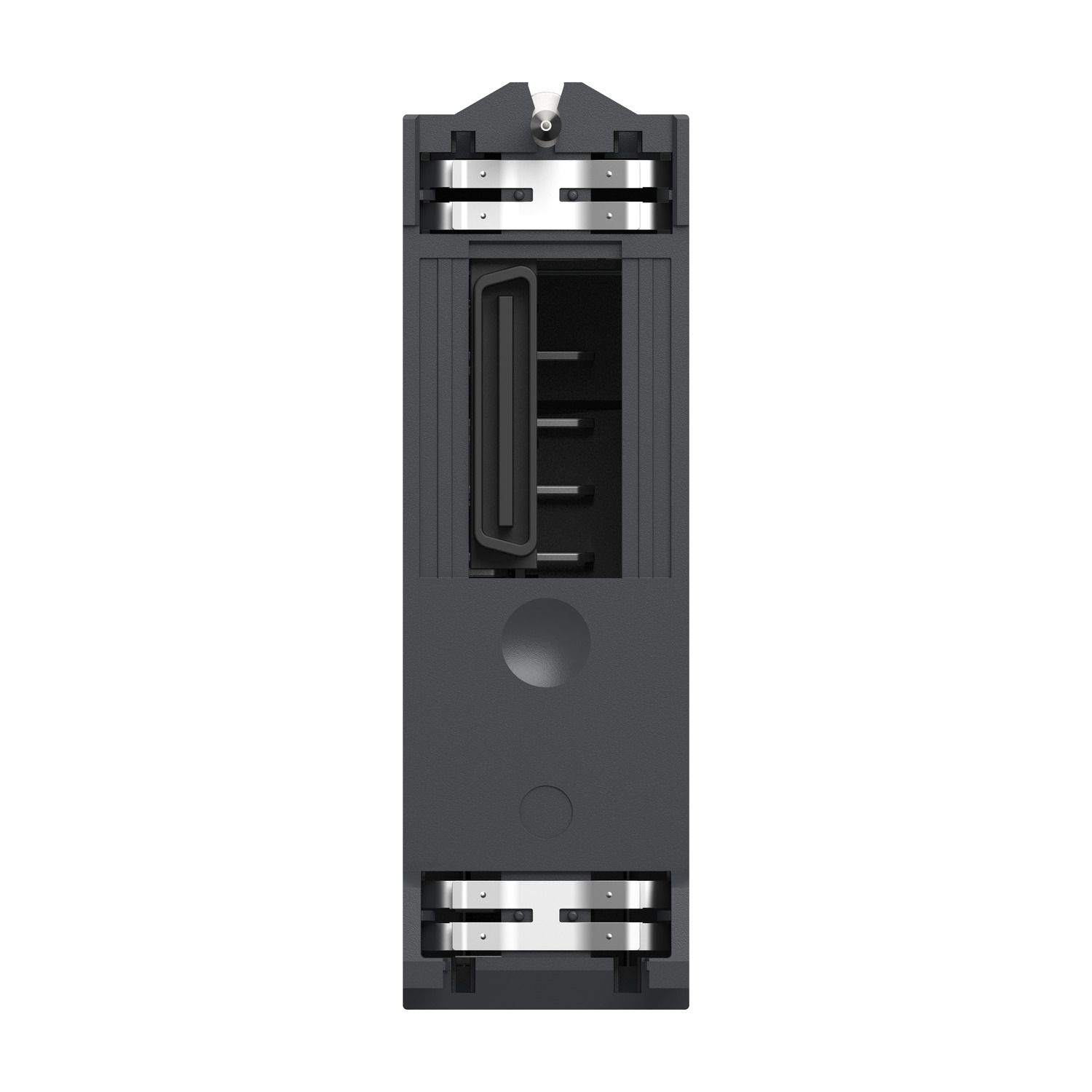

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

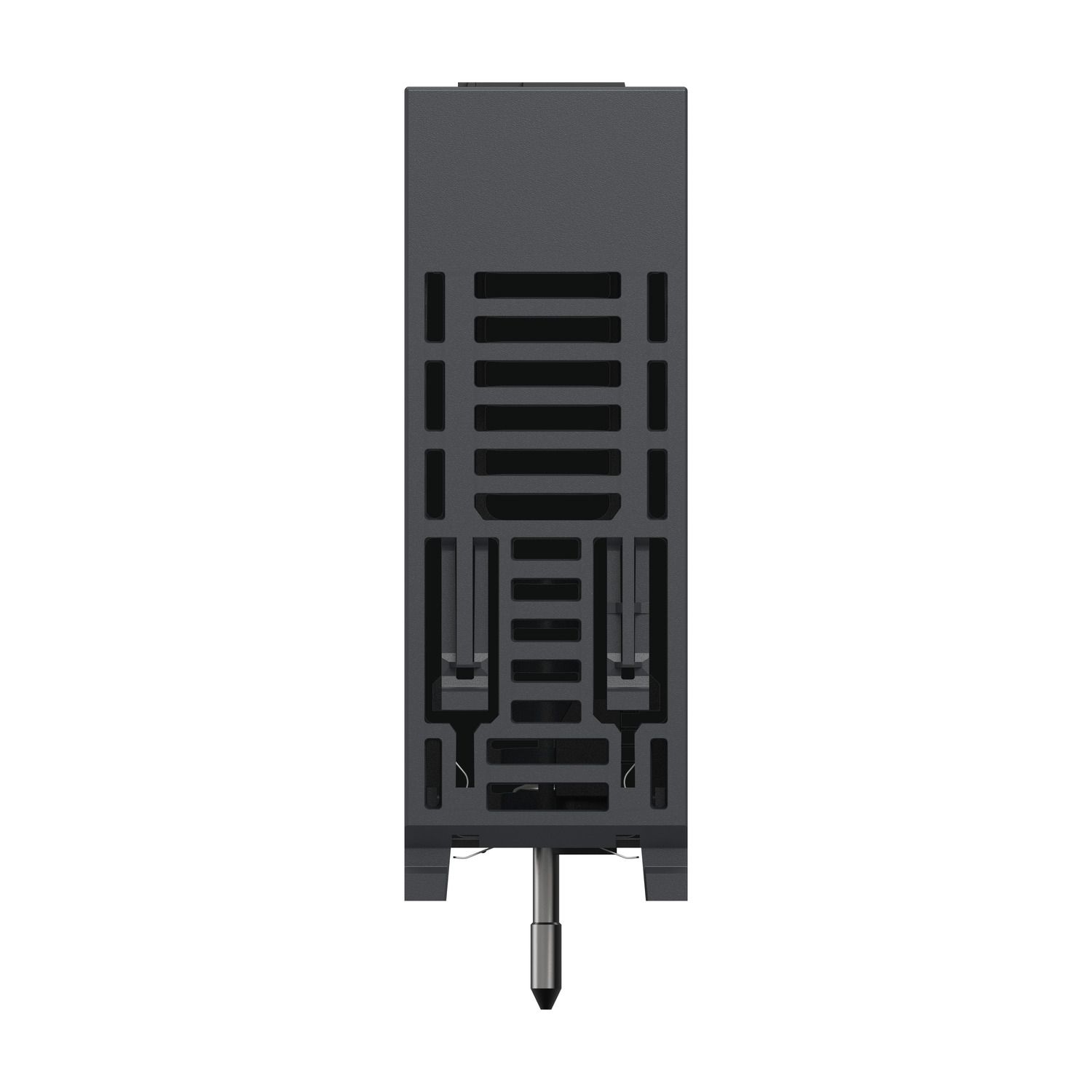

Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative
Picture of discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative
SKU:

BMXDAI1602

discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative

$1,197.96 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
discrete input module, Modicon X80, 16 inputs, 24V AC or DC, positive or negative
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name Attribute value
Main
Discrete input type isolated
Discrete input voltage 24 V AC, 24 V DC, discrete input logic: positive or negative
Range of product Modicon X80
Discrete input current 3.9 mA at 24 V DC, 3 mA at 24 V AC
Discrete input number 16
Input type resistive
Product or component type discrete input module
Complementary
Current state 0 guaranteed <= 0.5 mA DC, <= 1 mA AC
Typical current consumption 76 mA at 3.3 V DC
Input compatibility with 2-wire/3-wire proximity sensors AC conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W 3 W
Protection type 1 external fuse per group of channel0.5 A fast blow
Network frequency limits 47-63 Hz
Voltage detection threshold > 18 V AC/DC sensor OK, < 14 V AC/DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
MTBF reliability 1125000 H
Input impedance 6 kOhm
AC deactivation filtering time 20 ms
Paralleling of inputs no
Net weight 0.115 kg
Current state 1 guaranteed >= 2 mA DC, >= 2 mA AC
Insulation resistance > 10 MOhm 500 V DC
AC activation filtering time 15 ms
Voltage range 19...30 V DC, 20...26 V AC
Network frequency 50/60 Hz
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.800 cm
Package 1 Length 12.500 cm
Package 1 Weight 137.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.374 kg
