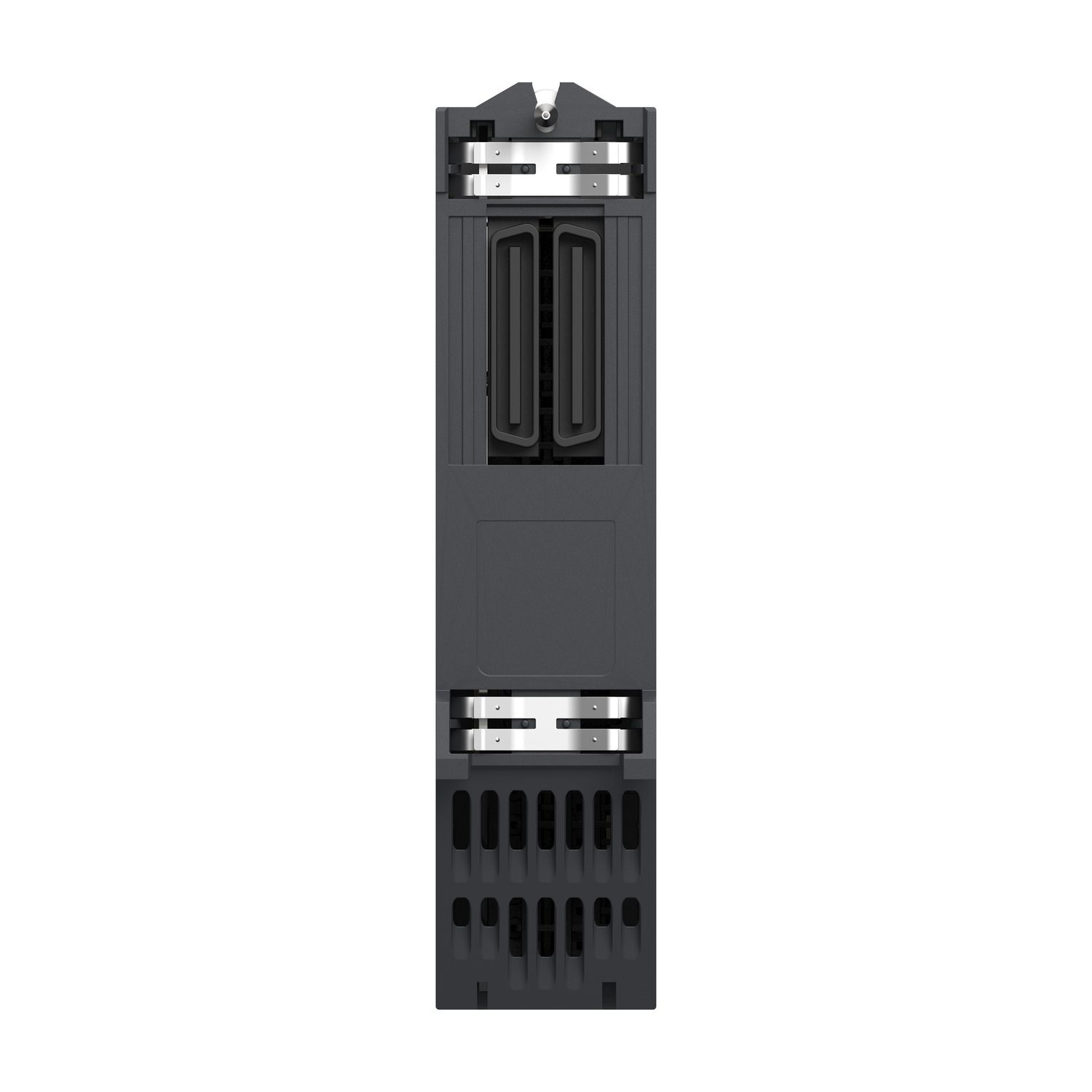

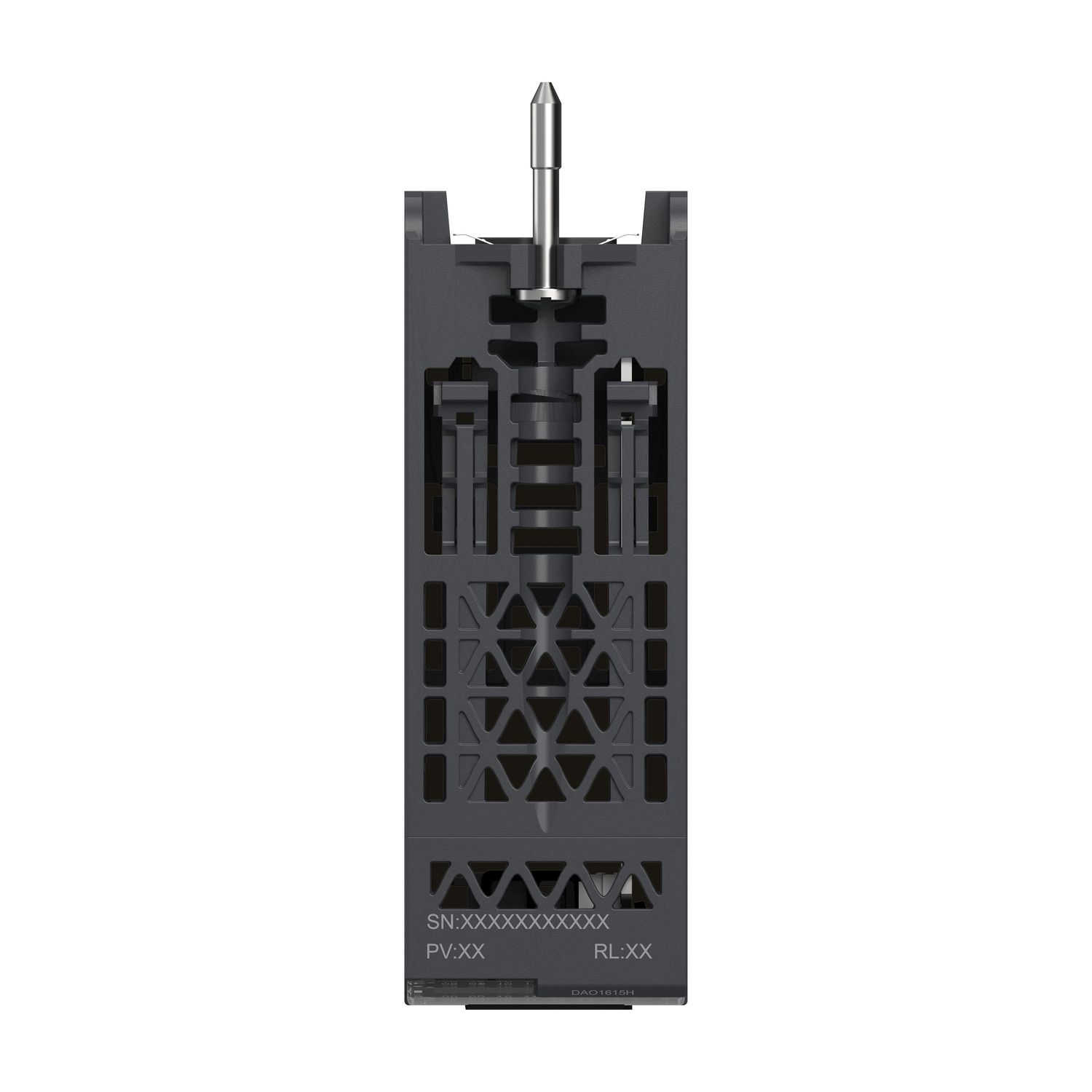

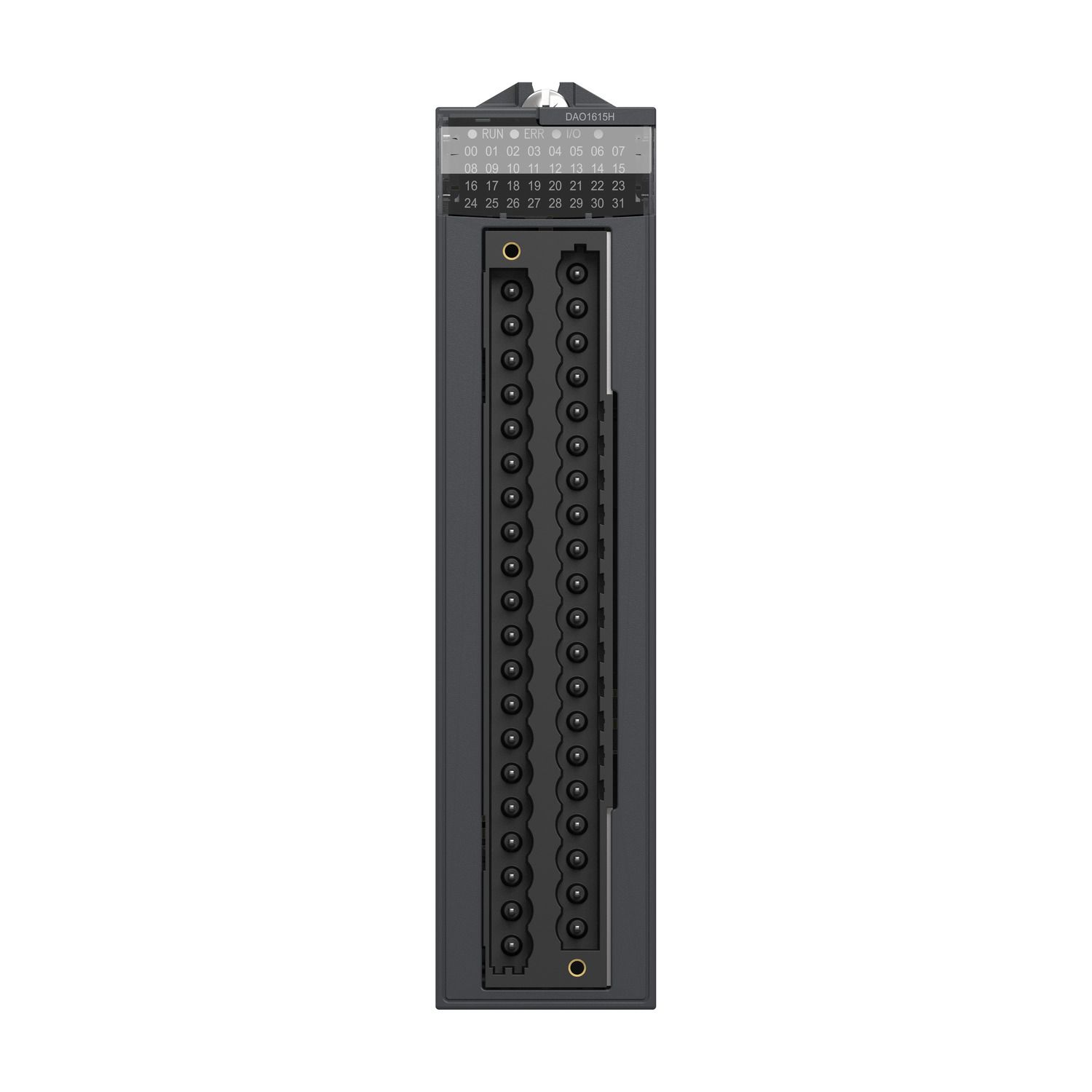

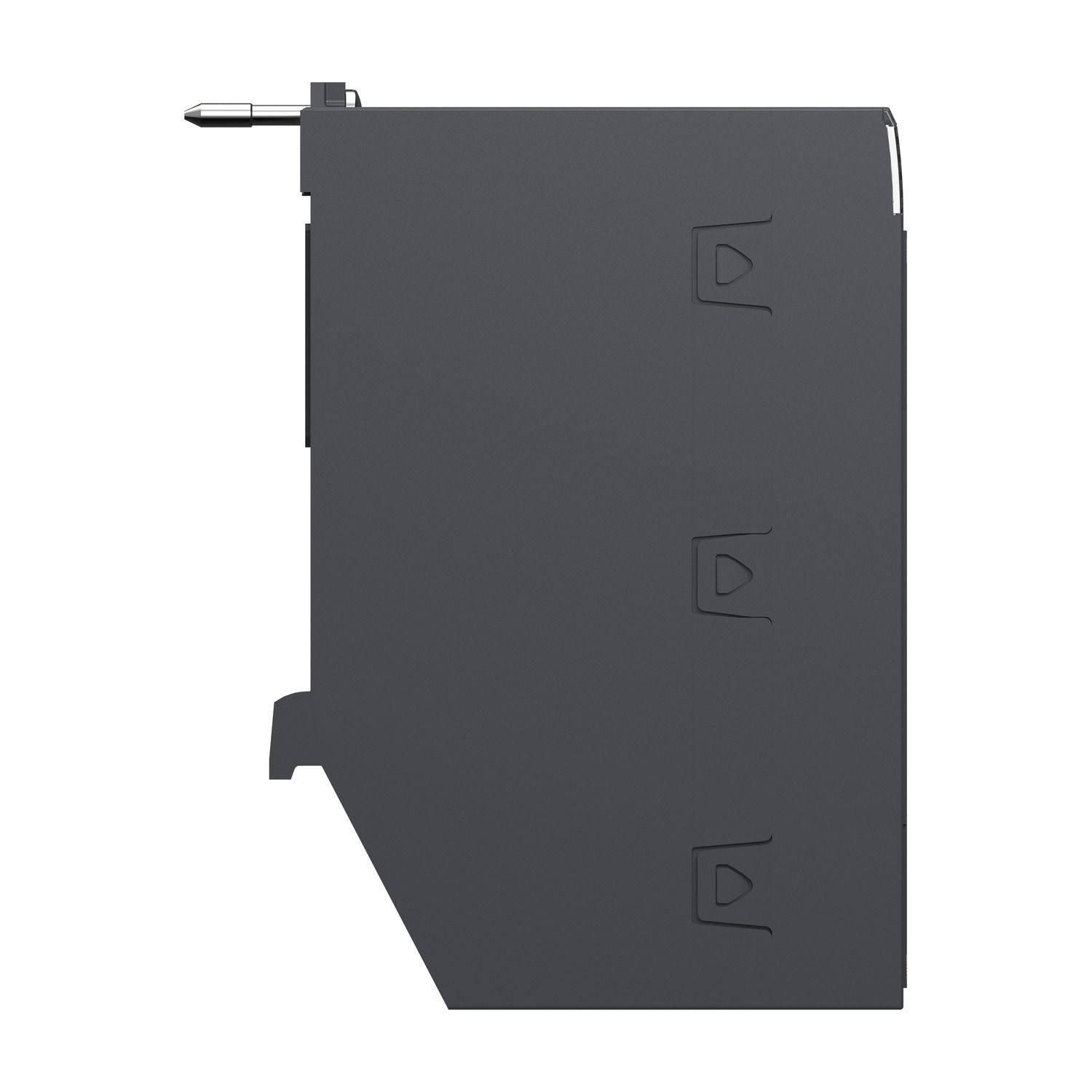

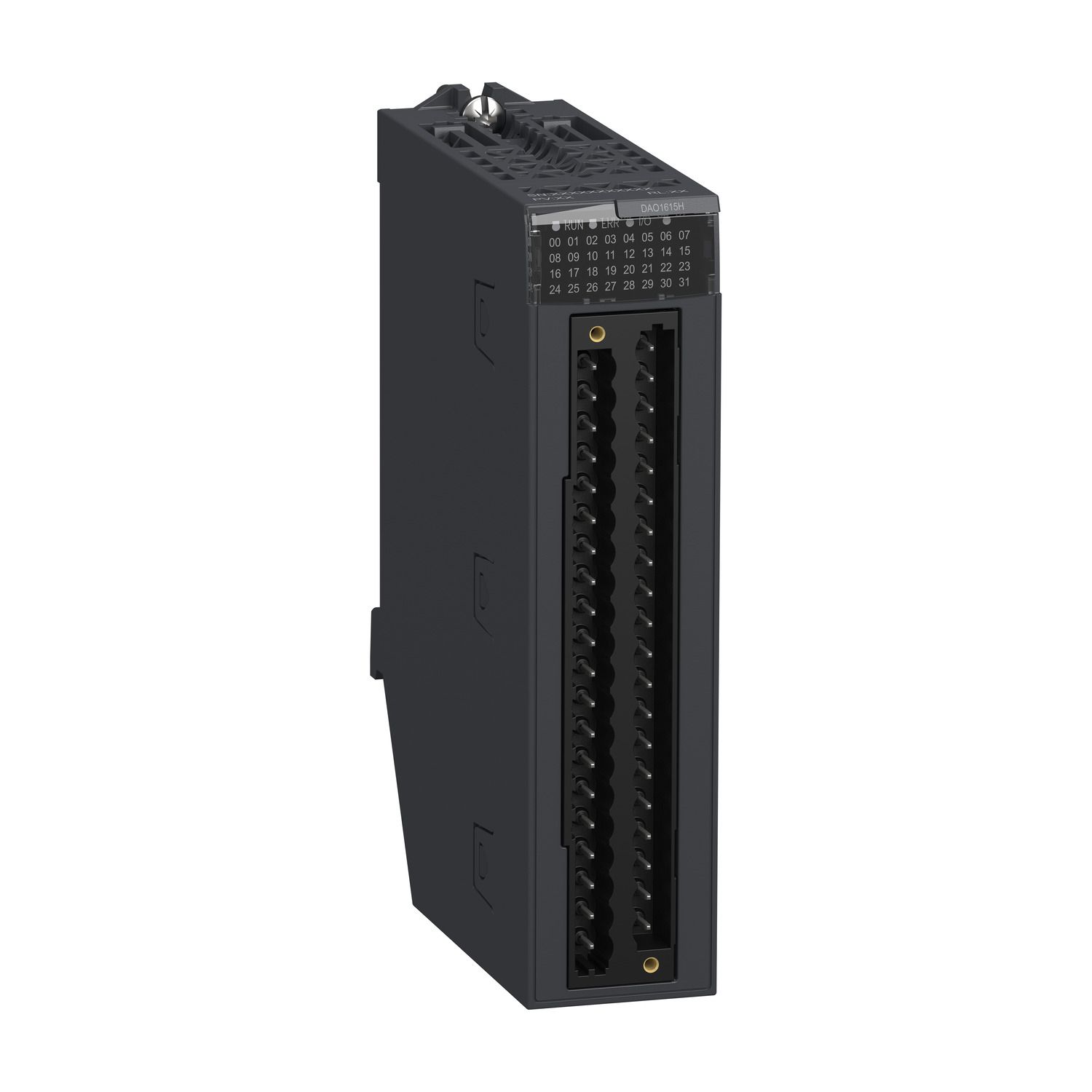

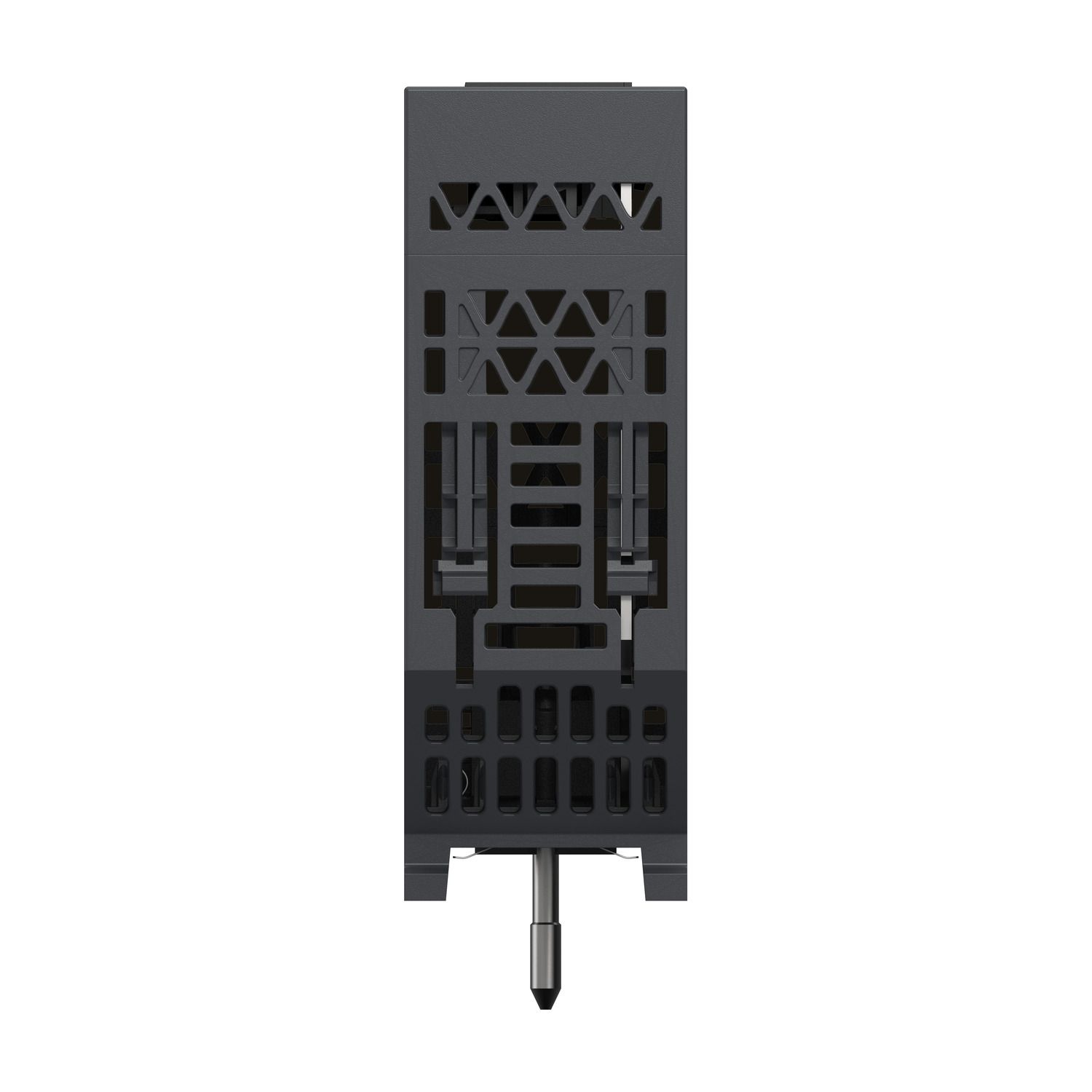

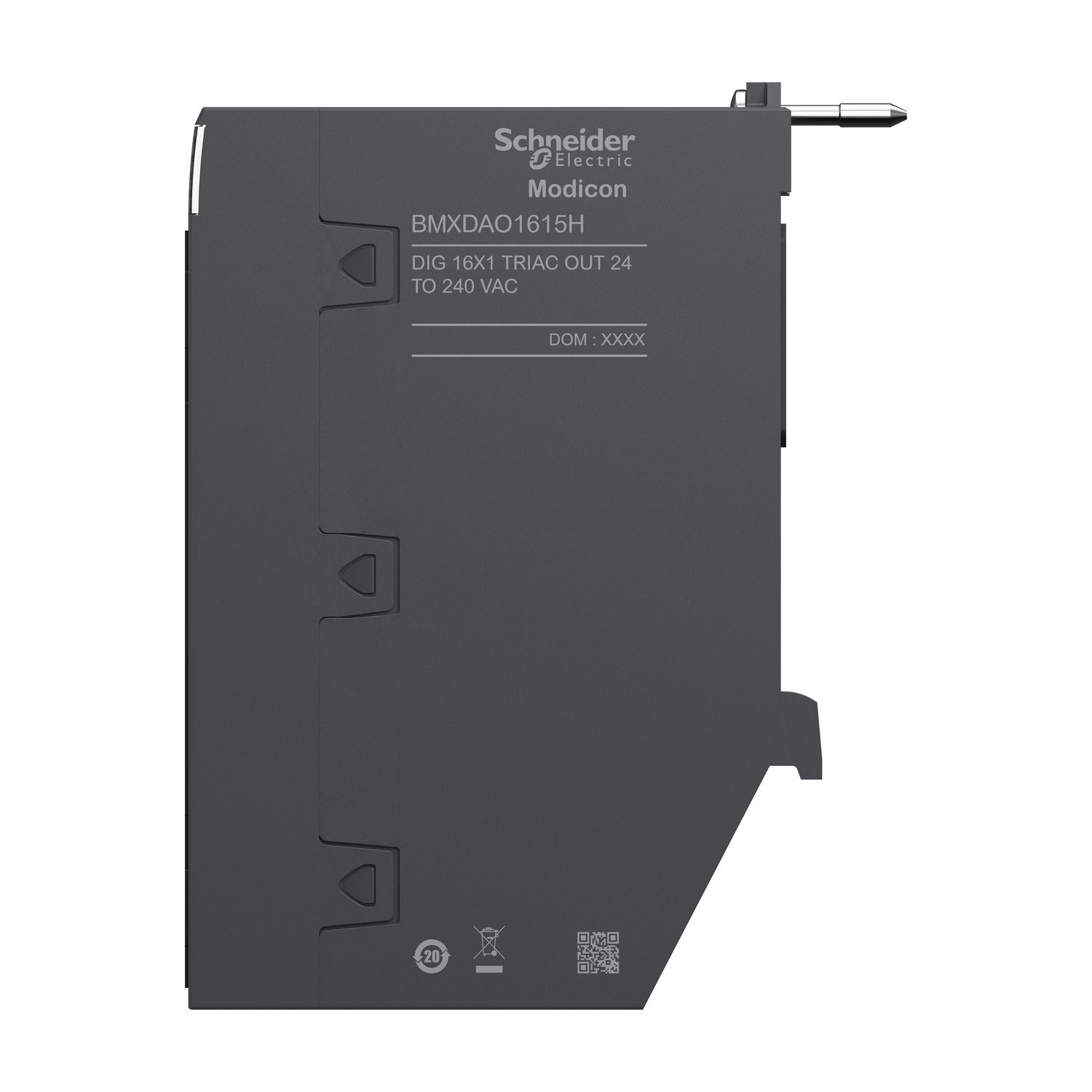

Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Picture of Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
SKU:

BMXDAO1615H

Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments

$1,814.01 INC GST
Available for Shipping : 06-Jan-2026
Discrete output module, Modicon X80, 16 isolated triac outputs, 24 to 240V AC, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This discrete triac output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 output channels and it is supplied with 24 to 240V AC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 500837 hours of MTBF. This discrete module has a weight of 0.250kg and dimensions of 32x131x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Discrete output current 1.2 A
Product or component type discrete output module
Discrete output voltage 24...240 V 20...264 V AC
Discrete output number 16 conforming to EN/IEC 61131-2
Range of product Modicon X80
Discrete output type triac
Complementary
Response time on output <= 10 ms resistive deactivation, <= 10 ms resistive activation
Output overload protection with varistor
Typical current consumption 50 mA at 24 V DC, 61 mA at 3.3 V DC
Maximum leakage current 2.5 mA at state 0 240 V, 2 mA at state 0 115 V, 1 mA at state 0 48 V, 1 mA at state 0 24 V
Net weight 0.264 kg
Power dissipation in W 1.45 W
Protection type 1 external fuse4 A fast blow
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Output current limits 0.005-10 A
Maximum voltage drop <1.55 V at state 1
Current per channel 0.6 A at 70 °C, 1.2 A at 60 °C
Maximum current per output common 4 A
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Inrush current 30 A
Maximum current per module 2 A 70 °C, 4 A 60 °C
Voltage range 20...264 V
Network frequency 50/60 Hz
MTBF reliability 500000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 0-95 % at -25-70 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Dielectric strength 3000 V AC at 50/60 Hz 1 min
Environmental characteristic mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 18.000 cm
Package 1 Length 26.200 cm
Package 1 Weight 410.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.757 kg
