SKU:

BMXDAI1603

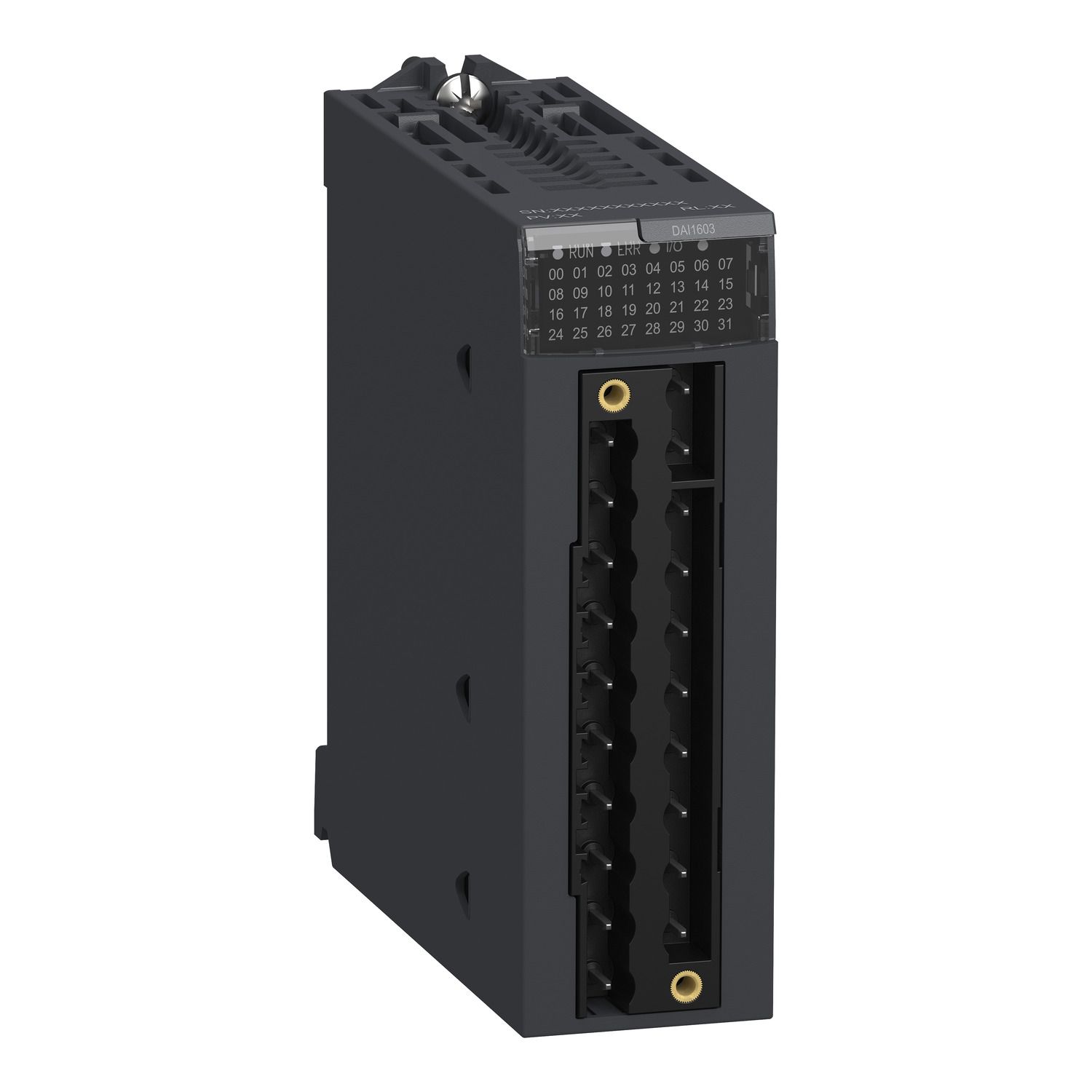

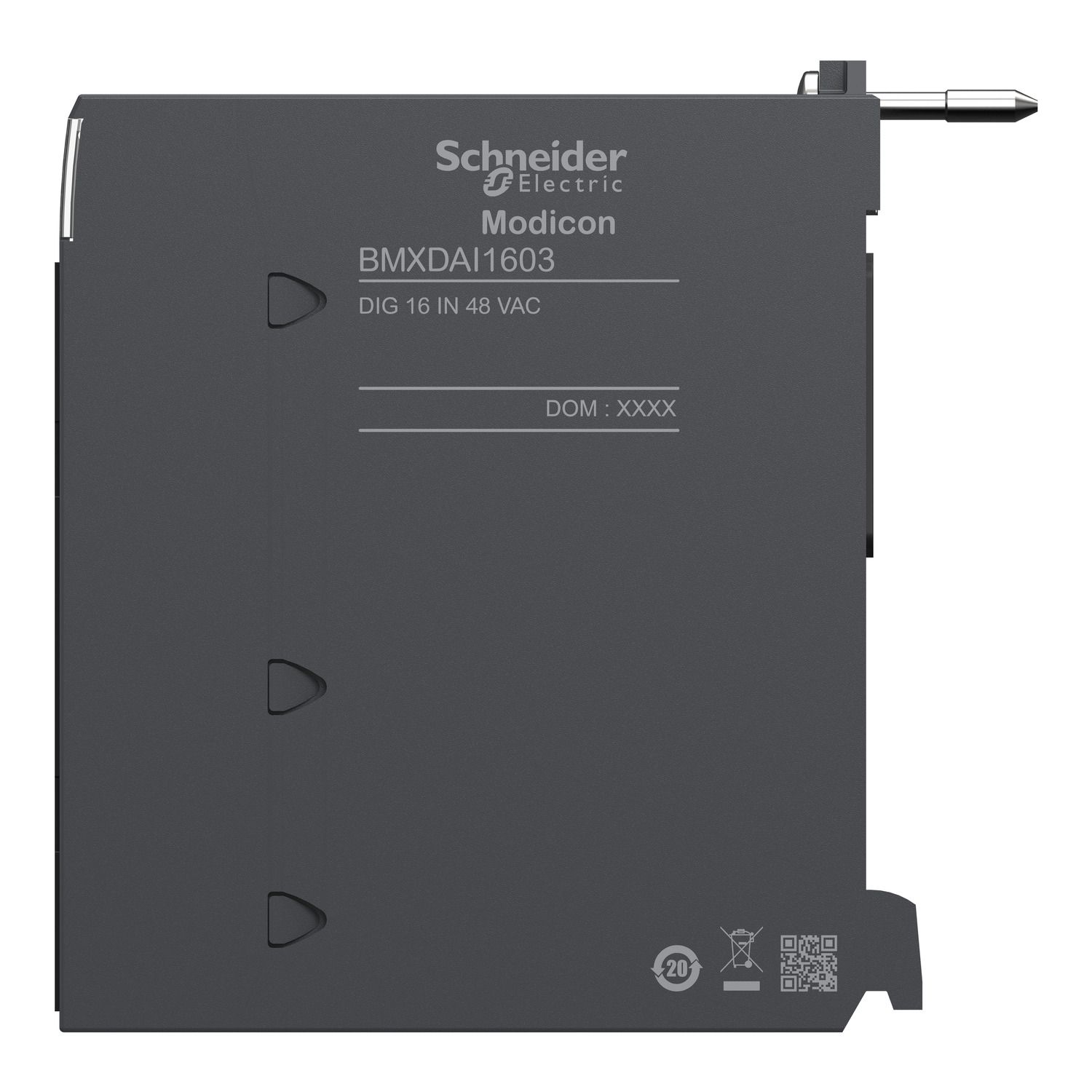

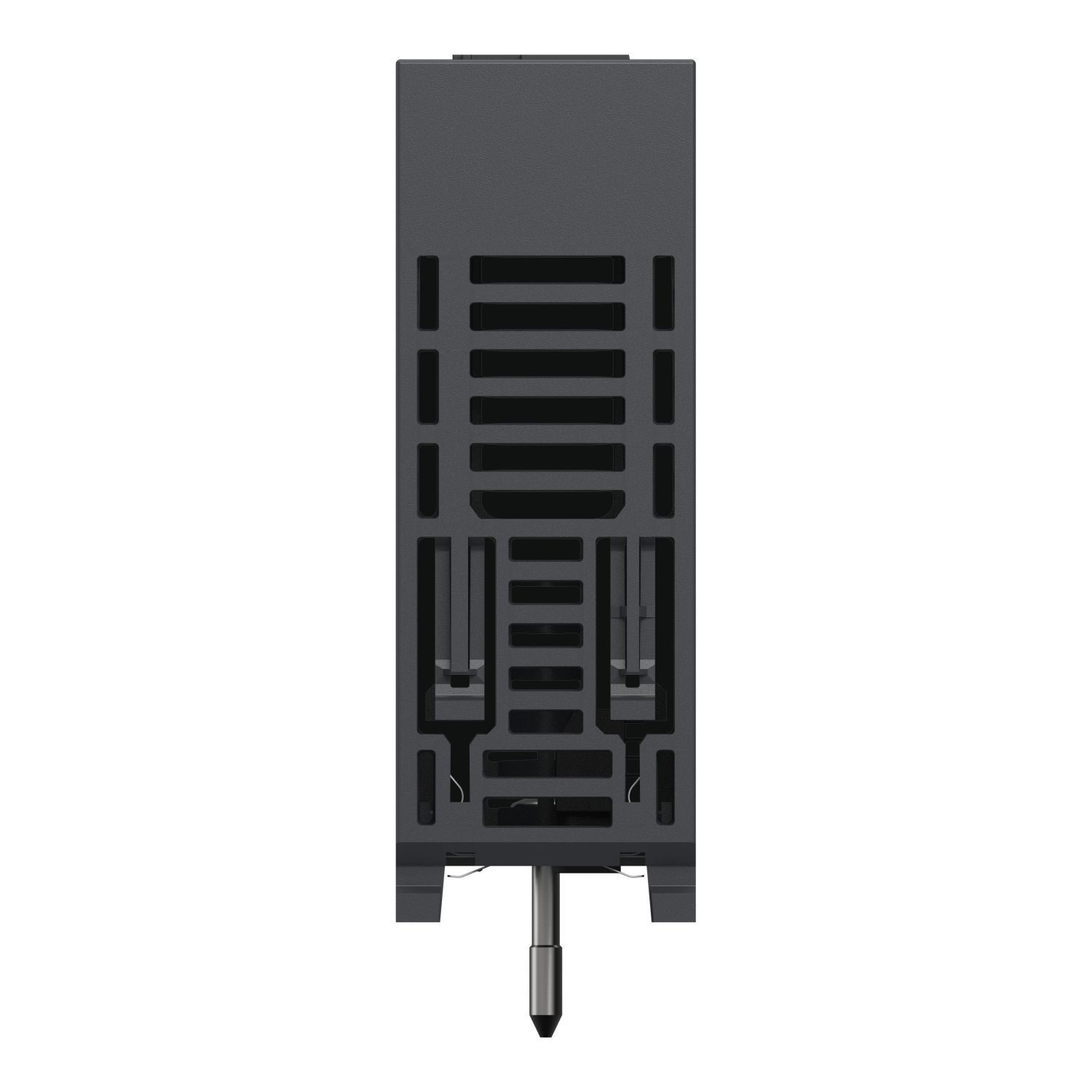

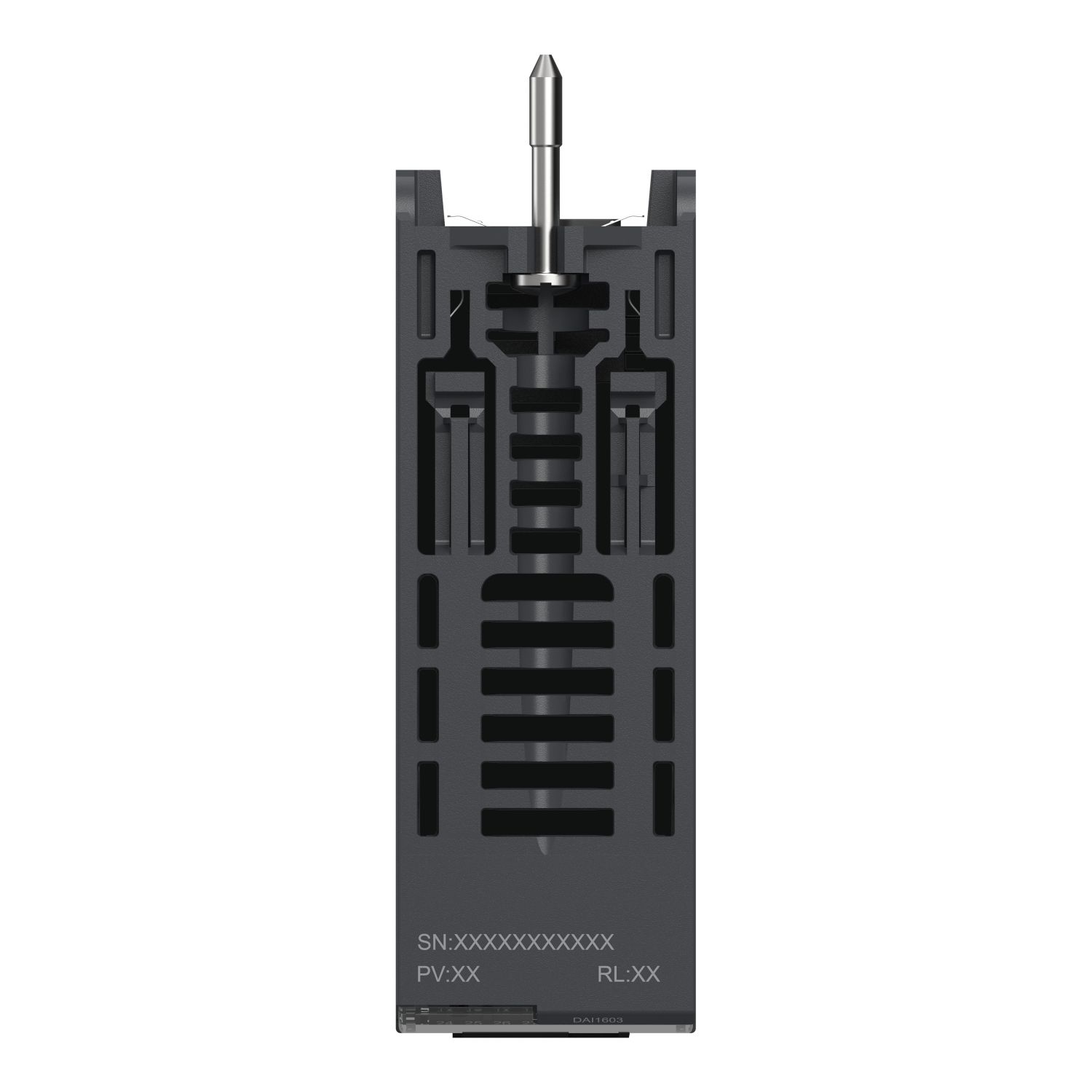

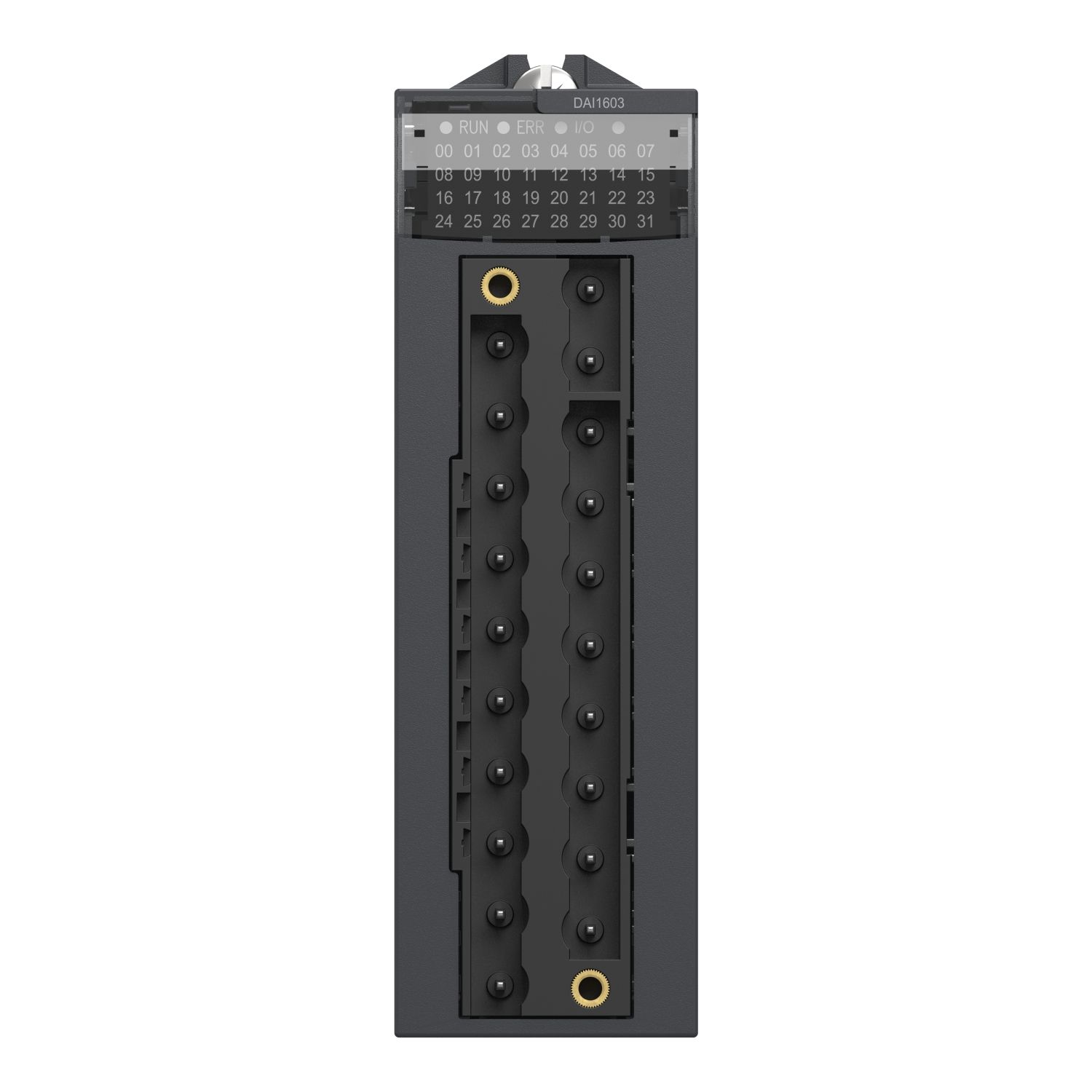

discrete input module, Modicon X80, 16 inputs, 48V AC

$1,335.84 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete input module, Modicon X80, 16 inputs, 48V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
User guide
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 input channels and it is supplied with 48V AC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1131797 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete input current 5 mA
Discrete input number 16
Discrete input type isolated
Input type capacitive
Product or component type discrete input module
Discrete input voltage 48 V AC
Range of product Modicon X80
Complementary
Input impedance 9000 Ohm
Current state 0 guaranteed <= 1 mA
Typical current consumption 76 mA at 3.3 V DC
AC deactivation filtering time 20 ms
Input compatibility 2-wire proximity sensor conforming to IEC 61131-2 type 3, 2-wire proximity sensor conforming to IEC 60947-5-2
Net weight 0.115 kg
Power dissipation in W 4 W
Protection type 1 external fuse per group of channel0.5 A fast blow
Current state 1 guaranteed >= 2 mA
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Voltage detection threshold > 36 V AC sensor OK, < 24 V AC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
AC activation filtering time 10 ms
Voltage range 40...52 V
Network frequency 50/60 Hz
MTBF reliability 1132000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 148.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.295 kg
