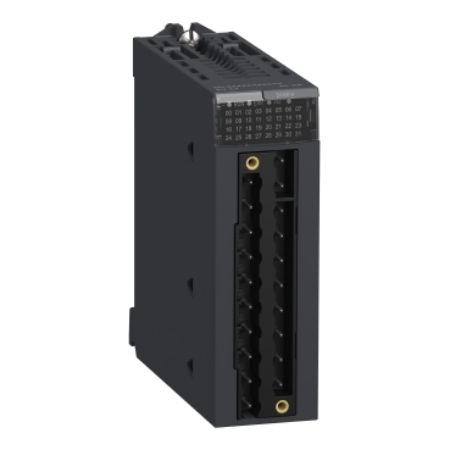

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

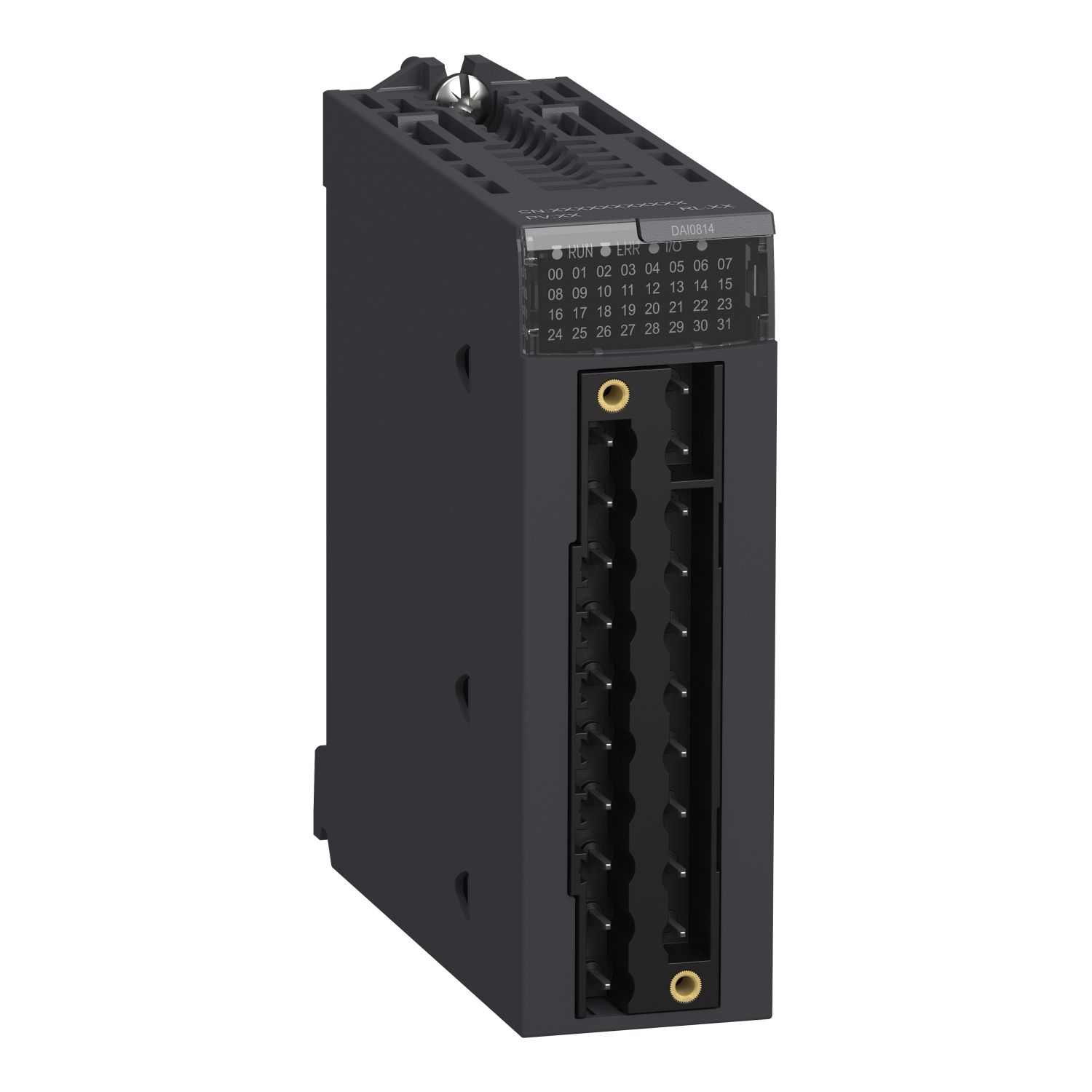

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

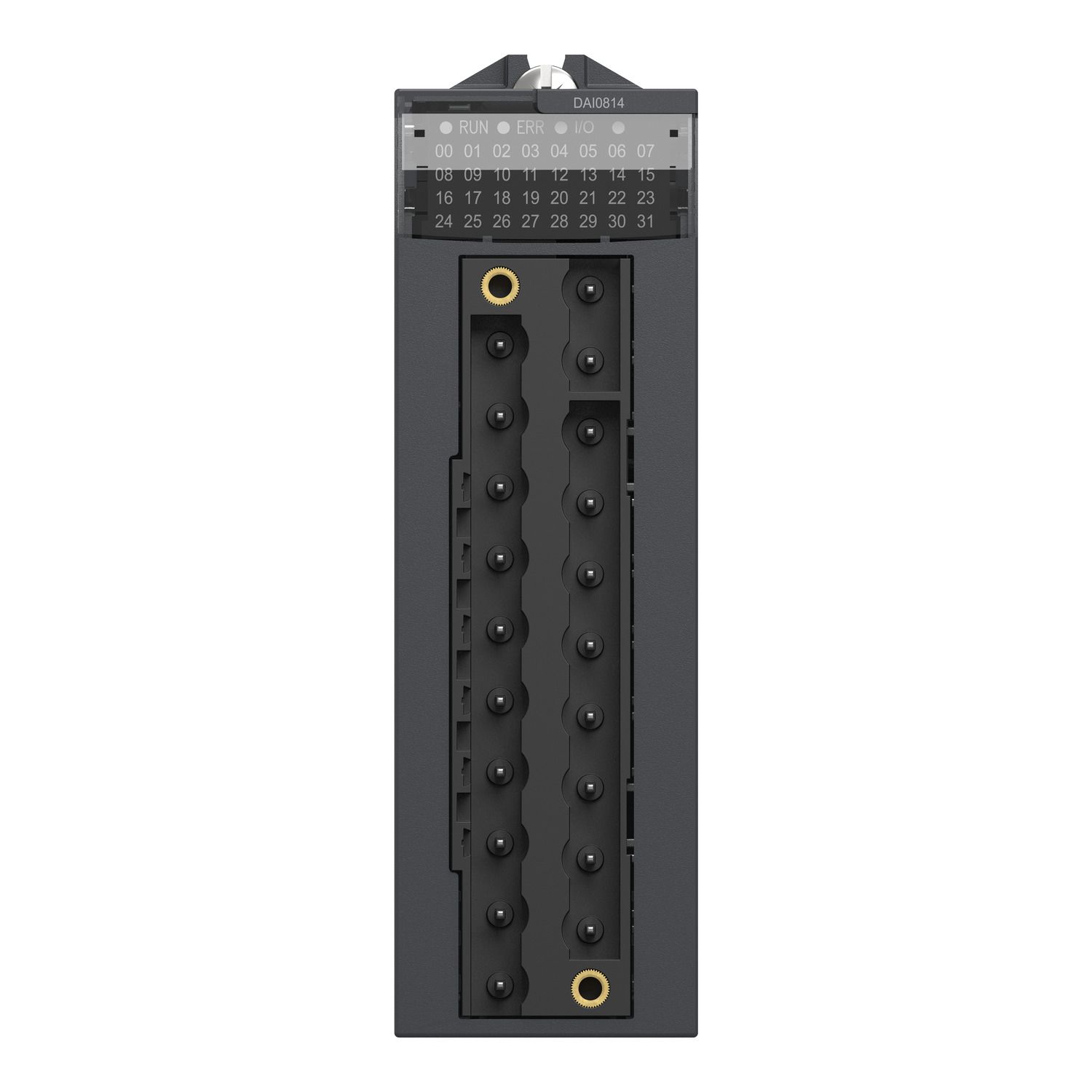

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

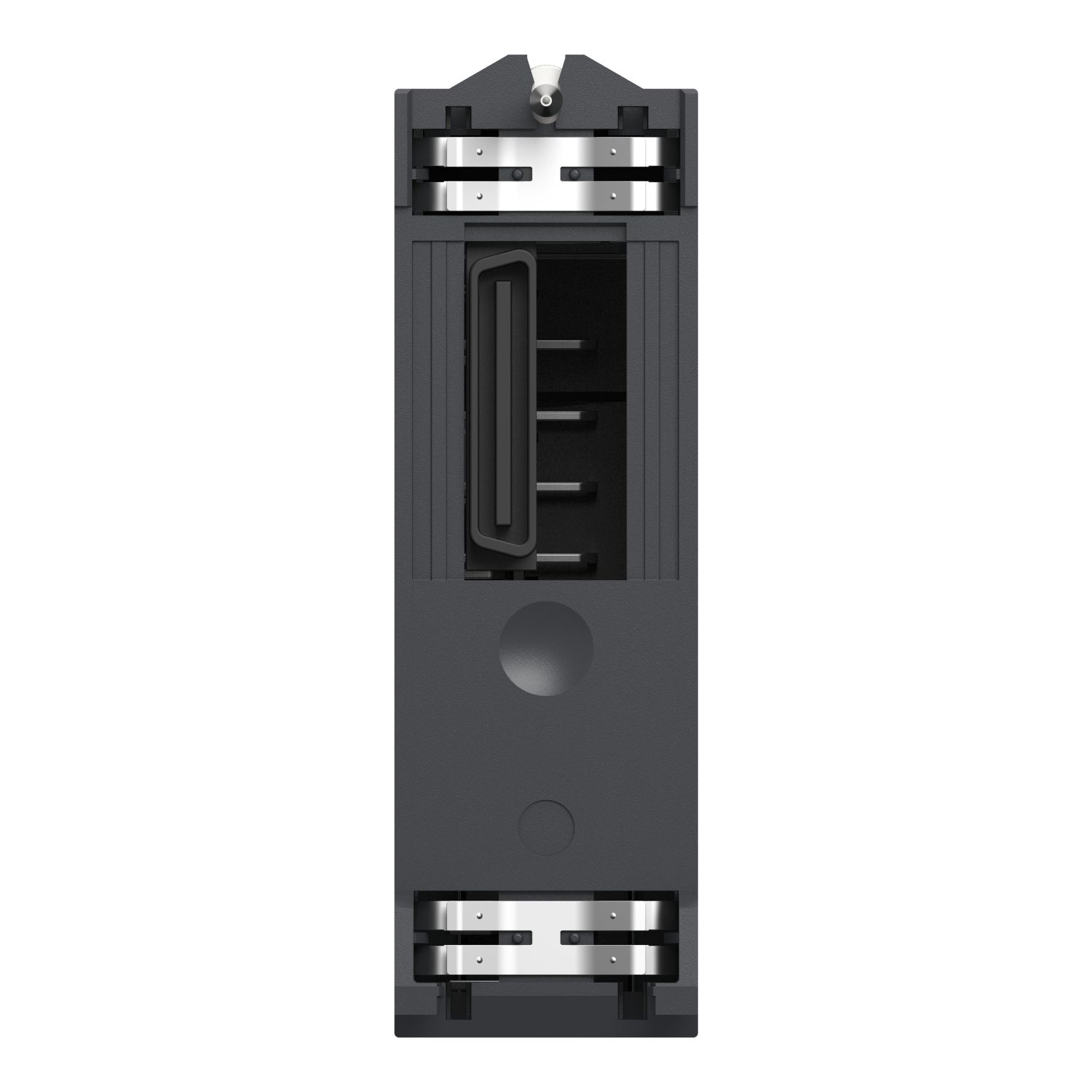

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

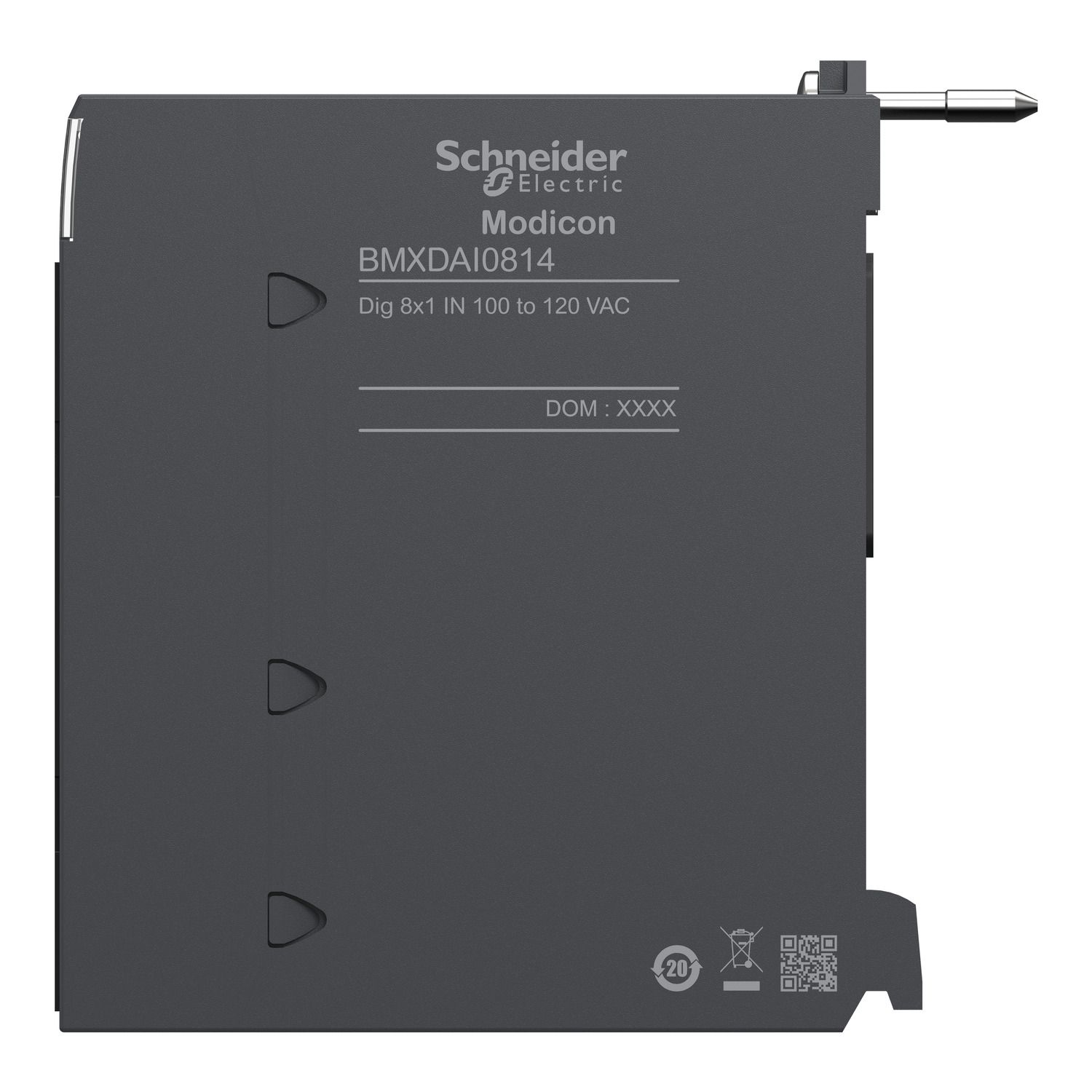

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

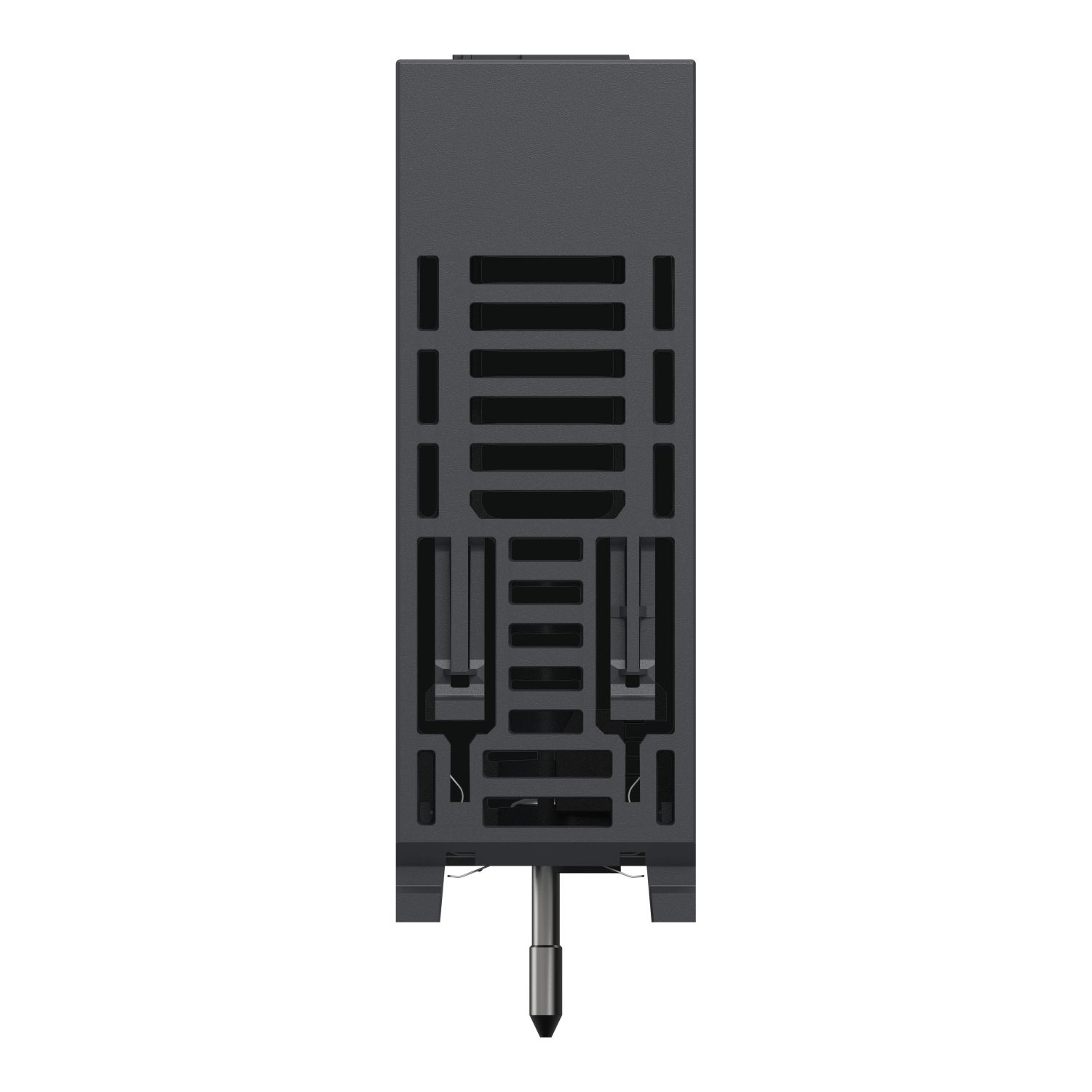

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

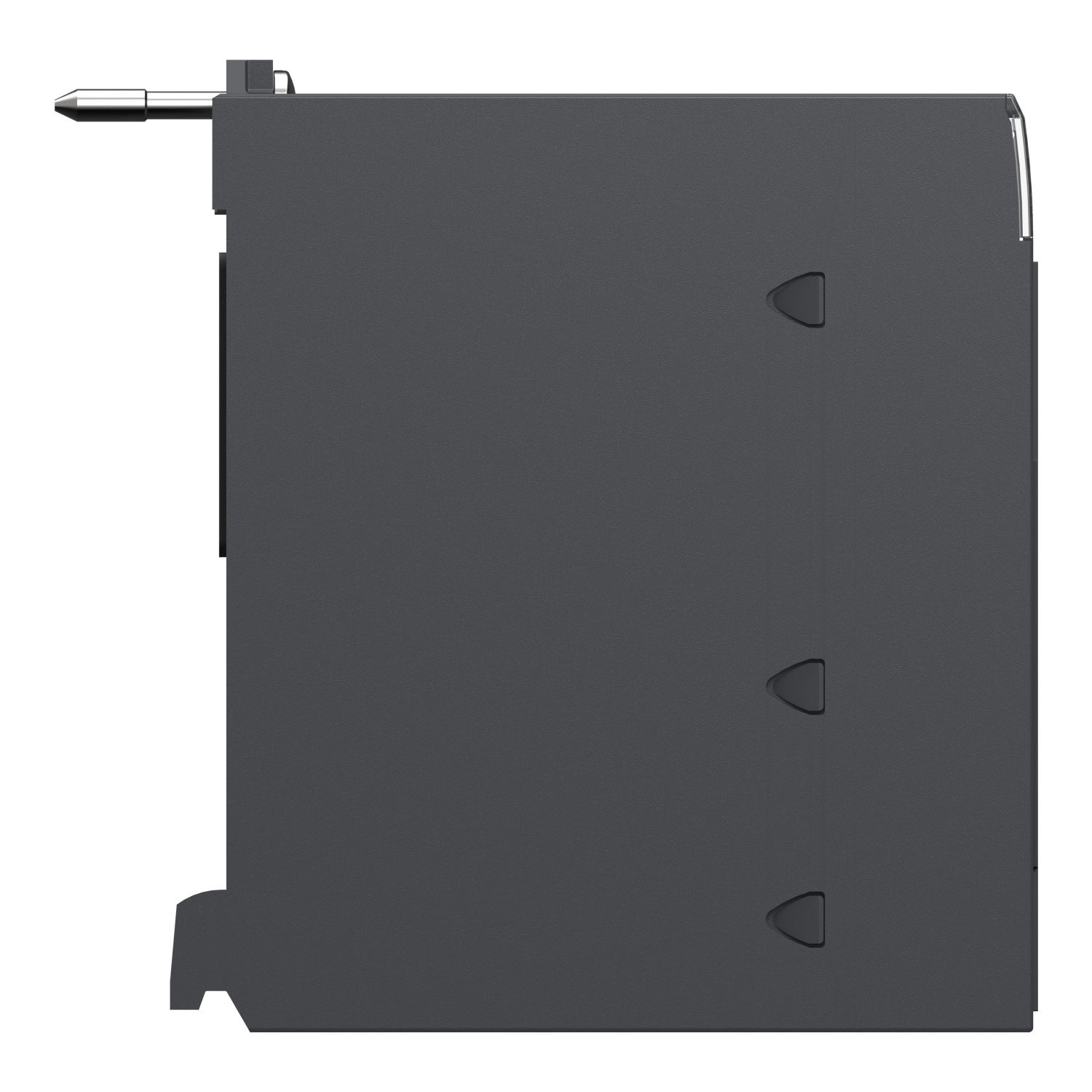

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

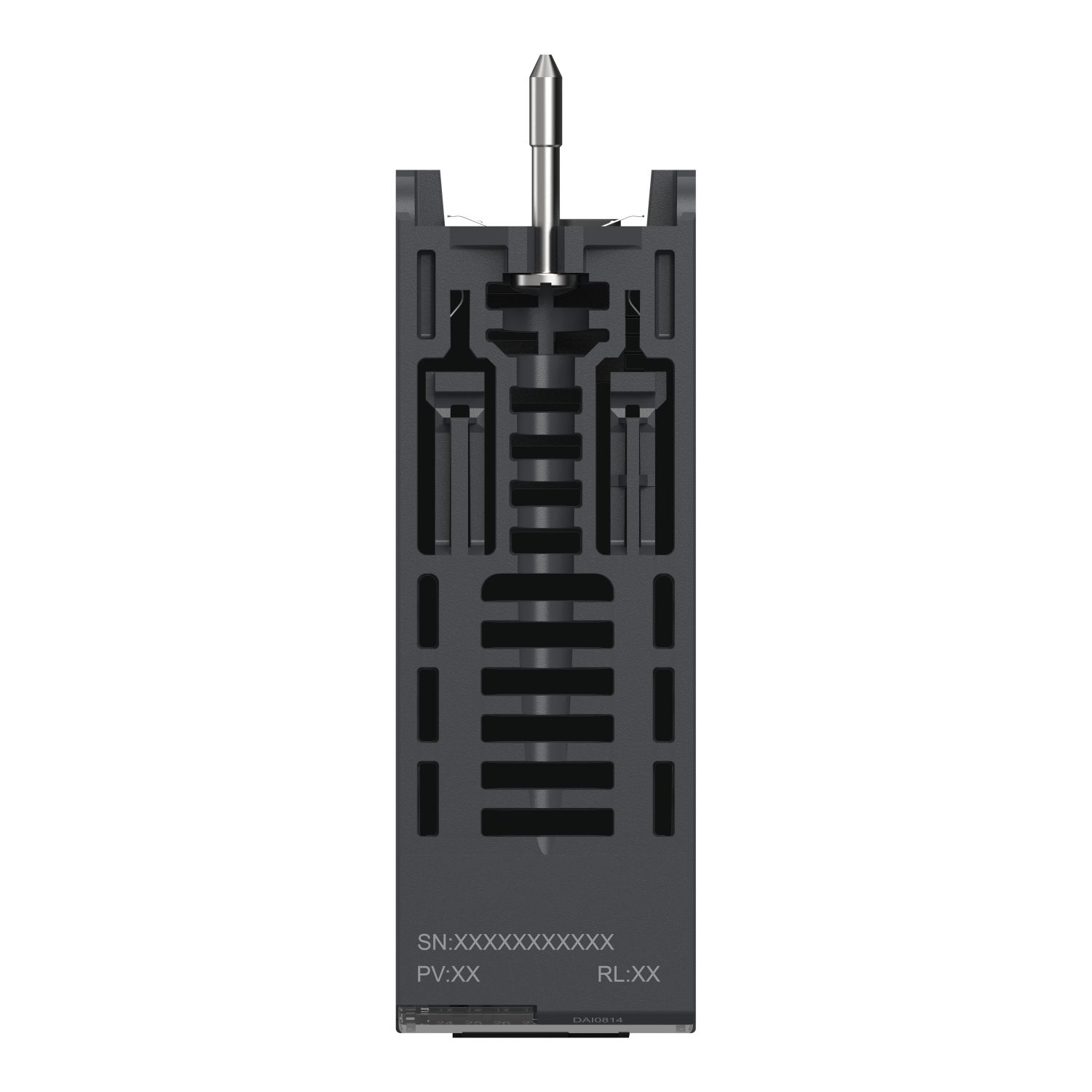

Picture of discrete input module, Modicon X80, 8 inputs, 100 to 120V AC
SKU:

BMXDAI0814

discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

$573.04 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete input module, Modicon X80, 8 inputs, 100 to 120V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.35W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per channel 0.25A fast blow protection type. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete input type isolated per channel
Discrete input voltage 100...120 V AC
Range of product Modicon X80
Discrete input current 5 mA
Discrete input number 8
Input type capacitive
Product or component type discrete input module
Complementary
Current state 0 guaranteed <= 1 mA
Typical current consumption 61 mA at 3.3 V DC
Input compatibility 2-wire proximity sensor conforming to IEC 61131-2 type 3, 2-wire proximity sensor conforming to IEC 60947-5-2
Power dissipation in W 2.35 W
Protection type 1 external fuse per channel0.25 A fast blow
Network frequency limits 47-63 Hz
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
MTBF reliability 1500000 H
Input impedance 13000 Ohm
AC deactivation filtering time 20 ms
Net weight 0.115 kg
Current state 1 guaranteed >= 2.5 mA
Insulation resistance > 10 MOhm 500 V DC
AC activation filtering time 10 ms
Voltage range 85...132 V
Network frequency 50/60 Hz
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 1780 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 145.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.540 kg
