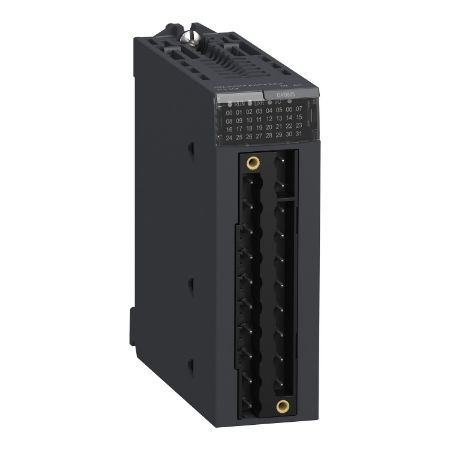

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

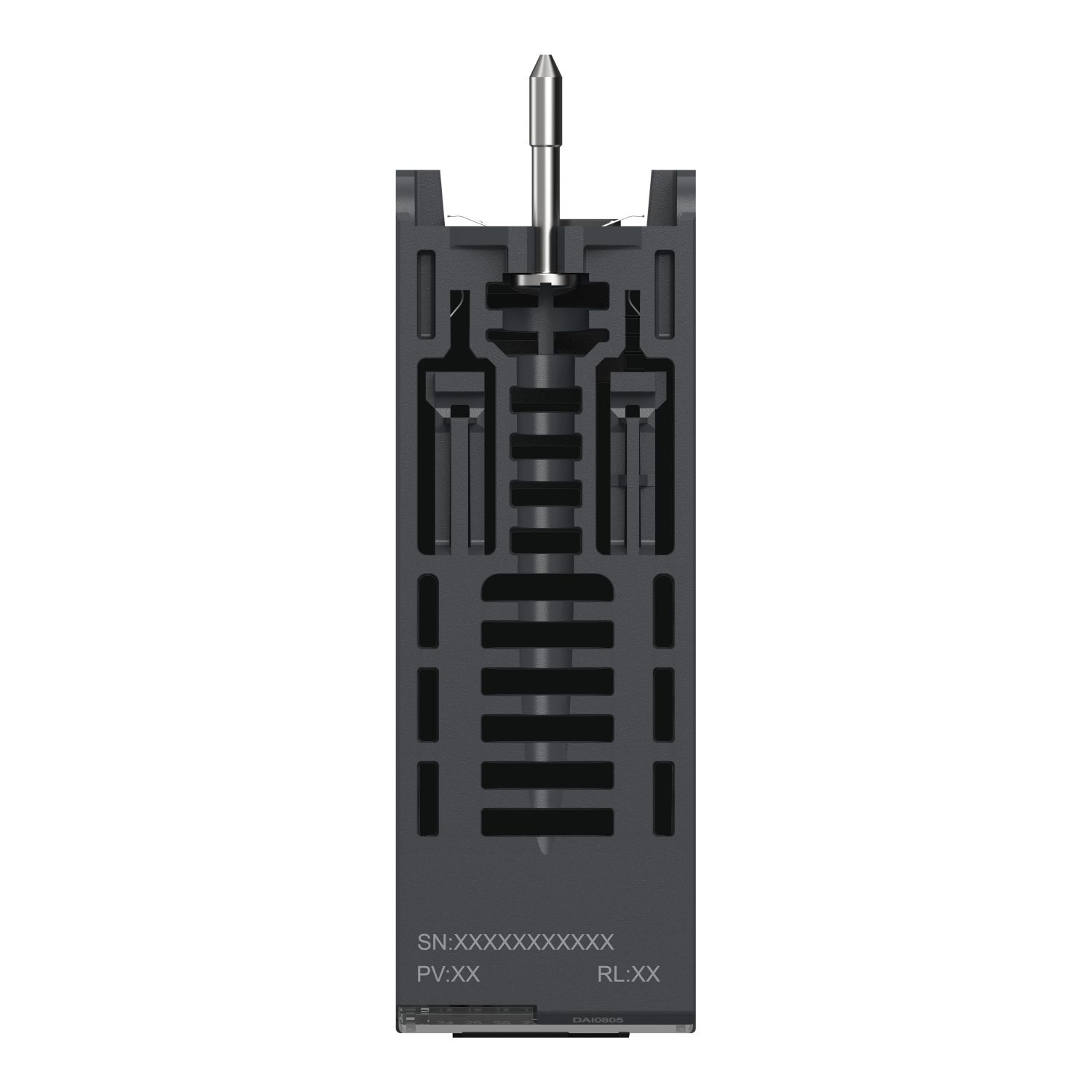

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

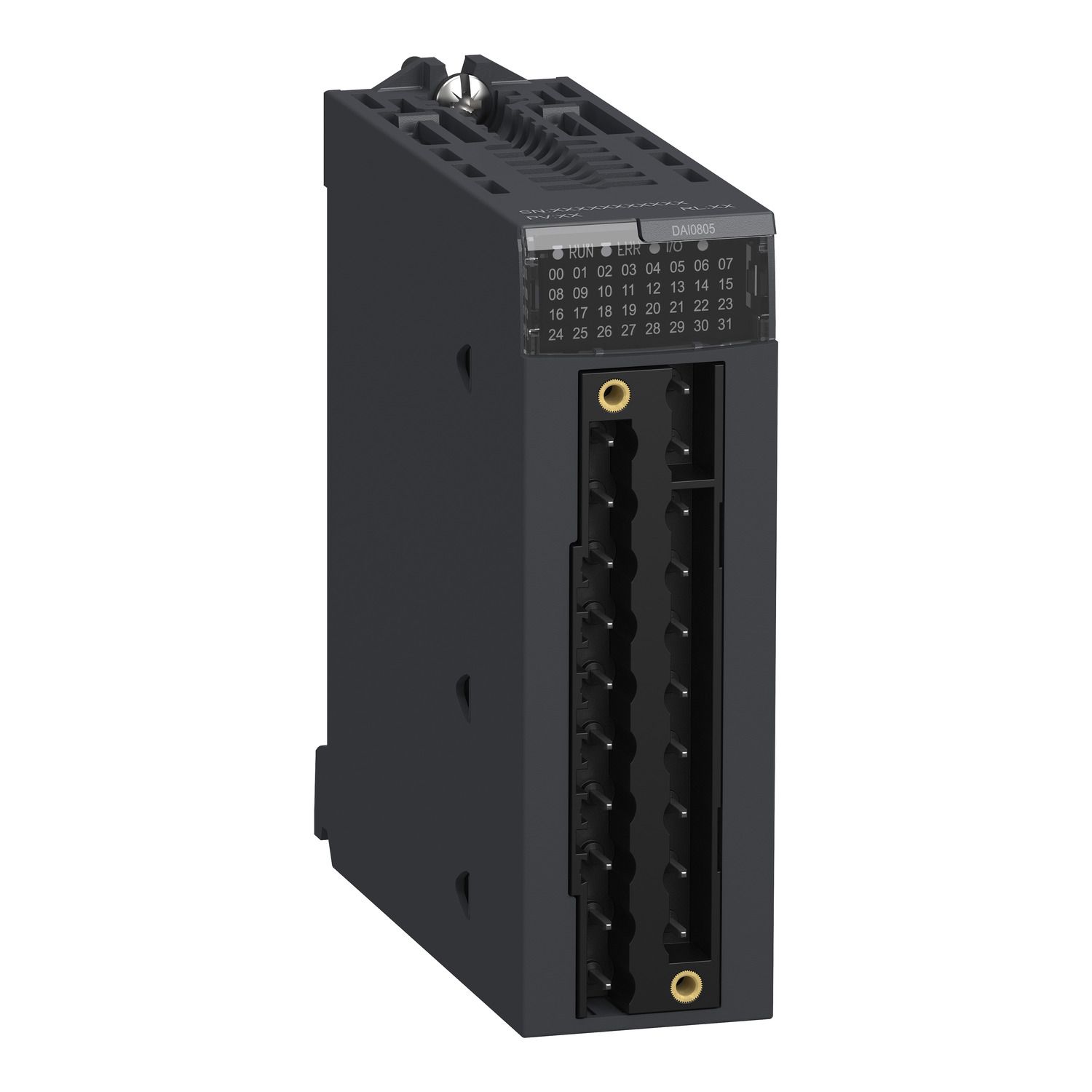

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

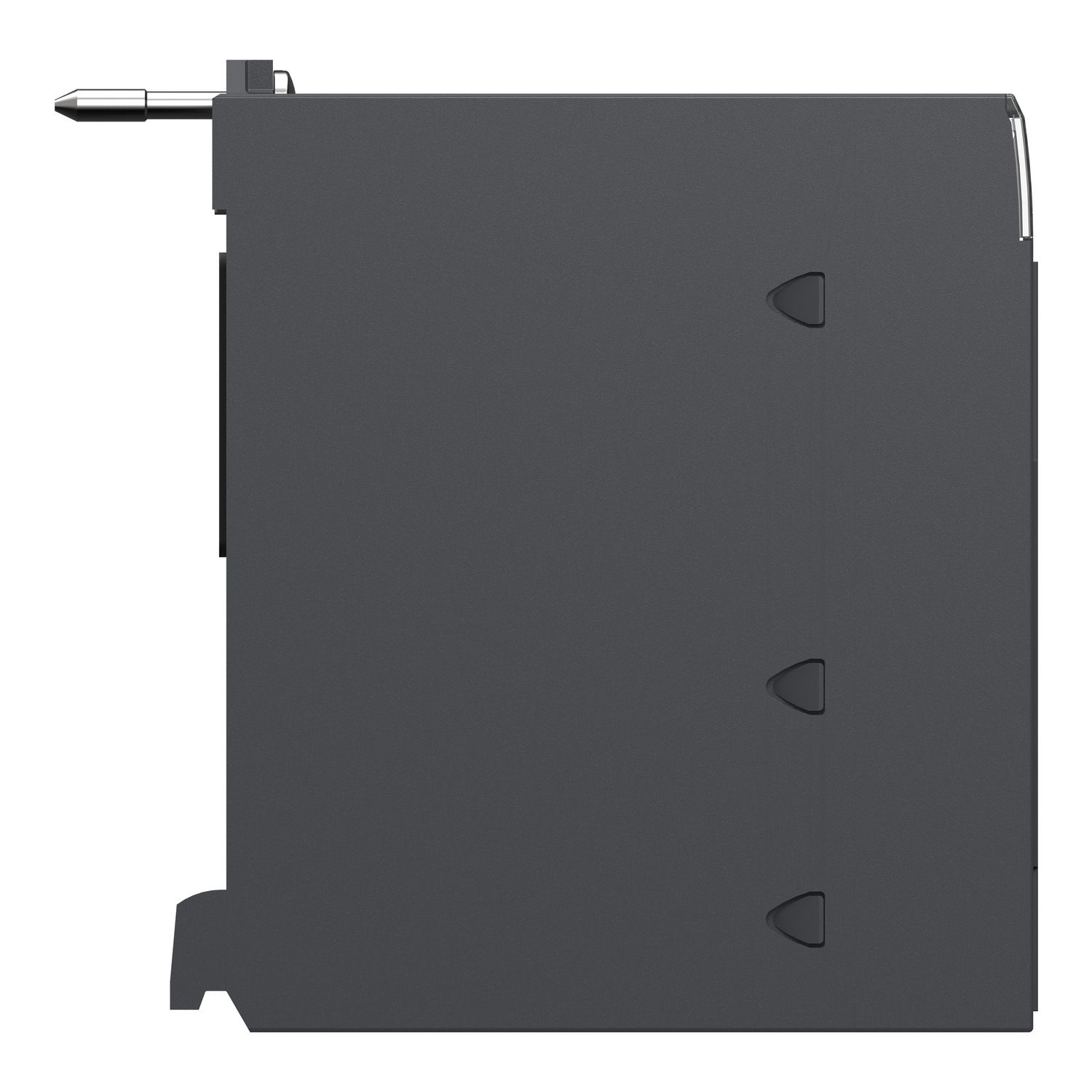

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

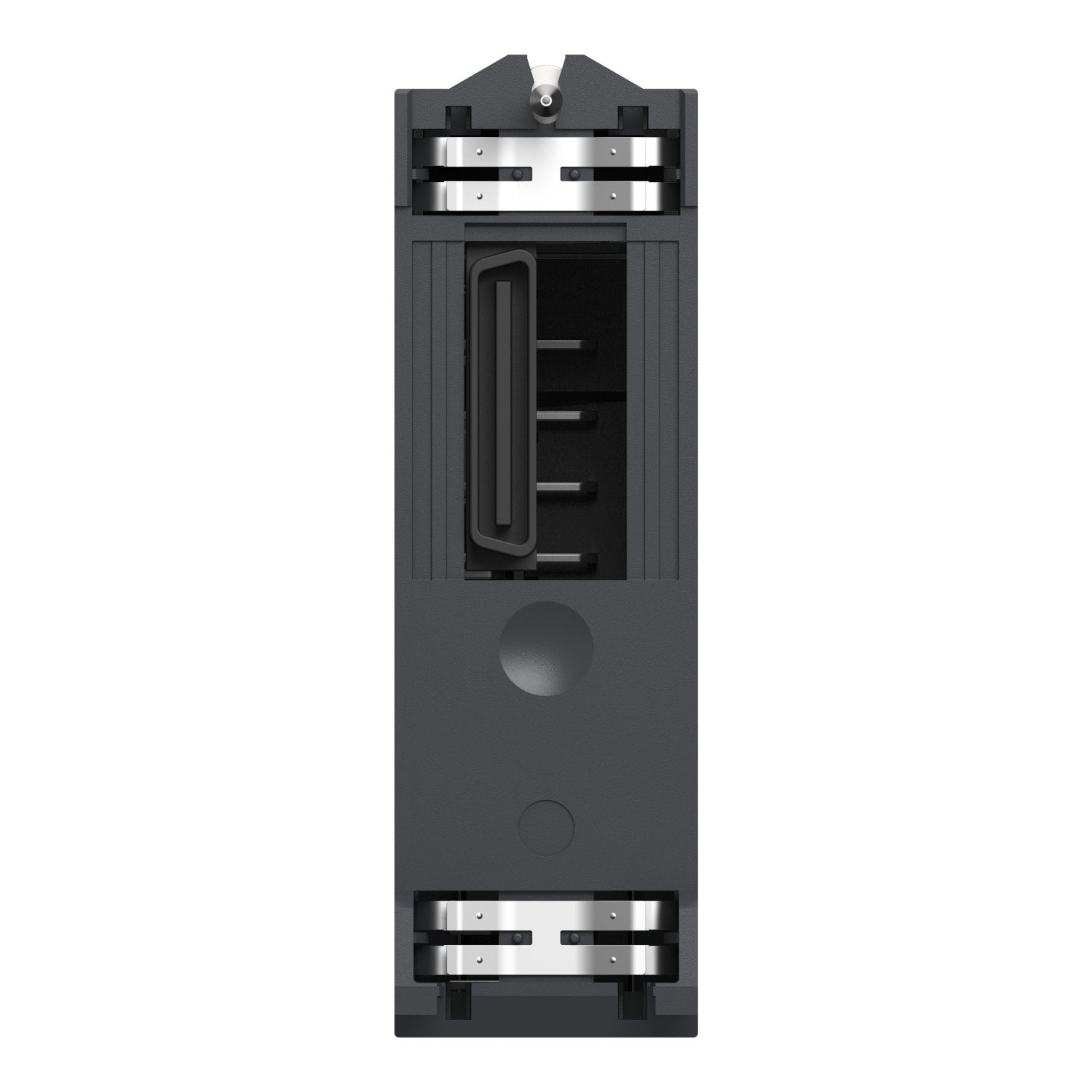

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

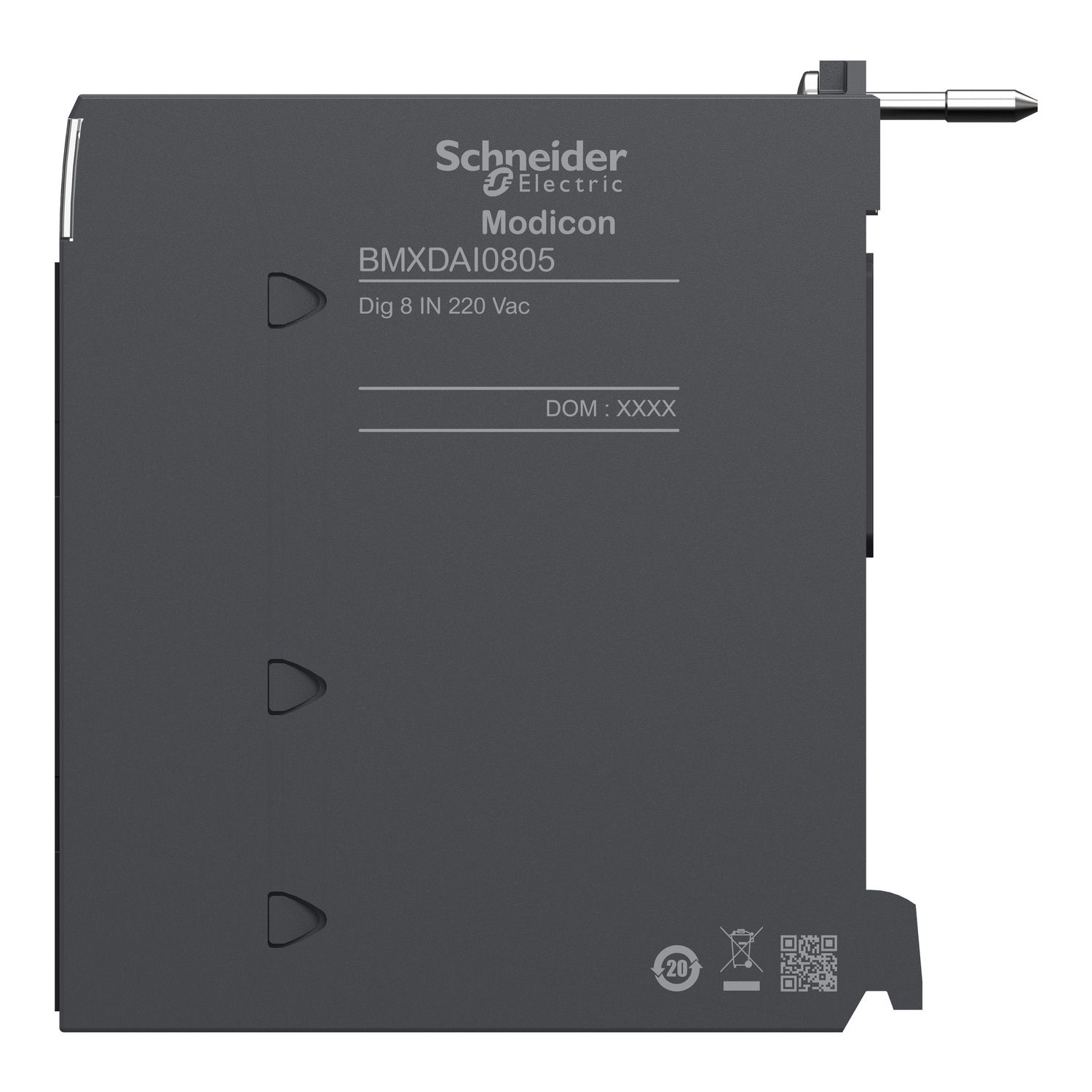

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

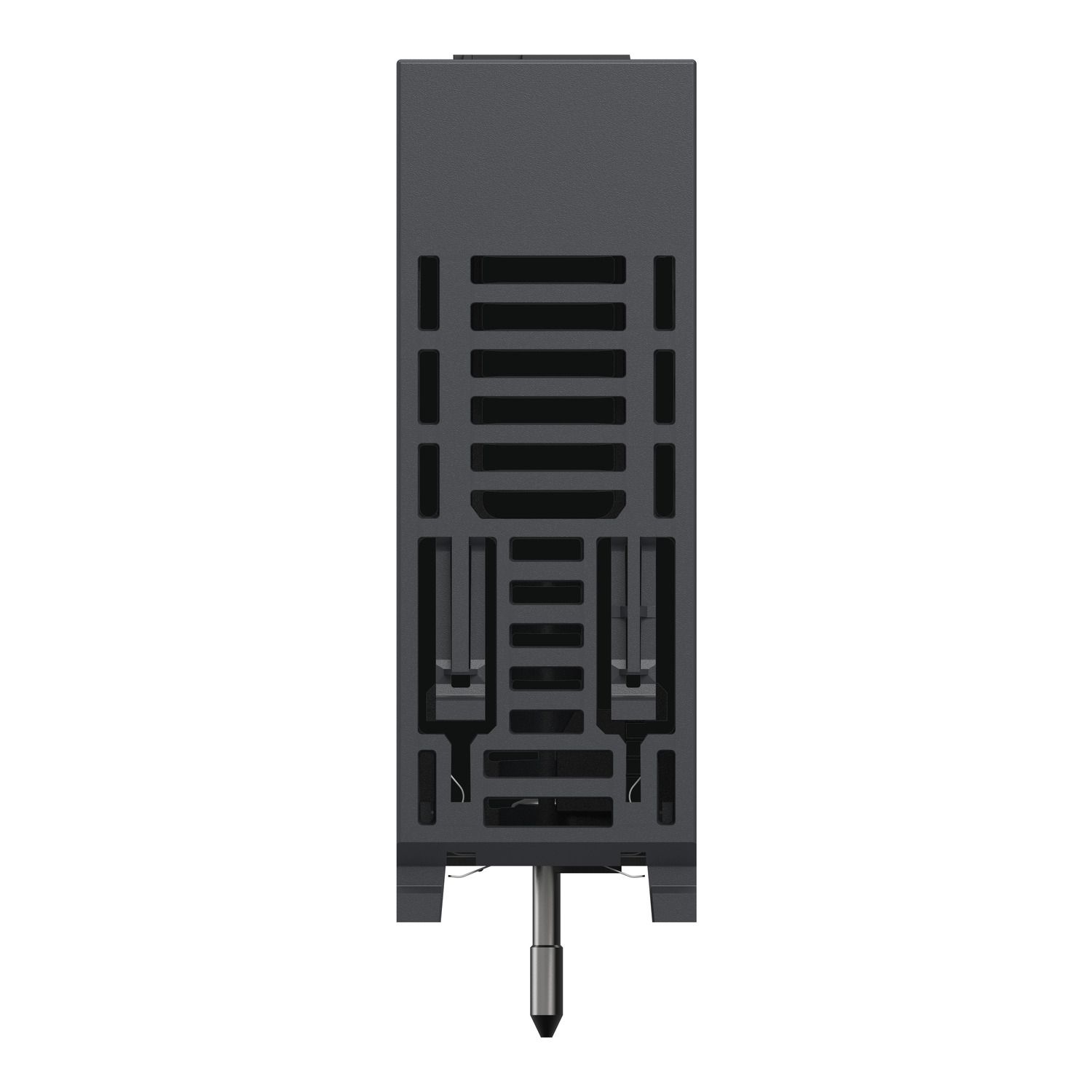

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

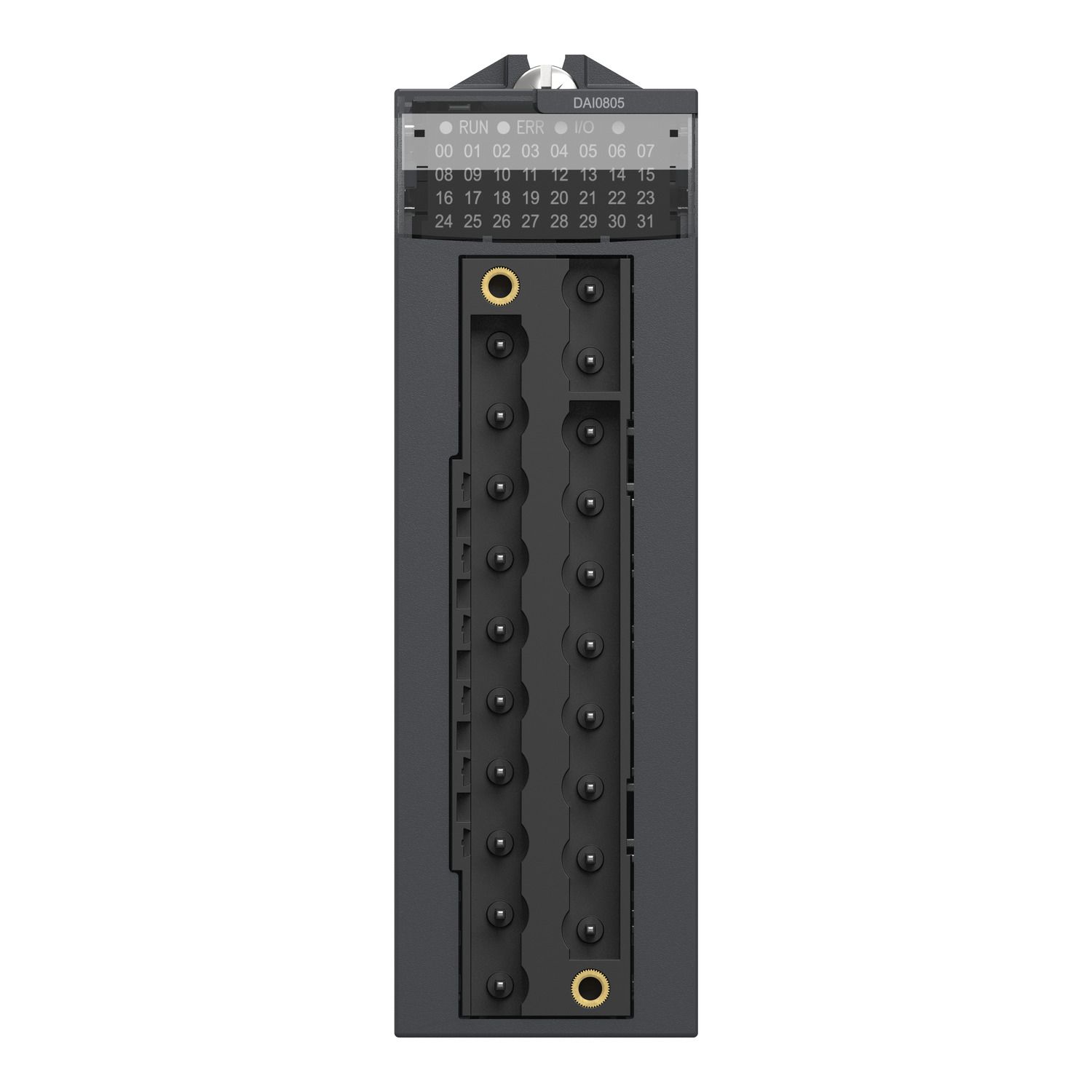

Picture of discrete input module, Modicon X80, 8 inputs, 200 to 240V AC
SKU:

BMXDAI0805

discrete input module, Modicon X80, 8 inputs, 200 to 240V AC

$839.96 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
discrete input module, Modicon X80, 8 inputs, 200 to 240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 200V AC to 240V AC, a current consumption of 76mA at 3.3V DC, 93.6mA at 24V DC and a power dissipation 4.73W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete input current 10.4 mA
Discrete input number 8
Discrete input type isolated
Input type capacitive
Product or component type discrete input module
Discrete input voltage 200...240 V AC
Range of product Modicon X80
Complementary
Input impedance 21000 Ohm
Current state 0 guaranteed <= 4 mA
Typical current consumption 93.6 mA at 24 V DC, 76 mA at 3.3 V DC
AC deactivation filtering time 20 ms
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 2, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Net weight 0.12 kg
Power dissipation in W 4.73 W
Protection type 1 external fuse per group of channel0.5 A fast blow
Current state 1 guaranteed >= 6 mA
Network frequency limits 47-63 Hz
Insulation resistance > 10 MOhm 500 V DC
Current consumption <= 154.8 mA at 24 V DC, <= 126 mA at 3.3 V DC
Voltage detection threshold < 80 V AC sensor fault, > 164 V AC sensor OK
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
AC activation filtering time 10 ms
Voltage range 170...264 V
Network frequency 50/60 Hz
MTBF reliability 1700000 H
Environment
IP degree of protection IP20
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Dielectric strength 1500 V AC at 50/60 Hz 1 min
Shock resistance 30 gn
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.800 cm
Package 1 Length 11.800 cm
Package 1 Weight 158.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.700 kg
