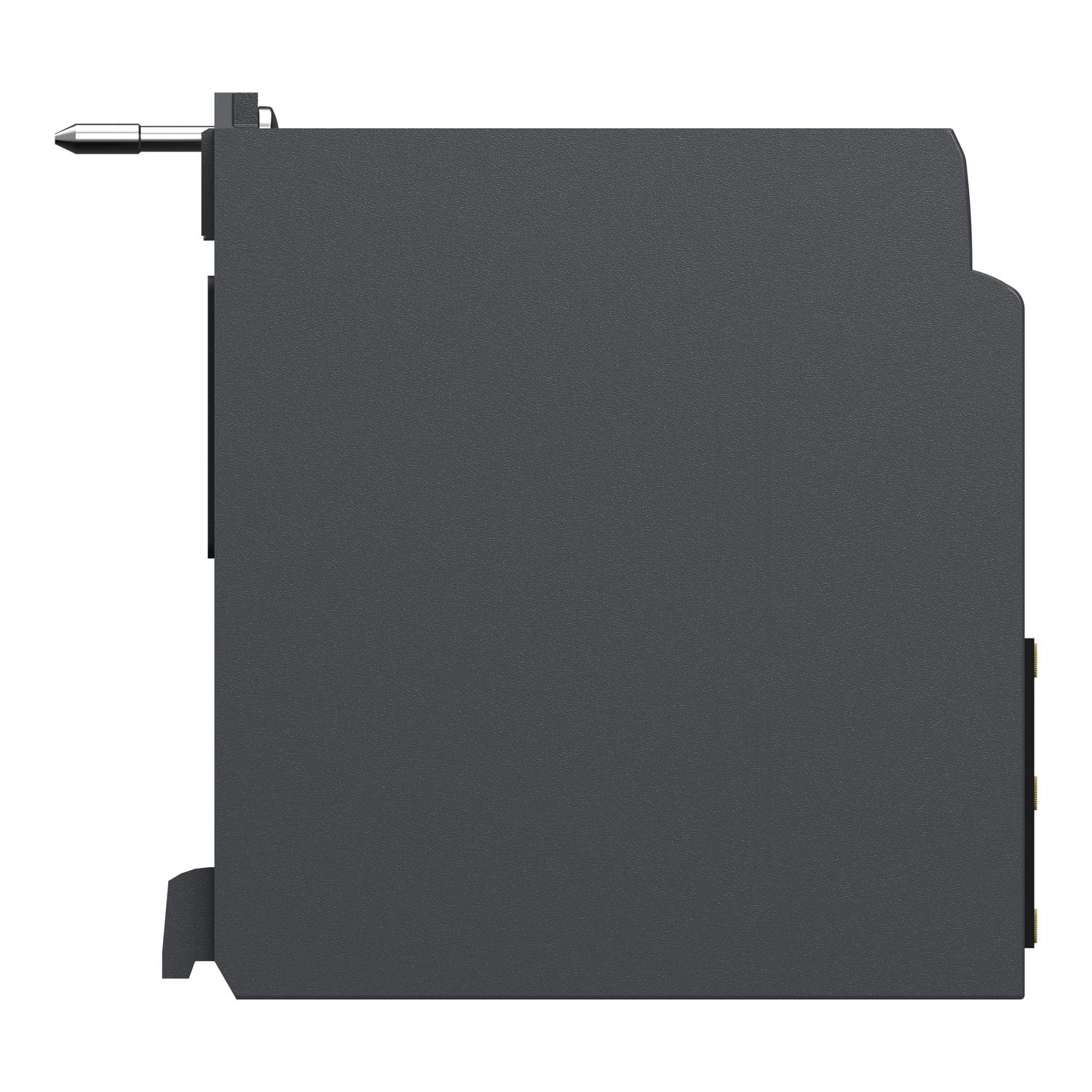

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

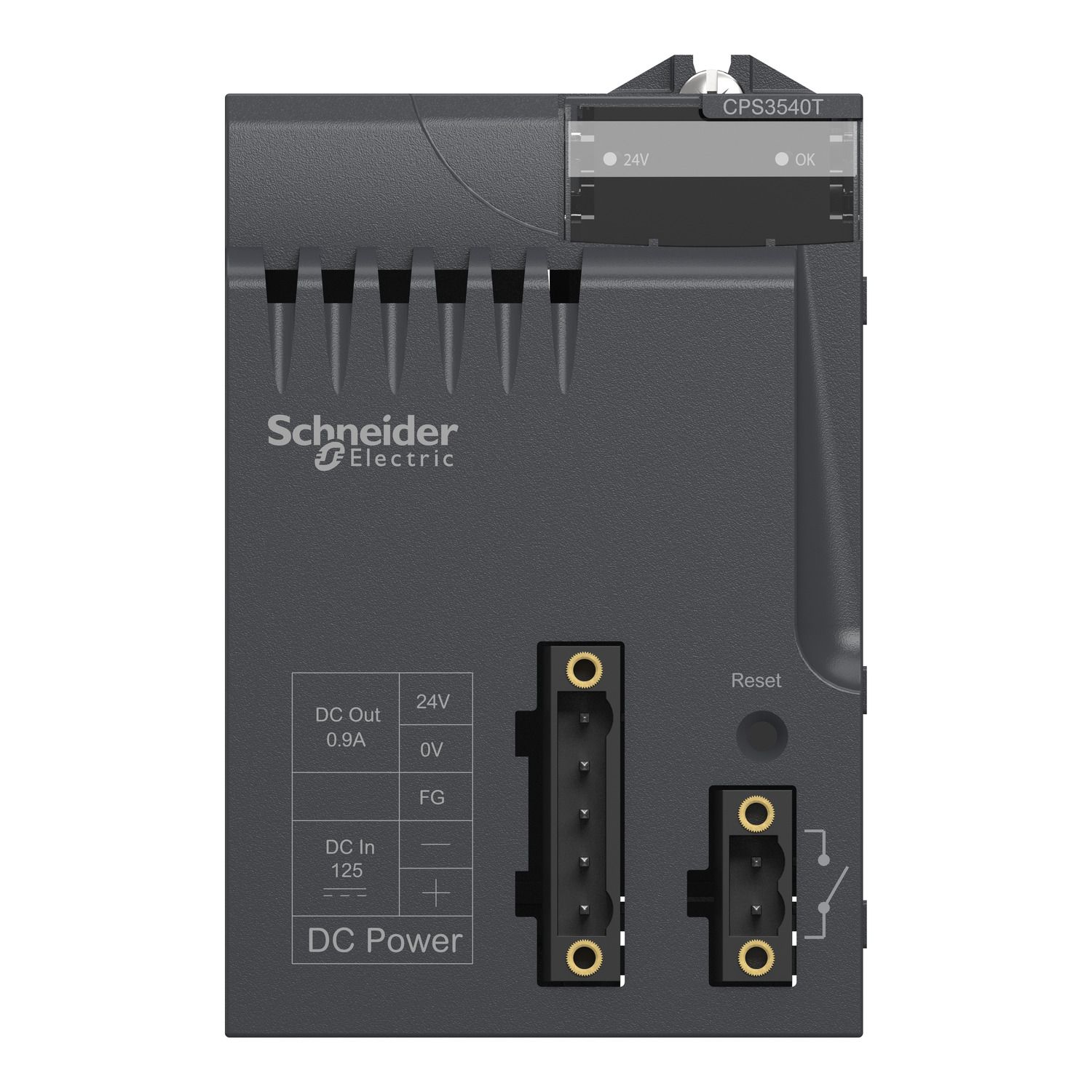

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

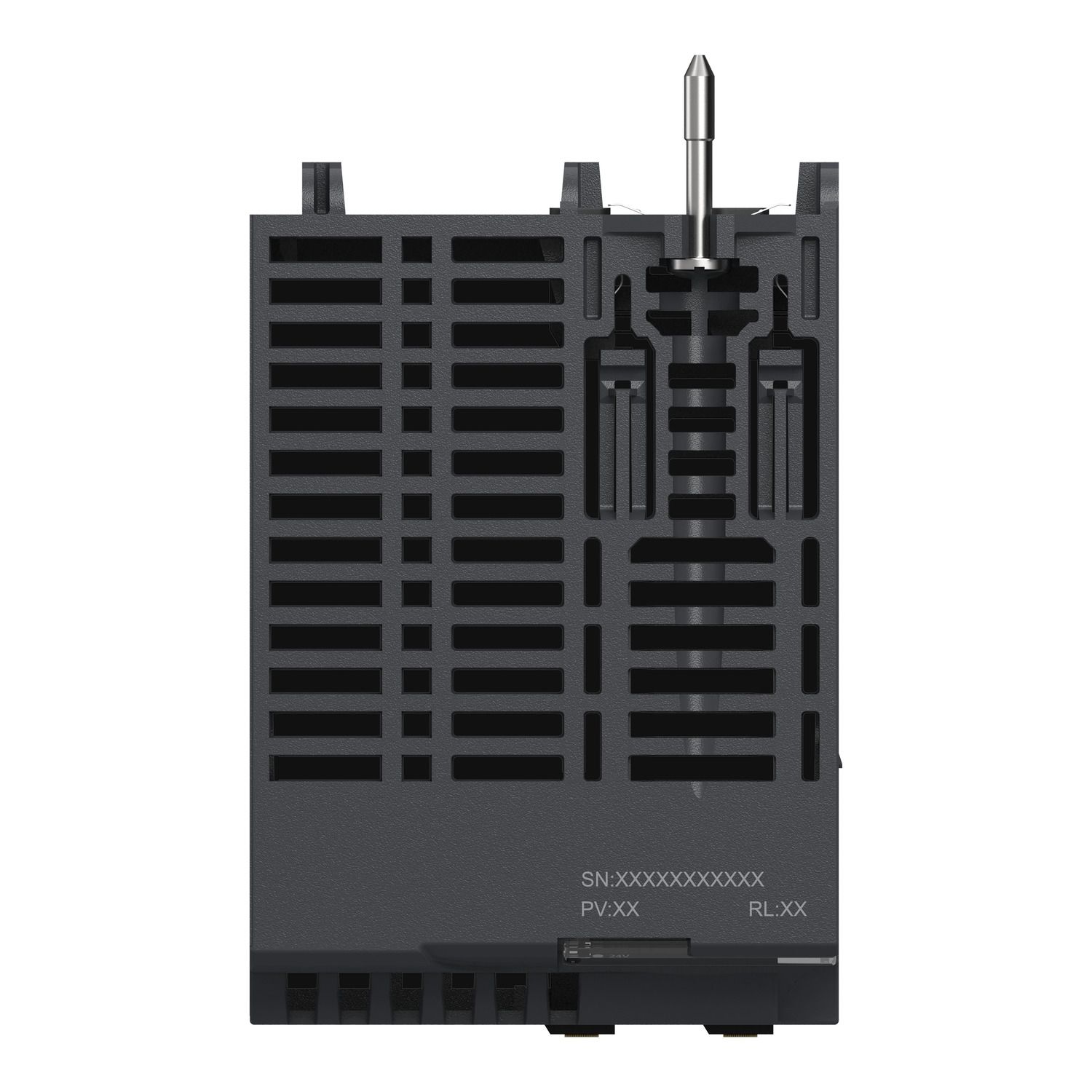

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

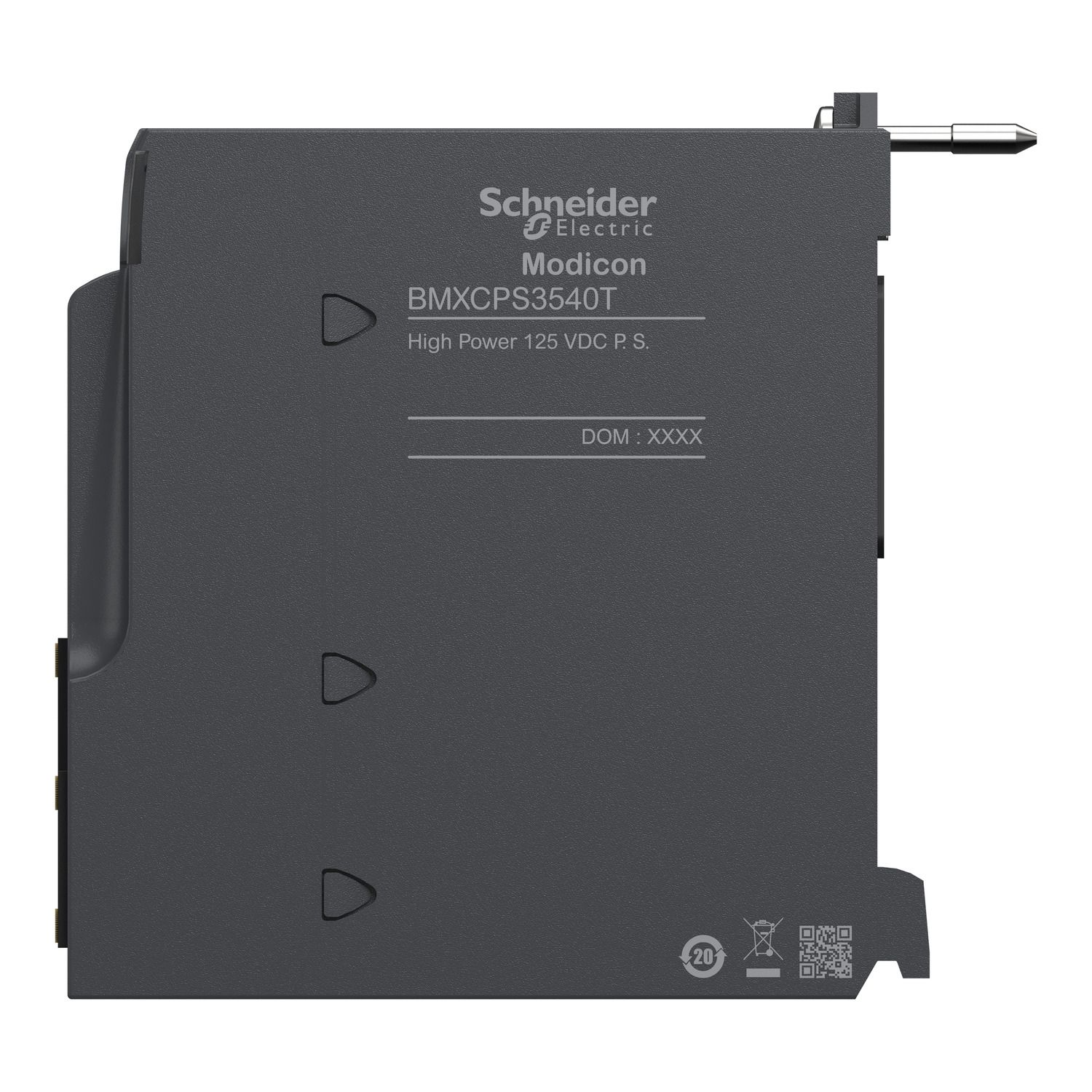

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

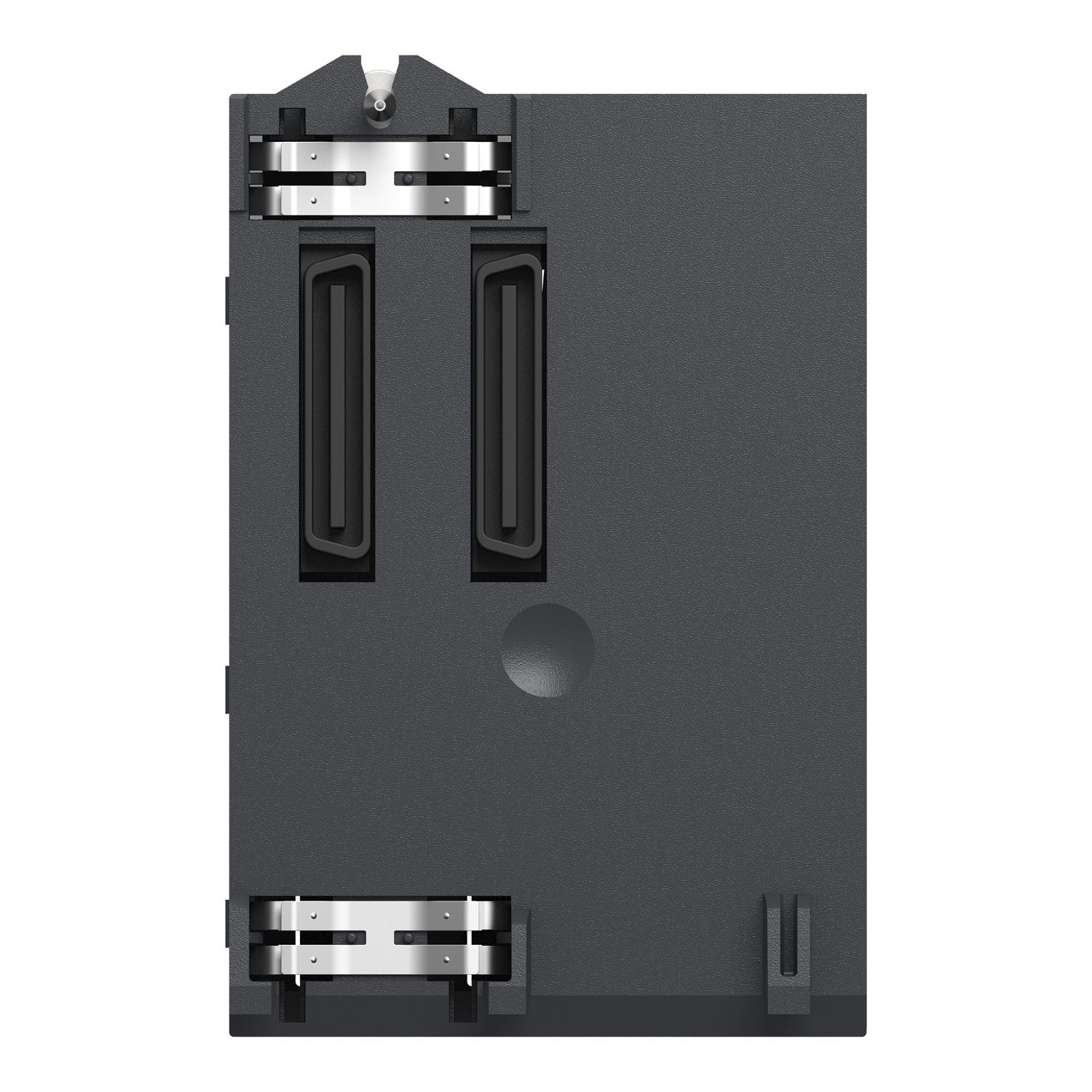

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

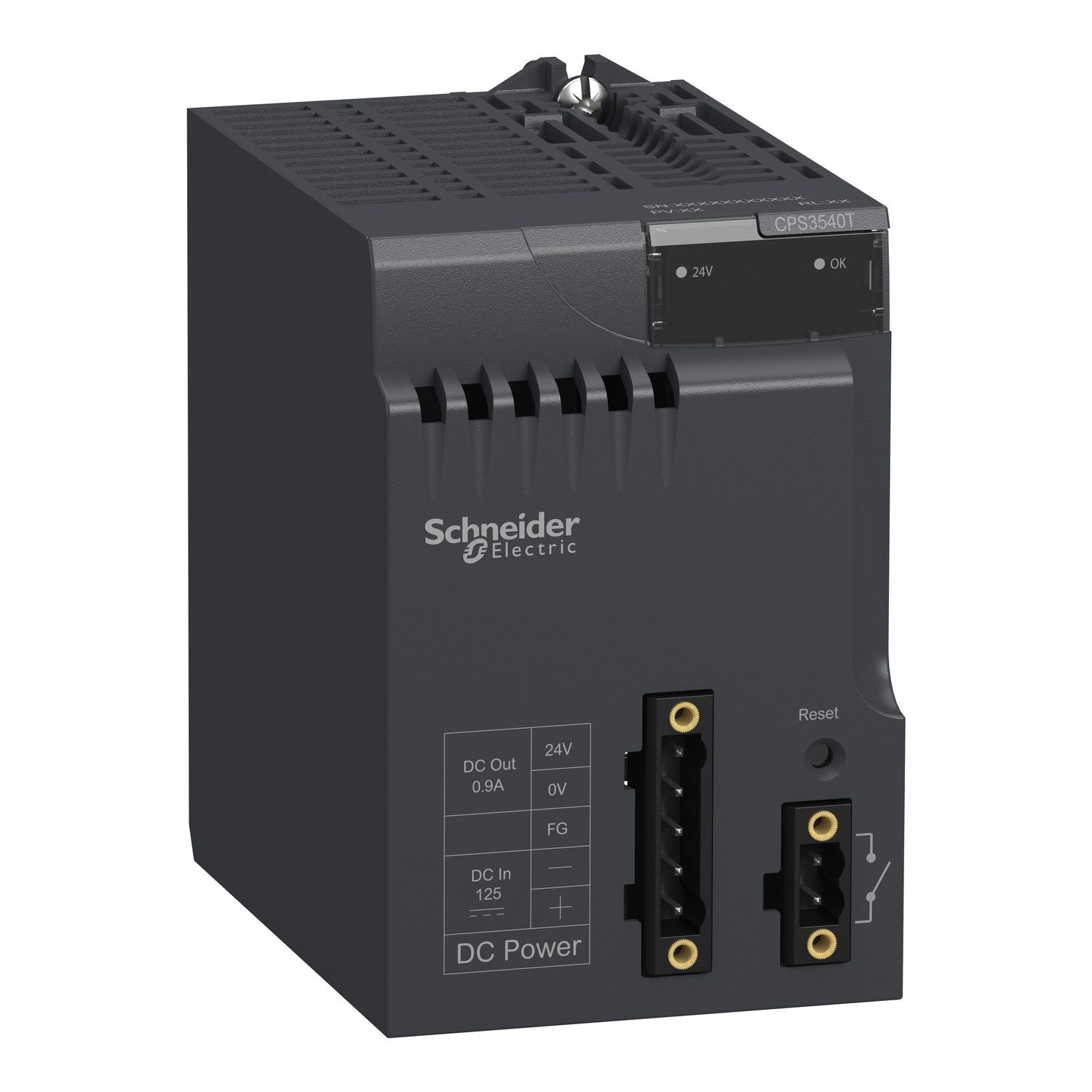

Picture of power supply module, Modicon X80, 125V DC, for extended temperature

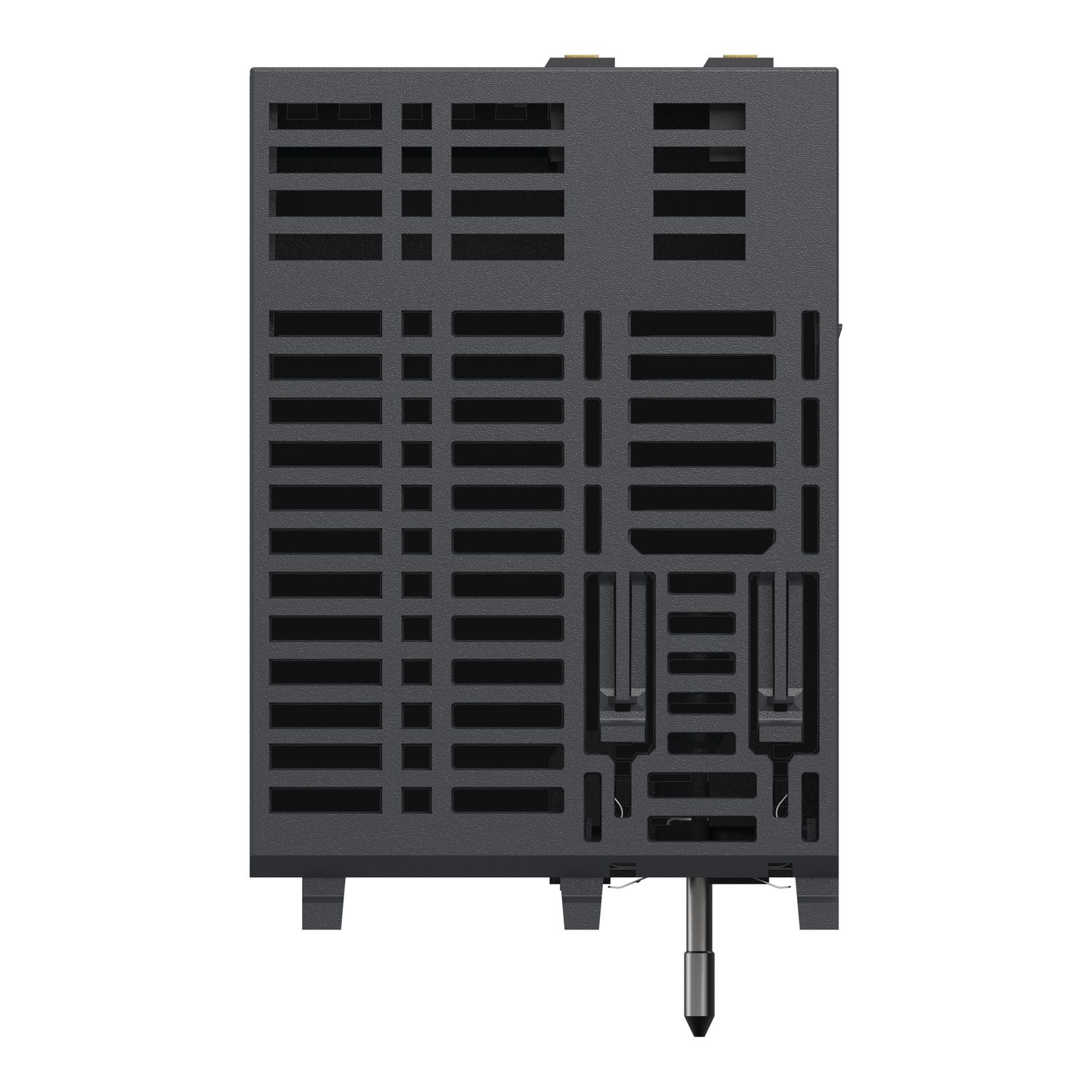

Picture of power supply module, Modicon X80, 125V DC, for extended temperature
Picture of power supply module, Modicon X80, 125V DC, for extended temperature
SKU:

BMXCPS3540T

power supply module, Modicon X80, 125V DC, for extended temperature

$3,650.79 INC GST
Available for Shipping : 21-Jan-2026
Product Selector
power supply module, Modicon X80, 125V DC, for extended temperature
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Catalog
User guide
Environmental Disclosure
CAD
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a voltage of 125V DC for extended temperature. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility not compatible with BMEXBP..02
Supply circuit type DC
Product specific application extended temperature
Secondary power 31.2 W 24 V DC I/O module power supply and processor, 15 W 3.3 V DC I/O module logic power supply
Product or component type power supply module
Range of product Modicon X80
Primary voltage 125 V
Complementary
Protection type short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit
Inrush current 30 A 125 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.36 kg
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor
Input current 350 mA 125 V
I²t on activation 2 A².s 125 V
Status LED 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK
It on activation 0.05 A.s 125 V
Primary voltage limit 100...150 V
MTBF reliability 4400000 H
Environment
Dielectric strength 500 V 24 V sensor output/ground, 2000 V primary/secondary I/O module logic power supply
IP degree of protection IP20
Protective treatment conformal coating
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Immunity to microbreaks 1 ms
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 15.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 534.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.600 kg
