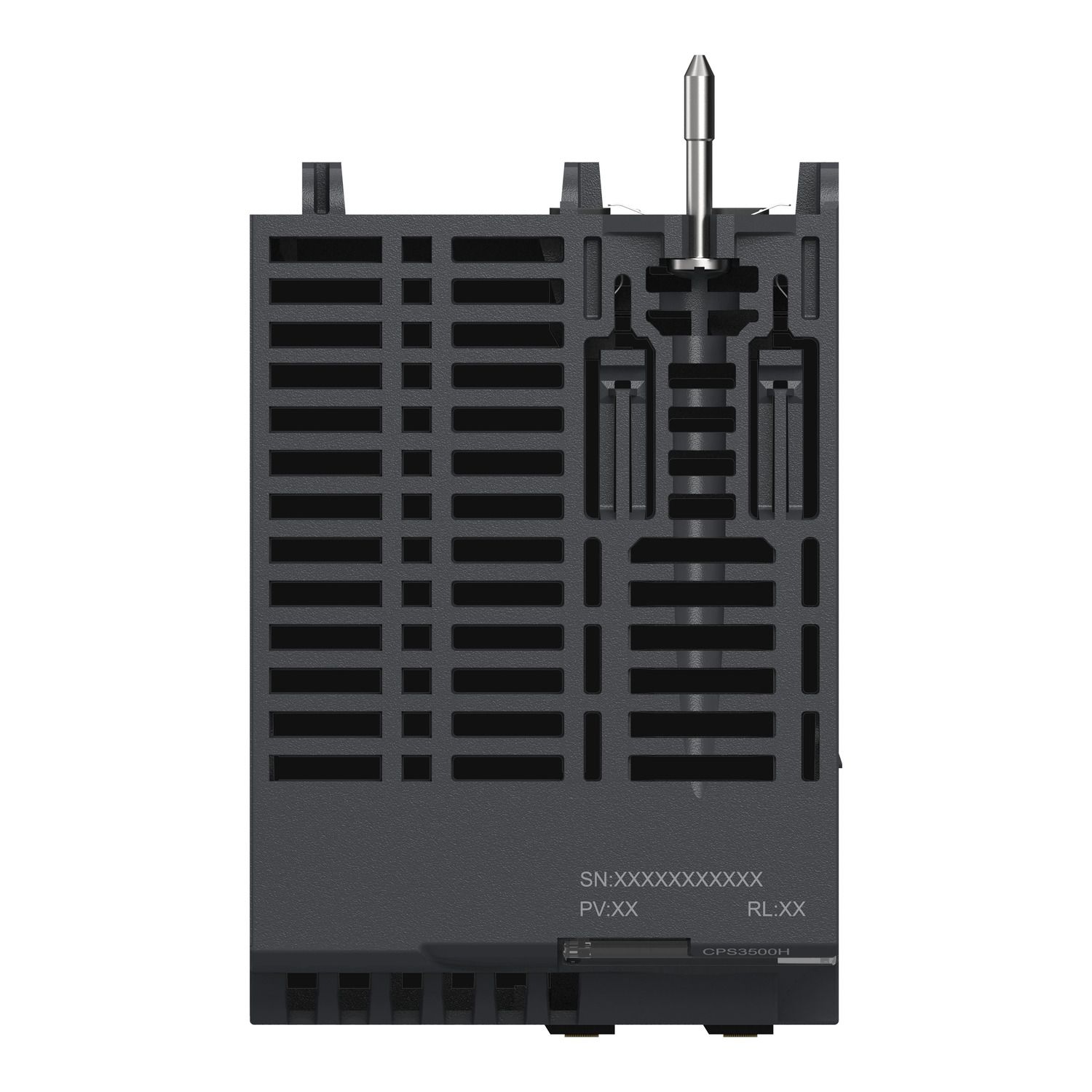

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

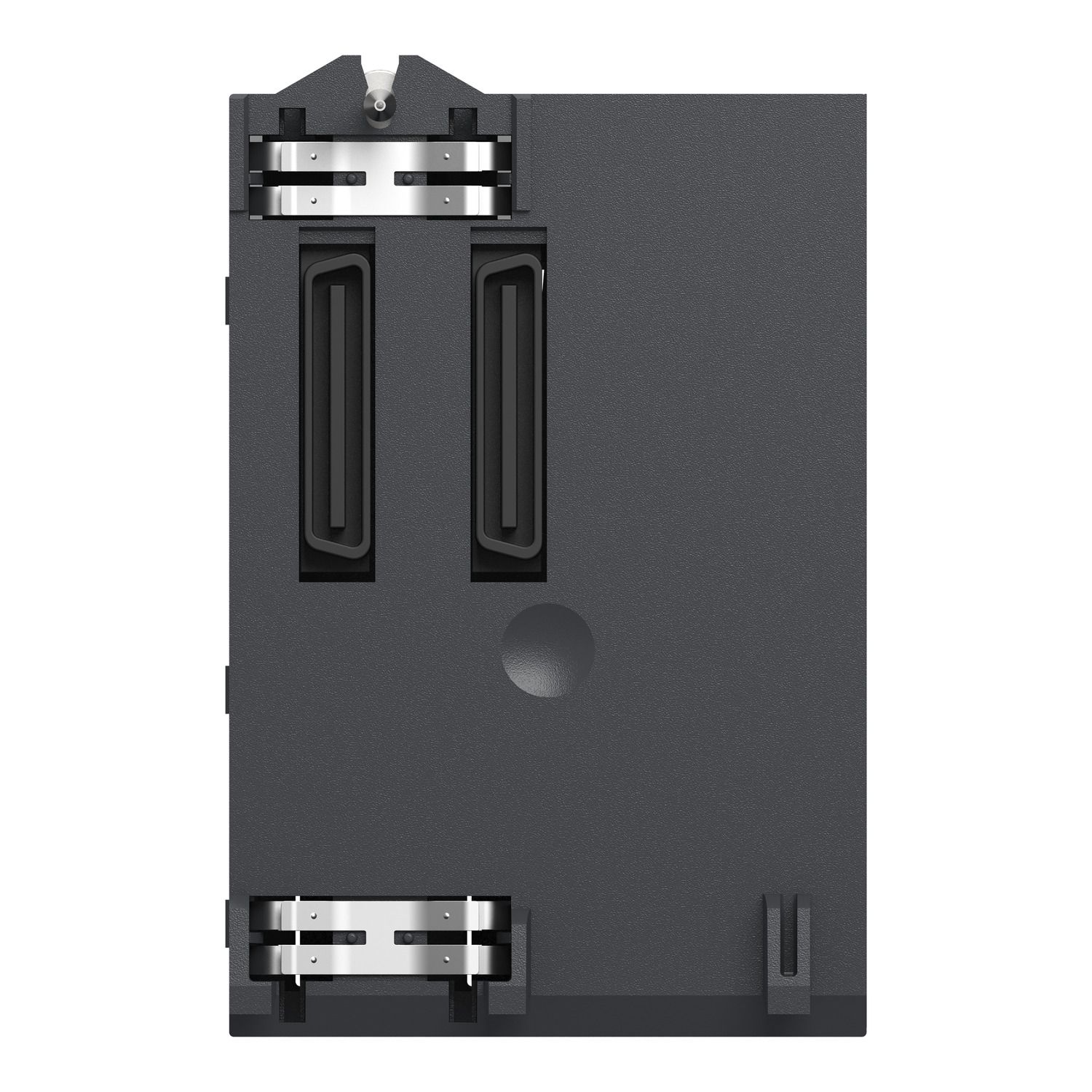

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

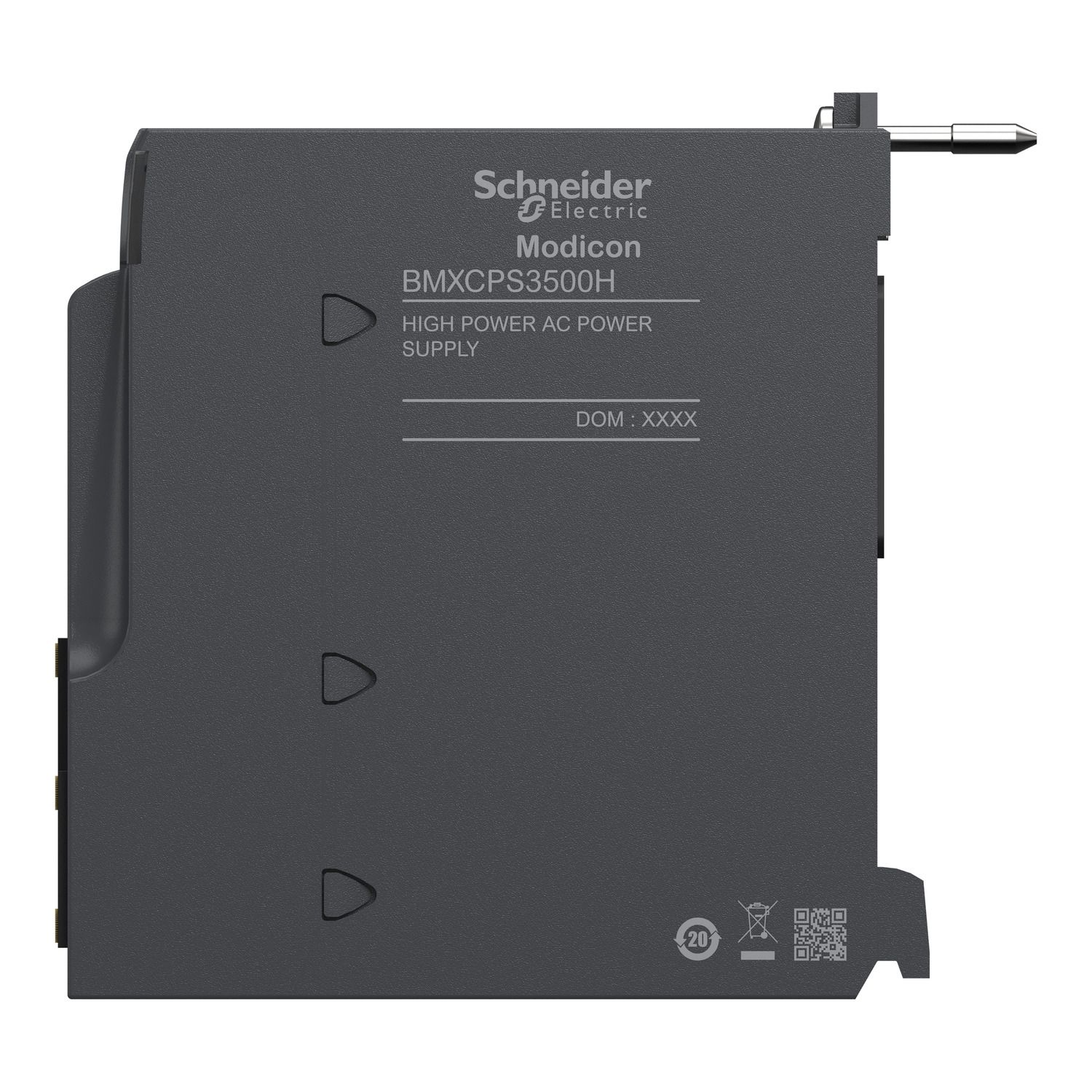

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

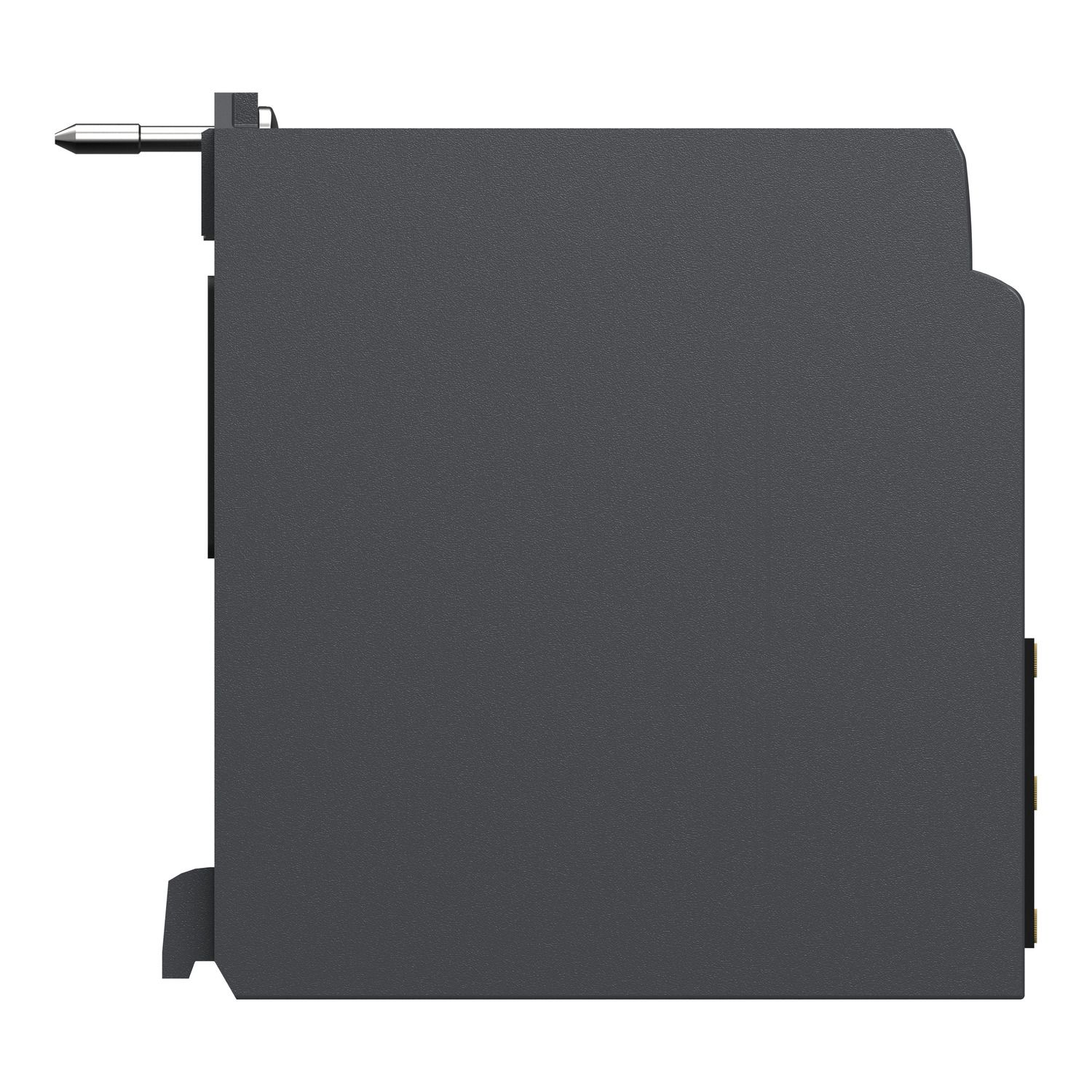

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

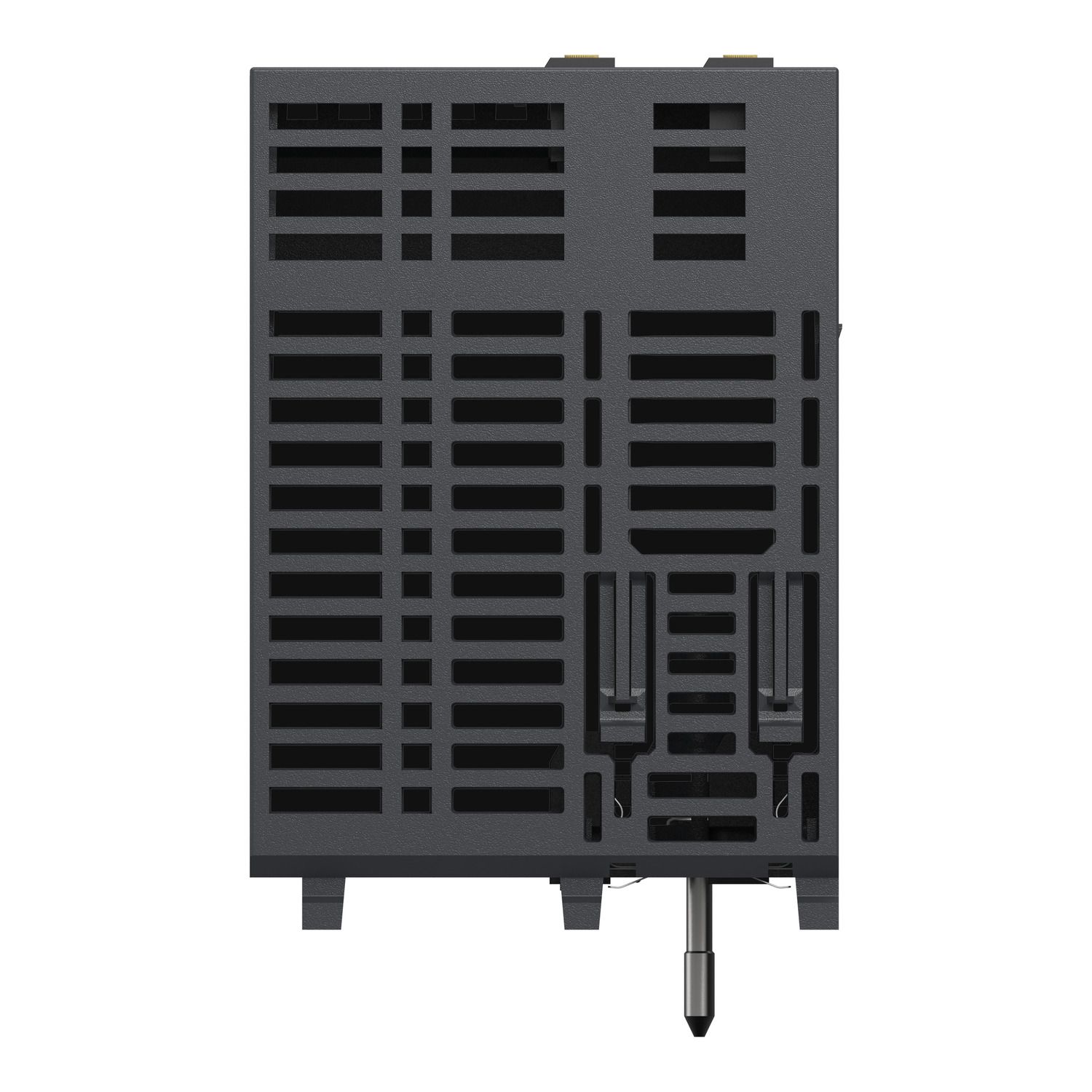

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

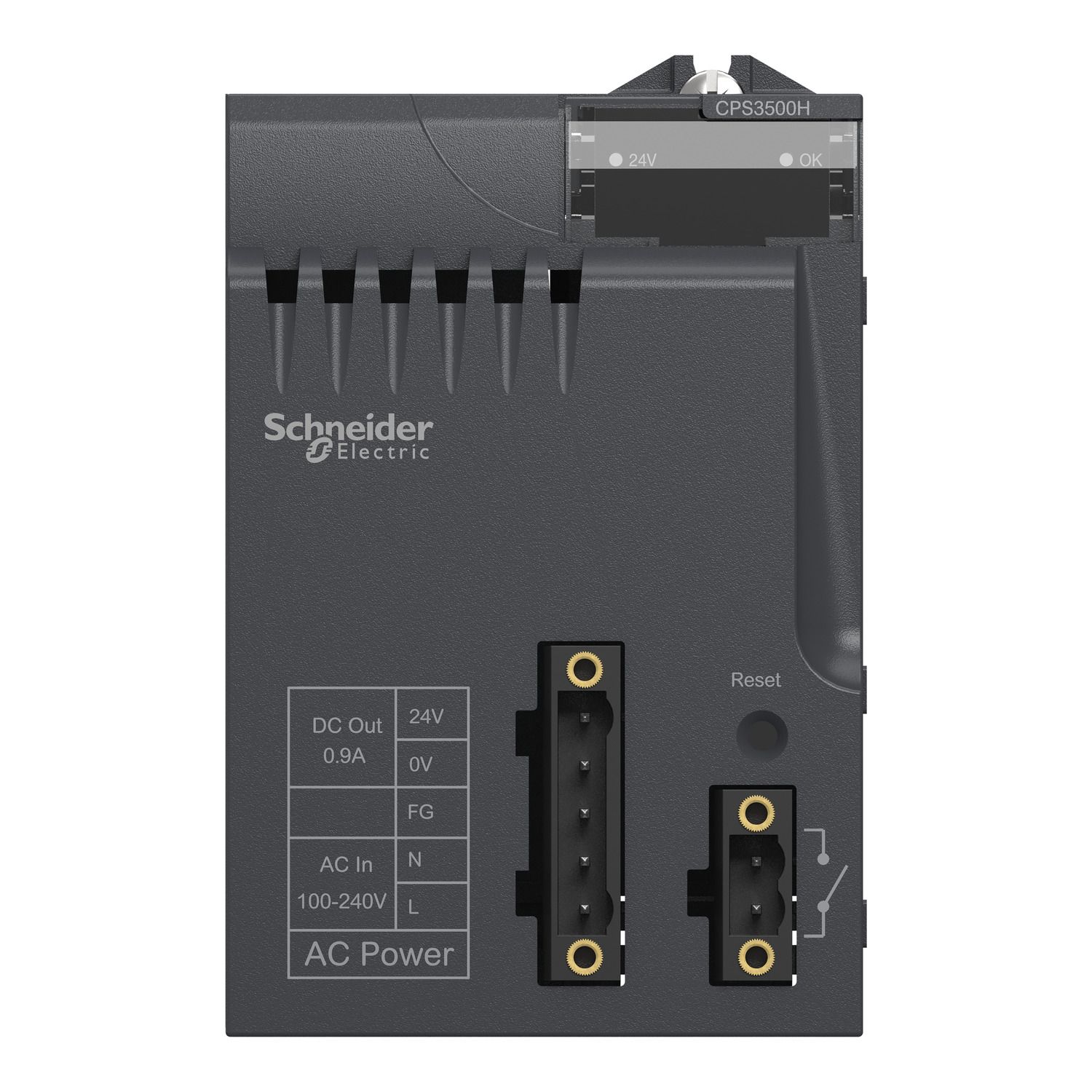

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

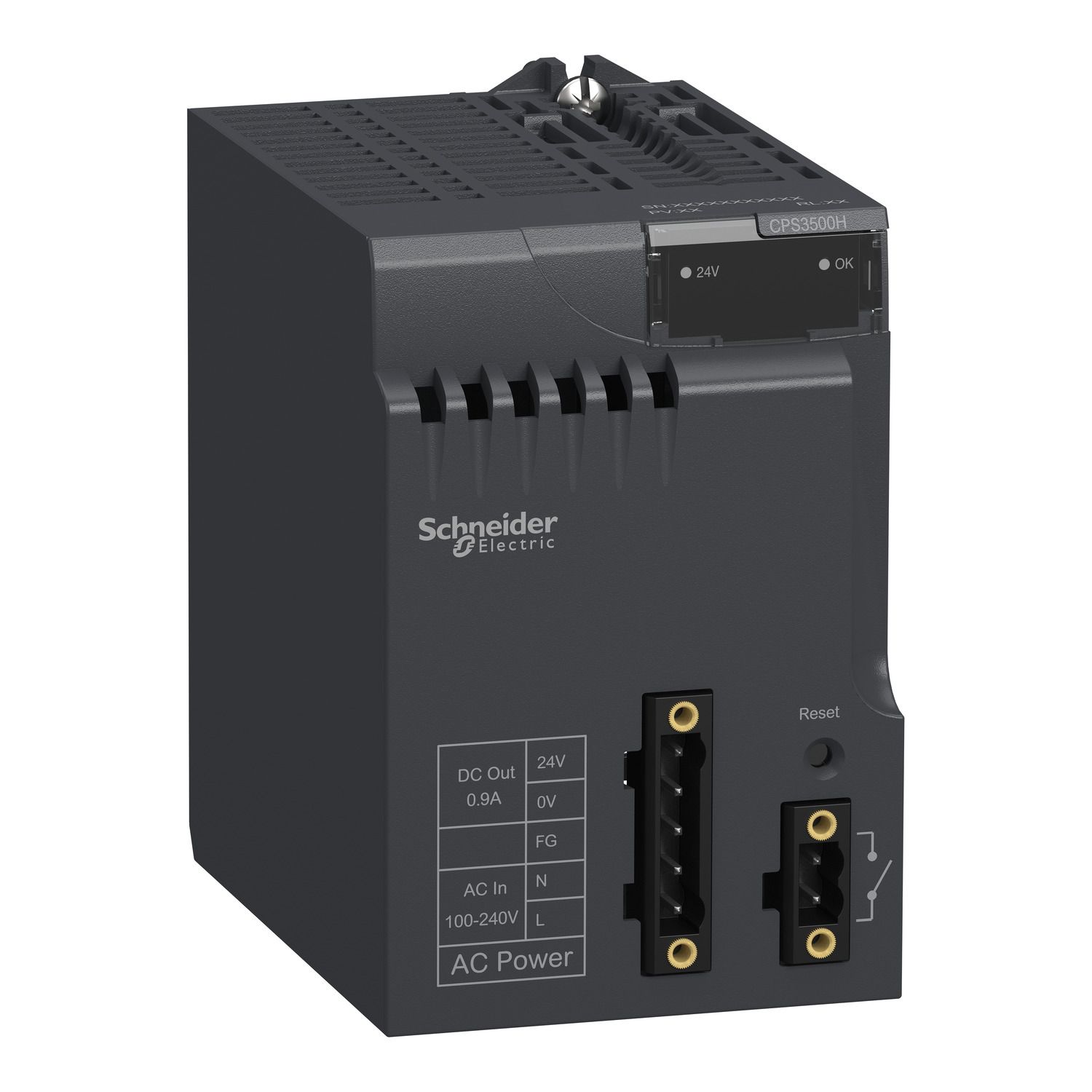

Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Picture of power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
SKU:

BMXCPS3500H

power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

$2,917.09 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Environmental Disclosure
User guide
Declaration of conformity
CAD
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility not compatible with BMEXBP..02
Secondary power 16.2 W 24 V DC at -25-70 °C sensor power supply, 21.6 W 24 V DC at 0-60 °C sensor power supply, 23.4 W 24 V DC at -25-70 °C I/O module power supply and processor, 11.3 W 3.3 V DC at -25-70 °C I/O module logic power supply, 31.2 W 24 V DC at 0-60 °C I/O module power supply and processor, 15 W 3.3 V DC at 0-60 °C I/O module logic power supply
Range of product Modicon X80
Primary voltage 100...240 V
Supply circuit type AC
Product specific application for severe environments
Product or component type power supply module
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 240 V, 30 A 120 V
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Network frequency limits 47-63 Hz
Current at secondary voltage 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor, 0.9 A 24 V DC sensor power supply
Input current 1.04 A 115 V, 0.52 A 240 V
Status LED 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK
It on activation 0.07 A.s 240 V, 0.05 A.s 120 V
Primary voltage limit 85...264 V
MTBF reliability 4300000 H
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay
Apparent power 0.12 kVA
Net weight 0.36 kg
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
I²t on activation 3 A².s 240 V, 1 A².s 120 V
Network frequency 50/60 Hz
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Product certifications Merchant Navy, EAC, RCM, CSA, UL, CE
Standards EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2
Immunity to microbreaks 1 ms
Ambient air temperature for operation -25-70 °C
Dielectric strength 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 15.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 540.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.226 kg
