SKU:

BMXCPS3500

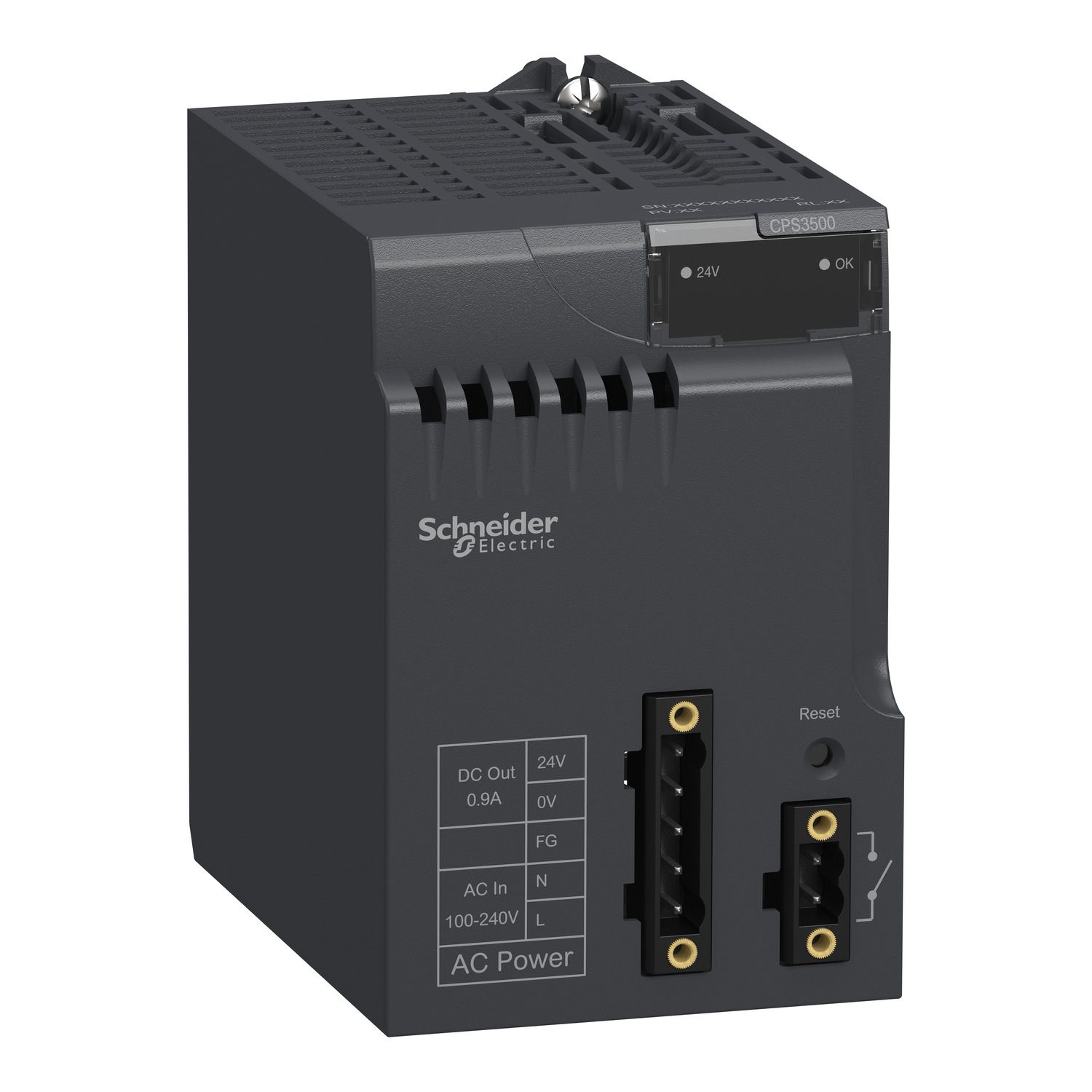

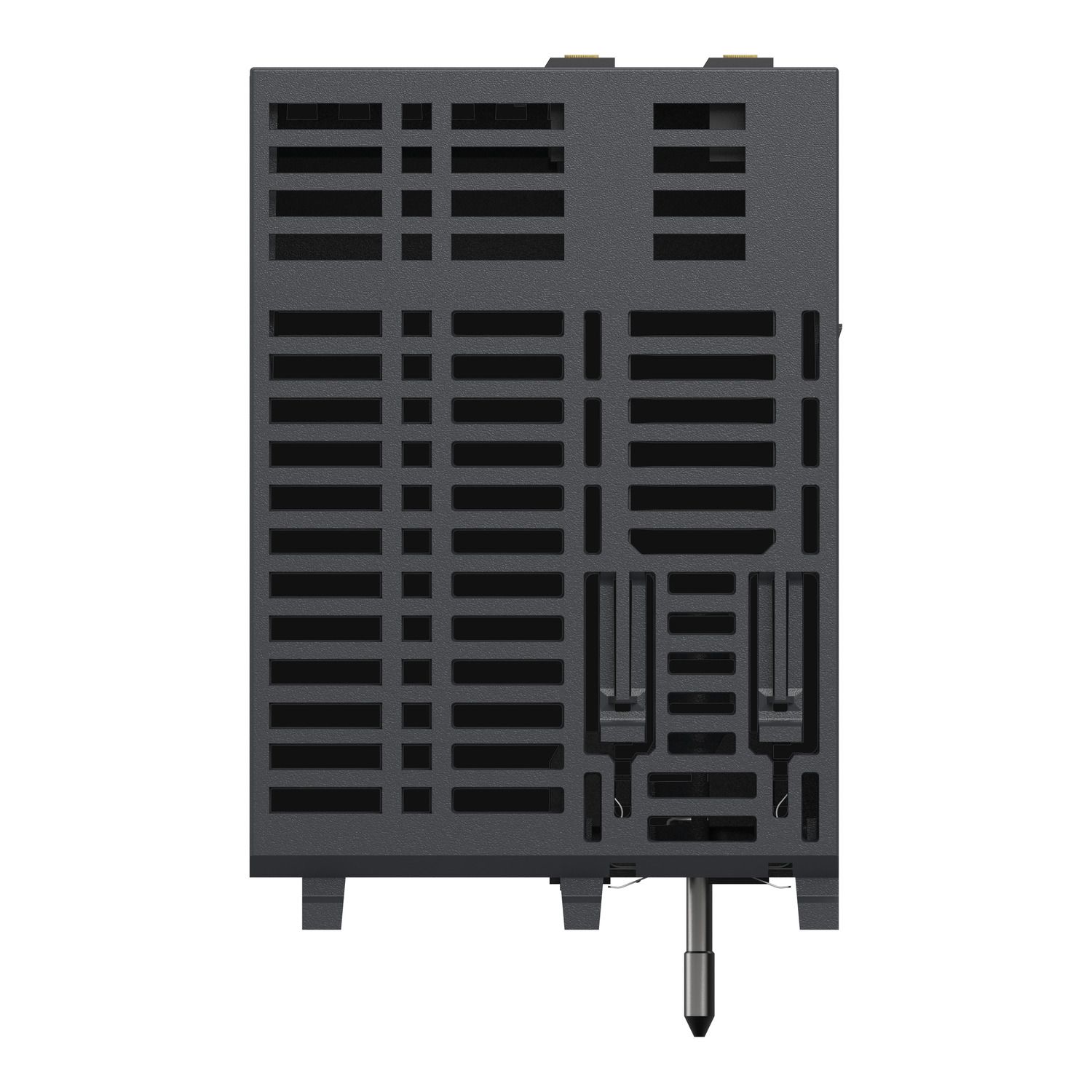

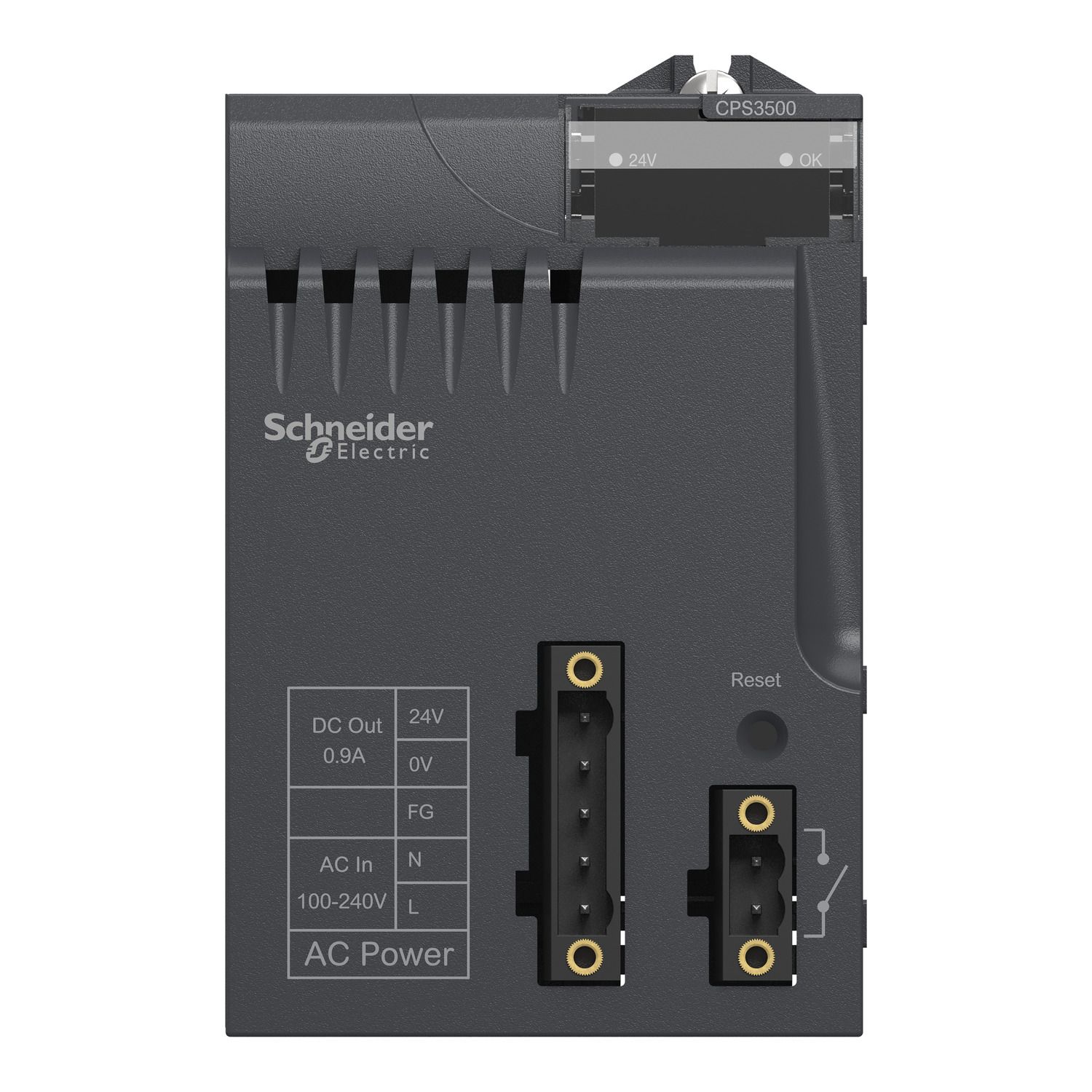

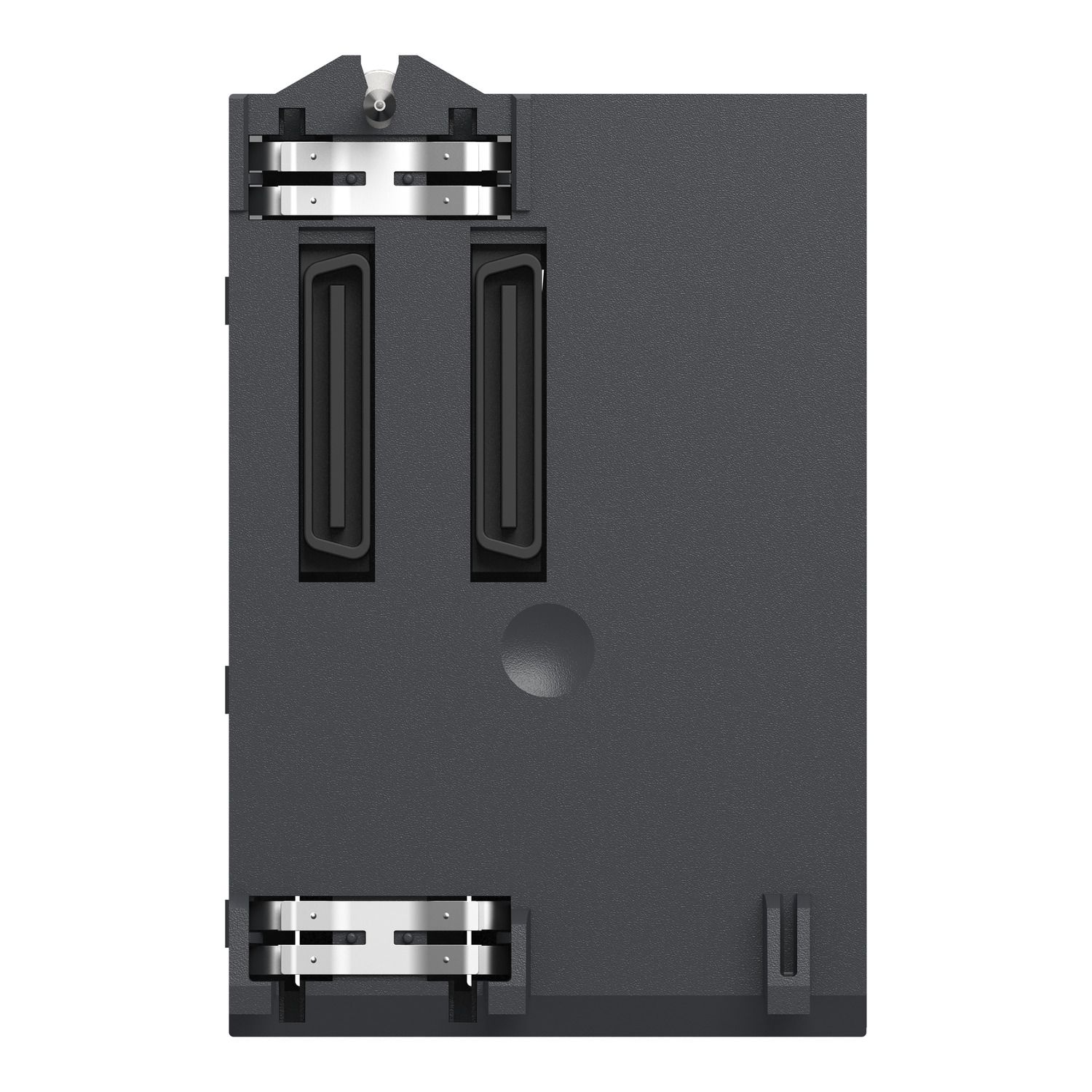

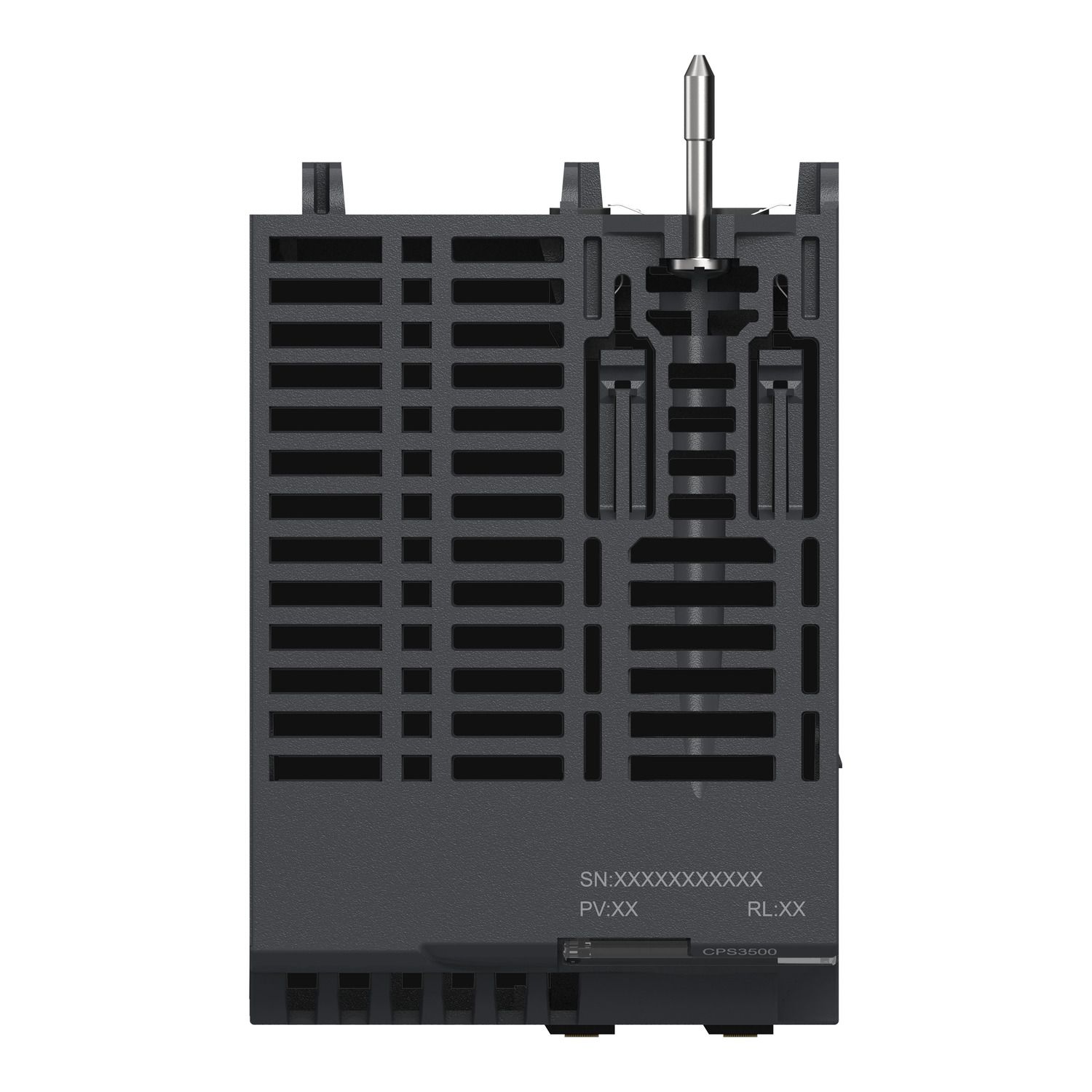

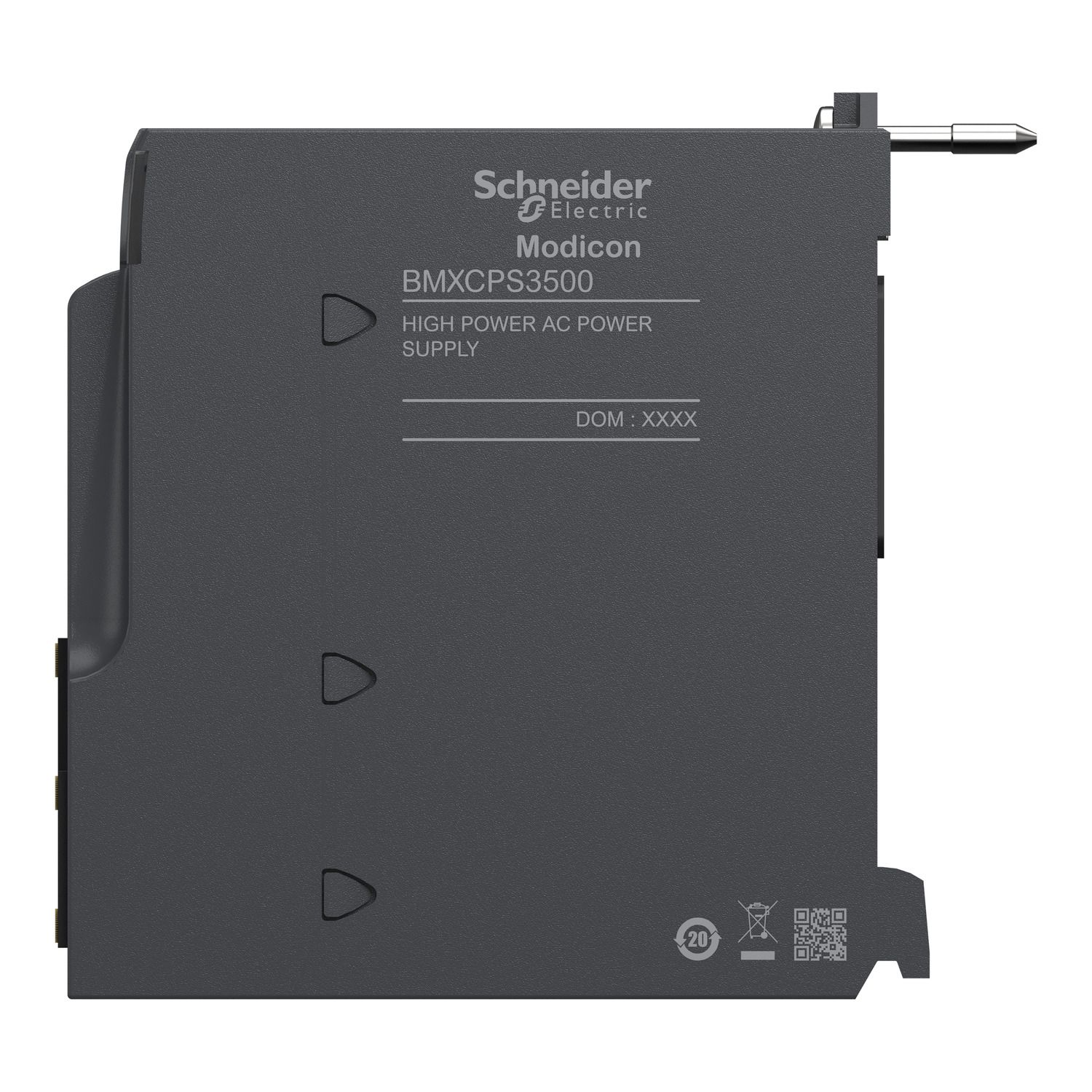

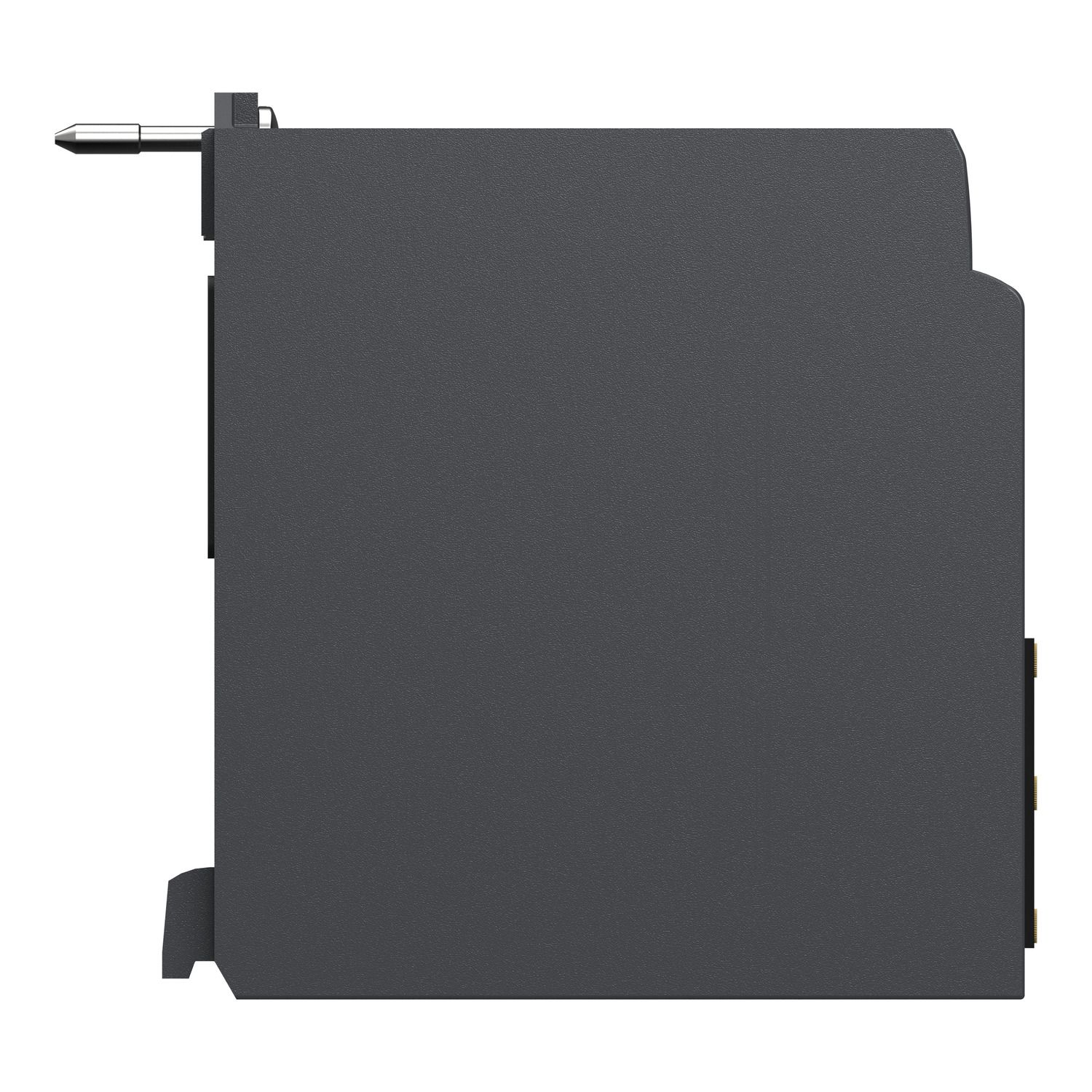

power supply module, Modicon X80, 100 to 240V AC, 36W

$2,110.02 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
power supply module, Modicon X80, 100 to 240V AC, 36W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Environmental Disclosure
CAD
User guide
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Product compatibility not compatible with BMEXBP..02
Supply circuit type AC
Secondary power 21.6 W 24 V DC sensor power supply, 31.2 W 24 V DC I/O module power supply and processor, 15 W 3.3 V DC I/O module logic power supply
Product or component type power supply module
Range of product Modicon X80
Primary voltage 100...240 V
Complementary
Protection type short-circuit protection for secondary circuit, overvoltage protection for secondary circuit, overload protection for secondary circuit, internal fuse not accessible for primary circuit
Inrush current 60 A 240 V, 30 A 120 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor, 1 connector 2 pin(s)alarm relay
Apparent power 0.12 kVA
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.36 kg
Network frequency limits 47-63 Hz
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Current at secondary voltage 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor, 0.9 A 24 V DC sensor power supply
Input current 1.04 A 115 V, 0.52 A 240 V
I²t on activation 3 A².s 240 V, 1 A².s 120 V
Status LED 1 LED (green) sensor voltage, 1 LED (green) rack voltage OK
It on activation 0.07 A.s 240 V, 0.05 A.s 120 V
Primary voltage limit 85...264 V
Network frequency 50/60 Hz
MTBF reliability 4300000 H
Environment
Dielectric strength 500 V 24 V sensor output/ground, 1500 V primary/ground, 2300 V primary/secondary sensor power supply, 1500 V primary/secondary I/O module power supply and processor, 1500 V primary/secondary I/O module logic power supply
IP degree of protection IP20
Protective treatment TC
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Shock resistance 30 gn
Immunity to microbreaks 1 ms
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 15.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 530.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.520 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 41.000 kg
