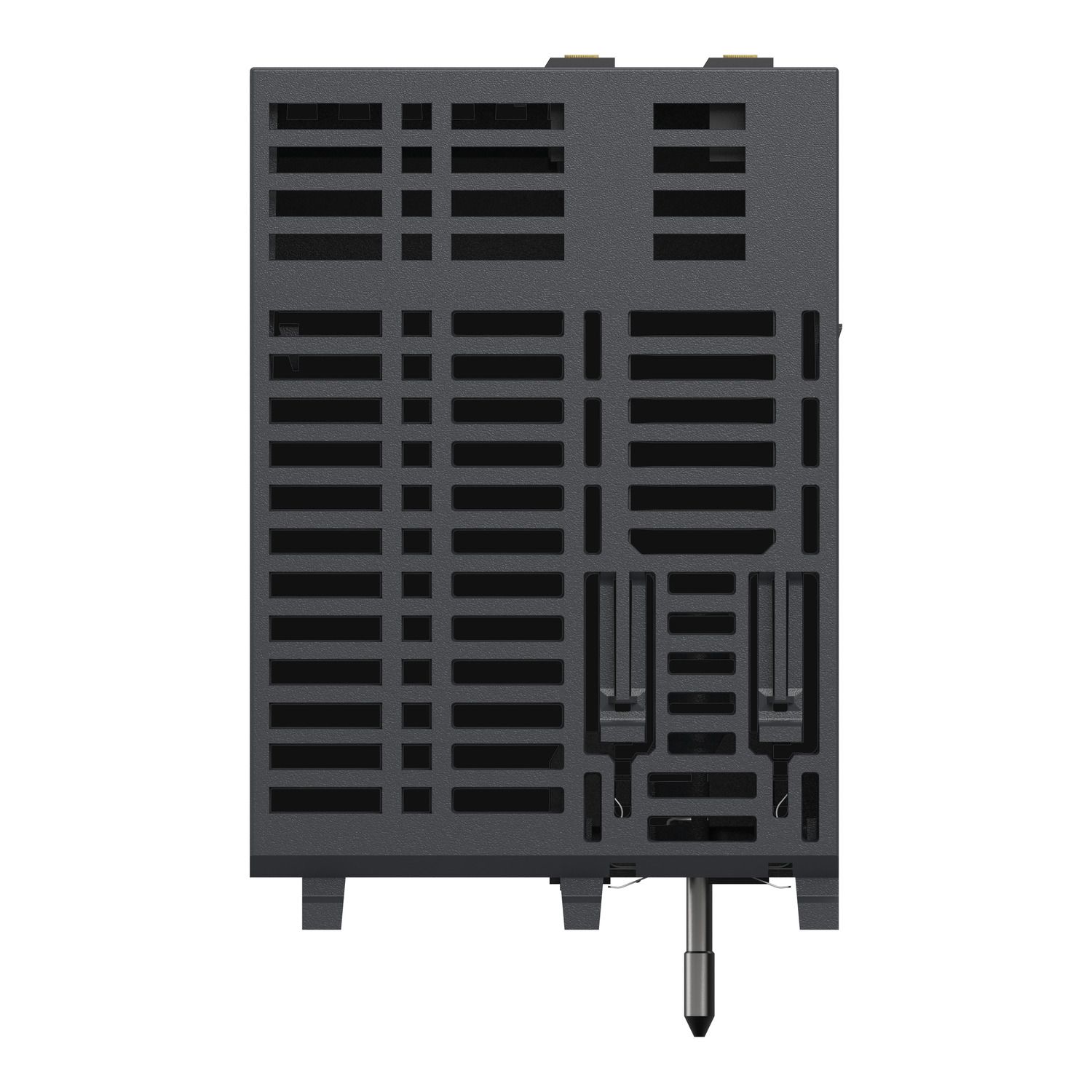

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

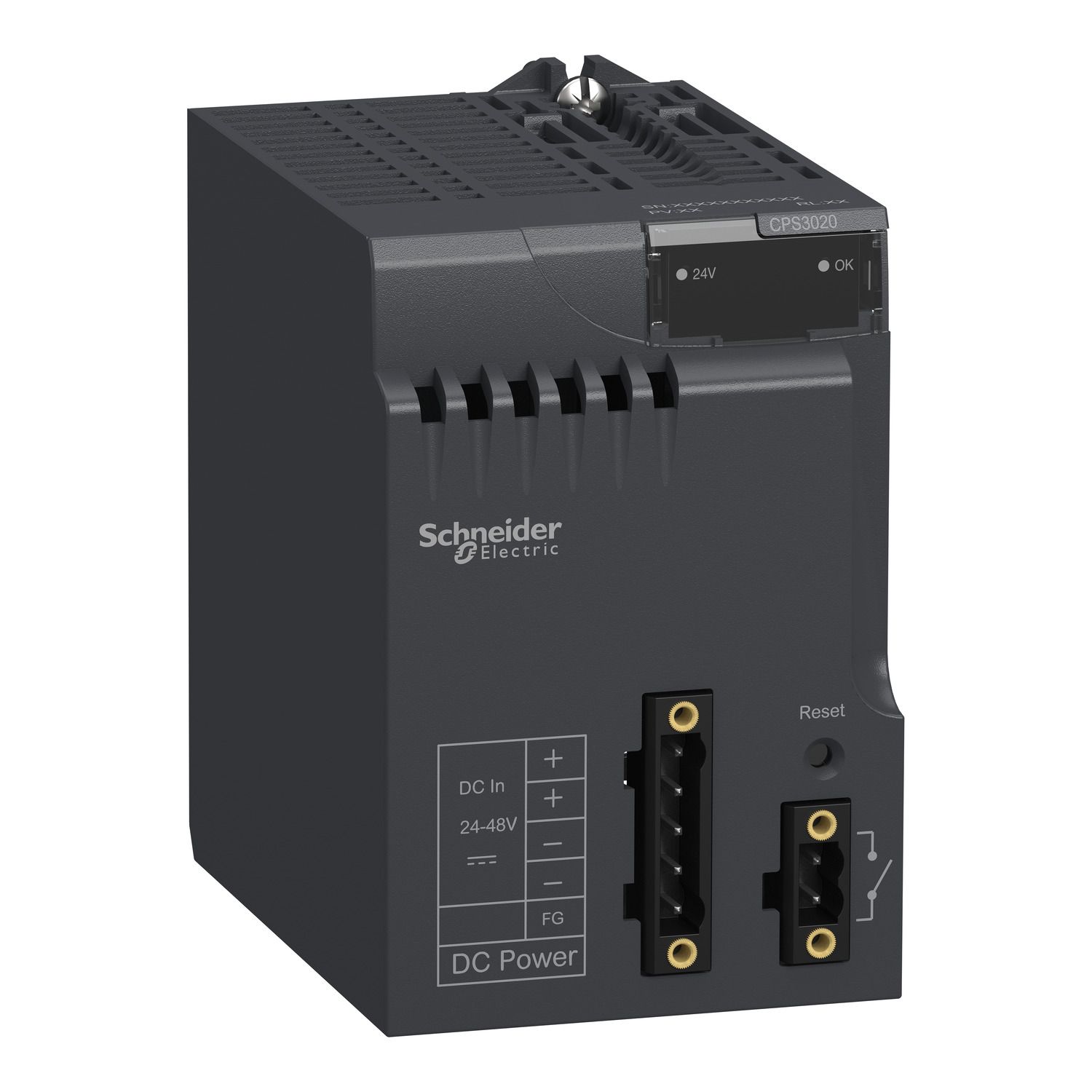

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

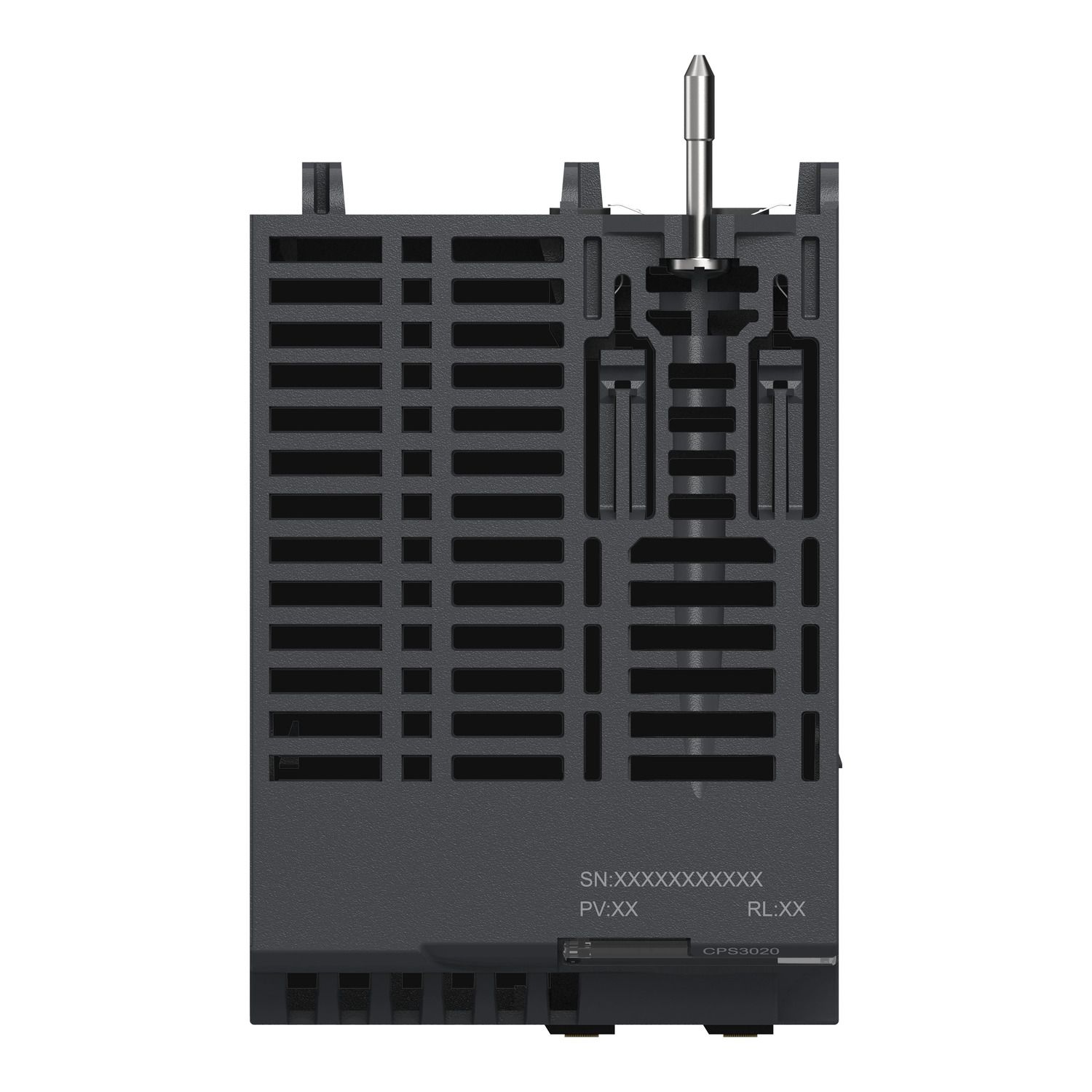

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

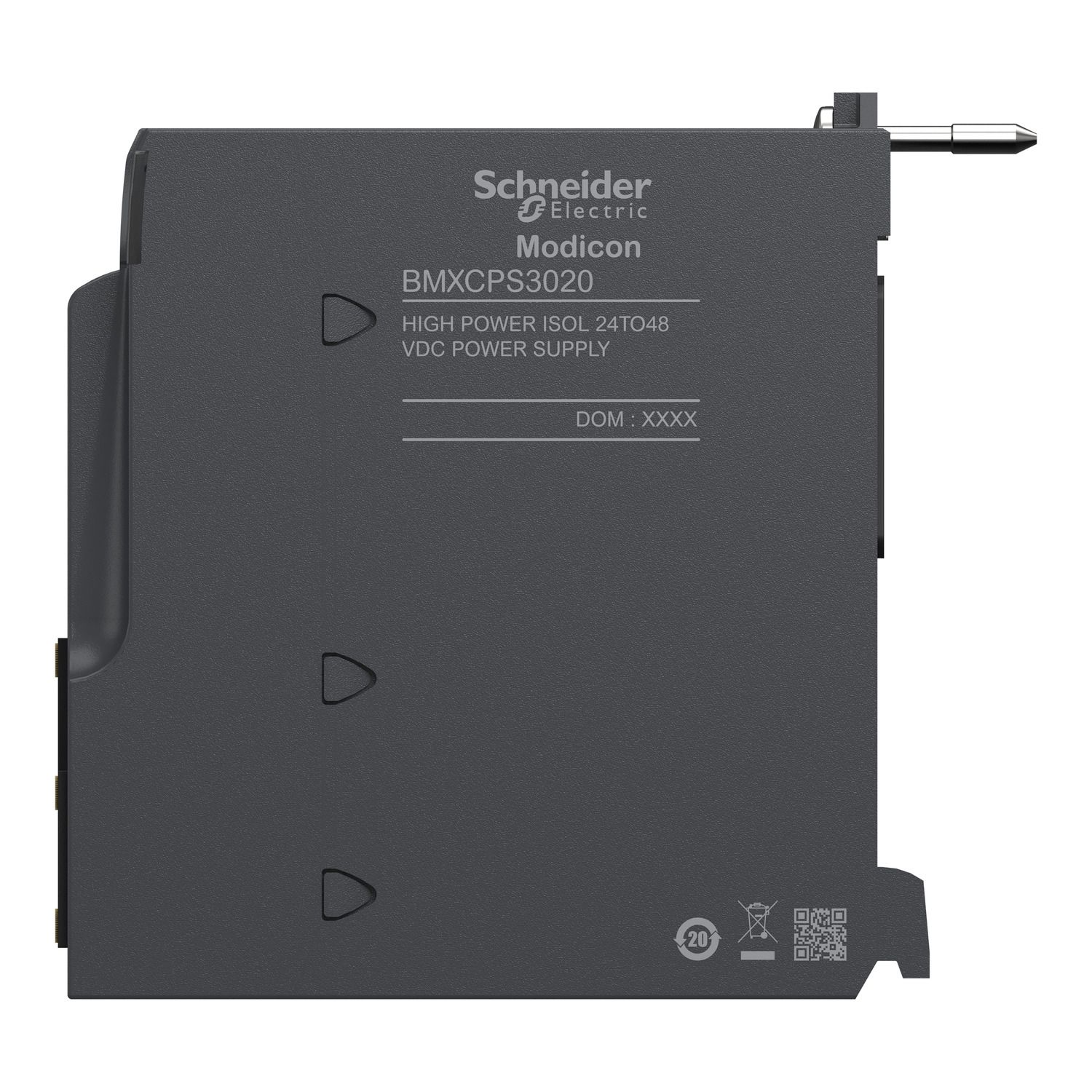

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

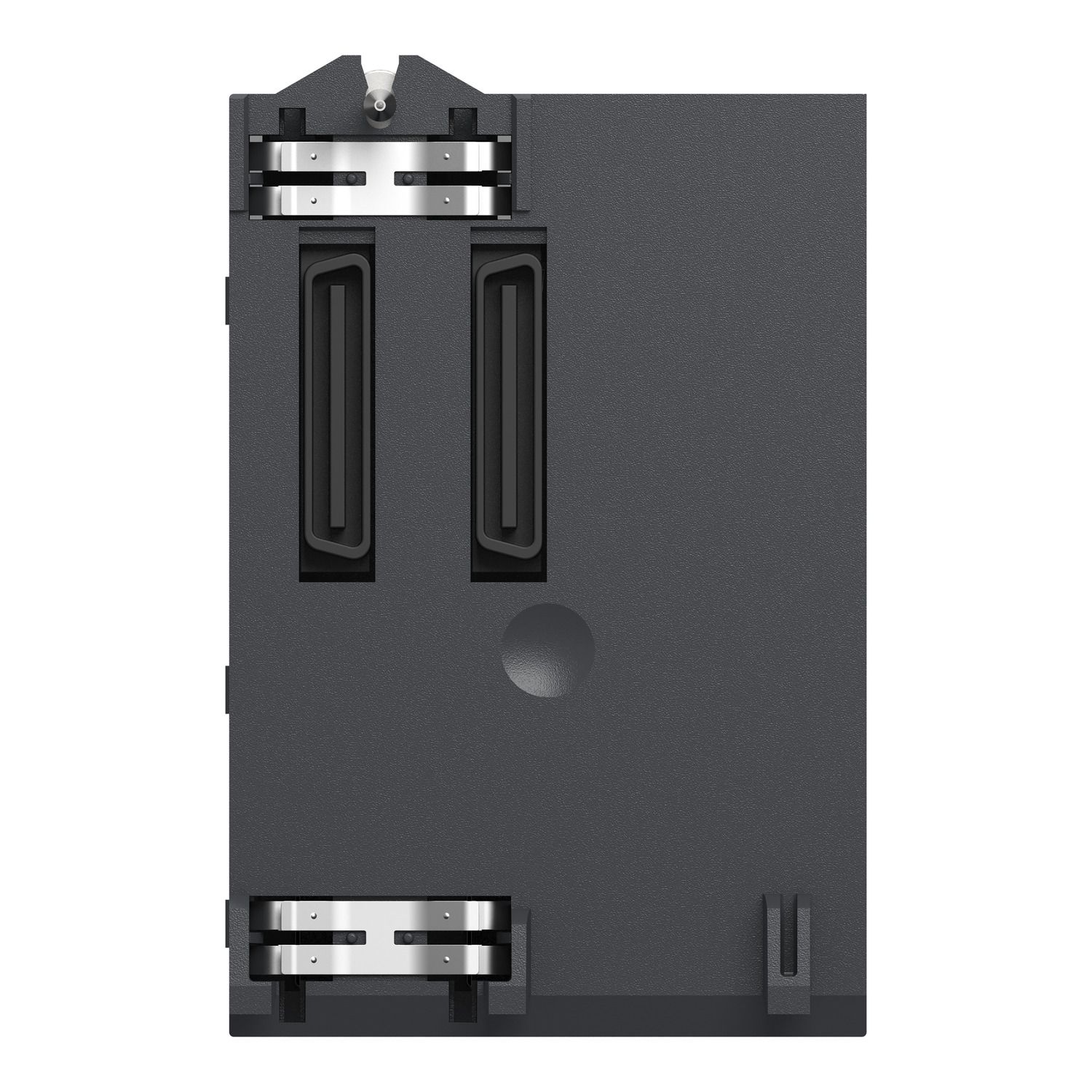

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

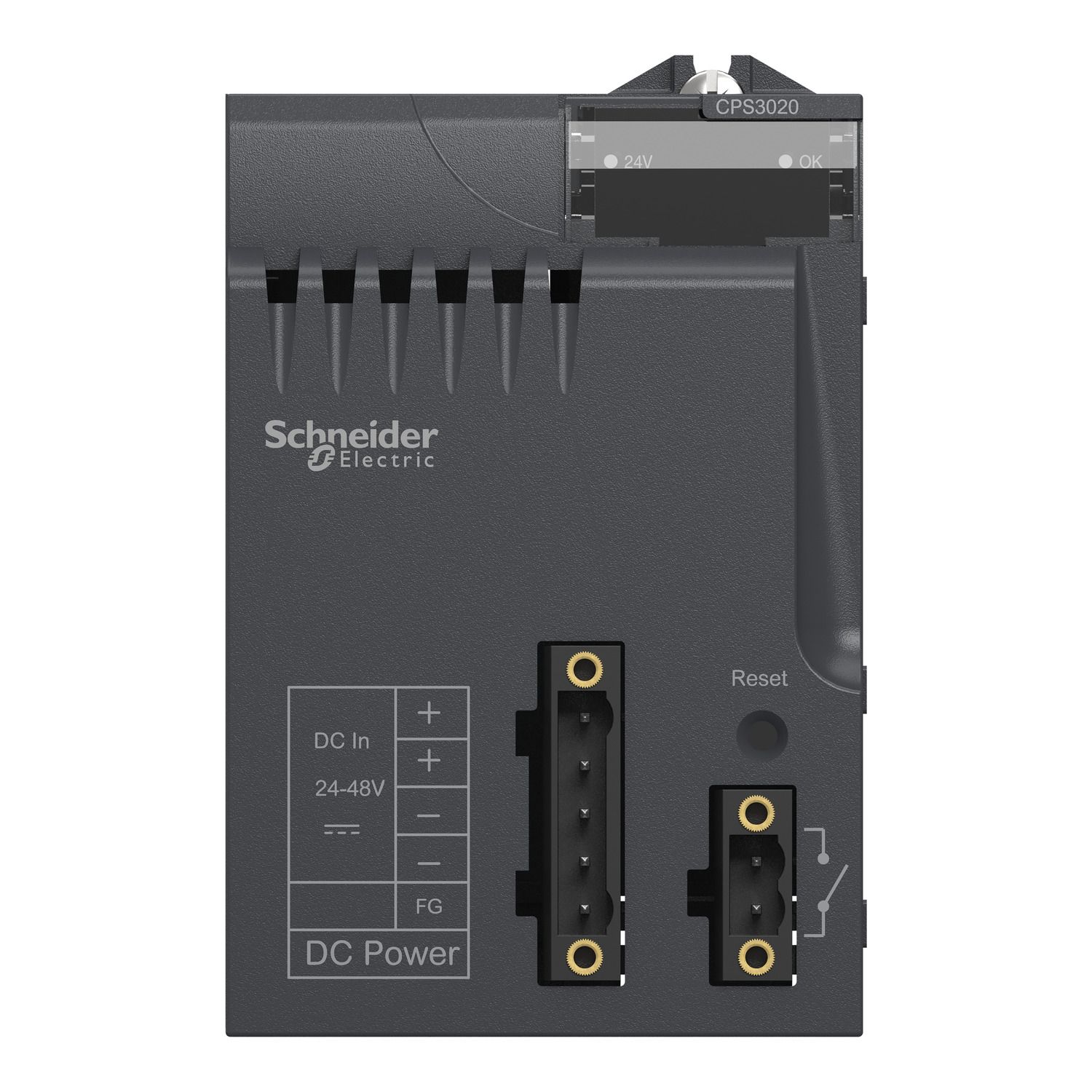

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W

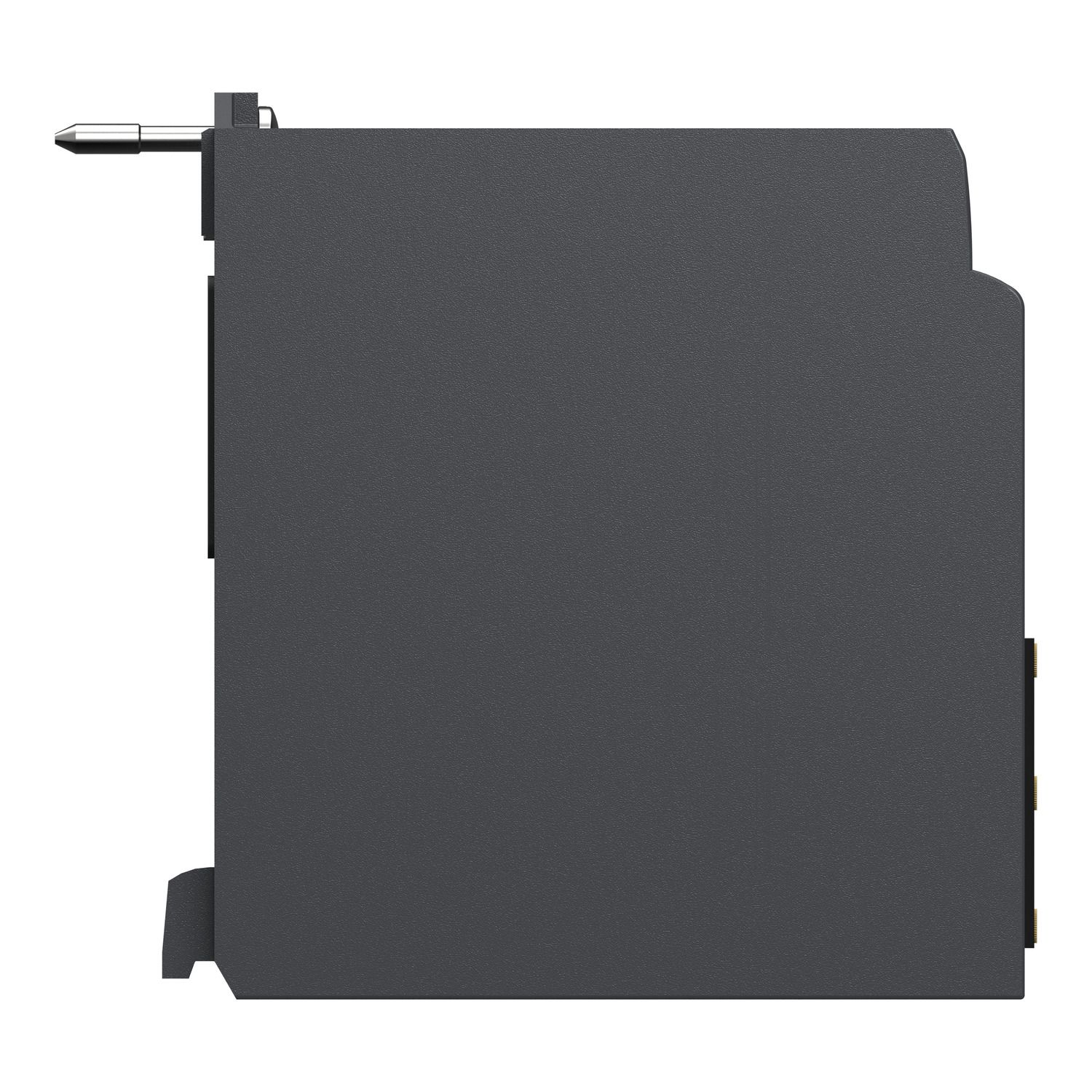

Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W
Picture of power supply module, Modicon X80, 24 to 48V DC, 31.2W
SKU:

BMXCPS3020

power supply module, Modicon X80, 24 to 48V DC, 31.2W

$2,110.02 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
power supply module, Modicon X80, 24 to 48V DC, 31.2W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Declaration of conformity
CAD
Environmental Disclosure
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.

Products specifications

Attribute name Attribute value
Main
Product compatibility not compatible with BMEXBP..02
Supply circuit type DC
Secondary power 31.2 W 24 V DC I/O module power supply and processor, 15 W 3.3 V DC I/O module logic power supply
Product or component type power supply module
Range of product Modicon X80
Primary voltage 24...48 V isolated
Complementary
Protection type short-circuit protection for secondary circuit, 24 V sensor power supply, overvoltage protection for secondary circuit, 24 V sensor power supply, overload protection for secondary circuit, 24 V sensor power supply, internal fuse not accessible for primary circuit
Inrush current 60 A 48 V, 30 A 24 V
Electrical connection 1 connector 5 pin(s)line supply, protective earth, 1 connector 2 pin(s)alarm relay
Maximum power dissipation in W 8.5 W
Control type RESET push-button cold restart
Net weight 0.34 kg
Insulation resistance >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground
Current at secondary voltage 4.5 A 3.3 V DC I/O module logic power supply, 1.3 A 24 V DC I/O module power supply and processor
Input current 1.65 A 24 V, 0.83 A 48 V
I²t on activation 3 A².s 48 V, 1 A².s 24 V
Status LED 1 LED (green) rack voltage OK
It on activation 0.3 A.s 48 V, 0.2 A.s 24 V
Primary voltage limit 18...62.4 V
Maximum cable distance between devices 15 m power supply cable copper 2.5 mm², 10 m power supply cable copper 1.5 mm²
MTBF reliability 4600000 H
Environment
Dielectric strength 1500 V primary/secondary, 1500 V primary/ground
IP degree of protection IP20
Protective treatment TC
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Shock resistance 30 gn
Immunity to microbreaks 1 ms
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.200 cm
Package 1 Width 15.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 519.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.378 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 38.000 kg
