SKU:

BMXART0414H

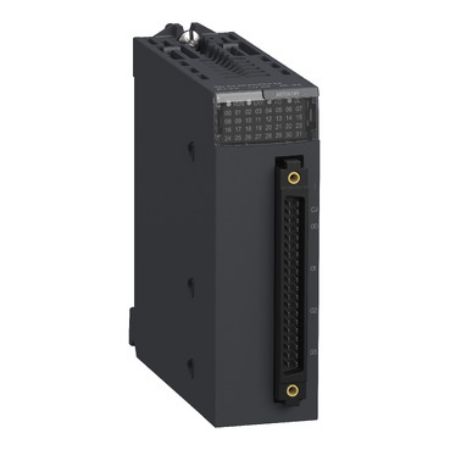

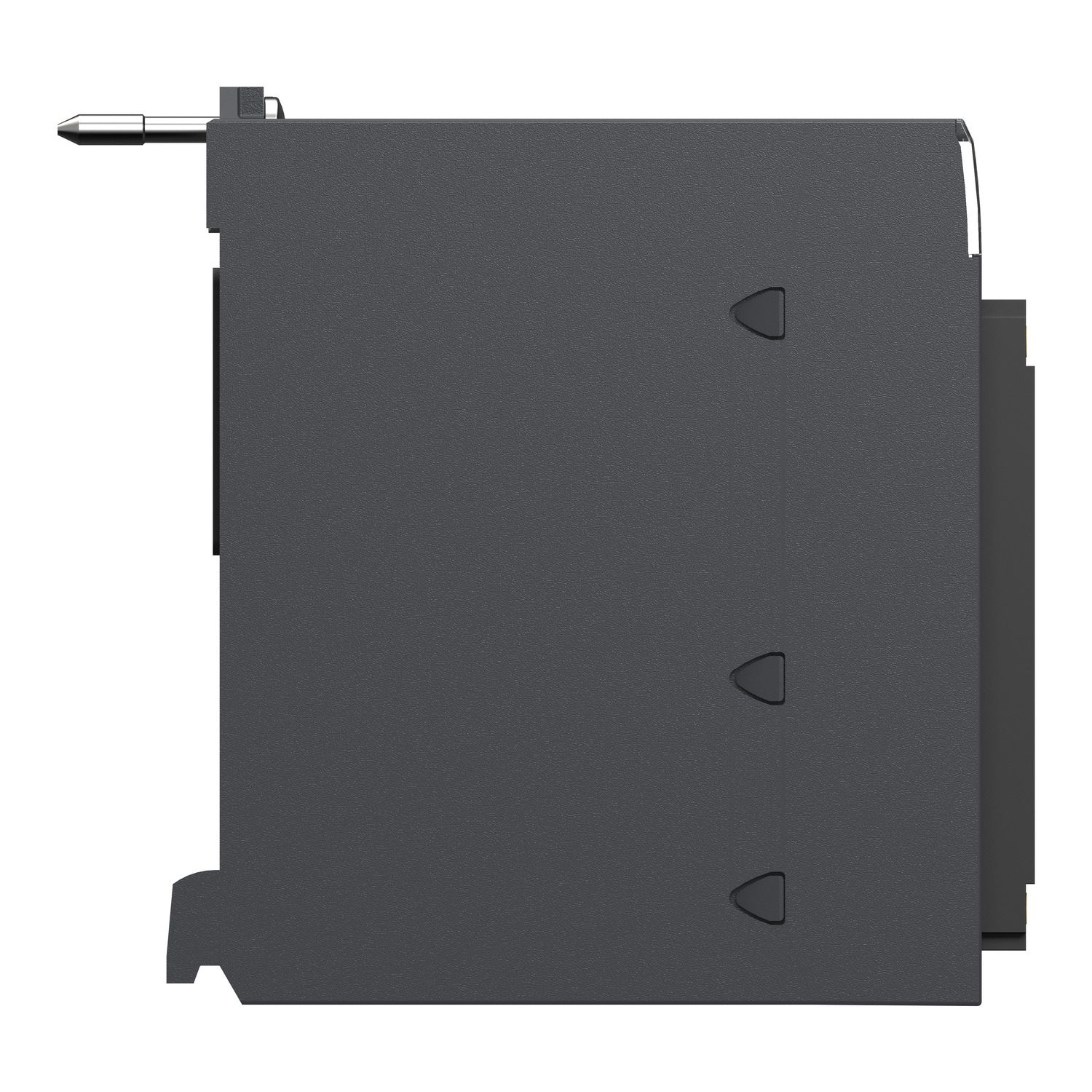

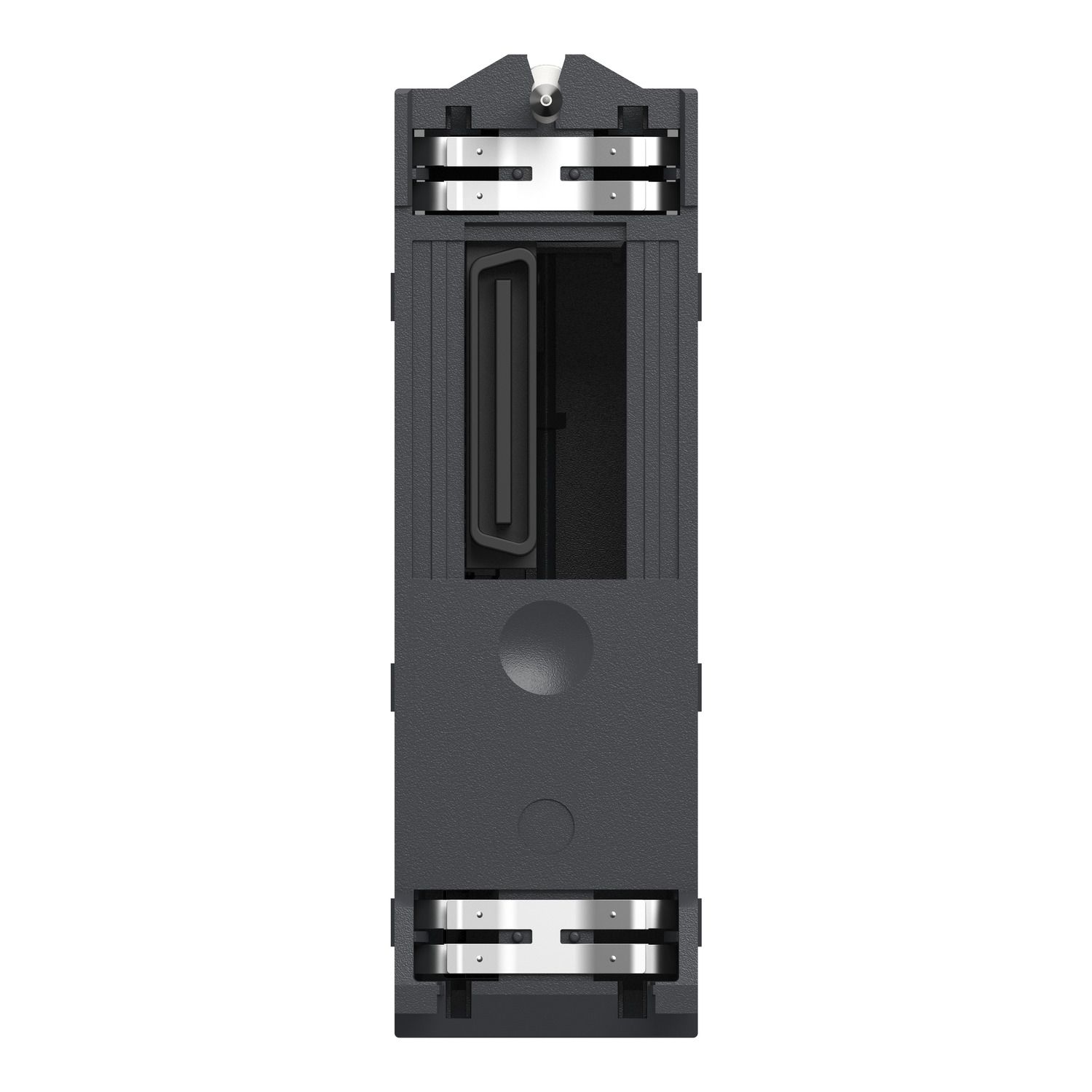

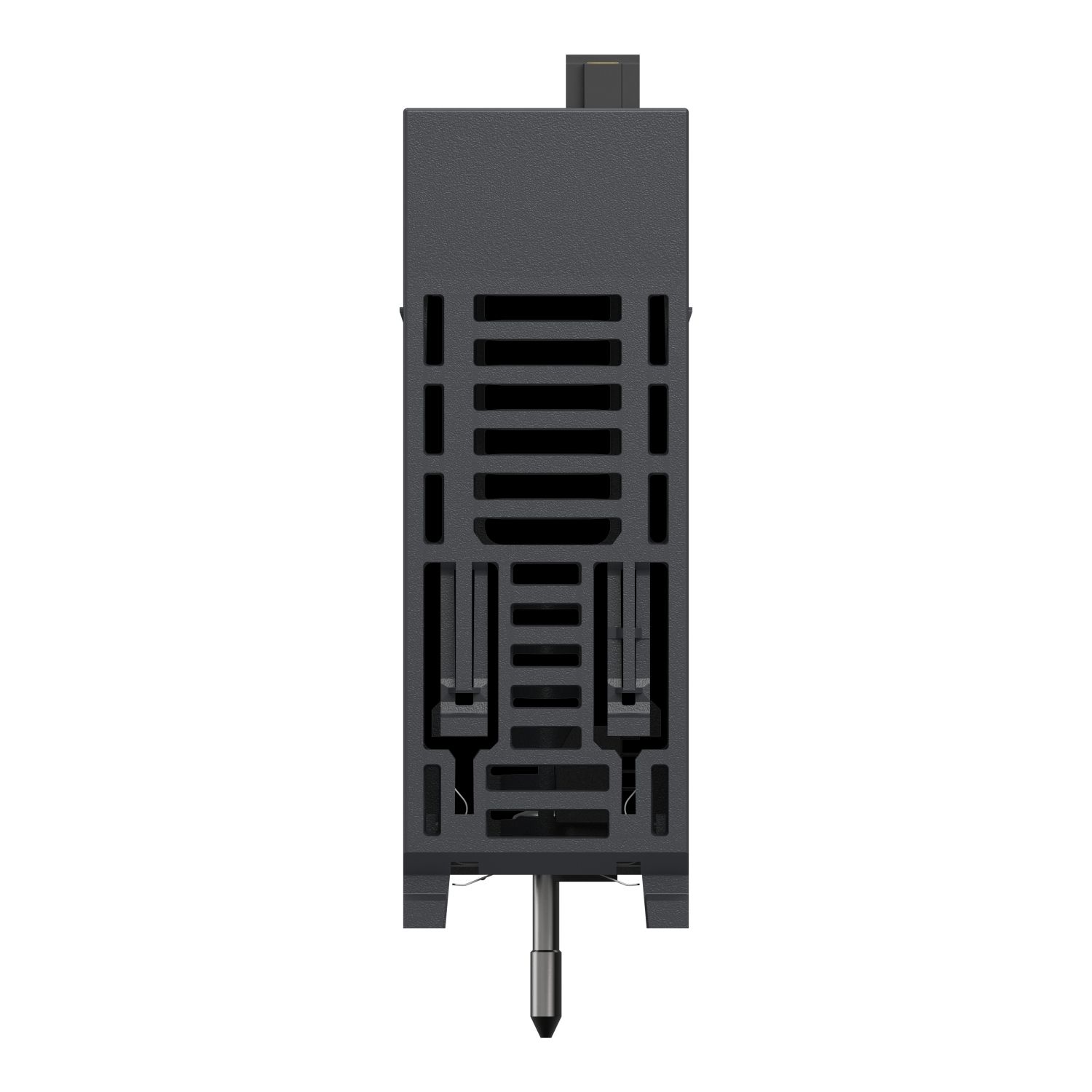

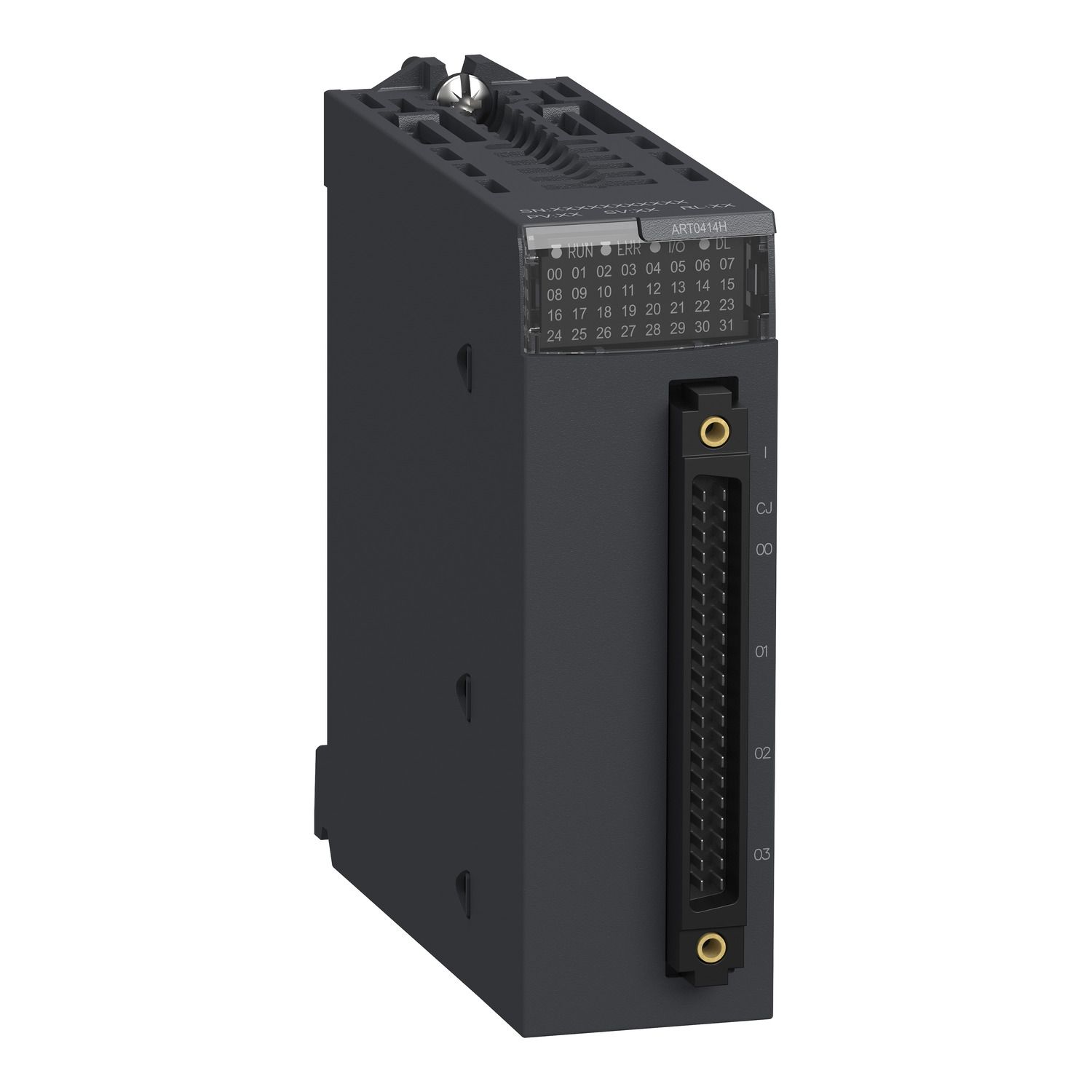

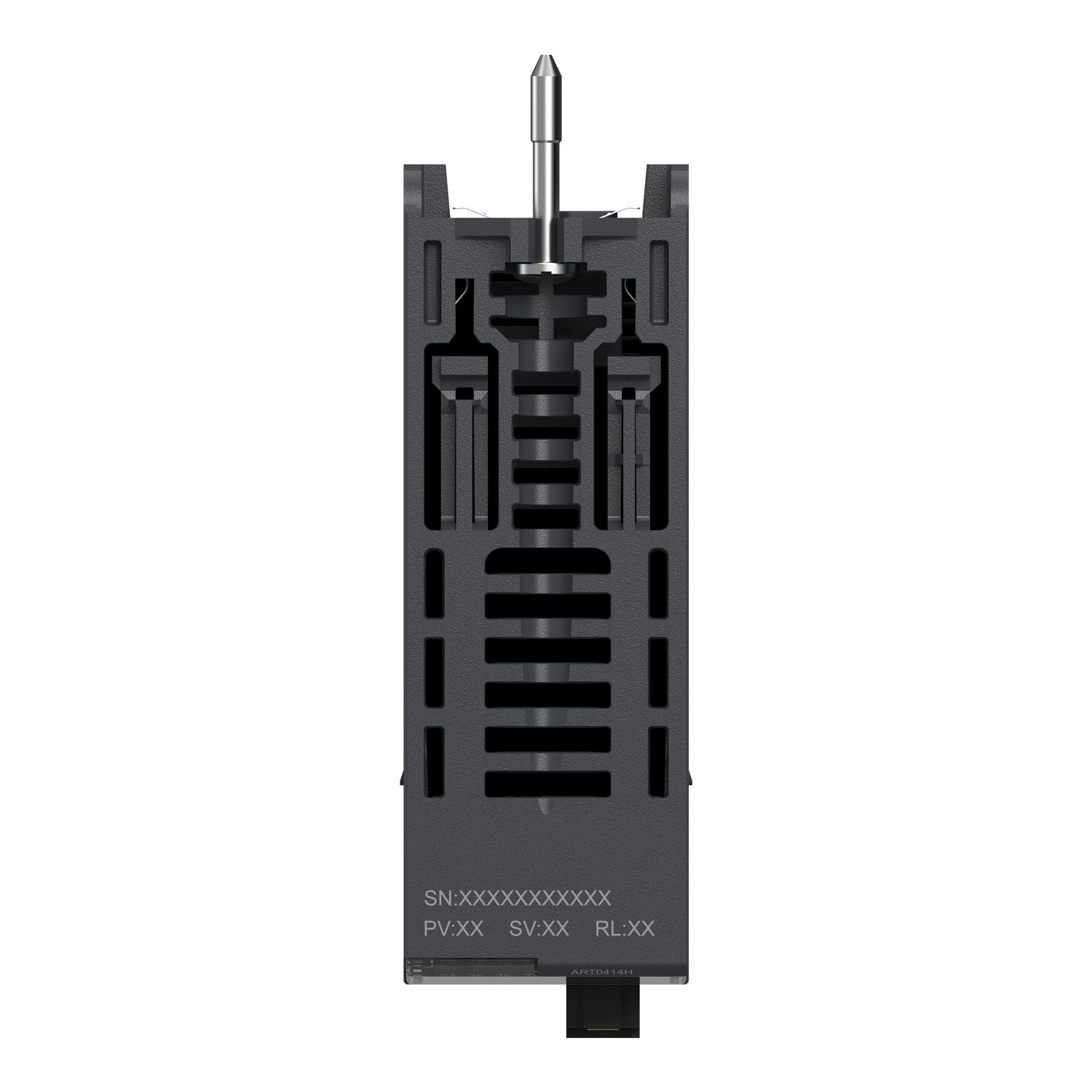

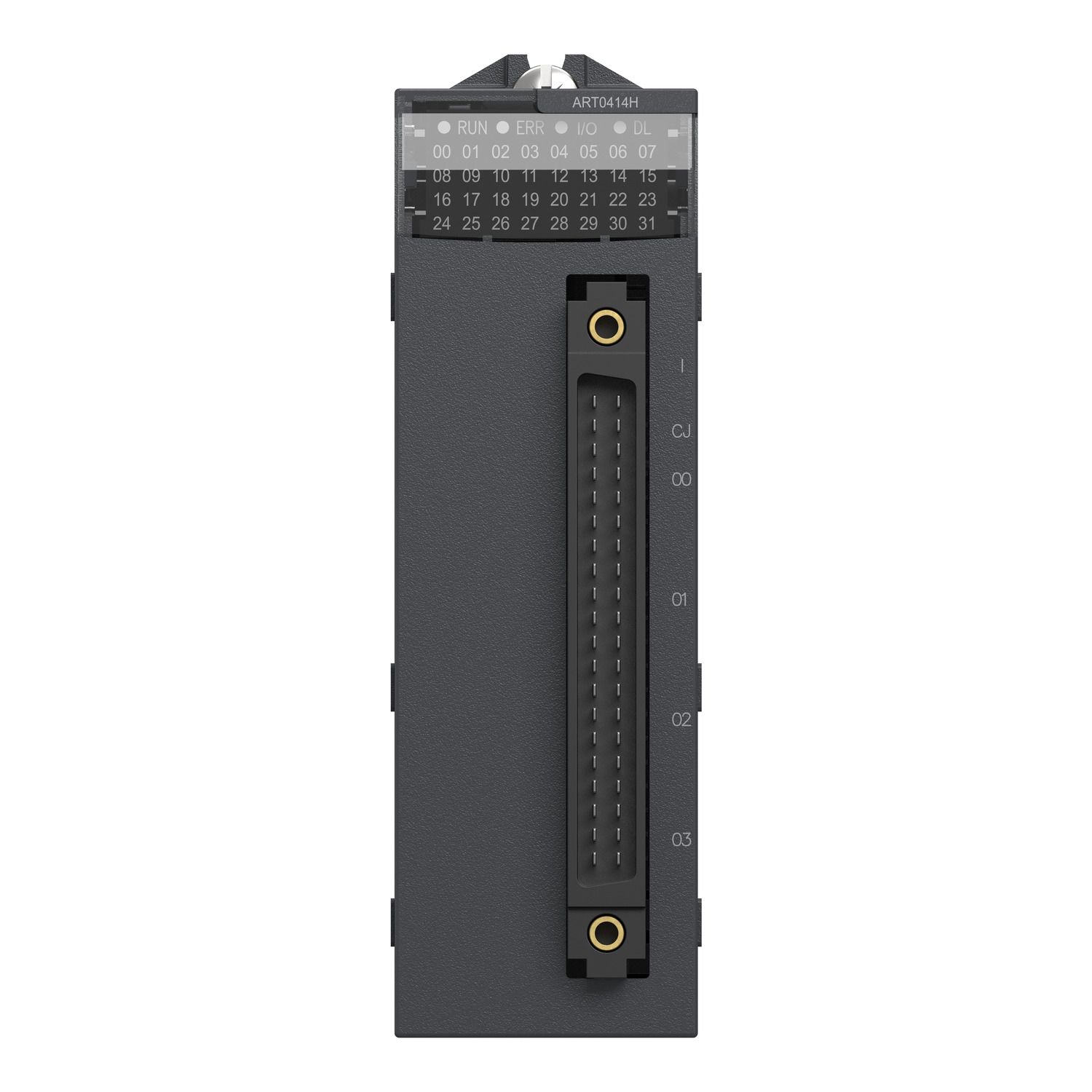

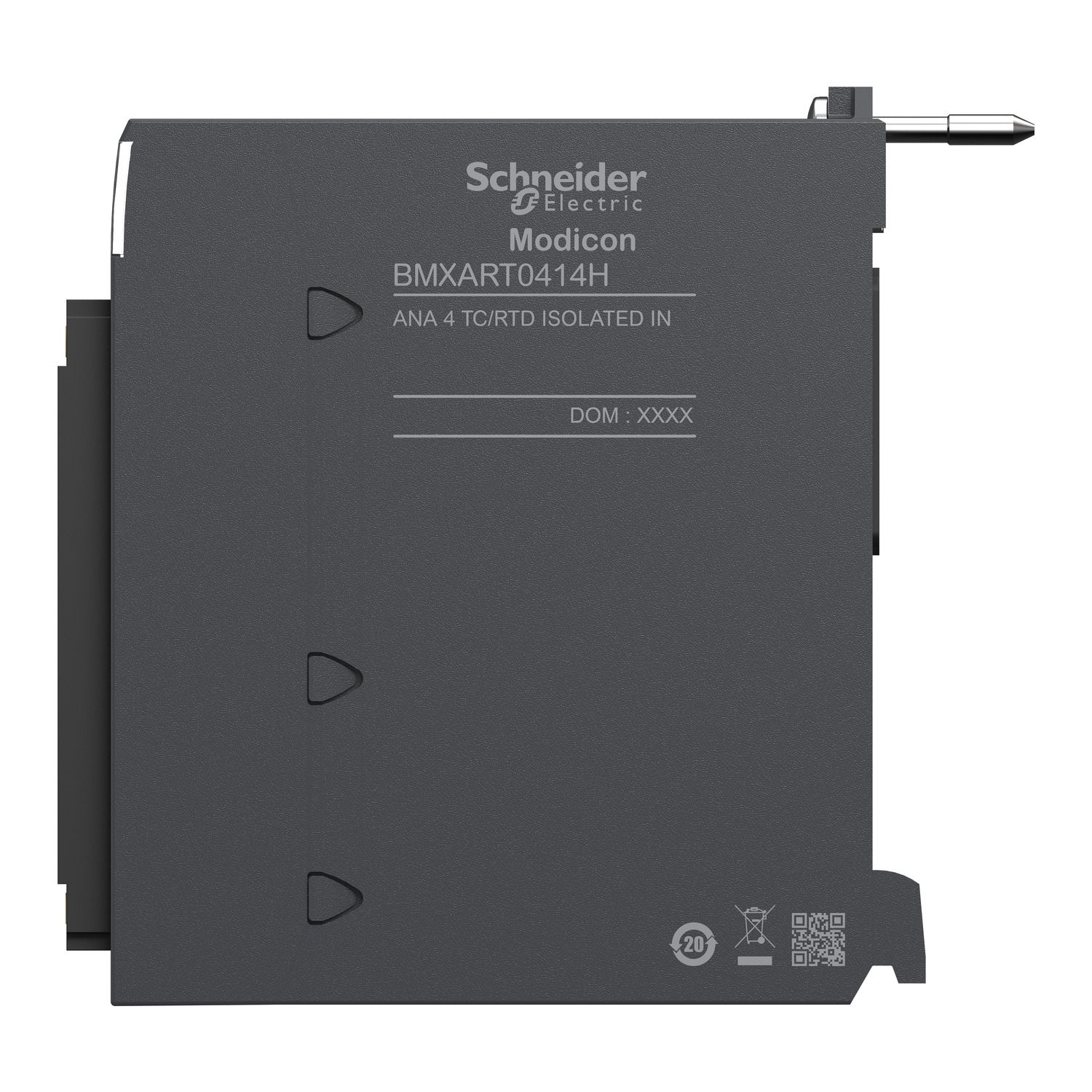

analog input module X80 - 4 inputs +/- 40 mV

$2,676.74 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
analog input module X80 - 4 inputs +/- 40 mV
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Circularity Profile
Declaration of conformity
CAD
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1409427 hours of MTBF. This analog module has a weight of 0.135kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Analogue input type thermocouple -50...+1769 °C thermocouple S, thermocouple -50...+1769 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+900 °C thermocouple L, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+600 °C thermocouple U, thermocouple +270...+1300 °C thermocouple N, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000, temperature probe -60...+180 °C Ni 100, temperature probe -200...+850 °C Pt 1000 conforming to IEC, temperature probe -200...+850 °C Pt 100 conforming to IEC, temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, temperature probe -100...+260 °C Cu 10, resistor 4000 Ohm 4 wires, resistor 4000 Ohm 3 wires, resistor 4000 Ohm 2 wires, resistor 400 Ohm 4 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 2 wires, voltage +/- 80 mV, voltage +/- 640 mV, voltage +/- 40 mV, voltage +/- 320 mV, voltage +/- 160 mV, voltage +/- 1.28 V
Product specific application for severe environments
Analogue input number 4
Input output isolation isolated
Electrical connection 40 ways 1 connector
Input level low level
Product or component type analog input module
Range of product Modicon X80
Complementary
Permitted overload on inputs +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 1.28 V
Measurement resolution 80/2exp14 mV +/- 80 mV, 640/2exp14 mV +/- 640 mV, 125 mOhm 4000 Ohm, 12.5 mOhm 400 Ohm, 40/2exp14 mV +/- 40 mV, 320/2exp14 mV +/- 320 mV, 160/2exp14 mV +/- 160 mV, 1280/2exp14 mV +/- 1.28 V, 0.1 °C thermocouple U, 0.1 °C thermocouple T, 0.1 °C thermocouple S, 0.1 °C thermocouple R, 0.1 °C thermocouple N, 0.1 °C thermocouple L, 0.1 °C thermocouple K, 0.1 °C thermocouple J, 0.1 °C thermocouple E, 0.1 °C thermocouple B, 0.1 °C Pt 1000, 0.1 °C Pt 100, 0.1 °C Ni 1000, 0.1 °C Ni 100, 0.1 °C Cu 10
Analog/digital conversion sigma delta 16 bits
Common mode rejection 120 dB 50/60 Hz
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Maximum wiring resistance 500 Ohm 4 wires Pt 1000, 500 Ohm 4 wires Ni 1000, 50 Ohm 4 wires Pt 100, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Cu 10, 200 Ohm 3 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 2 wires Ni 1000, 20 Ohm 3 wires Pt 100, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Cu 10, 20 Ohm 2 wires Pt 100, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Cu 10
Detection type open circuit thermocouple U, open circuit thermocouple T, open circuit thermocouple S, open circuit thermocouple R, open circuit thermocouple N, open circuit thermocouple L, open circuit thermocouple K, open circuit thermocouple J, open circuit thermocouple E, open circuit thermocouple B, open circuit Pt 1000, open circuit Pt 100, open circuit Ni 1000, open circuit Ni 100, open circuit Cu 10
Nominal read cycle time 400 ms with temperature probe, 200 ms with thermocouple
Differential mode rejection 60 dB 50/60 Hz
Net weight 0.135 kg
Analogue input resolution 15 bits + sign
Current consumption 150 mA at 3.3 V DC
Cold junction compensation external by Pt100 probe
Recalibration internal
Temperature drift 30 ppm/°C Pt 1000, 30 ppm/°C Pt 100, 30 ppm/°C Ni 100, 30 ppm/°C Cu 10, 30 ppm/°C +/- 80 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 1.28 V, 25 ppm/°C thermocouple U, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple B, 25 ppm/°C Ni 1000, 25 ppm/°C 4000 Ohm, 25 ppm/°C 400 Ohm
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Type of filter first order digital filtering
Maximum conversion value +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 1.28 V, +/- 100 % 4000 Ohm, +/- 100 % 400 Ohm
Measurement error <= 0.3 % of full scale 4000 Ohm - 25...70 °C, <= 0.3 % of full scale 400 Ohm - 25...70 °C, <= 0.2 % of full scale +/- 80 mV - 25...70 °C, <= 0.2 % of full scale +/- 640 mV - 25...70 °C, <= 0.2 % of full scale +/- 40 mV - 25...70 °C, <= 0.2 % of full scale +/- 320 mV - 25...70 °C, <= 0.2 % of full scale +/- 160 mV - 25...70 °C, <= 0.2 % of full scale +/- 1.28 V - 25...70 °C, +/- 6 °C thermocouple T - 25...70 °C, +/- 6 °C thermocouple N - 25...70 °C, +/- 6 °C thermocouple K - 25...70 °C, +/- 6 °C thermocouple E - 25...70 °C, +/- 6 °C thermocouple B - 25...70 °C, +/- 5.5 °C thermocouple U - 25...70 °C, +/- 5.5 °C thermocouple S - 25...70 °C, +/- 5.5 °C thermocouple R - 25...70 °C, +/- 5.5 °C thermocouple L - 25...70 °C, +/- 5.5 °C thermocouple J - 25...70 °C, +/- 4.5 °C Cu 10 - 25...70 °C, +/- 3.5 °C Pt 1000 - 25...70 °C, +/- 3.5 °C Pt 100 - 25...70 °C, +/- 3.5 °C Ni 100 - 25...70 °C, +/- 1.5 °C Ni 1000 - 25...70 °C, 0.12 % of full scale 4000 Ohm 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, +/- 4 °C Cu 10 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 0.7 °C Ni 1000 25 °C
MTBF reliability 1400000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance 3 gn
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards EN 61010-2-201, EN 61000-6-2, EN 61000-6-4, EN 61131-2
Ambient air temperature for operation -25-70 °C
Product certifications ATEX, CE, CSA, EAC, RCM, UL, Merchant Navy, IEC-Ex
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.500 cm
Package 1 Length 11.800 cm
Package 1 Weight 172.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.921 kg

Related products

Picture of shielded cord set, Modicon X80, 40-way terminal, one end flying leads, 3m

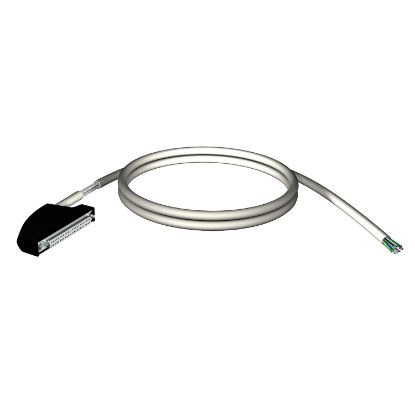

shielded cord set, Modicon X80, 40-way terminal, one end flying leads, 3m
