SKU:

BMXAMO0802H

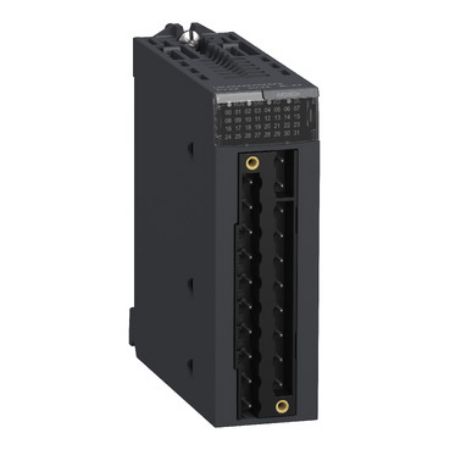

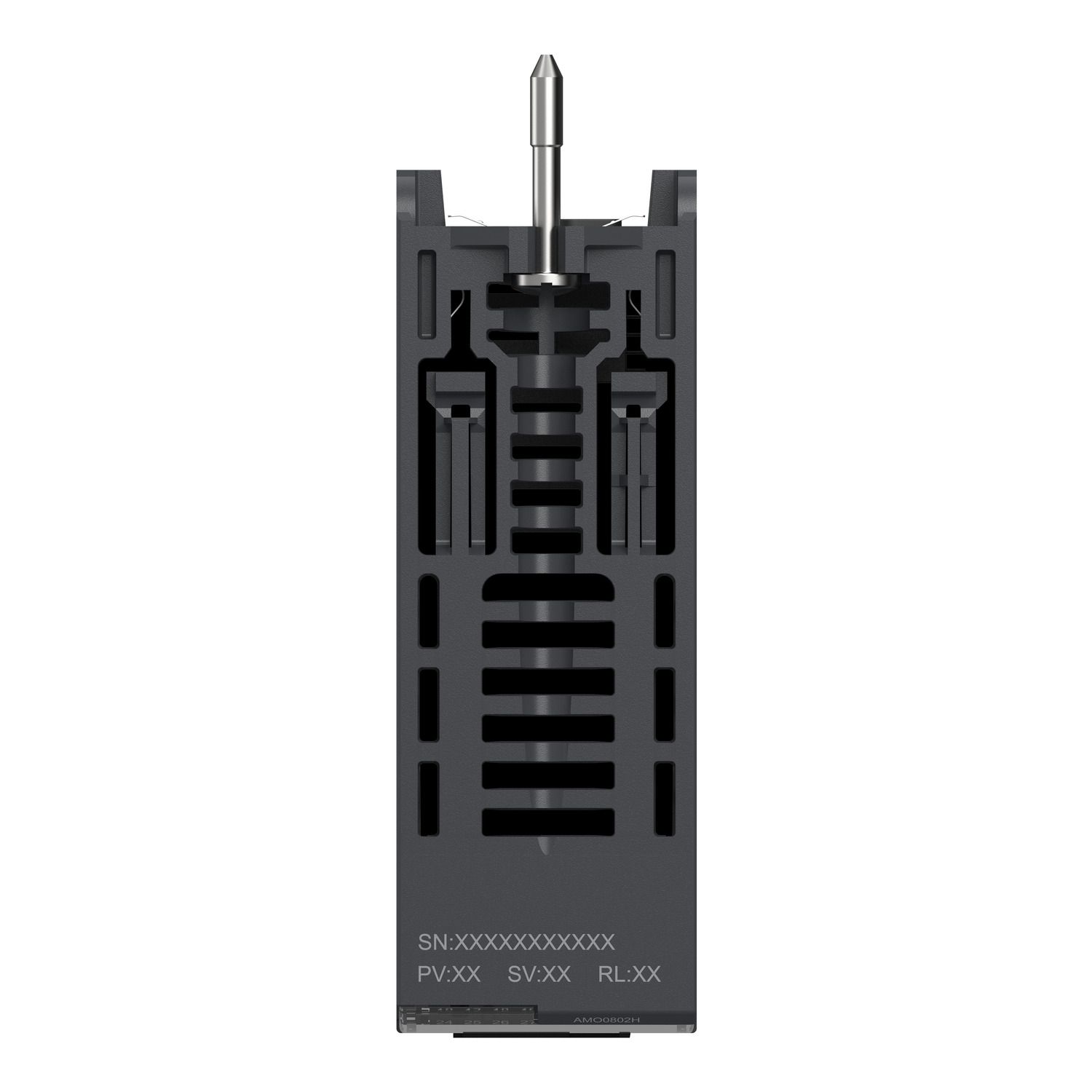

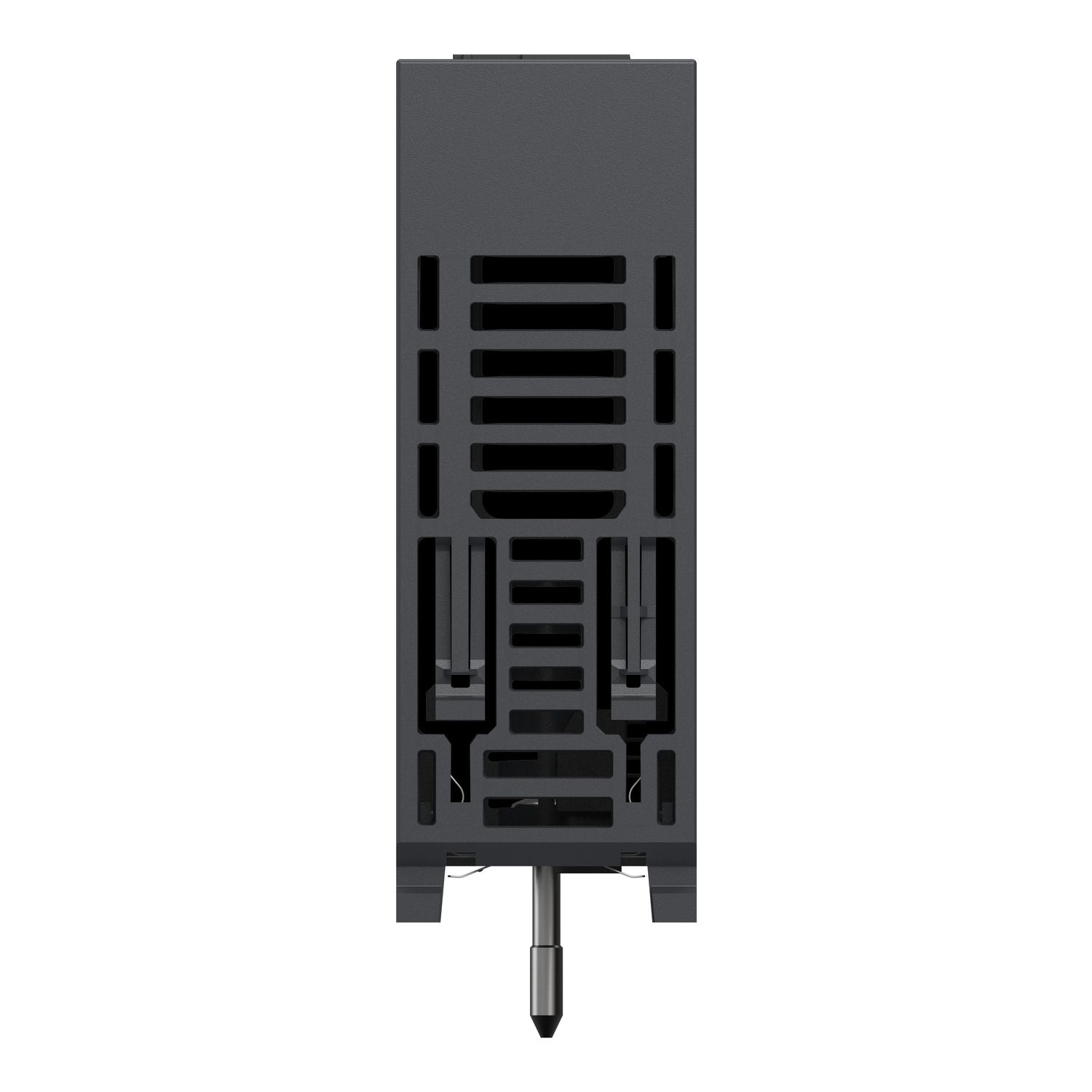

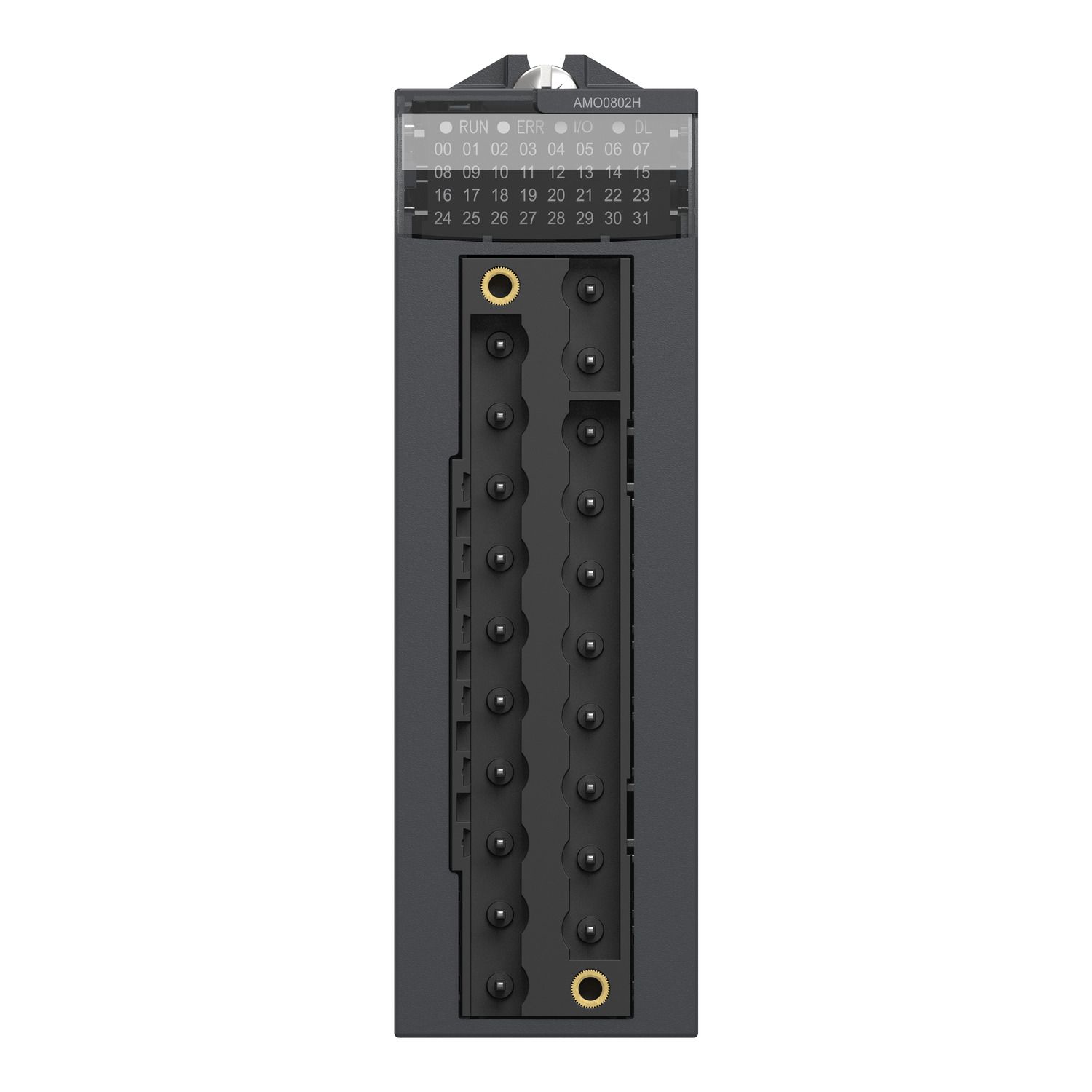

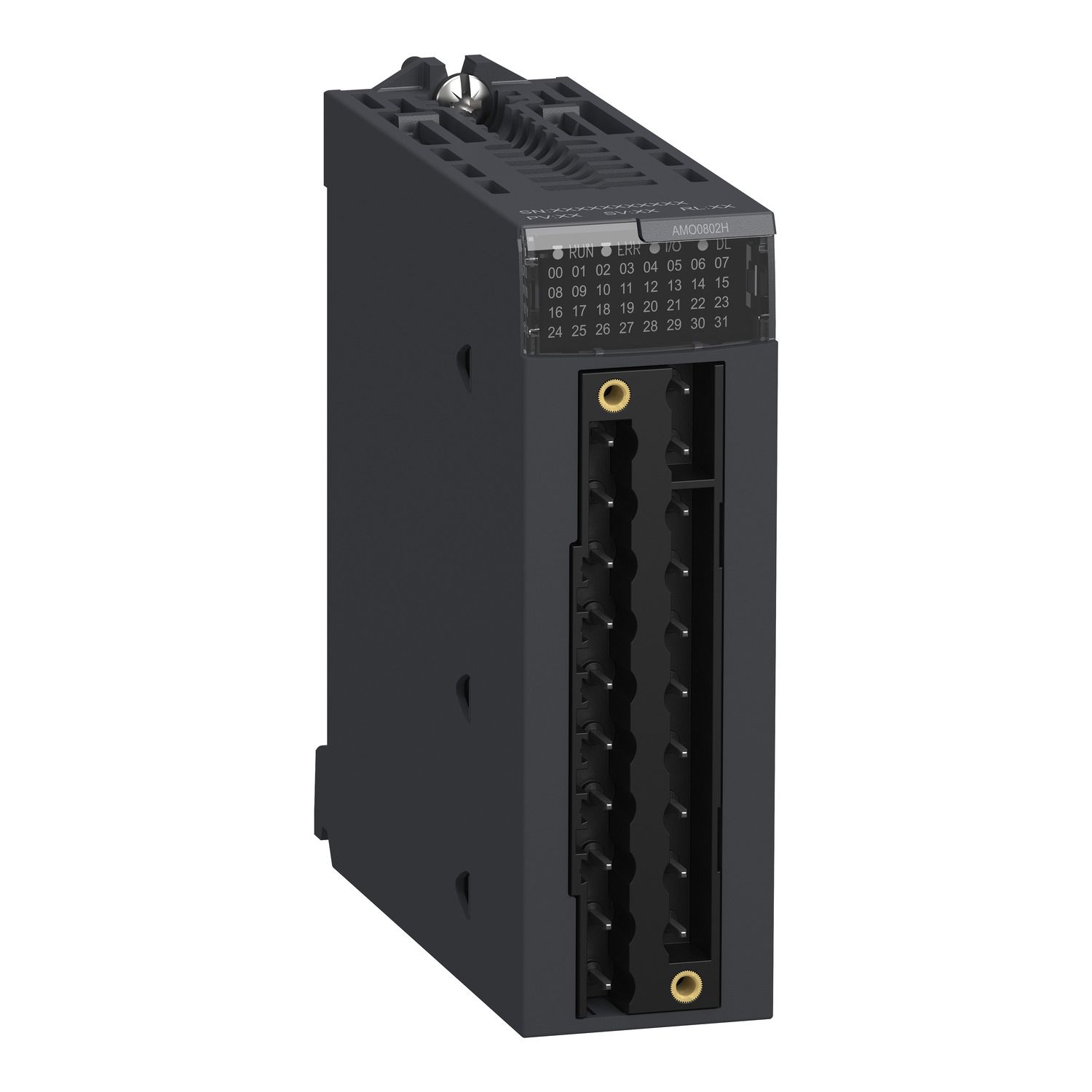

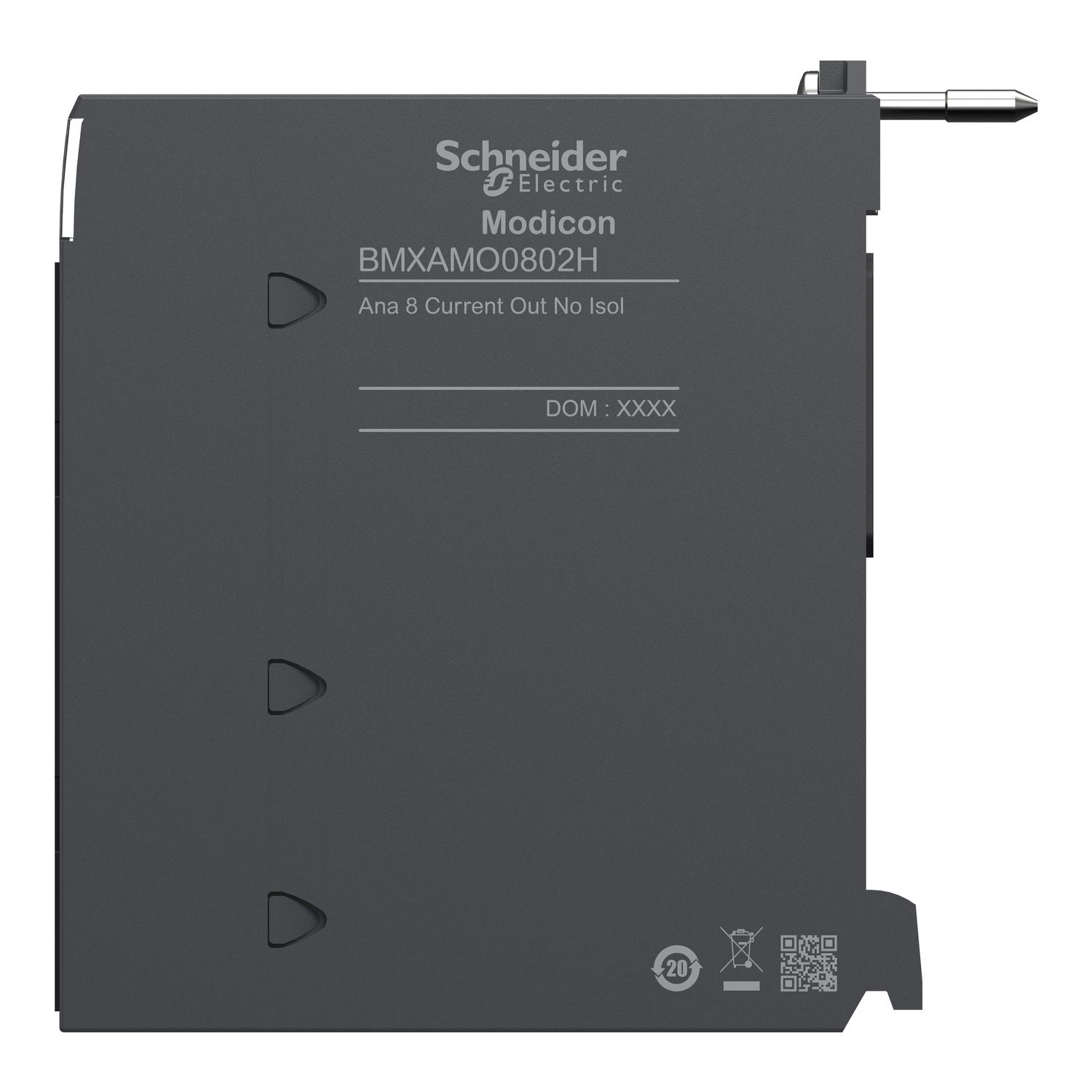

analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments

$3,514.17 INC GST
Available for Shipping : 12-Jan-2026
analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This analog non isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 output channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 1505810 hours of MTBF. This analog module has a weight of 0.150kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Product specific application for severe environments
Input output isolation non isolated
Electrical connection 20 ways 1 connector
Product or component type analog output module
Range of product Modicon X80
Complementary
Conversion time <= 4 ms
Analogue output resolution 16 bits
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Detection type short circuit 0...20 mA, open circuit 4...20 mA
Load impedance ohmic <= 350 Ohm 4...20 mA, <= 350 Ohm 0...20 mA
Power consumption in W 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 3.9 W 24 V DC maximum, 3.6 W 24 V DC typical
Analogue output number 8
Isolation voltage 1400 V DC between channels and bus, 1400 V DC between channels and ground
Net weight 0.15 kg
Minimum crosstalk attenuation 80 dB
Current consumption 135 mA at 24 V DC, 150 mA at 3.3 V DC
Supply internal power supply via rack
Common mode rejection 80 dB
Analogue output type current: 4...20 mA, current: 0...20 mA
Temperature drift 45 ppm/°C 4...20 mA, 45 ppm/°C 0...20 mA
Status LED 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Maximum conversion value 0...21 mA 4...20 mA, 0...21 mA 0...20 mA
Measurement error 0.1 % of full scale 25 °C, <= 0.45 % of full scale - 25...70 °C
Fallback mode predefined, configurable
MTBF reliability 1500000 H
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Vibration resistance 3 gn
Environmental characteristic hazardous location class I division 2, fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Standards EN 61010-2-201, EN 61000-6-2, EN 61000-6-4, EN 61131-2
Ambient air temperature for operation -25-70 °C
Product certifications UL, IEC-Ex, RCM, EAC, CSA, CE, ATEX, Merchant Navy
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 11.000 cm
Package 1 Length 11.500 cm
Package 1 Weight 180.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.050 kg
