SKU:

BMXAMO0410

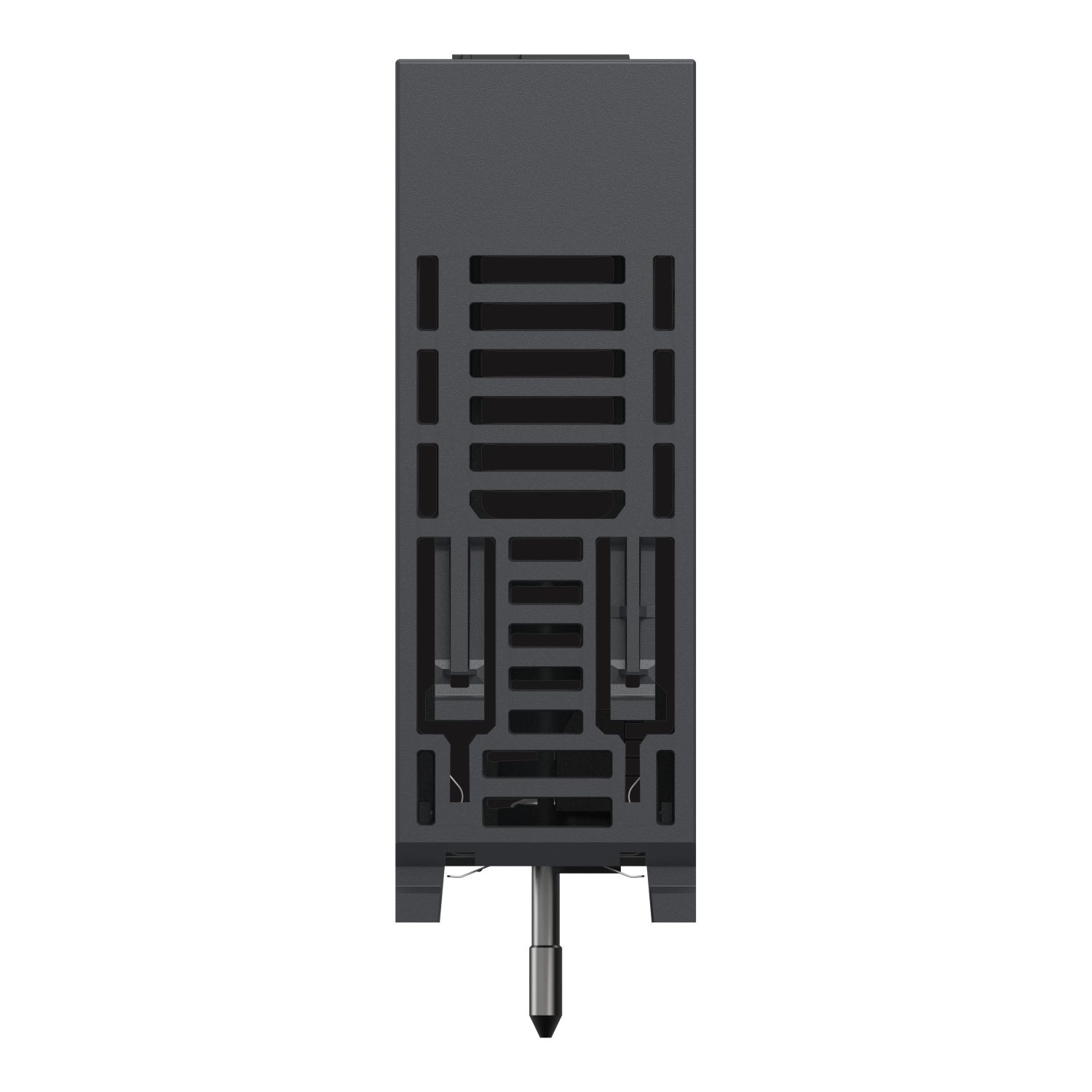

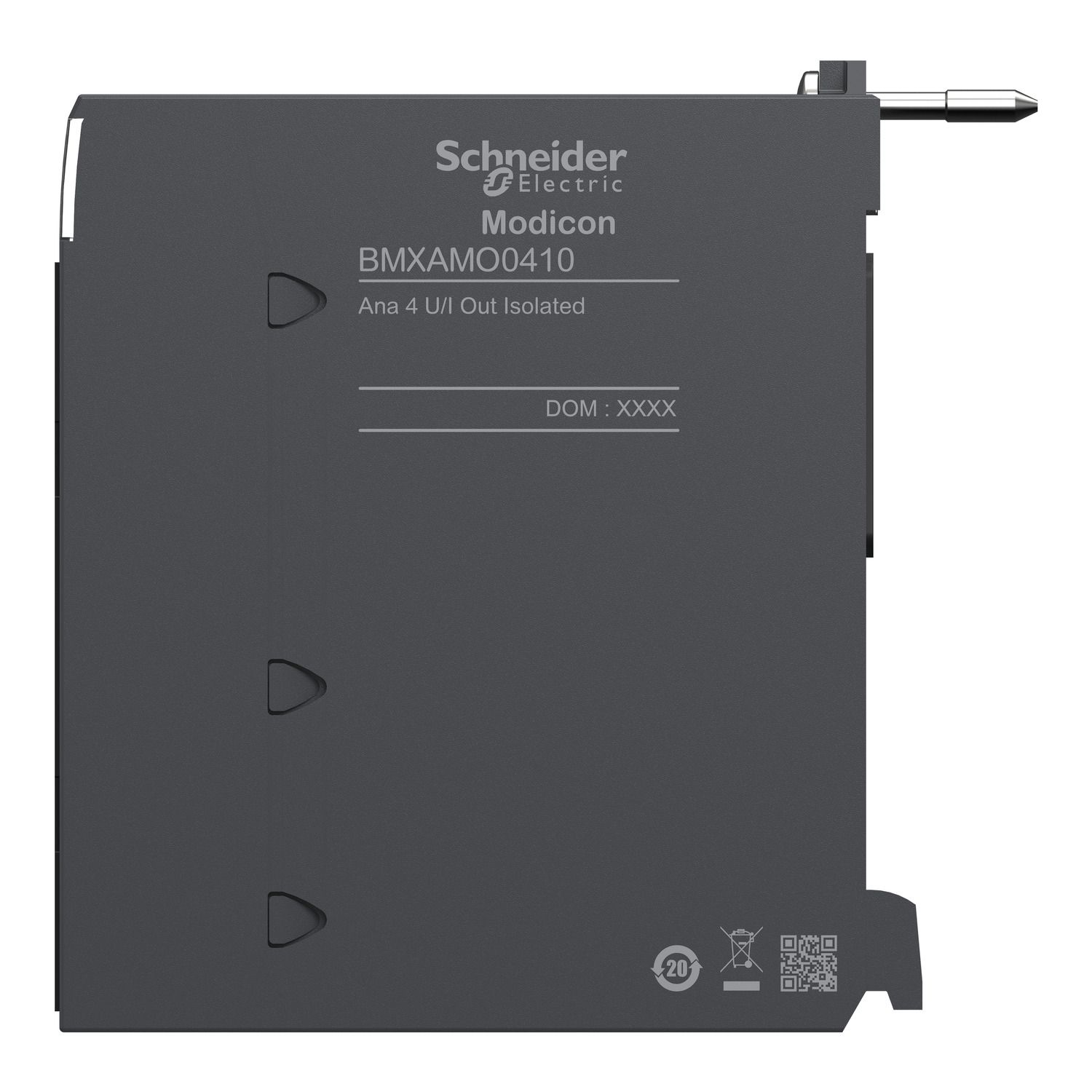

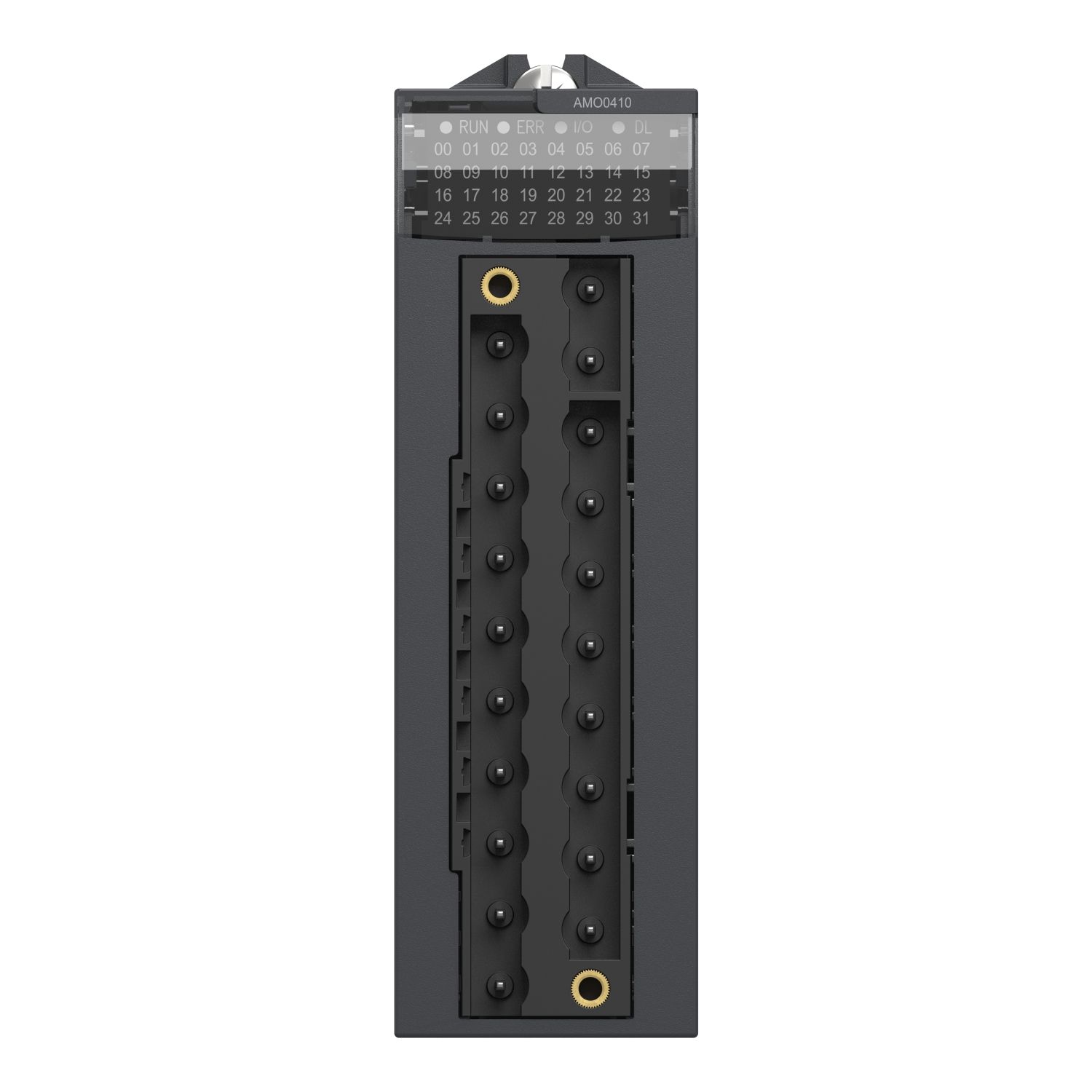

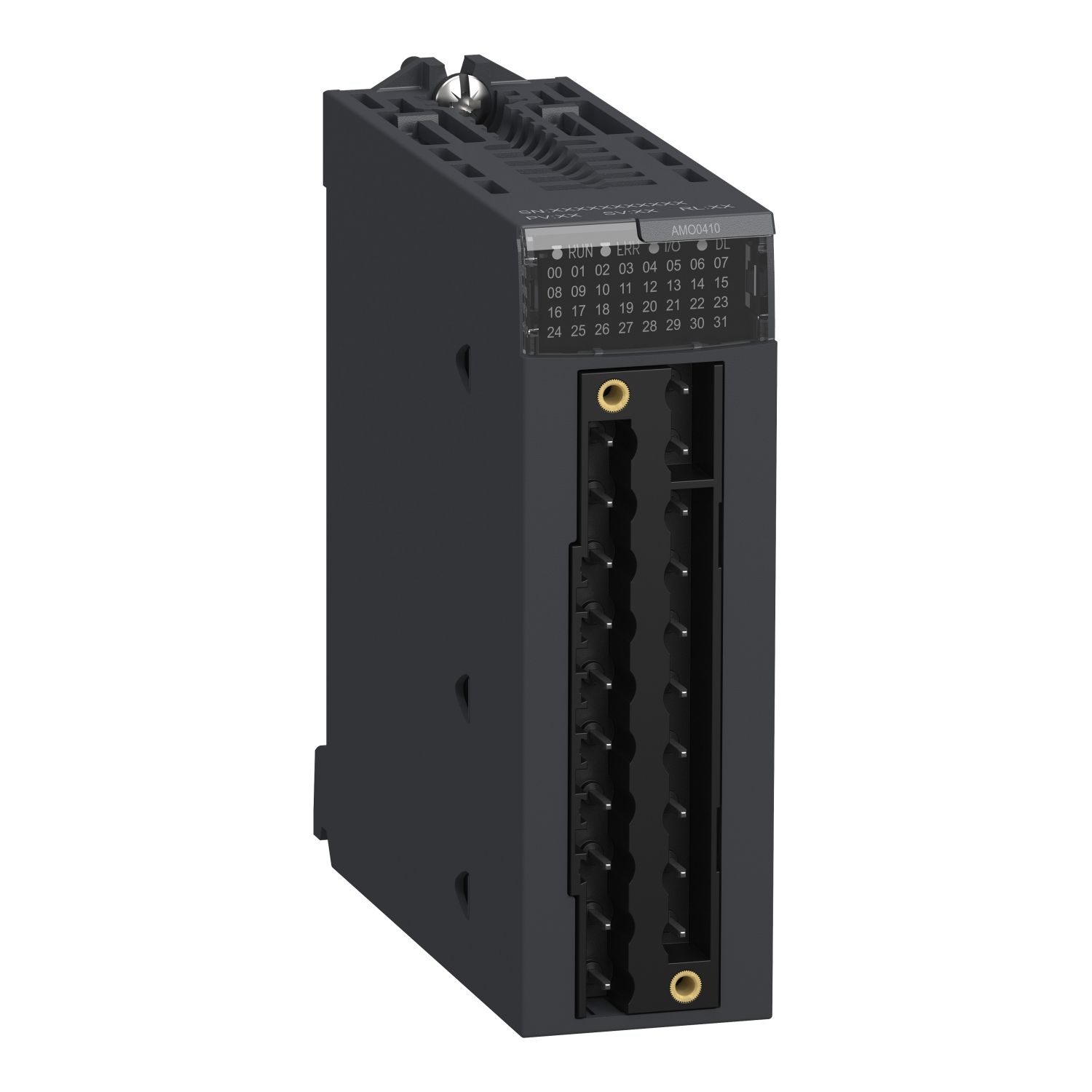

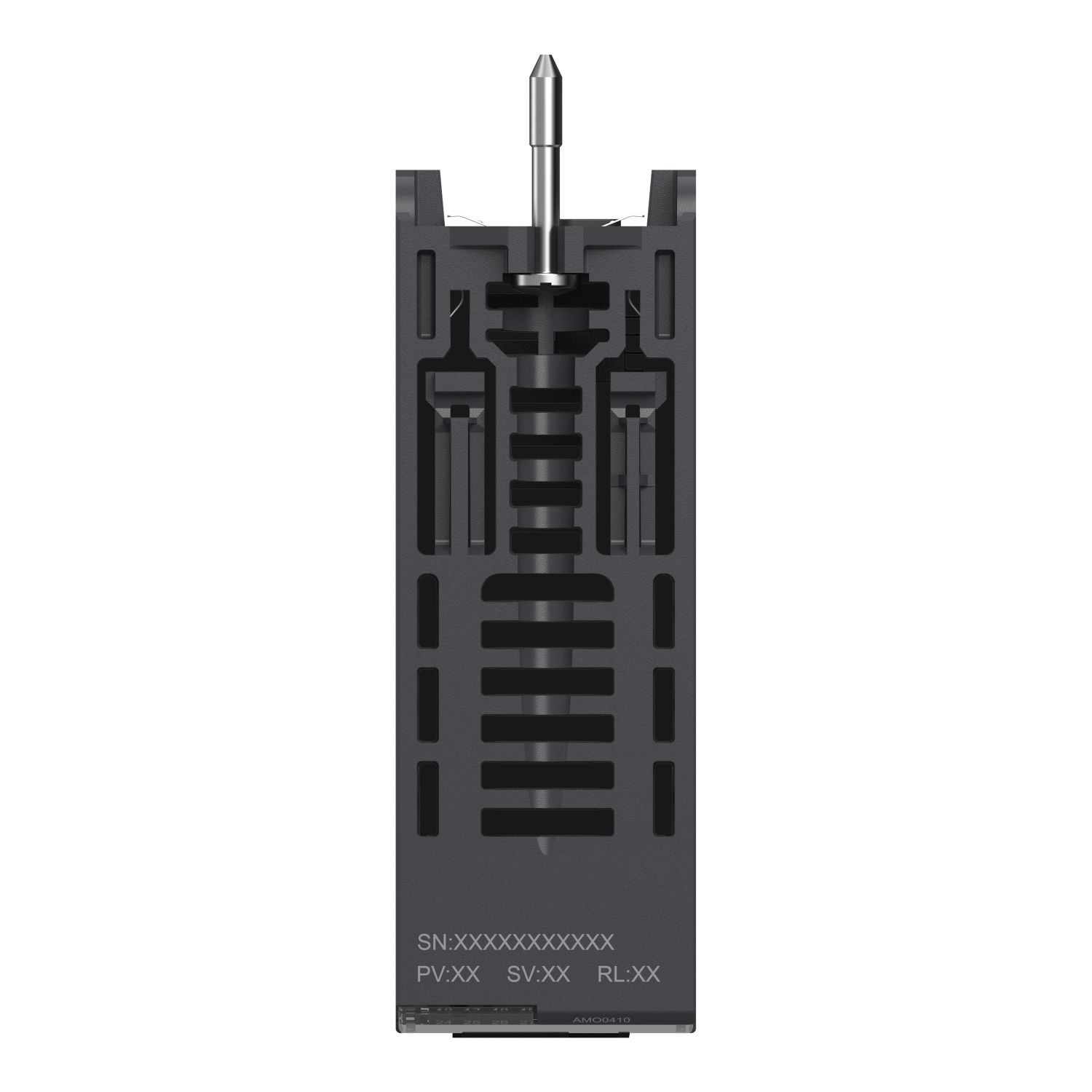

analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

$2,537.59 INC GST

Qty:

Available for Shipping : 08-Dec-2025

Product Selector

analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Catalog

Declaration of conformity

User guide

Circularity Profile

CAD

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Input output isolation	isolated
Electrical connection	20 ways 1 connector
Product or component type	analog output module
Range of product	Modicon X80
Complementary
Conversion time	<= 1 ms
Analogue output resolution	15 bits + sign
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Detection type	short circuit +/- 10 V, open circuit 4...20 mA, open circuit 0...20 mA
Load impedance ohmic	<= 500 Ohm 4...20 mA, <= 500 Ohm 0...20 mA, >= 1000 Ohm +/- 10 V
Power consumption in W	0.51 W 3.3 V DC maximum, 0.45 W 3.3 V DC typical, 3.6 W 24 V DC maximum, 3 W 24 V DC typical
Analogue output number	4
Isolation voltage	750 V DC between channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground
Net weight	0.15 kg
Minimum crosstalk attenuation	80 dB
Current consumption	140 mA at 24 V DC, 150 mA at 3.3 V DC
Supply	internal power supply via rack
Output level	high level
Common mode rejection	100 dB
Analogue output type	voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA
Temperature drift	45 ppm/°C 4...20 mA, 45 ppm/°C 0...20 mA, 45 ppm/°C +/- 10 V
Status LED	1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN
Maximum conversion value	+/- 10.5 V +/- 10 V, 0...21 mA 4...20 mA, 0...21 mA 0...20 mA
Measurement error	0.1 % of full scale 25 °C, <= 0.2 % of full scale 0...60 °C
Fallback mode	predefined, configurable
MTBF reliability	1000000 H
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Vibration resistance	3 gn
Shock resistance	30 gn
Standards	CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201
Ambient air temperature for operation	0-60 °C
Product certifications	UL, Merchant Navy, EAC, CSA, RCM, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	11.000 cm
Package 1 Length	11.500 cm
Package 1 Weight	211.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.500 kg
Unit Type of Package 3	3
Number of Units in Package 3	240
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	66.000 kg
